| Application | Excavator |

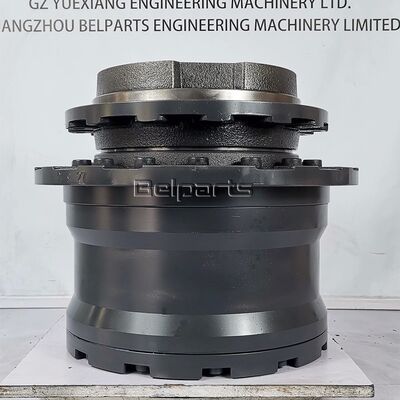

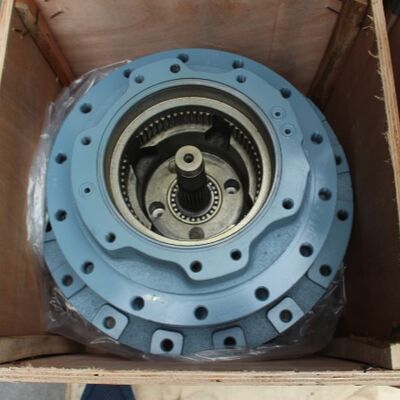

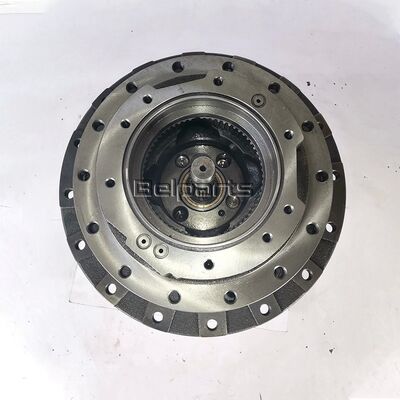

| Part Name | Excavator Travel Gearbox |
| Model | EX120-3 |
| Part Number | 9133211 9123358 |
| MOQ | 1 PC |
| Warranty | 12 Months |
| Payment Terms | T/T, LC, PayPal |
| Delivery | 3 Days After Payment Received |
| Shipment | By Sea, By Air, By Express or as Required |
During maintenance, regularly check the oil level and oil quality to avoid gear sintering caused by oil shortage or contamination. Replace seals every 2000 hours to prevent leakage failures.
Component Parts List
| # | Part No. | Description | Qty |
|---|---|---|---|
| 9180731 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | |
| 9181123 | TRAVEL DEVICE ASS'Y (FOR TRANSPORTATION) | 2 | |
| 00 | 9180429 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 |
| 00 | 9196238 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 |
| 02 | 4110369 | . SEAL; GROUP | 1 |
| 03 | 4321887 | . BRG.; ROL. | 2 |
| 04 | 1016125 | . DRUM | 1 |
| 05 | 1010325 | . SPROCKET | 1 |
| 06 | J931640 | . BOLT | 16 |
| 07 | 1027082 | . GEAR; RING | 1 |
| 08 | J931660 | . BOLT | 16 |
| 10 | 3085728 | . NUT | 1 |
| 11 | 4436242 | . PIN; KNOCK | 1 |
| 13 | 1027076 | . CARRIER | 1 |
| 14 | 3085566 | . GEAR; PLANETARY | 3 |
| 15 | 4442789 | . BRG.; NEEDLE | 6 |
| 16 | 4192982 | . PLATE; THRUST | 12 |
| 17 | 4245966 | . PIN | 3 |
| 18 | 4144020 | . PIN; SPRING | 3 |
| 19 | 3085569 | . GEAR; SUN | 1 |
| 21 | 2043774 | . CARRIER | 1 |
| 22 | 4418771 | . SPACER | 1 |
| 23 | 3085568 | . GEAR; PLANETARY | 3 |
| 24 | 4442788 | . BRG.; NEEDLE | 3 |
| 25 | 4178203 | . PIN | 3 |
| 26 | 4192020 | . PIN; SPRING | 3 |
| 27 | 2043769 | . SHAFT; PROP. | 1 |
| 29 | 2028800 | . COVER | 1 |
| 30 | 4258916 | . PIN; STOPPER | 1 |
| 31 | J011230 | . BOLT; SEMS | 12 |
| 32 | 4245797 | . PLUG | 3 |
| 34 | 3053559 | . NAME-PLATE | 1 |
| 35 | M492564 | . SCREW; DRIVE | 2 |
