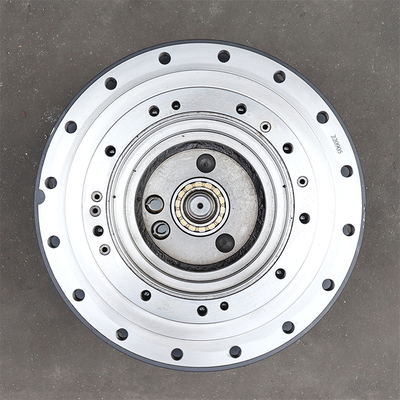

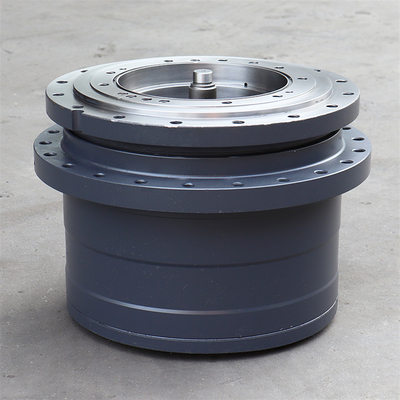

Belparts Excavator EC140 SA 8230-33470 Travel Reduction Gearbox For Volvo Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | EC140 | Part Number | SA 8230-33470 |
|---|---|---|---|
| Excavator Brand | Volvo | Part Name | Travel Reduction Gearbox |
| Name | Travel Gearbox | Application | Excavator Parts |
| Warranty | 6 Months | ||
| Highlight | EC140 SA travel reductiongearbox,volvo parts travel reductiongearbox,Belparts excavator travel reductiongearbox |
||
Product Description
Belparts excavator EC140 SA 8230-33470 travel reductiongearbox for volvo parts
Product Description
| Appliion | Excavator |
| Part name | Excavator travel gearbox |
| Part number | SA 8230-33470 |
| Model | EC140 |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, LC, PayPal |
| Delivery | 3 days after the payment received |
| Shipment | by sea, by air, by express or as required |
List of spare parts
| # | Part No | Part Name | Qty. | Price request | |||
|---|---|---|---|---|---|---|---|
| 8277943 | 8277944 | 8278097 | 8278098 | ||||
| SA 8230-33470 | Travel Gearbox | 1 | 1 | 1 | 1 | ||
| 1 | SA 8230-32570 | Cover | 1 | 1 | 1 | 1 | |
| 2 | SA 8230-33210 | Bolt | 12 | 12 | 12 | 12 | |
| 3 | SA 8230-32590 | Plug | 3 | 3 | 3 | 3 | |
| 4 | SA 9511-12024 | O-ring more | 3 | 3 | 3 | 3 | |
| 5 | SA 8230-32510 | Seal SER NO 10001-11070 |
2 | 2 | 2 | 2 | |
| VOE 14534291 | Seal SER NO 11071- |
2 | 2 | 2 | 2 | ||
| 6 | SA 8230-32450 | Bearing | 2 | 2 | 2 | 2 | |
| 7 | SA 8230-32580 | Nut | 1 | 1 | 1 | 1 | |
| 8 | SA 8230-32610 | Plug | 4 | 4 | 4 | 4 | |
| 9 | SA 8230-32540 | Housing | 1 | 1 | 1 | 1 | |
| 10 | SA 8230-32470 | Planetary Gear | 4 | 4 | 4 | 4 | |
| 11 | SA 8230-32430 | Needle Bearing | 4 | 4 | 4 | 4 | |
| 12 | SA 8230-32550 | Race | 4 | 4 | 4 | 4 | |
| 13 | SA 8230-32480 | Washer SER NO 10001-11070 |
4 | 4 | 4 | 4 | |
| VOE 14534292 | Washer SER NO 11071- |
4 | 4 | 4 | 4 | ||
| 14 | SA 8230-32500 | Pressure Plate | 4 | 4 | 4 | 4 | |
| 15 | SA 8230-32530 | Screw | 4 | 4 | 4 | 4 | |
| 16 | SA 8230-33270 | Spring Pin | 4 | 4 | 4 | 4 | |
| 17 | SA 8230-32460 | Gear | 1 | 1 | 1 | 1 | |
| 18 | SA 8230-32520 | Ring | 1 | 1 | 1 | 1 | |
| 19 | SA 8230-33480 | Holder | 1 | 1 | 1 | 1 | |
| 20 | SA 8230-33500 | Planetary Gear | 3 | 3 | 3 | 3 | |
| 21 | SA 8230-32440 | Needle Bearing | 3 | 3 | 3 | 3 | |
| 22 | SA 8230-32560 | Race | 3 | 3 | 3 | 3 | |
| 23 | SA 8230-32490 | Washer | 3 | 3 | 3 | 3 | |
| 24 | SA 8230-33490 | Gear | 1 | 1 | 1 | 1 | |
| 25 | SA 8230-33540 | Plate | 1 | 1 | 1 | 1 | |
| SA 8230-33510 | Pressure Plate | 1 | 1 | 1 | 1 | ||
| SA 8230-33520 | Pressure Plate | 1 | 1 | 1 | 1 | ||
| SA 8230-33530 | Pressure Plate | 1 | 1 | 1 | 1 | ||
| 100 | SA 8230-32620 | Sealing Kit INCL 4,5 more |
1 | 1 | 1 | 1 | |
| 200 | VOE 14526218 | Parts kit (gearbox) INCL 11,12,13,16,18,21,22,23 |
1 | 1 | 1 | 1 | |
The excavator swing motor, as the core actuator of hydraulic systems, directly determines equipment performance through its technical specifications. Taking the mainstream swash plate axial piston motor as an example, its operating pressure range typically spans 25-35MPa with displacement specifications covering 80-500cc/r, capable of delivering up to 3000Nm torque. The integrated cross roller bearing design enables axial load capacity exceeding 50kN, while achieving stepless rotation speed regulation from 0-12rpm. Utilizing a 9-piston symmetrical configuration, volumetric efficiency reaches over 97%, complemented by dual-channel flushing valves maintaining oil temperature below 65℃. Latest models incorporate pressure compensators and LUDV control systems, enabling demand-based flow distribution with 18% energy consumption reduction.
FAQ
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
