| Application | Excavator |

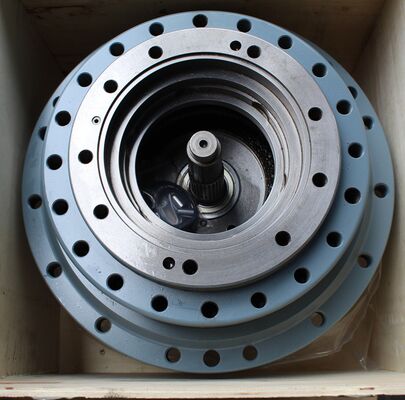

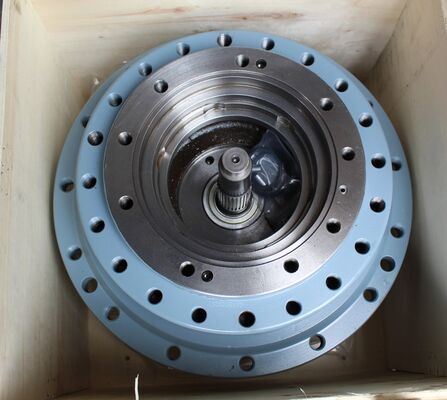

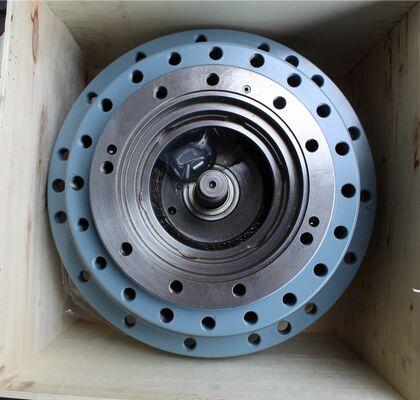

| Part Name | Excavator Travel Gearbox |
| Model | PC120-3 PC100-3 |
| Part Number | 203-60-00302 203-60-00301 203-60-00300 203-60-41101 |
| MOQ | 1 PC |
| Warranty | 12 Months |
| Payment Terms | T/T, LC, PayPal |
| Delivery | 3 Days After Payment Received |
| Shipment | By Sea, By Air, By Express or as Required |
During maintenance, regularly check the oil level and oil quality to avoid gear sintering caused by oil shortage or contamination. Replace seals every 2000 hours to prevent leakage failures.
Component Parts List
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 203-60-00302 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 203-60-00301 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 203-60-00300 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 203-60-41101 | TRAVEL MOTOR ASS'Y | 2 |
| ---- | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2005 AND 2006 | ||
| 1 | TZ150A1103-00 | HUB ASS'Y | 1 |
| 1 | TZ150A1001-02 | Hub | 1 |
| 1 | TZ150A1001-01 | Hub | 1 |
| 1 | ---- | Hub | 1 |
| 2 | TZ150A1008-02 | Cover | 1 |
| 2 | TZ150A1008-01 | Cover | 1 |
| 2 | ---- | Cover | 1 |
| 3 | ---- | PIN,DOWEL | 2 |
| 4 | TZ150A1102-01 | SPINDLE ASS'Y | 1 |
| 4 | ---- | Hub | 1 |
| 5 | ---- | FLANGE,HOLD | 1 |
| 6 | ---- | Carrier | 1 |
| 7 | TZ100A1019-00 | BOLT,REAMER | 3 |
| 8 | TZ200A1015-00 | Pin | 6 |
| 9 | 01252-31850 | Bolt | 6 |
| 10 | TZ200A1013-00 | PIECE,DISTANCE | 1 |
| 11 | TZJW1516-G26-9 | O-RING (KIT) | 1 |
| 12 | TZ150A1011-00 | Ring | 1 |
| 13 | TZ200A1021-01 | BEARING,BALL | 2 |
| 13 | TZ200A1021-00 | BEARING,BALL | 2 |
| 14 | TZ150A1010-00 | PIECE,DISTANCE | 1 |
| 15 | 07000-15260 | O-RING,(F4350-60A0 -15 ) | 1 |
| 16 | TZES100-209-A | SEAL,FLOATING (KIT) | 1 |
| 17 | 07000-11006 | O-RING,(NOT SHOWN) | 1 |
| 18 | TZJW1516-G41-9 | O-RING (KIT) | 1 |
| 19 | TZ150A1104-00 | GEAR ASS'Y | 1 |
| 19 | ---- | Gear | 1 |
| 20 | ---- | Gear | 1 |
| 21 | ---- | Bearing | 1 |
| 21 | TZ150A1007-00 | Bearing | 1 |
| 22 | ---- | SHAFT,CRANK | 3 |
| 23 | ---- | Bearing | 6 |
| 24 | ---- | Bearing | 6 |
| 25 | TZ150A1017-00 | Pin | 54 |
| 26 | TZ150A1012-00 | Ring | 1 |
| 27 | TZ150A1020-00 | SNAP RING KIT,SNAP | 3 |
| 28 | 04064-04018 | RING,SNAP (WITH EMERGENCY STEERING) | 1 |
| 29 | TZ150A1024-00 | Bearing | 1 |
| 30 | TZJB1555-AW07 | Washer | 1 |
| 31 | TZJB1554-AN07 | Nut | 1 |
| 32 | TZJW1516-P77-7 | O-RING (KIT) | 1 |
| 32 | 07000-15270 | O-RING,CA1SE SIDE | 1 |
| 33 | TZGM1-2 | Plug | 2 |
| 34 | TZ150A1018-00 | Ring | 1 |
