| MOQ: | 1PCS |
| Price: | Negotiated price |
| Standard Packaging: | Wooden case |
| Delivery Period: | 1~7 days |
| Payment Method: | T/T, trade assurance,PayPal |
| Supply Capacity: | 1000PCS |

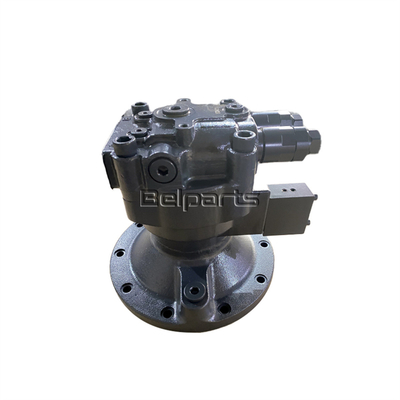

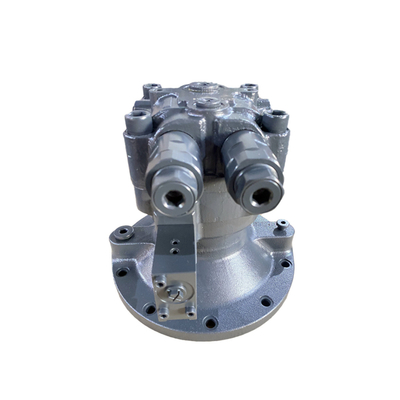

Belparts EC140 14524188 swing motor VOE 14524188 SA 1142-06500 for excavator
| Model | EC140 |
| Usage | Excavator |
| Apply For | Excavator parts |
| Part number | VOE 14524188 SA 1142-06500 VOE 14501616 |
| Place Of Country | China |
| Payments | T/T, PayPal, Trade Assurance |
| Part Name | Swing Motor |
| Keywords | slewing motor ,swing motor |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 8277787 | ||||
| SA 1142-06500 | Motor SER NO 10001-10973 |
1 | ||
| VOE 14524188 | Motor SER NO 10974- |
1 | ||
| 1 | VOE 14501616 | Piston | 9 | |
| 2 | VOE 14501617 | Piston | 1 | |
| 3 | VOE 14501618 | Seat | 1 | |
| 4 | SA 8230-30360 | Casing | 1 | |
| 5 | VOE 14501619 | Casing | 1 | |
| 6 | VOE 14501620 | Pin | 2 | |
| 7 | SA 8230-13670 | Shaft | 1 | |
| 8 | SA 8230-13440 | Valve SER NO 10001-10973 more |
1 | |
| VOE 14511642 | Valve SER NO 10974- more |
1 | ||
| SA 8230-33690 | Plug more | 2 | ||
| 9 | SA 8230-13690 | Cylinder | 1 | |
| 10 | SA 8230-14100 | Retainer | 1 | |
| 11 | SA 8230-14130 | Spring | 1 | |
| 12 | SA 8230-26340 | Rod | 12 | |
| 13 | SA 8230-14120 | Spacer | 2 | |
| 14 | SA 8230-13920 | Plate | 1 | |
| 15 | SA 8230-14080 | Plate | 1 | |
| 16 | SA 8230-13930 | Plate | 1 | |
| 17 | SA 8230-13600 | Casing | 1 | |
| 18 | SA 8230-14090 | Cover | 1 | |
| 19 | SA 8230-14170 | Plunger | 2 | |
| 20 | SA 8230-14180 | Spring | 2 | |
| 21 | SA 8240-03530 | Bolt | 4 | |
| 22 | SA 8230-25970 | Ring more | 2 | |
| 23 | SA 8230-26960 | Ring | 1 | |
| 24 | SA 8230-25770 | Ring | 1 | |
| 25 | SA 8230-25720 | Ring | 1 | |
| 26 | SA 8230-26570 | Roller Bearing | 1 | |
| 27 | SA 8230-26550 | Roller Bearing SER NO 10001-10973 |
1 | |
| VOE 14511641 | Roller Bearing SER NO 10974- |
1 | ||
| 28 | SA 9415-11021 | Plug SER NO 10001-10973 more |
3 | |
| SA 8230-25640 | Plug SER NO 10974- more |
3 | ||
| 29 | SA 8230-25660 | Plug | 2 | |
| 30 | SA 9511-22080 | O-ring more | 1 | |
| 31 | SA 8240-03361 | O-ring | 1 | |
| 32 | SA 9511-12011 | O-ring more | 3 | |
| 33 | SA 9511-12020 | O-ring more | 2 | |
| 34 | SA 8230-26860 | Seal | 1 | |
| 35 | SA 8230-13840 | Piston | 1 | |
| 36 | SA 8230-25510 | O-ring | 1 | |
| 37 | SA 8230-25520 | O-ring | 1 | |
| 38 | SA 8230-14140 | Spring | 16 | |
| 39 | SA 8230-13780 | Plate | 3 | |
| 40 | SA 8230-13730 | Plate | 4 | |
| 41 | SA 8230-26930 | Plug more | 1 | |
| 42 | SA 8230-26920 | Plug more | 1 | |
| 43 | VOE 14511643 | Screw | 3 | |
| 44 | SA 8230-14110 | Spacer | 3 | |
| 45 | SA 8230-36550 | Relief valve | 2 | |
| 46 | SA 9511-22030 | O-ring more | 1 | |
| 47 | SA 8230-27380 | Relief valve SER NO 10001-10973 |
1 | |
| VOE 14511644 | Block SER NO 10974- |
1 | ||
| 48 | VOE 14511646 | Casing | 1 | |
| 49 | VOE 14500037 | Valve | 2 | |
| 50 | SA 9511-12020 | O-ring more | 1 | |
| 51 | SA 9566-10200 | Ring | 1 | |
| 52 | SA 7242-11040 | Plug more | 4 | |
| 53 | SA 9511-12022 | O-ring more | 2 | |
| 54 | SA 8230-25920 | Bolt | 6 | |
| 55 | SA 8230-30430 | Plug SER NO 10001-10973 |
2 | |
| 56 | VOE 14529759 | Plug more | 1 | |
| 100 | SA 8230-14370 | Sealing Kit more | 1 |
The excavator swing motor is the core component responsible for the machine's 360° rotation, converting hydraulic energy into precise mechanical motion. Our cutting-edge swing motor series combines decades of engineering expertise with advanced materials science to deliver unmatched performance in harsh working conditions.
Featuring a patented axial piston design with hardened steel components, our motors achieve 15% higher torque density than industry standards while maintaining 92% volumetric efficiency. The integrated anti-shock valve system minimizes pressure spikes during sudden stops, extending service life by up to 8,000 hours even in continuous mining operations.
Key innovations include:
Smart Pressure Compensation: Automatically adjusts oil flow to prevent cavitation during high-speed rotations
Labyrinth Seal Technology: Keeps contaminants out with 99.7% effectiveness, reducing wear
Modular Repair Design: 60% faster maintenance with cartridge-style valve assemblies
With ISO 4406:2021 cleanliness compliance and optional IoT-enabled predictive maintenance sensors, our motors redefine reliability for 20-50 ton excavators across construction, demolition, and forestry applications.
