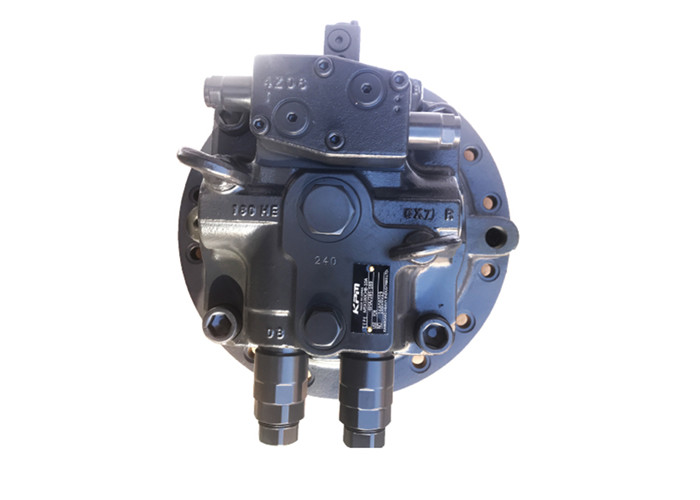

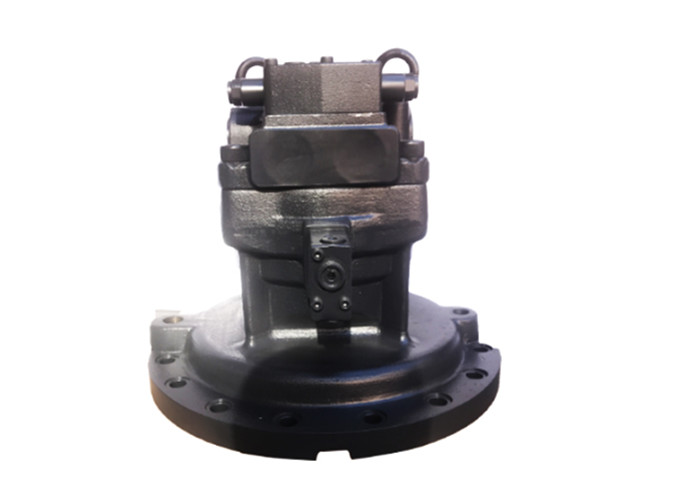

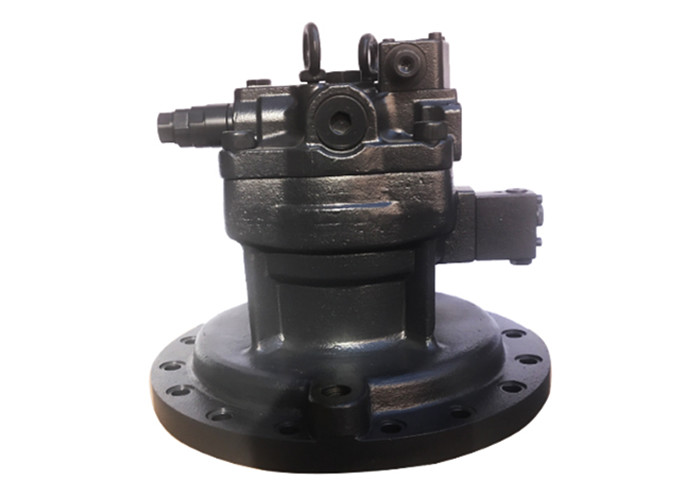

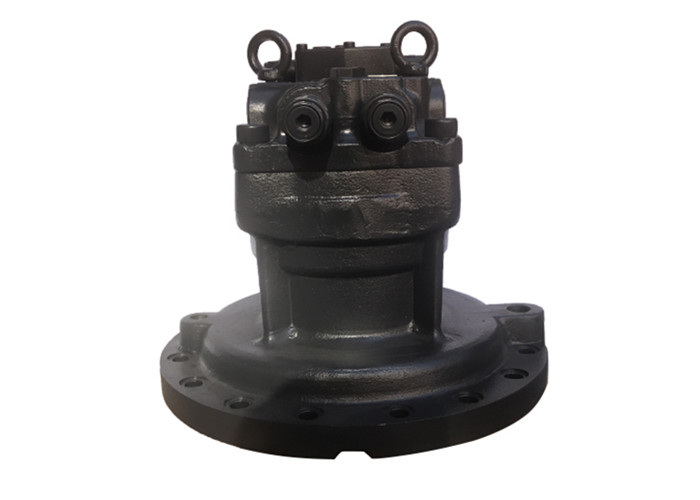

Belparts Excavator parts 14550094 EC240 M5X180 Swing Motor
Product Description
|
Appliion |
Excavator |
|
Part name |
Swing Motor |
|
Material |
Steel |
|
Model |
EC240 EC240B M2X146B |
|
MOQ |
1PC |
|
Warranty |
3 months |
|
Payment term |
T/T&Western Union &Paypal |
|
Delivery Time |
Within 2 days after receiving the payment |
|
Packing |
Standard shipping package |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| SA 1142-00520 | Swing Motor SER NO 3001-3103 |
1 | ||
| VOE 14500382 | Swing Motor SER NO 3104- |
1 | ||
| 1 | VOE 14500062 | Piston | 1 | |
| 2 | SA 8230-13560 | Casing SER NO 3001-3103 |
1 | |
| VOE 14509246 | Casing SER NO 3104- |
1 | ||
| 3 | VOE 14500066 | Shaft | 1 | |
| 4 | SA 8230-13500 | Spacer | 1 | |
| 5 | SA 8230-13680 | Cylinder | 1 | |
| 6 | SA 8230-13700 | Retainer | 1 | |
| 7 | SA 8230-13460 | Spring | 1 | |
| 8 | SA 8230-26390 | Bar | 12 | |
| 9 | SA 8230-13490 | Spacer | 3 | |
| 10 | SA 8230-13630 | Plate | 1 | |
| 11 | SA 8230-13710 | Plate | 1 | |
| 12 | SA 8230-13750 | Plate | 1 | |
| 13 | SA 8230-13580 | Casing | 1 | |
| 14 | SA 8230-13540 | Cover | 1 | |
| 15 | SA 8230-14160 | Plunger SER NO 3001-3103 |
1 | |
| VOE 14501798 | Plunger SER NO 3104- |
2 | ||
| 16 | SA 8230-14150 | Spring SER NO 3001-3103 |
1 | |
| VOE 14501799 | Spring SER NO 3104- |
2 | ||
| 17 | SA 8230-25820 | Bolt | 4 | |
| 18 | SA 8230-25760 | Ring | 1 | |
| 19 | SA 8230-25740 | Ring | 1 | |
| 20 | SA 8230-26530 | Roller Bearing | 1 | |
| 21 | SA 8230-26600 | Roller Bearing more | 1 | |
| 22 | SA 8230-25640 | Plug SER NO 3001-3103 more |
4 | |
| SA 8230-25640 | Plug SER NO 3104- more |
2 | ||
| 23 | SA 8230-26730 | Plug SER NO 3001-3103 |
2 | |
| VOE 14501802 | Plug SER NO 3104- |
2 | ||
| 24 | SA 8230-25551 | O-ring | 1 | |
| 25 | SA 9511-12011 | O-ring SER NO 3001-3103 more |
4 | |
| SA 9511-12011 | O-ring SER NO 3104- more |
2 | ||
| 26 | SA 9511-12028 | O-ring SER NO 3001-3103 more |
2 | |
| SA 9511-12034 | O-ring SER NO 3104- |
2 | ||
| 27 | SA 9511-12012 | O-ring more | 2 | |
| 28 | SA 8230-26871 | Seal | 1 | |
| 29 | SA 8220-10730 | Piston | 1 | |
| 30 | SA 8210-06281 | O-ring | 1 | |
| 31 | SA 8230-25560 | O-ring | 1 | |
| 32 | SA 8230-14040 | Spring | 12 | |
| 33 | SA 8230-13770 | Plate | 3 | |
| 34 | SA 8230-13720 | Plate | 4 | |
| 35 | SA 8230-13450 | Slide | 1 | |
| 36 | SA 8230-13480 | Spring | 1 | |
| 37 | VOE 14500067 | Plunger | 1 | |
| 38 | SA 8230-13550 | Cover | 1 | |
| 39 | SA 8230-25830 | Bolt | 2 | |
| 40 | SA 7242-11040 | Plug more | 3 | |
| 41 | VOE 14518517
Replace: SA 8230-27410
|
Relief valve more | 2 | |
| 42 | SA 9511-22030 | O-ring more | 1 | |
| 43 | SA 9566-20300 | Ring more | 1 | |
| 44 | SA 8230-27390 | Block SER NO 3001-3103 |
1 | |
| SA 8230-27360 | Block SER NO 3104- |
1 | ||
| 45 | SA 8230-27150 | Casing SER NO 3001-3103 |
1 | |
| SA 8230-29070 | Casing SER NO 3104- |
1 | ||
| 46 | SA 8240-03270 | Plug SER NO 3001-3103 |
6 | |
| SA 8230-25640 | Plug SER NO 3104- more |
2 | ||
| 47 | SA 9511-22030 | O-ring SER NO 3001-3103 more |
2 | |
| SA 9511-12011 | O-ring SER NO 3104- more |
2 | ||
| 48 | SA 8230-25870 | Bolt SER NO 3001-3103 more |
2 | |
| SA 8240-03610 | Screw SER NO 3104- |
4 | ||
| 49 | VOE 14500037 | Valve | 2 | |
| 50 | SA 9511-12020 | O-ring more | 1 | |
| 51 | SA 9566-10200 | Ring | 1 | |
| 52 | SA 9511-12012 | O-ring more | 2 | |
| 53 | SA 9511-12006 | O-ring more | 2 | |
| 54 | SA 8230-26930 | Plug more | 1 | |
| 55 | SA 8230-26920 | Plug SER NO 3001-3103 |
1 | |
| SA 8230-26910 | Plug SER NO 3104- |
1 | ||
| 56 | SA 8230-33690 | Plug more | 2 | |
| 100 | SA 8148-10180 | Seal SER NO 3001-3103 |
1 | |
| VOE 14509253 | Sealing Kit SER NO 3104- |
1 |
