| MOQ: | 1PCS |
| Price: | Negotiated price |
| Standard Packaging: | Wooden |
| Delivery Period: | 2-5days |
| Payment Method: | T/T, Western Union,Paypal |
| Supply Capacity: | 500 pieces per month |

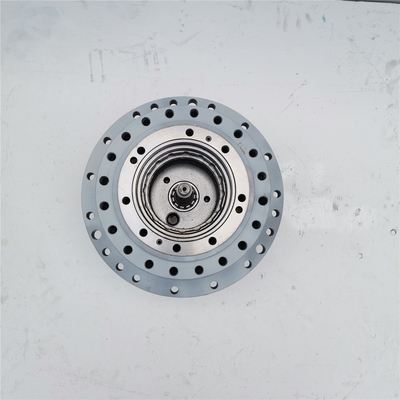

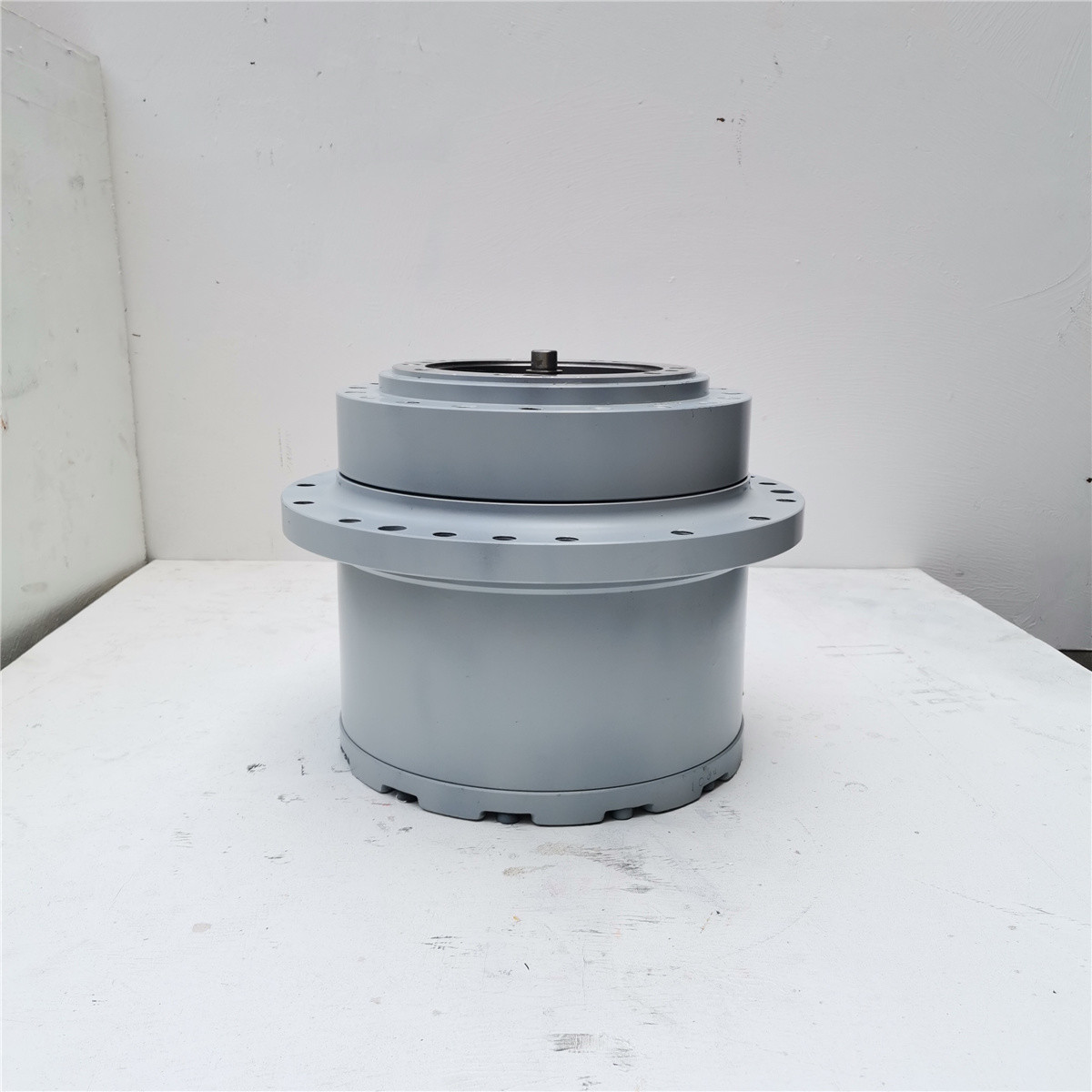

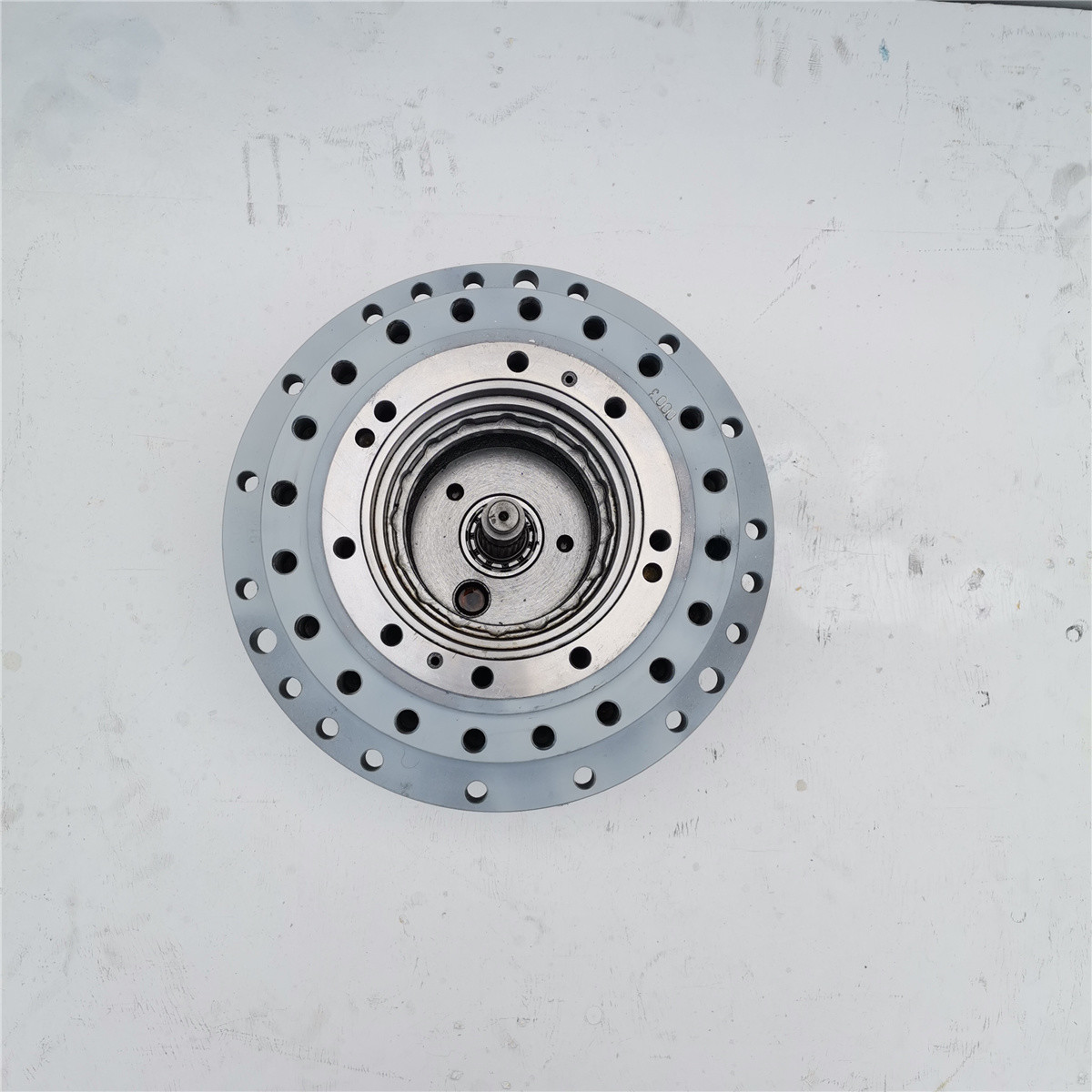

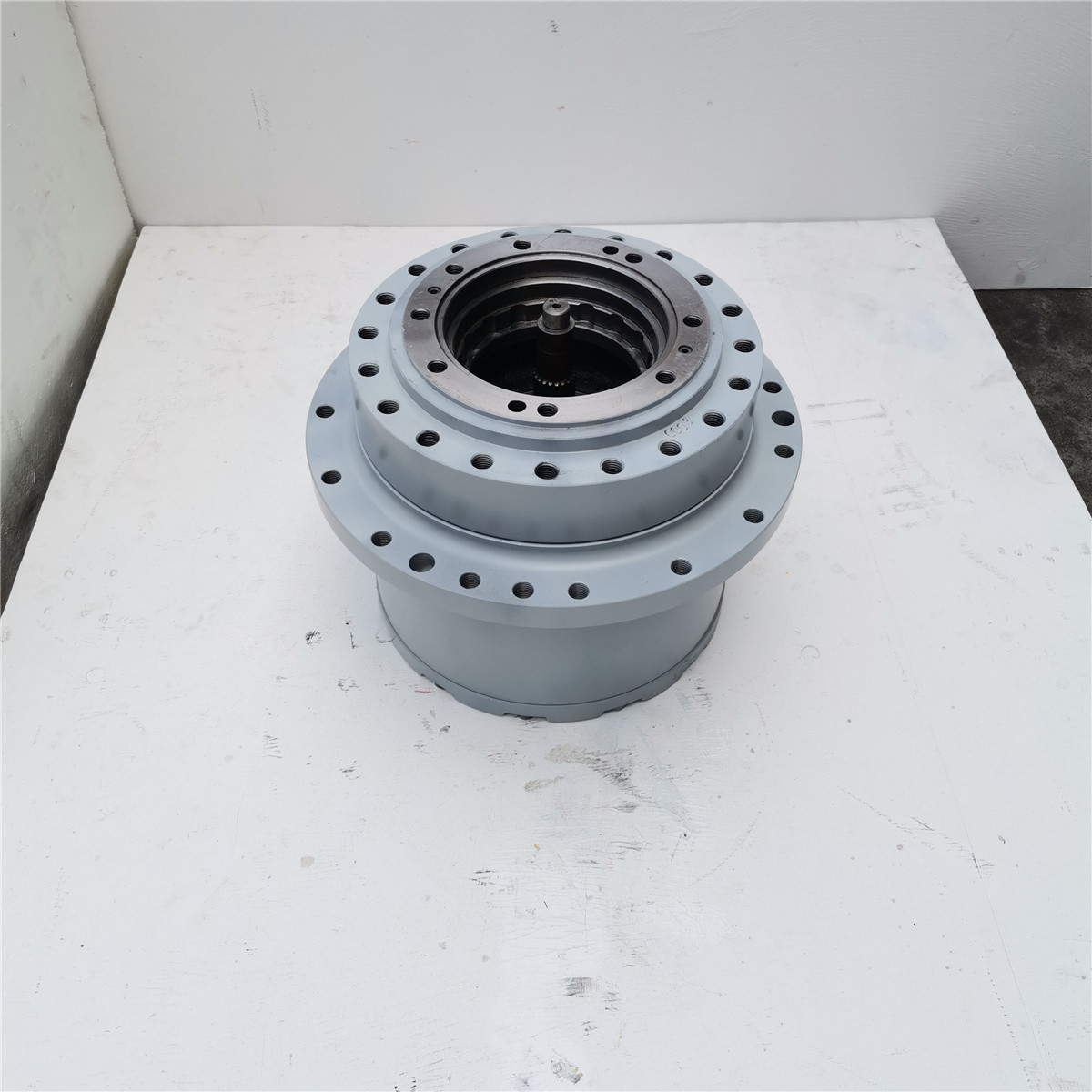

Excavator Volvo EC140 EC140B Travel Reduction 14573820 SA 8230-33470 Gearbox
The excavator travel gearbox is a critical component in crawler excavators, responsible for transferring power from the engine to the tracks, enabling controlled movement. Designed to withstand heavy loads and harsh environments, it ensures efficient mobility across diverse terrains. This guide explores its working principles, construction, functions, applications, and maintenance practices.
Product Description
|
Product name |
Travel Reduction
|
|
Place of Origin: |
China(mainland)
|
|
Model: |
EC140 EC140B
|
|
Part number: |
14573820 SA 8230-33470
|
|
MOQ: |
1 PCS
|
|
Payment term: |
T/T & Western Union & Paypal
|
|
Delivery time: |
Within 3 days after receiving the payment
|
|
Packing: |
Standard exporting packing or as required
|
Torque Conversion: Converts hydraulic/mechanical input into high-torque output for track movement.
Speed Control: Adjusts track speed via gear ratios.
Directional Mobility: Facilitates forward/reverse operation.
Load Distribution: Distributes weight evenly across tracks to prevent slippage.
Shock Absorption: Dampens impacts from uneven terrain.
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| DF16F001 | ||||
| SA 8230-33470 | Travel Gearbox | 1 | ||
| 1 | SA 8230-32570 | Cover | 1 | |
| 2 | SA 8230-33210 | Bolt | 12 | |
| 3 | SA 8230-32590 | Plug | 3 | |
| 4 | SA 9511-12024 | O-ring more | 3 | |
| 5 | SA 8230-32510 | Seal more | 2 | |
| 6 | SA 8230-32450 | Bearing | 2 | |
| 7 | SA 8230-32580 | Nut | 1 | |
| 8 | SA 8230-32610 | Plug | 4 | |
| 9 | SA 8230-32540 | Housing | 1 | |
| 10 | SA 8230-32470 | Planetary Gear | 4 | |
| 11 | SA 8230-32430 | Needle Bearing | 4 | |
| 12 | SA 8230-32550 | Race | 4 | |
| 13 | SA 8230-32480 | Washer more | 4 | |
| 14 | SA 8230-32500 | Pressure Plate | 4 | |
| 15 | SA 8230-32530 | Screw | 4 | |
| 16 | SA 8230-33270 | Spring Pin | 4 | |
| 17 | SA 8230-32460 | Gear | 1 | |
| 18 | SA 8230-32520 | Ring | 1 | |
| 19 | SA 8230-33480 | Holder | 1 | |
| 20 | SA 8230-33500 | Planetary Gear | 3 | |
| 21 | SA 8230-32440 | Needle Bearing | 3 | |
| 22 | SA 8230-32560 | Race | 3 | |
| 23 | SA 8230-32490 | Washer | 3 | |
| 24 | SA 8230-33490 | Gear | 1 | |
| 25 | SA 8230-33540 | Plate | 1 | |
| SA 8230-33510 | Pressure Plate | 1 | ||
| SA 8230-33520 | Pressure Plate | 1 | ||
| SA 8230-33530 | Pressure Plate | 1 | ||
| 100 | SA 8230-32620 | Sealing Kit KIT more |
1 |
Function: Protects internal components and retains lubrication.
Planetary Gear Sets: Compact design for high torque transmission.
Spur Gears: Simpler models use spur gears for cost efficiency.
Tapered Roller Bearings: Handle axial and radial loads.
Needle Bearings: Used in high-speed sections.
Input Shaft: Connects to the hydraulic motor.
Output Shaft: Drives the sprocket.
Lip Seals/Gaskets: Prevent oil leaks and contamination.
Oil Bath/Grease Lubrication: Reduces friction and wear.
Wet Disc Brakes: Hydraulically activated for smooth stopping.
Directional Clutches: Enable gear shifting (in mechanical models).
FAQ
| Q: Is the quality of reducer guaranteed? |
| A:Of course.Our reducers are of guaranteed quality. |
| Q: How about your after-sales service ? |
| A: We have a very comprehensive after-sales service, for you to solve problems at any time. |
| Q: How long is your delivery time? |
| A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
