Excavator Swing Motor EC240B VOE14500382 SA 1142-00520 For Excavator Parts

Place of Origin	China
Brand Name	Belparts
Model Number	EC240B
Minimum Order Quantity	Negotiation
Price	Negotated price
Packaging Details	Wooden
Delivery Time	2-5days
Payment Terms	T/T, Western Union,Paypal
Supply Ability	500 pieces

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model	EC240B	Part Number	VOE14500382 SA 1142-00520
Part Name	Swing Motor	Appliion	Crawler Excavator Parts
Brand	Volvo	Material	Steel
Quality	Original	Warranty	6 Months
Highlight	SA 1142-00520 Excavator swing motor , VOE14500382 Excavator swing motor , EC240B Excavator swing motor

Leave a Message

Product Description

Excavator swing motor EC240B VOE14500382 SA 1142-00520 for excavator parts

Product Description

Appliion	Excavator
Part name	Swing Motor
Model	EC240B
Part number	VOE14500382 SA 1142-00520
Brand	volvo
Warranty	6 months
Payment term	T/T& LC &Paypal
Delivery Time	Within 3 days after receiving the payment
Packing	Standard shipping package

List of spare parts

#	Part No	Part Name	Qty.
	SA 1142-00520	Swing Motor SER NO 3001-3103	1
	VOE 14500382	Swing Motor SER NO 3104-	1
1	VOE 14500062	Piston	1
2	SA 8230-13560	Casing SER NO 3001-3103	1
	VOE 14509246	Casing SER NO 3104-	1
3	VOE 14500066	Shaft	1
4	SA 8230-13500	Spacer	1
5	SA 8230-13680	Cylinder	1
6	SA 8230-13700	Retainer	1
7	SA 8230-13460	Spring	1
8	SA 8230-26390	Bar	12
9	SA 8230-13490	Spacer	3
10	SA 8230-13630	Plate	1
11	SA 8230-13710	Plate	1
12	SA 8230-13750	Plate	1
13	SA 8230-13580	Casing	1
14	SA 8230-13540	Cover	1
15	SA 8230-14160	Plunger SER NO 3001-3103	1
	VOE 14501798	Plunger SER NO 3104-	2
16	SA 8230-14150	Spring SER NO 3001-3103	1
	VOE 14501799	Spring SER NO 3104-	2
17	SA 8230-25820	Bolt	4
18	SA 8230-25760	Ring	1
19	SA 8230-25740	Ring	1
20	SA 8230-26530	Roller Bearing	1
21	SA 8230-26600	Roller Bearing more	1
22	SA 8230-25640	Plug SER NO 3001-3103 more	4
	SA 8230-25640	Plug SER NO 3104- more	2
23	SA 8230-26730	Plug SER NO 3001-3103	2
	VOE 14501802	Plug SER NO 3104-	2
24	SA 8230-25551	O-ring	1
25	SA 9511-12011	O-ring SER NO 3001-3103 more	4
	SA 9511-12011	O-ring SER NO 3104- more	2
26	SA 9511-12028	O-ring SER NO 3001-3103 more	2
	SA 9511-12034	O-ring SER NO 3104-	2
27	SA 9511-12012	O-ring more	2
28	SA 8230-26871	Seal	1
29	SA 8220-10730	Piston	1
30	SA 8210-06281	O-ring	1
31	SA 8230-25560	O-ring	1
32	SA 8230-14040	Spring	12
33	SA 8230-13770	Plate	3
34	SA 8230-13720	Plate	4
35	SA 8230-13450	Slide	1
36	SA 8230-13480	Spring	1
37	VOE 14500067	Plunger	1
38	SA 8230-13550	Cover	1
39	SA 8230-25830	Bolt	2
40	SA 7242-11040	Plug more	3
41	VOE 14518517 Replace: SA 8230-27410	Relief valve more	2
42	SA 9511-22030	O-ring more	1
43	SA 9566-20300	Ring more	1
44	SA 8230-27390	Block SER NO 3001-3103	1
	SA 8230-27360	Block SER NO 3104-	1
45	SA 8230-27150	Casing SER NO 3001-3103	1
	SA 8230-29070	Casing SER NO 3104-	1
46	SA 8240-03270	Plug SER NO 3001-3103	6
	SA 8230-25640	Plug SER NO 3104- more	2
47	SA 9511-22030	O-ring SER NO 3001-3103 more	2
	SA 9511-12011	O-ring SER NO 3104- more	2
48	SA 8230-25870	Bolt SER NO 3001-3103 more	2
	SA 8240-03610	Screw SER NO 3104-	4
49	VOE 14500037	Valve	2
50	SA 9511-12020	O-ring more	1
51	SA 9566-10200	Ring	1
52	SA 9511-12012	O-ring more	2
53	SA 9511-12006	O-ring more	2
54	SA 8230-26930	Plug more	1
55	SA 8230-26920	Plug SER NO 3001-3103	1
	SA 8230-26910	Plug SER NO 3104-	1
56	SA 8230-33690	Plug more	2
100	SA 8148-10180	Seal SER NO 3001-3103	1

The excavator swing motor, as the core actuator of hydraulic systems, directly determines equipment performance through its technical specifications. Taking the mainstream swash plate axial piston motor as an example, its operating pressure range typically spans 25-35MPa with displacement specifications covering 80-500cc/r, capable of delivering up to 3000Nm torque. The integrated cross roller bearing design enables axial load capacity exceeding 50kN, while achieving stepless rotation speed regulation from 0-12rpm. Utilizing a 9-piston symmetrical configuration, volumetric efficiency reaches over 97%, complemented by dual-channel flushing valves maintaining oil temperature below 65℃. Latest models incorporate pressure compensators and LUDV control systems, enabling demand-based flow distribution with 18% energy consumption reduction.

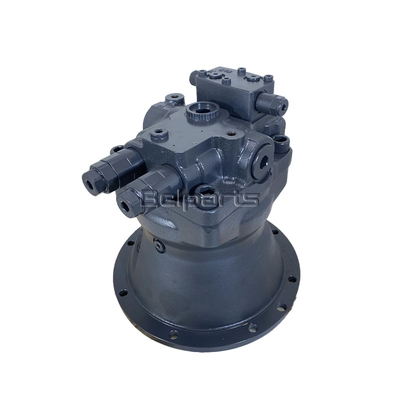

Excavator Swing Motor EC240B VOE14500382 SA 1142-00520 For Excavator Parts 0

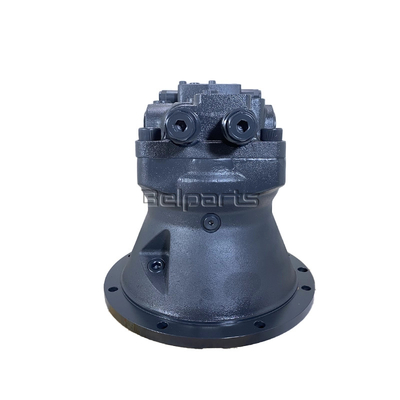

Excavator Swing Motor EC240B VOE14500382 SA 1142-00520 For Excavator Parts 1

FAQ

Q1. What's your payment methods?
A: Belparts accept payment methods of Bank transfer, Western Union, Money Gram, Credit Card,Paypal

Q2. How are you going to ship my order?
A: Belparts will arrange the shipment by DHL, FedEx, UPS, TNT and EMS usually.

Q3. How long will you delivery my order to me?
A: The normal delivery time to US is 3-5 days, while 3-7 days will be needed for other countries. EMS will take more days for delivery.

Q4. How can I trace my order?
A: Once your order is shipped, including tracking number.

Q5. If I am not satisfied with your products, can I return goods?
A: Please contact us before you return the defective products.The buyers will pay for the cost of return shipments, and we will responsible for sending the replaced or repaired items back to buyers.
