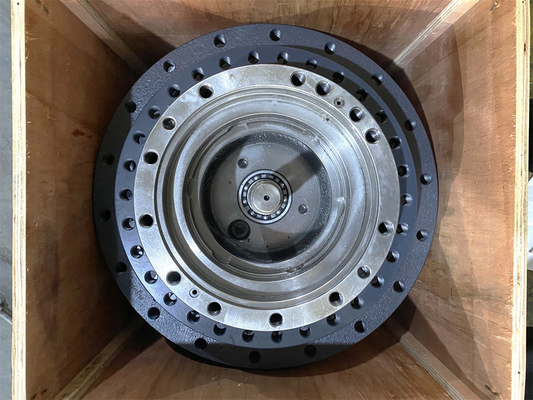

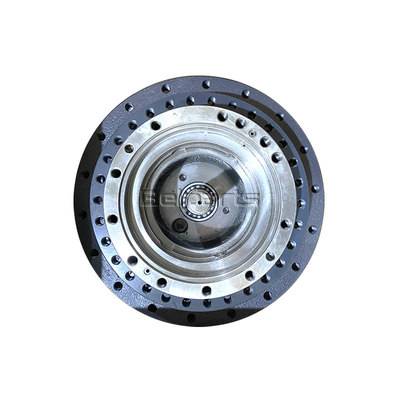

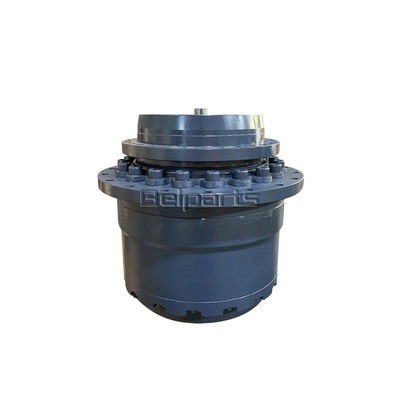

Belparts excavator EC210B EC240B EC240C VOE14528734 for SA 7117-34050 travel reduction gear box
Product Description
| Appliion | Excavator |
| Part name | Excavator travel gearbox |
| Part number | VOE14528734 7117-34050 |
| Model | EC210B EC240B EC240C |
| MOQ | 1PC |
| Warranty6 | months |
| Payment term | T/T, LC, PayPal |
| Delivery | 1 days after the payment received |
| Shipment | by sea, by air, by express or as required |
The excavator travel gearbox (also known as the final drive or track gearbox) is a vital component in an excavator’s undercarriage system. It serves as the critical link between the hydraulic motor and the tracks, converting high-speed, low-torque input into low-speed, high-torque output to ensure smooth and powerful movement across challenging terrains.
| # | Part No | Part Name | Qty. | Price request | |
|---|---|---|---|---|---|
| DE16F001 | DE16F002 | ||||
| SA 7117-34050 | Travel Gearbox | 1 | 1 | ||
| 1 | SA 7117-34100 | Housing more | 1 | 1 | |
| 2 | SA 7117-34110 | Bearing more | 2 | 2 | |
| 3 | SA 7117-34120 | Gear | 1 | 1 | |
| 4 | SA 9016-21818 | Bolt | 20 | 20 | |
| 5 | SA 7117-34130 | Seal more | 1 | 1 | |
| 6 | SA 9415-43042 | Plug more | 3 | 3 | |
| 7 | SA 7117-34190 | Retainer | 1 | 1 | |
| 8 | VOE 9011-11206 | Screw | 12 | 12 | |
| 9 | SA 7117-34200 | Carrier | 1 | 1 | |
| 10 | SA 7117-34210 | Carrier | 1 | 1 | |
| 11 | SA 7117-34220 | Planetary Gear | 4 | 4 | |
| 12 | SA 7117-34230 | Needle Bearing | 8 | 8 | |
| 13 | SA 7117-34240 | Washer | 8 | 8 | |
| 14 | SA 7117-34250 | Pin | 4 | 4 | |
| 15 | SA 9325-08016 | Spring Pin | 4 | 4 | |
| 16 | SA 7117-34260 | Carrier more | 1 | 1 | |
| 17 | SA 7117-34270 | Carrier more | 1 | 1 | |
| 18 | SA 1036-00310 | Ring | 1 | 1 | |
| 19 | SA 7117-34280 | Gear | 1 | 1 | |
| 20 | SA 1036-00300 | Ring | 1 | 1 | |
| 21 | SA 7117-34290 | Ring | 1 | 1 | |
| 22 | SA 7117-34300 | Planetary Gear | 3 | 3 | |
| 23 | SA 7117-34310 | Needle Bearing | 3 | 3 | |
| 24 | SA 7117-34320 | Washer | 6 | 6 | |
| 25 | SA 7117-34330 | Pin | 3 | 3 | |
| 26 | SA 9325-06012 | Spring Pin | 3 | 3 | |
| 27 | SA 7117-34340 | Carrier | 1 | 1 | |
| 28 | SA 7117-34350 | Carrier | 1 | 1 | |
| 29 | SA 7117-34370 | Pin | 3 | 3 | |
| 30 | SA 9325-06012 | Spring Pin | 3 | 3 | |
| 31 | SA 7117-34360 | Gear | 1 | 1 | |
| 32 | SA 7117-34440 | Ring | 1 | 1 | |
| 33 | SA 7117-34420 | Planetary Gear | 3 | 3 | |
| 34 | SA 7117-34380 | Needle Bearing | 3 | 3 | |
| 35 | SA 7117-34390 | Washer | 3 | 3 | |
| 36 | SA 7117-34400 | Washer | 3 | 3 | |
| 37 | SA 9541-01034 | Ring | 3 | 3 | |
| 38 | SA 1036-00290 | Ring | 2 | 2 | |
| 39 | SA 7117-34430 | Gear | 1 | 1 | |
| 40 | SA 7117-34410 | Cover more | 1 | 1 | |
| 41 | VOE 9213-10000 | Spring Washer | 16 | 16 | |
| 42 | SA 9011-11007 | Bolt more | 16 | 16 | |
| 43 | SA 7117-34140 | Shim 0.1t |
1 | 1 | |
| 44 | SA 7117-34150 | Shim 0.3t |
1 | 1 | |
| 45 | SA 7117-34160 | Shim 0.5t |
1 | 1 | |
| 46 | SA 7117-34170 | Shim 1.0t |
1 | 1 | |
| 47 | SA 1036-00450 | Shim more | 1 | 1 | |
| 48 | SA 1036-00460 | Shim more | 1 | 1 | |
FAQ
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
