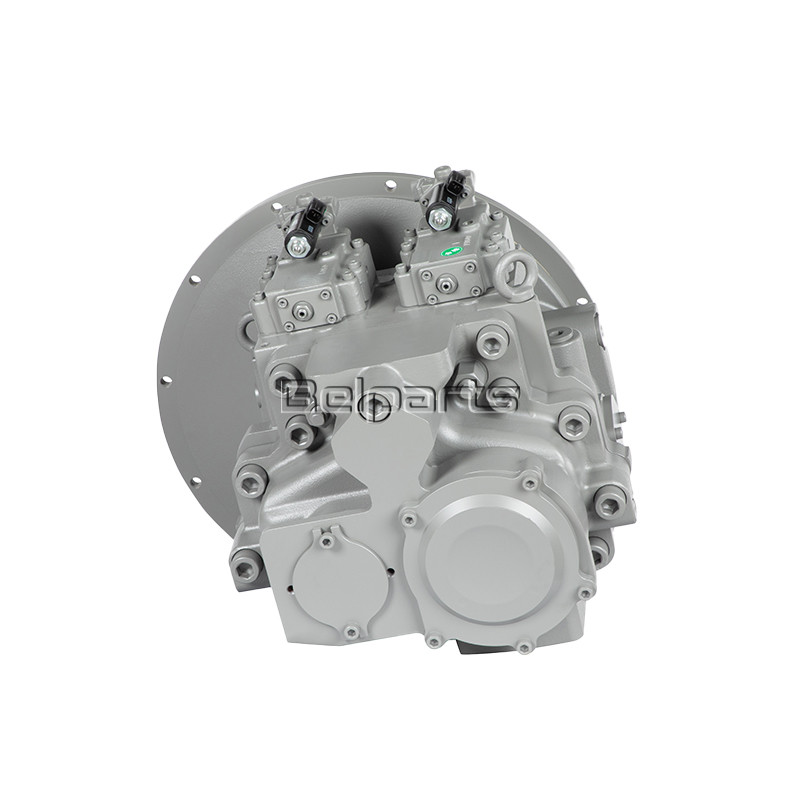

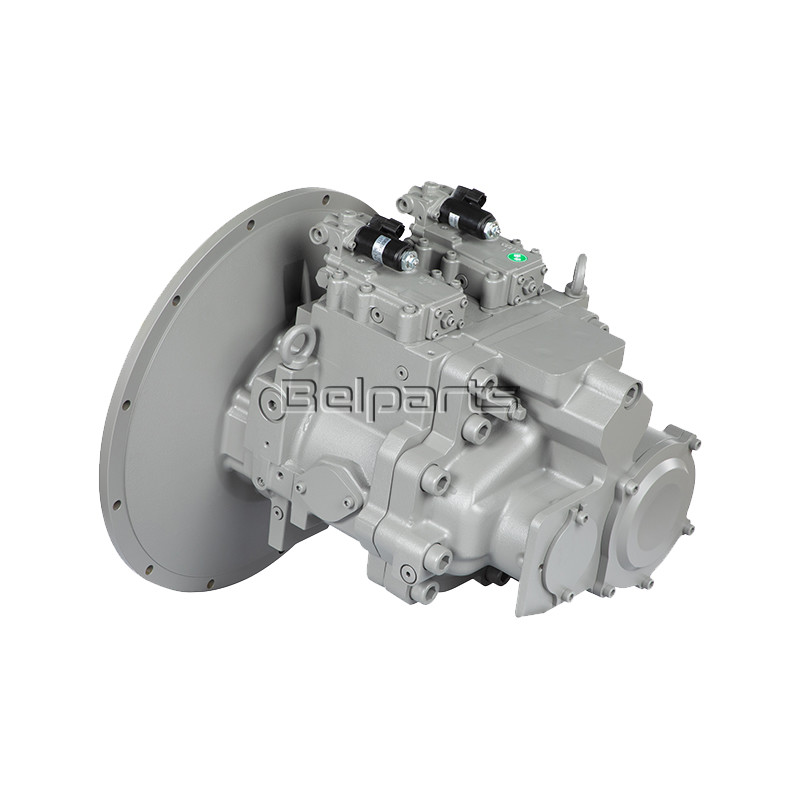

Belparts excavator main pump for hitachi ZX470-5G hydraulic pump 4633472 9184686
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:ZX470-5G
Packing Size:84*38*49
Part number:4633472 9184686
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | ZX470-5G |
| Packing Size | 84*38*49 |
| Part number | 4633472 9184686 |
| Pressure | Standard, High Pressure |

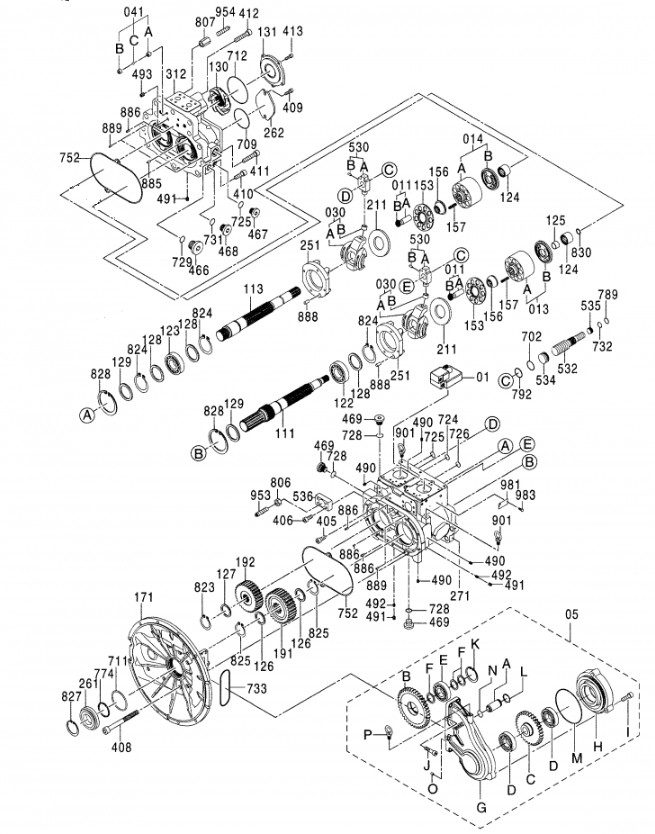

| # | Part No | Part Name | Qty. | Price request |
| 4633472 | PUMP; PISTON | 1 | ||
| 01 | 4658831 | . PUMP; REGULATOR | 2 | |
| 05 | 4654554 | . UNIT | 1 | |
| 05A | .. SHAFT | 1 | ||
| 05B | .. GEAR | 1 | ||
| 05C | .. GEAR | 1 | ||
| 05D | 0978517 | .. BRG.; BALL | 2 | |
| 05E | 0878107 | .. BRG.; ROL. | 1 | |
| 05F | 0818508 | .. SPACER | 3 | |
| 05G | .. | 1 | ||
| 05H | .. ; GEAR | 1 | ||
| 05I | 0195126 | .. BOLT; SOCKET | 3 | |
| 05J | M341236 | .. BOLT; SOCKET | 8 | |
| 05K | 0978512 | .. O-RING | 1 | |
| 05L | 0443404 | .. O-RING | 1 | |
| 05M | 988850 | .. RING; RETAINING | 1 | |
| 05N | 446751 | .. RING; RETAINING | 1 | |
| 05O | .. PIN | 2 | ||
| 05P | 4091248 | .. BOLT; EYE | 1 | |
| 011 | 0820401 | . PISTON ASS'Y | 2 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 013 | 0820402 | . CYL. ASS'Y | 1 | |
| 013A | .. BLOCK; CYL. | 1 | ||
| 013B | .. PLATE; VALVE | 1 | ||
| 014 | 0451003 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VALVE | 1 | ||
| 030 | 0772701 | . PLATE ASS'Y | 2 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 041 | 0708004 | . VALVE; CHECK ASS'Y | 2 | |
| 041A | .. SEAT | 1 | ||
| 041B | .. STOPPER | 1 | ||
| 041C | .. BALL; STEEL | 1 | ||
| 111 | 0978501 | . SHAFT | 1 | |
| 113 | 0820406 | . SHAFT | 1 | |
| 122 | 0820407 | . BRG.; ROL. | 1 | |
| 123 | 0978502 | . BRG.; ROL. | 1 | |
| 124 | 0978503 | . BRG.; NEEDLE | 2 | |
| 125 | 0978504 | . RING; INNER | 1 | |
| 126 | 0820409 | . SPACER | 2 | |
| 127 | 0820410 | . SPACER | 1 | |
| 128 | 0820411 | . SPACER | 3 | |
| 129 | 0820412 | . SPACER | 2 | |
| 130 | 0978505 | . BOOSTER | 1 | |
| 131 | 0820414 | . COVER | 1 | |
| 153 | 0820415 | . RETAINER | 2 | |
| 156 | 0820416 | . BUSHING | 2 | |
| 157 | 0451016 | . SPRING | 18 | |
| 171 | 0978506 | . CASING | 1 | |
| 191 | 0820418 | . GEAR; DRIVE | 1 | |
| 192 | 0820419 | . GEAR | 1 | |
| 211 | 0451018 | . PLATE | 2 | |
| 251 | 0820420 | . SUPPORT | 2 | |
| 261 | 0978507 | . COVER | 1 | |
| 262 | 0820422 | . COVER | 1 | |
| 271 | 0978508 | . CASING | 1 | |
| 312 | 0978509 | . COVER | 1 | |
| 405 | 0978510 | . BOLT; SOCKET | 8 | |
| 406 | M341236 | . BOLT; SOCKET | 8 | |
| 408 | 0131103 | . BOLT; SOCKET | 11 | |
| 409 | 0820425 | . BOLT; SOCKET | 2 | |
| 410 | 0820426 | . BOLT; SOCKET | 9 | |
| 411 | 0820427 | . BOLT; SOCKET | 2 | |
| 412 | 0820428 | . BOLT; SOCKET | 1 | |
| 413 | M341025 | . BOLT; SOCKET | 5 | |
| 466 | 0978511 | . PLUG | 2 | |
| 467 | 0629404 | . PLUG | 2 | |
| 468 | 0626901 | . PLUG | 2 | |
| 469 | 0697911 | . PLUG | 3 | |
| 490 | 0263019 | . PLUG | 20 | |
| 491 | 0451028 | . PLUG | 12 | |
| 492 | 0451027 | . SCREW | 4 | |
| 493 | 0102440 | . PLUG | 2 | |
| 530 | 0820438 | . PIN ASS'Y | 2 | |
| 530A | .. PIN | 2 | ||
| 530B | .. PIN | 2 | ||
| 532 | 0820429 | . PISTON; SERVO | 2 | |
| 534 | 0451031 | . STOPPER | 2 | |
| 535 | 0820430 | . STOPPER | 2 | |
| 536 | 0820431 | . COVER | 2 | |
| 702 | 0451033 | . O-RING | 2 | |
| 709 | 0694604 | . O-RING | 2 | |
| 711 | 0820432 | . O-RING | 1 | |
| 712 | 0820433 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 9 | |
| 725 | 4297379 | . O-RING | 2 | |
| 726 | 0443405 | . O-RING | 2 | |
| 728 | 0443408 | . O-RING | 5 | |
| 729 | 0719402 | . O-RING | 2 | |
| 731 | 0443407 | . O-RING | 2 | |
| 732 | 0451035 | . O-RING | 2 | |
| 733 | 0978512 | . O-RING | 1 | |
| 752 | 0820439 | . PACKING | 2 | |
| 774 | 0820443 | . SEAL; OIL | 1 | |
| 789 | 0451036 | . RING; BACK-UP | 2 | |
| 792 | 0451037 | . RING; BACK-UP | 2 | |
| 806 | 0451038 | . NUT | 2 | |
| 807 | 0820434 | . NUT | 2 | |
| 823 | 959499 | . RING; RETAINING | 1 | |
| 824 | 991345 | . RING; RETAINING | 3 | |
| 825 | 488075 | . RING; RETAINING | 2 | |
| 827 | 991728 | . RING; RETAINING | 1 | |
| 828 | 0820435 | . RING; RETAINING | 2 | |
| 830 | 0978513 | . RING; RETAINING | 1 | |
| 885 | 0313404 | . PIN | 2 | |
| 886 | 0244604 | . PIN; SPRING | 4 | |
| 888 | 0978514 | . PIN | 2 | |
| 889 | 0978515 | . PIN | 4 | |
| 901 | 0134458 | . BOLT; EYE | 2 | |
| 953 | 0978516 | . SCREW; SET | 2 | |
| 954 | 0682328 | . SCREW; SET | 2 | |
| 981 | . PLATE | 1 | ||
| 983 | 0625509 | . PIN | 2 |
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
