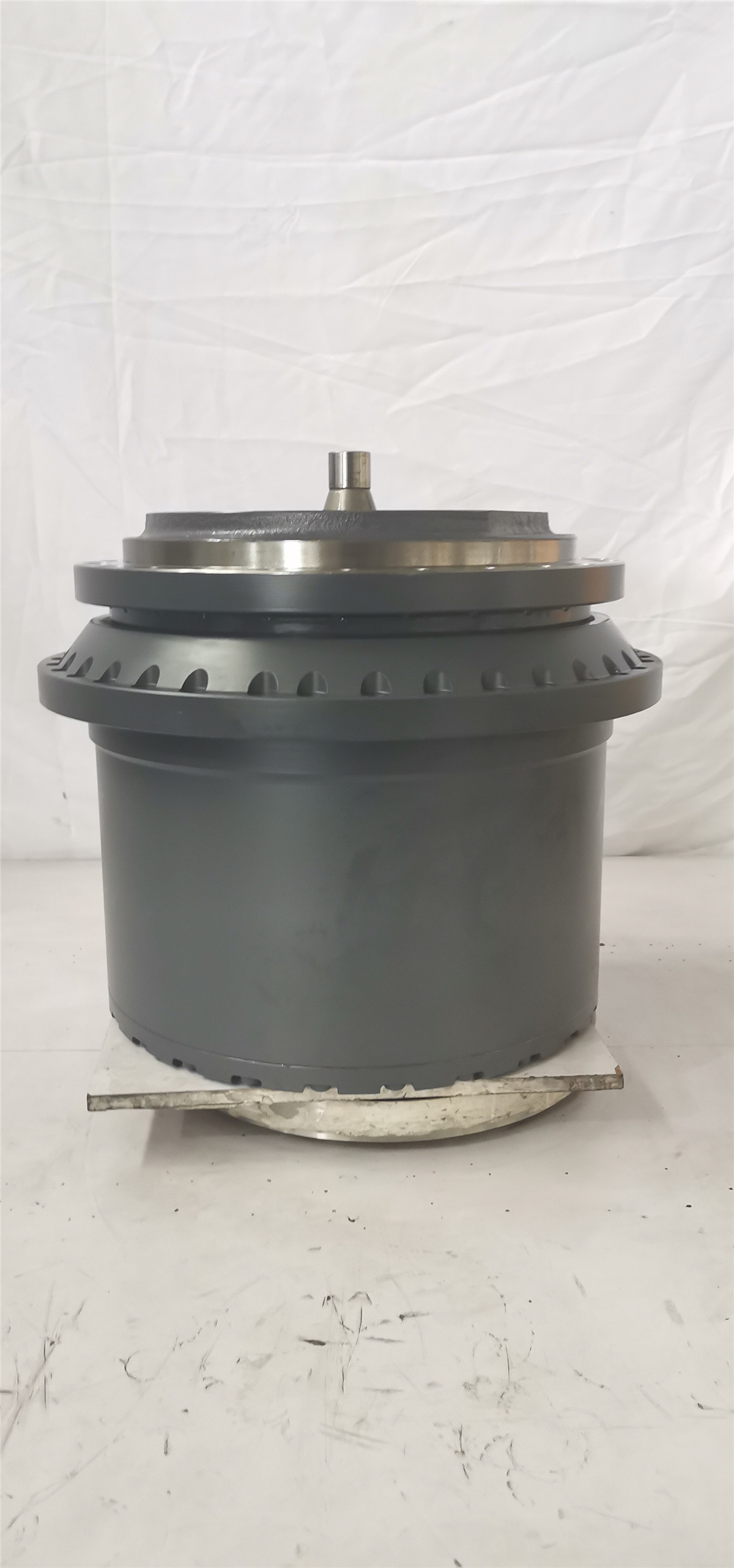

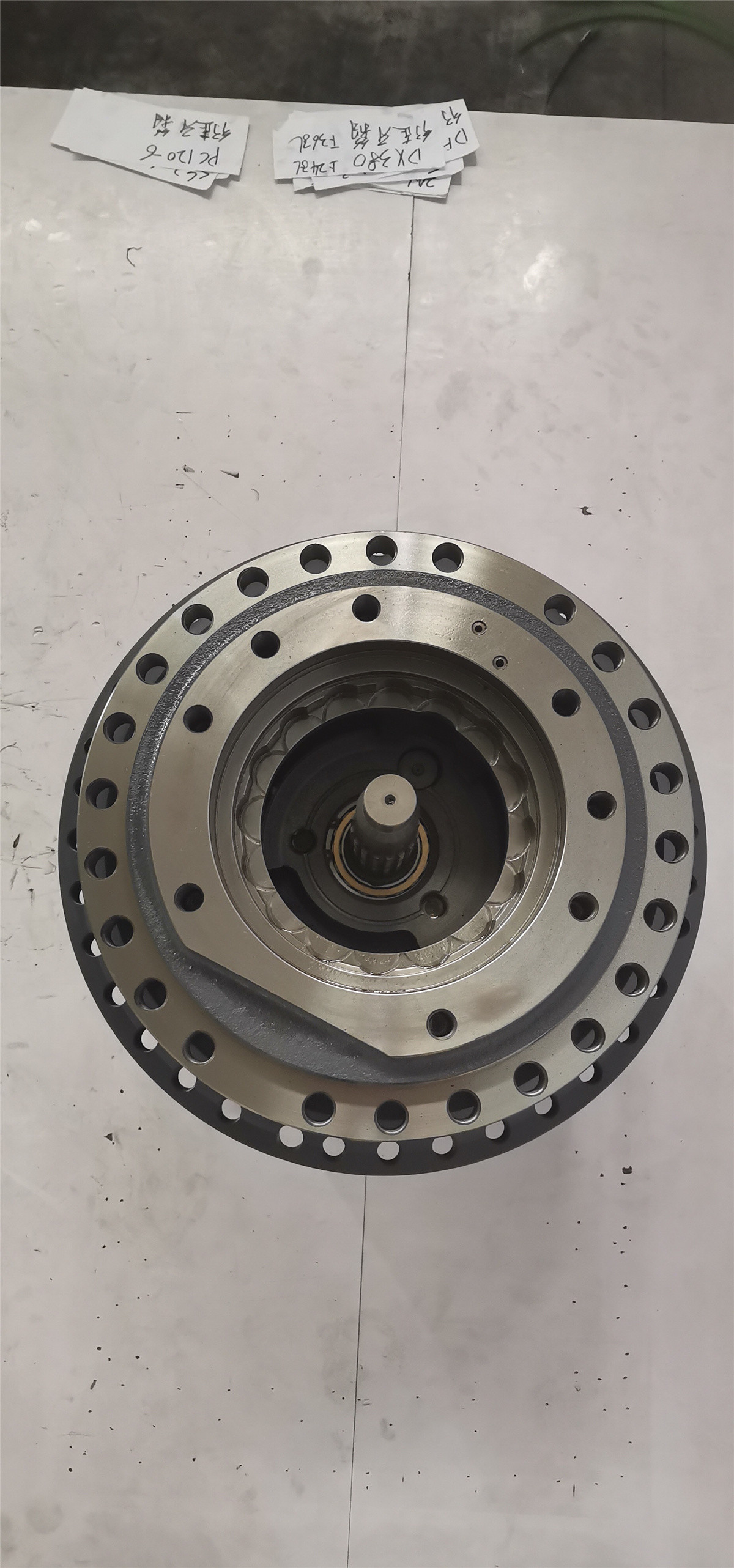

Belparts Excavator Travel Gearbox DX380 DX380LC Travel Reduction Gear K1012069 for doosan
Product Description
Part Name:Excavator Travel reduction gear
Appliion:DX380 DX380LC
Part Number:K9005496
Place of Origin:Guangzhou China
Warranty:6 Months
Weight:380KG
Brand:Belparts
Packing:45*54*56
| Part Name | Excavator Travel reduction gear |
| Appliion | DX380 DX380LC |
| Part Number | K9005496 |
| Place of Origin | Guangzhou China |
| Warranty | 6 Months |
| Weight | 380KG |
| Brand | Belparts |
| Packing | 45*54*56 |

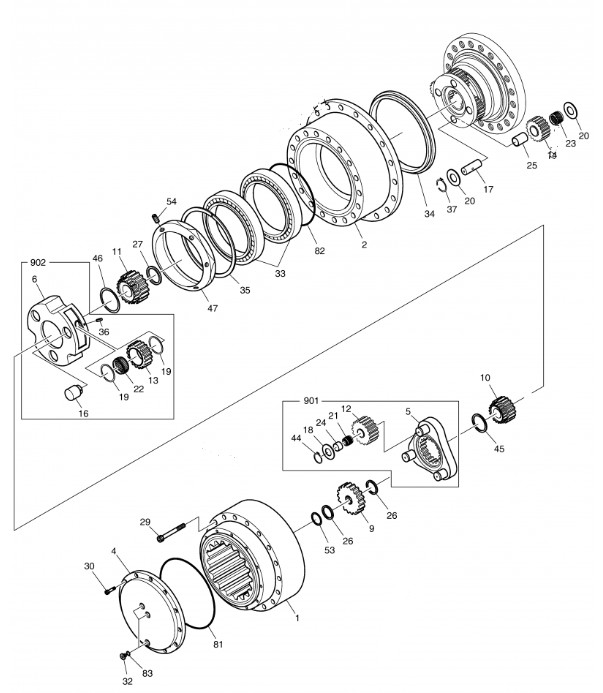

| # | Part No | Part Name | Comment | Qty. | Price request |
| 37 | S6510420 | RING, RETAINING | 4 | ||
| 44 | S6500450 | RING, SNAP | 3 | ||
| 45 | 124-00150 | CLIP | 1 | ||
| 46 | 124-00151 | CLIPW | 1 | ||
| 47 | 1.115-00248 | NUT, RING | 3 kg | 1 | |
| 1 | 104-00035 | GEAR, RING | 33 kg | 1 | |
| 2 | K9005498 | HOUSING | 1 | ||
| 4 | 1.430-00216 | COVER, SIDE | 12 kg | 1 | |
| 5 | K9005495 | CARRIER NO.1 | 9 kg | 1 | |
| 6 | 1.230-00015 | CARRIER NO.2 | 10 kg | 1 | |
| 9 | K9005496 | GEAR, SUN NO.1 | 2 kg | 1 | |
| 10 | 404-00081 | GEAR, SUN NO.2 | 2 kg | 1 | |
| 11 | 404-00082 | GEAR, SUN NO.3 | 6 kg | 1 | |
| 12 | K9005494 | GEAR, PLANETARY NO.1 | 4 kg | 3 | |
| 13 | 1.403-00065 | GEAR, PLANETARY NO.2 | 1 kg | 3 | |
| 14 | 104-00036 | GEAR, PLANETARY NO.3 | 3 kg | 4 | |
| 16 | K9002264 | PIN NO.2 | 1 kg | 3 | |
| 17 | 123-00285 | PIN NO.3 | 1 kg | 4 | |
| 18 | 1.412-00121 | PLATE, SIDE E | 3 | ||
| 19 | 1.412-00117 | PLATE, SIDE A | 6 | ||
| 20 | 412-00038 | PLATE, SIDE F | 8 | ||
| 21 | 1.216-00017 | CAGE, NEEDLE | 3 | ||
| 22 | 1.216-00015 | CAGE, NEEDLE | 3 | ||
| 23 | 1.216-00018 | CAGE, NEEDLE | 4 | ||
| 24 | 1.115-00232 | RING, INNER | 3 | ||
| 25 | 110-00126 | BUSH, FLOATING | 1 kg | 4 | |
| 26 | 114-00347 | RING, THRUST 60 | 2 | ||
| 27 | 114-00348 | RING, THRUST 90 | 1 | ||
| 29 | S2222671 | BOLT, SOCKET M16X100 | 28 | ||
| 30 | S2208871 | BOLT HEX SOCKET HD CL | 12 | ||
| 32 | 2181-1890D4 | PLUG, RECHECK | PF1/2 | 3 | |
| 33 | 109-00145 | BEARING, ANGULAR | 7 kg | 2 | |
| 34 | 180-00345 | SEAL, FLOATING | 3 kg | 1 | |
| 35 | 1.114-00054 | SHIM 1.0 | 1 | ||
| 35 | 1.114-00053 | SHIM 0.9 | 1 | ||
| 35 | 1.114-00051 | SHIM 0.8 | 1 | ||
| 35 | 1.114-00049 | SHIM 0.7 | 1 | ||
| 35 | 1.114-00047 | SHIM 0.6 | 1 | ||
| 35 | 1.114-00045 | SHIM 0.5 | 1 | ||
| 36 | 1.123-00081 | PIN, SPRING | 3 | ||
| 53 | 1.114-00306 | WASHER 1.0t | 1 | ||
| 54 | K9006417 | SCREW, SET | 6 | ||
| 81 | 1.180-00162 | O-RING | 1 | ||
| 82 | 1.180-00163 | O-RING | 1 | ||
| 83 | S8000181 | O-RING | 1BP18 | 3 | |
| 901 | K9005518 | CARRIER NO.1 SUB ASS'Y | 20 kg | 1 | |
| 902 | 230-00044 | CARRIER NO.2 SUB ASS'Y | 1 |
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
Advantages
1. We have advanced technology andtesting before delivery.
2. We will reply you for your inquiry in 24 hours.
3. Quick delivery and competitive price.
Packaging Details:
FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
