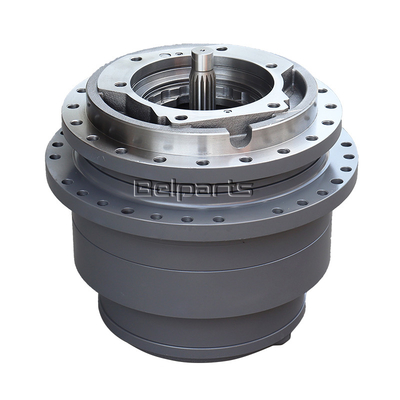

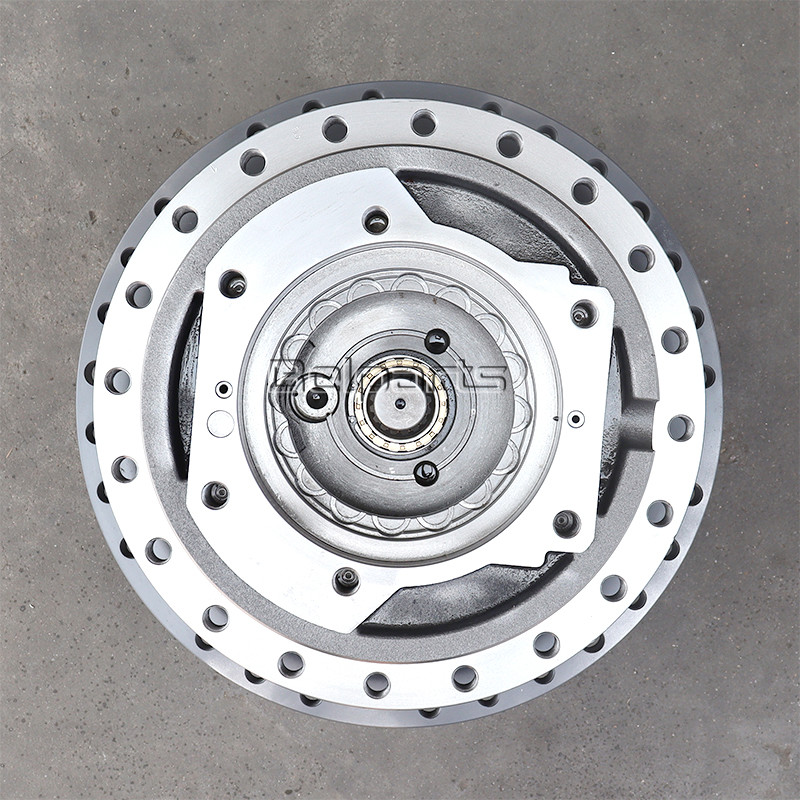

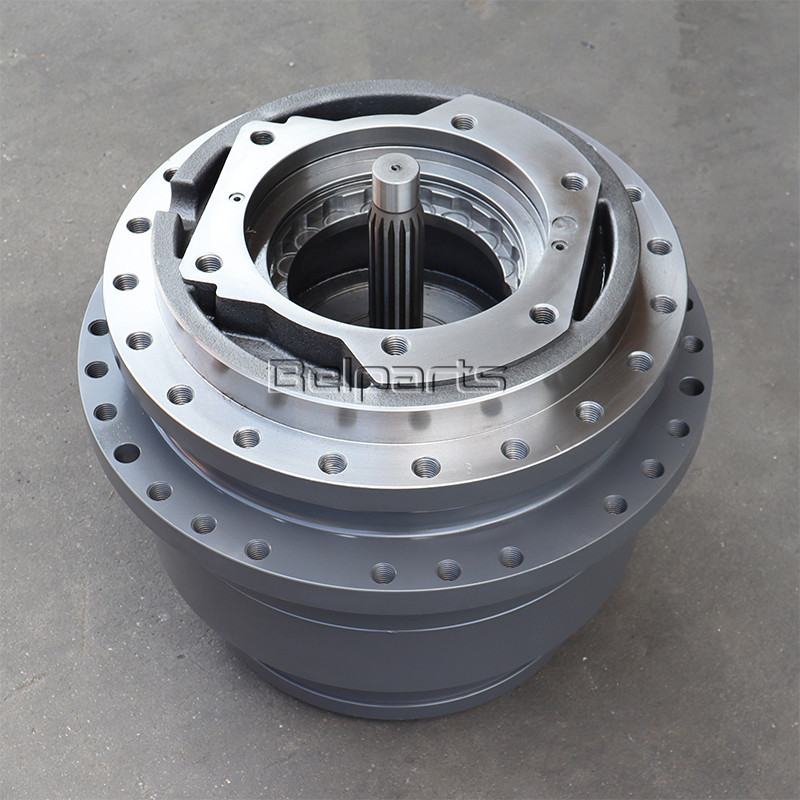

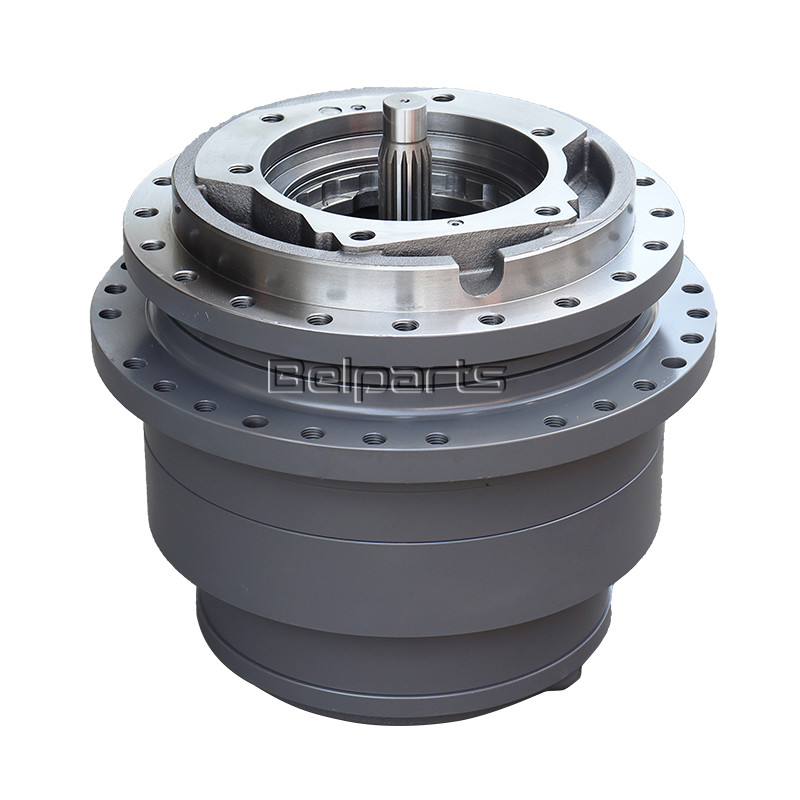

DX300-7 Excavator travel gearbox 404-00098C travel reduction gearbox
Product Description
| Part Name | Excavator travel gearbox |
| Appliion | Crawler Excavator |
| Part Number | 404-00098C |
| Model | DX300-7 |
| Warranty | 6 Months |
| Weight | 87KG |
| Brand | Doosan |
| Packing | 56*77*67 |
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | 404-00098C | TRAVEL REDUCTION GEAR | 1 | ||
| 10 | K1003028 | GEARBOX, TRAVEL, CARRIER NO2 | 16 kg | 1 | |
| 10A | K1000713 | Code name undefined | 9 kg | 1 | |
| 10B | K9000795 | GEAR, PLANETARY NO.2 | 1 kg | 3 | |
| 10C | K9000796 | WASHER, THRUST NO.2 | 6 | ||
| 10D | K9000797 | PIN NO.2 | 3 | ||
| 10E | K1000719 | Code name undefined | 45 | ||
| 10G | S5740900 | PIN , SPRING | 3 | ||
| 14 | K9000798 | GEAR, SUN NO.2 | 2 kg | 1 | |
| 15 | K1003027 | GEARBOX, TRAVEL, CARRIER NO1 | 10 kg | 1 | |
| 15A | K1000712 | Code name undefined | 6 kg | 1 | |
| 15B | K9000799 | GEAR, PLANETARY NO.1 | 1 kg | 3 | |
| 15C | K9000800 | WASHER, THRUST NO.1 | 6 | ||
| 15D | K9000801 | PIN NO.1 | 3 | ||
| 15E | K1000720 | BEARING, NEEDLE ROLLER | 3 | ||
| 15G | S5740650 | PIN, SPRING M4X20 | 3 | ||
| 19 | K9000802 | GEAR, SUN NO.1 | 3 kg | 1 | |
| 2 | K1000707 | Code name undefined | 41 kg | 1 | |
| 20 | K9000803 | PIN, DOWEL | 4 | ||
| 21 | K9000804 | GEAR, RING | 33 kg | 1 | |
| 22 | K9000805 | WASHER, THRUST NO.4 | 1 | ||
| 23 | K1000716 | Code name undefined | 12 kg | 1 | |
| 24 | K9000806 | GASKET | 1 | ||
| 27 | K9000807 | BUSHING, THRUST NO.3 | 1 | ||
| 28 | K9000808 | BUSHING, THRUST NO.2 | 1 | ||
| 29 | K9000809 | BUSHING, THRUST NO.1 | 1 | ||
| 3 | K9000789 | STOPPER | 1 kg | 1 | |
| 30 | K9000810 | BUSHING, THRUST NO.4 | 1 | ||
| 31 | K9000811 | BUSHING, OIL | 1 | ||
| 32 | K9000812 | COUPLING | 1 kg | 1 | |
| 33 | K9000813 | BEARING, ANGULAR | 7 kg | 2 | |
| 35 | 2180-6059 | SEAL, FLOATING | 4 kg | 1 | |
| 36 | S6501150 | RING, RETAINING | 1 | ||
| 37 | S6501100 | RING, RETAINING | 1 | ||
| 39 | V2180-1217D174 | O-RING | 1 | ||
| 4 | K9000790 | BEARING, GUIDE | 5 kg | 1 | |
| 40 | S2212061 | BOLT, SOCKET (M10X1.5X25) | M10X1.5X25L | 32 | |
| 42 | S2219661 | BOLT, HEX SOCKET HEAD | 24 | ||
| 43 | S2215061 | BOLT, HEX SOCKET HEAD | 17 | ||
| 45 | 2181-1890D3 | PLUG, SP | PF3/8 | 3 | |
| 46 | S8000141 | O-RING | 1BP14 | 3 | |
| 5 | K1003029 | GEARBOX, TRAVEL, CARRIER NO3 | 1 | ||
| 5A | K9001290 | CARRIER NO.3 | 25 kg | 1 | |
| 5B | K9000791 | GEAR, PLANETARY NO.3 | 3 kg | 4 | |
| 5C | K9000792 | WASHER, THRUST NO.3 | 8 | ||
| 5D | K9001291 | PIN NO.3 | 1 kg | 4 | |
| 5E | K1000718 | Code name undefined | 72 | ||
| 5G | S5741240 | PIN, SPRING | 4 | ||
| 9 | K9000794 | GEAR, SUN NO.3 | 4 kg | 1 |
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
Advantages
1. We have advanced technology andtesting before delivery.
2. We will reply you for your inquiry in 24 hours.
3. Quick delivery and competitive price.
4. We have a professional team to offer professional service for you.
5. The parts will give weight, price when quotation.
6. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
RFQ
1.I know only the excavator model,but can not offer parts No., what should I do?
If possible, you can send us the old photo,name plate or the size for reference.
2.How can you guarantee the quality?
If you meet with quality problem within 1 year, We will replace goods or return your funds based on the item details.
3.How can I pay the order?
We can receive payment through T/T, trade assurance.
4. How long for transport?
For express/ air, it takes about 3 days. For land/ sea, it takes about one month. It depends on your address.
5.How can I do if there is something wrong with the items?
First of all, We have confidence in the quality of our products, if you really found something wrong, please provide the old photo for us. After it is confirmed, please return to us, we will offer the correct item.
6.What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox / assy / parts, swing gearbox/assy/motor /parts, hydraulic pump assy/parts, gear parts/mini excavator. If you need other excavator parts, we also can supply as you requirements.
