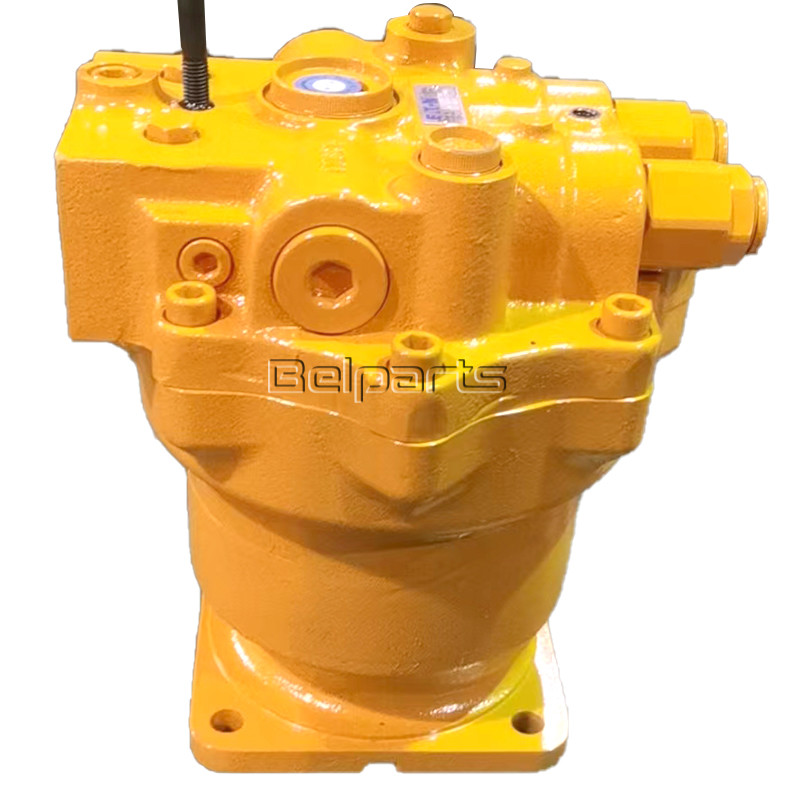

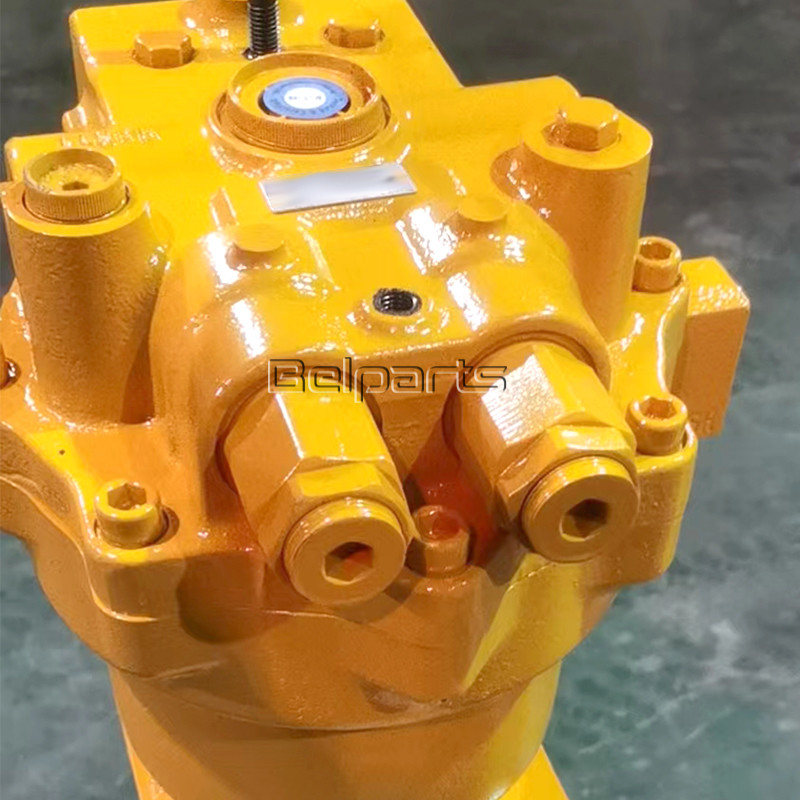

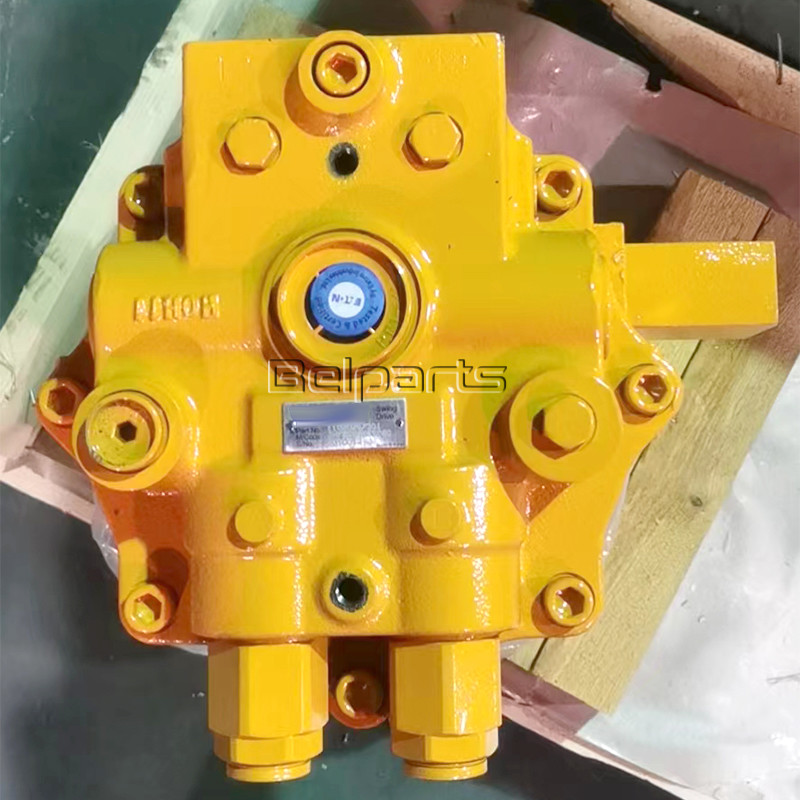

DH370 EXCAVATOR HYDRAULIC MOTOR K1007543A SWING MOTOR FOR DOOSAN
Products Description
|
roduct Name: |
Hydraulic swing motor |
Model Number: |
DH370 |
|
Condition: |
OEM/Original |
Material: |
Steel |
|
Part number: |
K1007543A |
Place Of Origin: |
Japan |
|
Warranty: |
12 Months |
Weight: |
90KG |
|
Inventory: |
In stock |
Production Capacity: |
1000 pcs/Month |
|
Delivery: |
3-7 Days |
Payment Term: |
L/C,T/T.Western Union |
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| 7 | 1.115-00371 | RING, STOP | 1 | ||
| 38 | S8000121 | O-RING | 2 | ||
| 39 | 2180-1217D159 | O-RING | 1 | ||
| 40 | 1.110-00172 | BUSHING | 1 | ||
| 41 | K9002107 | ROTARY KIT | 18 kg | 1 | |
| 42 | K9002108 | CYLINDER BLOCK KIT | 13 kg | 1 | |
| 43 | K9002109 | RETAINER KIT | 1 kg | 1 | |
| * | K9002069 | SEAL KIT, SWING MOTOR | 1 | ||
| 10 | 1.131-00070 | SPRING | 9 | ||
| 11 | 1.427-00007 | SEAT, BALL GUIDE | 1 | ||
| 12 | 1.429-00008 | GUIDE, BALL | 1 | ||
| 13 | *NA00834 | PLATE, SET | 1 | ||
| 14 | 1.409-00175 | PISTON ASS'Y | 4 kg | 9 SET | |
| 15 | 1.412-00063 | PLATE, FRICTION | 4 | ||
| 16 | 1.412-00025 | PLATE | 4 | ||
| 17 | 1.409-00187 | PISTON, BRAKE | 3 kg | 1 | |
| 18 | 2180-1217D160 | O-RING | 2 | ||
| 19 | 1.131-00071 | SPRING | 19 | ||
| 20 | *NA00839 | PLATE, VALVE | 1 | ||
| 21 | 1.123-00042 | PIN | 2 | ||
| 22 | 1.109-00058 | BEARING, NEEDLE | 1 | ||
| 23 | K9002105 | COVER, REAR | 27 kg / 300*300*150 | 1 | |
| 24 | S2218661 | BOLT, HEX SOCKET HEAD | 7 | ||
| 25 | S2219571 | BOLT, HEX SOCKET | 1 | ||
| 26 | 1.426-00010 | POPPET | 2 | ||
| 27 | 1.131-00072 | SPRING | 8 kg | 2 | |
| 28 | 1.181-00103 | PLUG, DRAIN | 2 | ||
| 29 | S8000291 | O-RING | 2 | ||
| 30 | 1.420-00122 | RELIEF VALVE ASS'Y | 1 kg | 2 | |
| 31 | K9002106 | VALVE, TIME DELAY | 1 | ||
| 32 | S2206161 | BOLT, HEX SOCKET HEAD | 3 | ||
| 33 | 2181-1116D2 | PLUG, RECHECK | 3 | ||
| 34 | K9000942 | VALVE, SWING REACTIONLESS | 2 | ||
| 35 | K9000943 | PLUG | 2 | ||
| 36 | S8000181 | O-RING | 1BP18 | 2 | |
| 37 | K9000944 | RING, BACK UP | 2 | ||
| - | K1007543A | MOTOR, SWING | 46 kg | 1 | |
| 1 | 1.451-00145 | BODY | 33 kg | 1 | |
| 2 | 1.180-00523 | SEAL, OIL | 1 | ||
| 3 | 1.109-00066 | BEARING, ROLLER | 1 kg | 1 | |
| 4 | 1.115-00100 | RING, SNAP | 1 | ||
| 5 | 1.405-00025 | SHAFT | 5 kg | 1 | |
| 6 | 1.123-00041 | PIN | 1 | ||
| 8 | 1.412-00113 | PLATE, SHOE | 1 kg | 1 | |
| 9 | *NA00427 | CYLINDER, BLOCK | 1 |
About us
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products
have been exported to more than 100 countries and regions.
