Parts scheme
List of spare parts
Pos. | Part No | Qty | Parts name | Remark |
---|---|---|---|---|
201-60-81301 | [2] | MOTOR ASS'Y Komatsu China | ||
["SN: 10011-UP"] |$1. | ||||

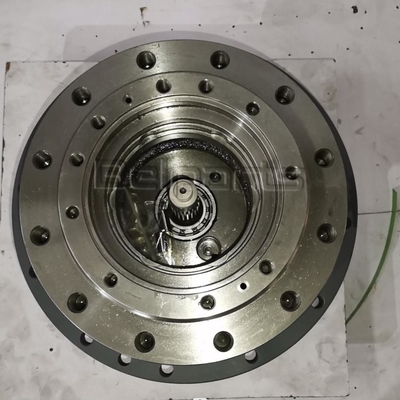

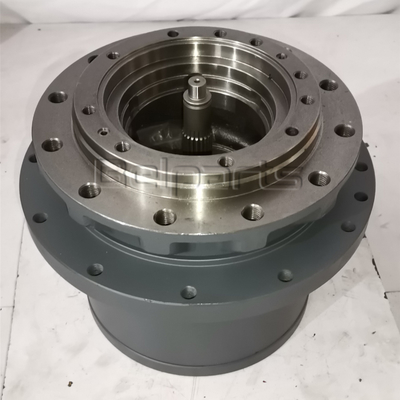

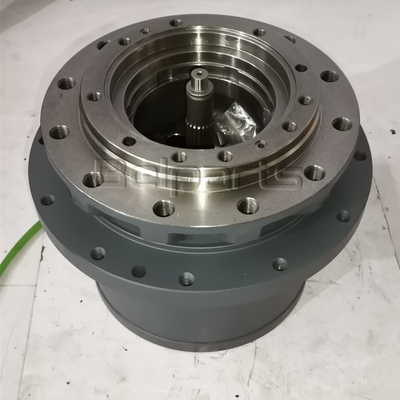

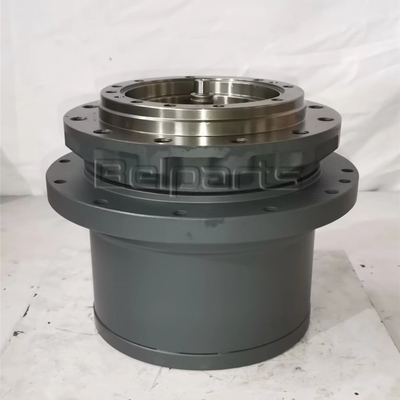

TZ131D1000-00 | [1] | FINAL ASS'Y Komatsu China | ||
["SN: 10011-UP"] |$3. | ||||
1. | TZ110D1002-00 | [1] | SPINDLE Komatsu China | |
["SN: 10011-UP"] | ||||
2. | TZ111D1003-00 | [1] | CARRIER Komatsu China | |
["SN: 10011-UP"] | ||||
3. | TZ110D1011-00 | [4] | WASHER,THRUST Komatsu China | |
["SN: 10011-UP"] | ||||
4. | TZ110D1030-00 | [4] | BEARING Komatsu China | |
["SN: 10011-UP"] | ||||
5. | TZ110D1028-00 | [4] | BEARING Komatsu China | |
["SN: 10011-UP"] | ||||
6. | TZ110D1007-00 | [4] | GEAR Komatsu China | |
["SN: 10011-UP"] | ||||
7. | TZ110D1010-00 | [4] | WASHER,THRUST Komatsu China | |
["SN: 10011-UP"] | ||||
8. | TZ1180102010L | [4] | BOLT Komatsu China | |
["SN: 10011-UP"] | ||||
9. | TZ110D1029-00 | [3] | BEARING Komatsu China | |
["SN: 10011-UP"] | ||||
10. | TZ110D1027-00 | [3] | BEARING Komatsu China | |
["SN: 10011-UP"] | ||||
11. | TZ111D1005-00 | [3] | GEAR Komatsu China | |
["SN: 10011-UP"] | ||||
12. | TZ440D1012-00 | [3] | WASHER,THRUST Komatsu China | |
["SN: 10011-UP"] | ||||
13. | TZ1180082010L2 | [3] | BOLT Komatsu China | |
["SN: 10011-UP"] | ||||
14. | TZ400G1009-00 | [1] | COLLAR,THRUST Komatsu China | |
["SN: 10011-UP"] | ||||
15. | TZ110D1006-00 | [1] | GEAR Komatsu China | |
["SN: 10011-UP"] | ||||
16. | 04064-04518 | [1] | RING Komatsu China | 0.007 kg. |
["SN: 10011-UP"] analogs:["20Y3029190"] | ||||
17. | TZ111D1004-00 | [1] | GEAR Komatsu China | |
["SN: 10011-UP"] | ||||
18. | TZ110D1001-00 | [1] | HUB Komatsu China | |
["SN: 10011-UP"] | ||||
19. | TZ110D1024-00 | [2] | BEARING Komatsu China | |
["SN: 10011-UP"] | ||||
20. | TZ192-230-30BH | [1] | FLOATING SEAL ASS'Y (KIT) Komatsu China | |
["SN: 10011-UP"] | ||||
21. | TZJB1177M812-B | [2] | BOLT Komatsu China | |
["SN: 10011-UP"] | ||||
22. | TZ263B2077-01 | [2] | PIN Komatsu | 0.005 kg. |
["SN: 10011-UP"] | ||||
23. | 07000-11007 | [2] | O-RING (KIT) Komatsu | 0.001 kg. |
["SN: 10011-UP"] analogs:["YM24311000070", "0700001007"] | ||||
24. | TZJW1516-G37-7 | [1] | O-RING (KIT) Komatsu | 0.02 kg. |
["SN: 10011-UP"] | ||||
25. | TZ110D1022-00 | [1] | NUT Komatsu China | |
["SN: 10011-UP"] | ||||
26. | 07000-05230 | [1] | O-RING (KIT) Komatsu China | 0.03 kg. |
["SN: 10011-UP"] analogs:["0700015230"] | ||||
27. | 04260-00952 | [1] | BALL Komatsu | 0.004 kg. |
["SN: 10011-UP"] analogs:["890001277"] | ||||
28. | TZ110D1013-00 | [1] | COVER Komatsu China | |
["SN: 10011-UP"] | ||||
29. | TZ810B1018-00 | [1] | RING Komatsu | 0.06 kg. |
["SN: 10011-UP"] | ||||
30. | TZ810B2021-00 | [2] | PLUG Komatsu | 0.03 kg. |
["SN: 10011-UP"] | ||||
31. | TZ410D1033-01 | [1] | PLUG Komatsu China | |
["SN: 10011-UP"] | ||||
32. | 07000-12014 | [3] | O-RING (KIT) Komatsu China | 0.01 kg. |
["SN: 10011-UP"] analogs:["0700002014"] | ||||
K. | TZ131D9000-00 | [1] | SEAL KIT,TRAVEL MOTOR Komatsu China | |
["SN: 10011-UP"] |
Product description
Appliion | Komatsu Excavator |
Quality | High Guarantee |
Model | PC70-8 |
Package | Standard Packing at Normal |
Warranty | 1 Year |
Payment term | T/T,, PayPal, Alibaba Trade Assurance |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express or as requi |
1 . How do I contact you?
You can add me on WhatsApp: +86 189 9845 5434,Or send me an email: rayhan@belparts-china.com
2 . How long can I enjoy the warranty period?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How do I pay?
You can complete the payment through PaPal, T/T and other methods.
4 . When will get the items after I place order?
Once we receive your payment, we will arrange delivery within 24 hours; if there is no stock, we will tell you before payment.
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts. If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
