| MOQ: | 1PCS |
| Price: | Negotiated price |
| Standard Packaging: | Wooden |
| Delivery Period: | 2-5days |
| Payment Method: | T/T,Paypal, |
| Supply Capacity: | 500 pieces per month |

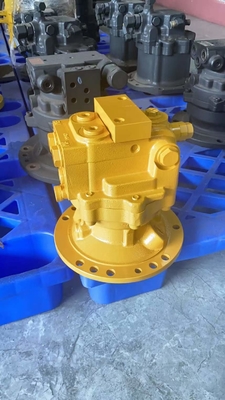

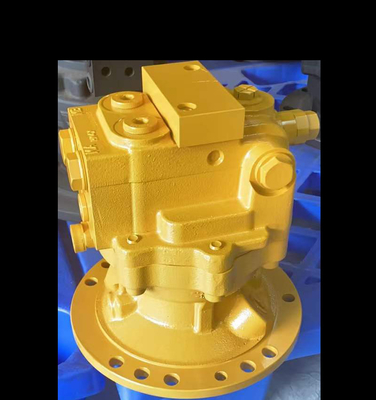

PC100-6 excavator Parts swing motor 4561347093 706-73-01181 203-26-00121
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 706-73-01181 | MOTOR ASS'Y | 1 | |
| 1 | 706-73-01180 | MOTOR ASS'Y | 1 | |
| 1 | 706-73-01161 | MOTOR ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0A AND Y1640-02A0 A | ||||
| 1 | 706-73-03511 | MOTOR SUB ASS'Y | 1 | |
| 1 | (*706-73-43110) | ,MOTOR | 1 | |
| 2 | (*706-73-00020) | HOUSING SUB ASS'Y | 1 | |
| 2 | Housing | 1 | ||
| 3 | Plug | 2 | ||
| 4 | Plug | 1 | ||
| 5 | (*706-73-40010) | Bearing | 1 | |
| 6 | (*706-73-42820) | PIN,DOWEL | 1 | |
| 7 | 706-73-72680 | Plug | 1 | |
| 8 | 07002-11223 | O-RING,(F4350-65A0 -16 ) | 1 | |
| 9 | 709-25-11650 | VALVE,CHECK | 2 | |
| 10 | 709-25-11361 | Spring | 2 | |
| 11 | 709-25-11640 | Plug | 2 | |
| 12 | 07000-12020 | O-RING,(0202-007) | 2 | |
| 13 | 706-73-72420 | Bushing | 2 | |
| 14 | 706-73-72440 | Spring | 2 | |
| 15 | 706-73-72430 | Plug | 2 | |
| 16 | 07002-12434 | O-RING,(FOR 2-ACTUATER ATTACHMENT) | 2 | |
| 17 | (*07000-02145) | O-ring | 1 | |
| 18 | (*01252-61240) | Bolt | 6 | |
| 19 | (*706-73-43960) | SHAFT,DRIVE | 1 | |
| 20 | (*706-73-43880) | Bearing | 1 | |
| 21 | (*706-73-43810) | Spacer | 1 | |
| 22 | (*706-73-43610) | Spring | 2 | |
| 23 | (*706-73-43620) | SEAT | 1 | |
| 24 | (*706-73-43890) | Bearing | 1 | |
| 25 | (*706-73-05030) | SPACER KIT | 1 | |
| 25 | SPACER? 2.1MM | 1 | ||
| 25 | SPACER? 2.4MM | 1 | ||
| 25 | SPACER? 2.7MM | 1 | ||
| 26 | (*04064-03515) | RING,SNAP | 1 | |
| 27 | 708-7T-12230 | GASKET, SEAL | 1 | |
| 28 | 04065-04518 | RING,SNAP (ITL) | 1 | |
| 29 | (*706-73-43190) | BLOCK,CYLINDER | 1 | |
| 30 | (*706-73-43742) | PLATE,VALVE | 1 | |
| 31 | (*720-68-19610) | PIN,DOWEL | 1 | |
| 32 | (*706-73-43120) | SHAFT,CENTER | 1 | |
| 33 | (*706-73-43130) | RING,CENTER | 1 | |
| 34 | (*706-73-41110) | Spring | 1 | |
| 35 | (*706-73-05020) | RETAINER KIT | 1 | |
| 35 | Retainer | 1 | ||
| 36 | Screw | 7 | ||
| 37 | (*706-73-43160) | PISTON SUB ASS'Y | 7 | |
| 38 | (*706-73-92340) | Plate | 4 | |
| 39 | (*706-73-92350) | Disk | 3 | |
| 40 | (*706-73-92380) | PISTON,BRAKE | 1 | |
| 41 | (*706-73-92390) | RING,BRAKE | 1 | |
| 42 | (*07000-12115) | O-ring | 1 | |
| 43 | (*07000-12130) | O-ring | 2 | |
| 44 | (*708-7T-15150) | Spring | 4 |
