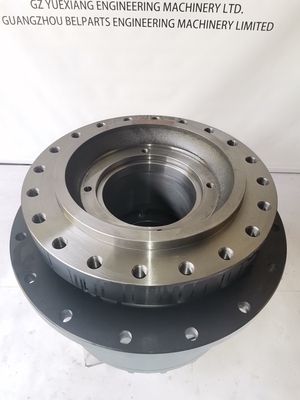

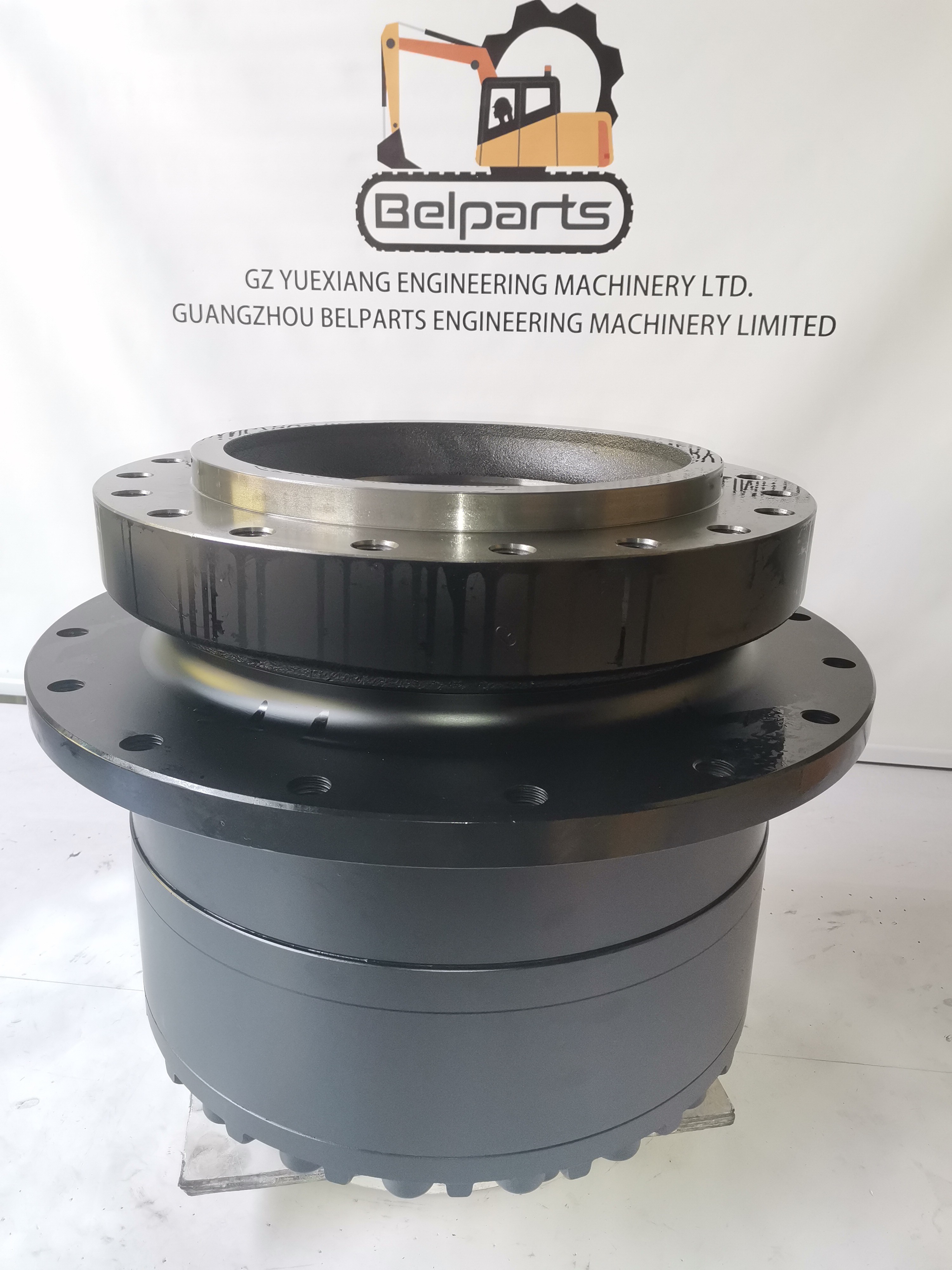

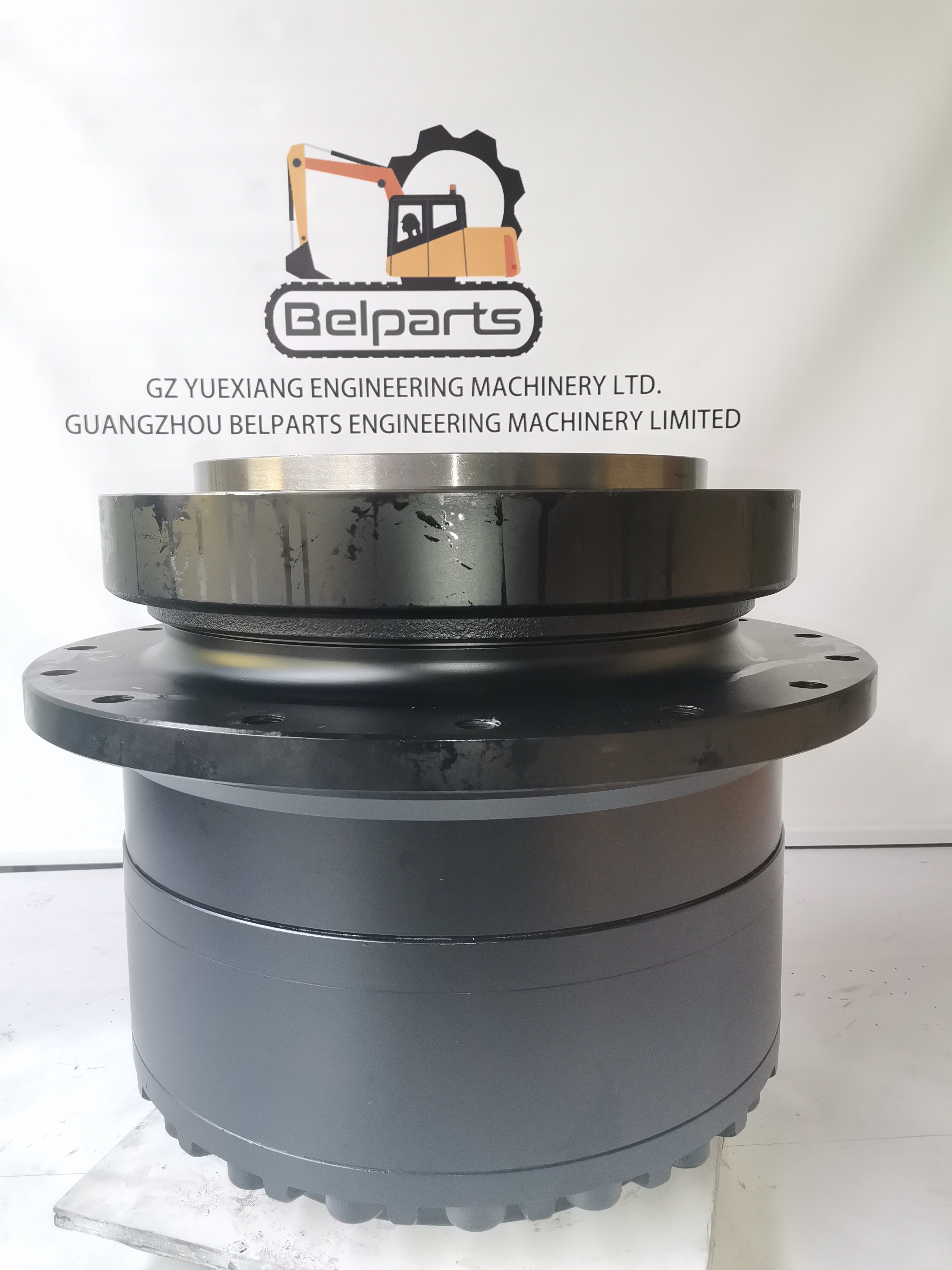

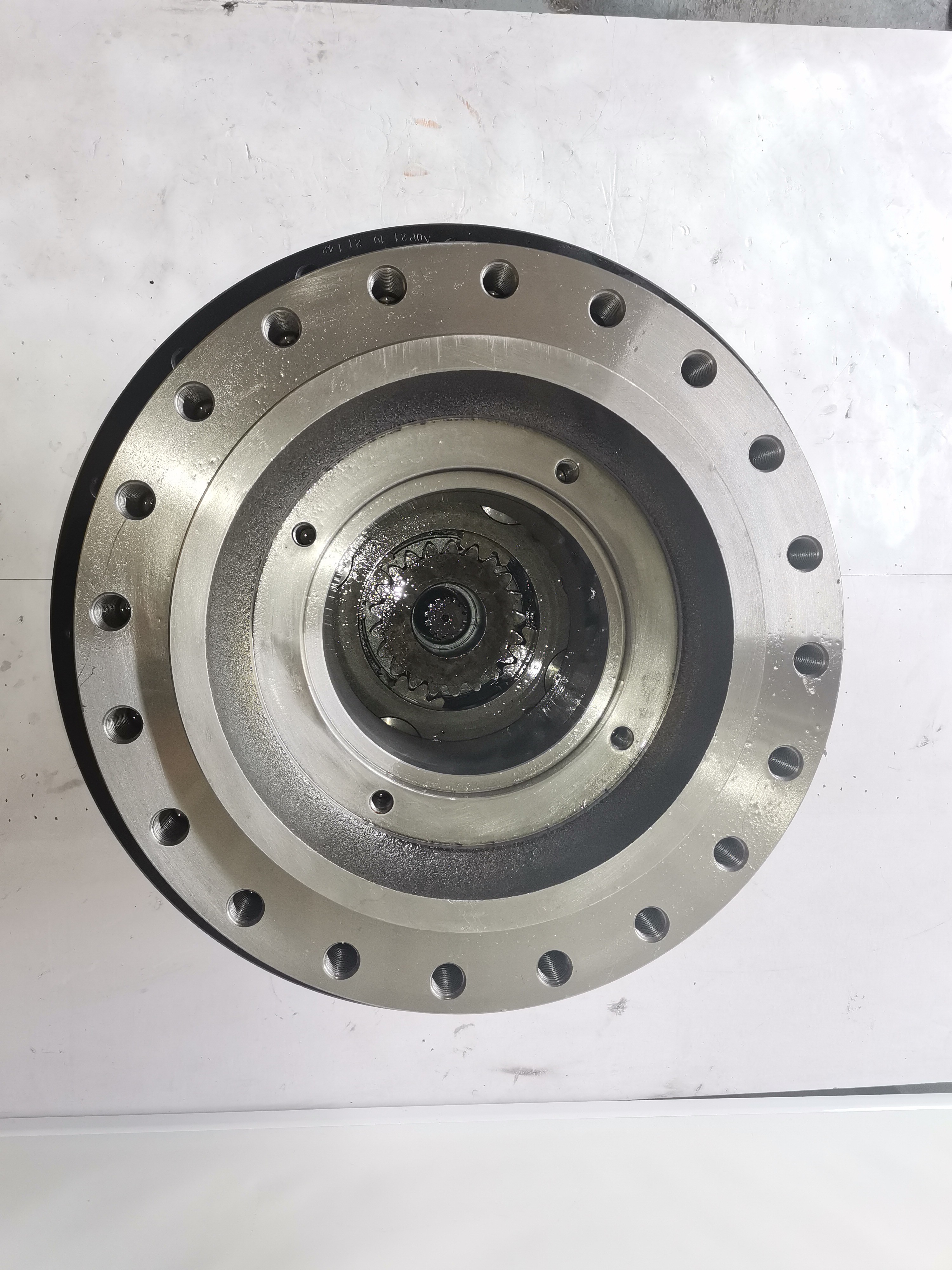

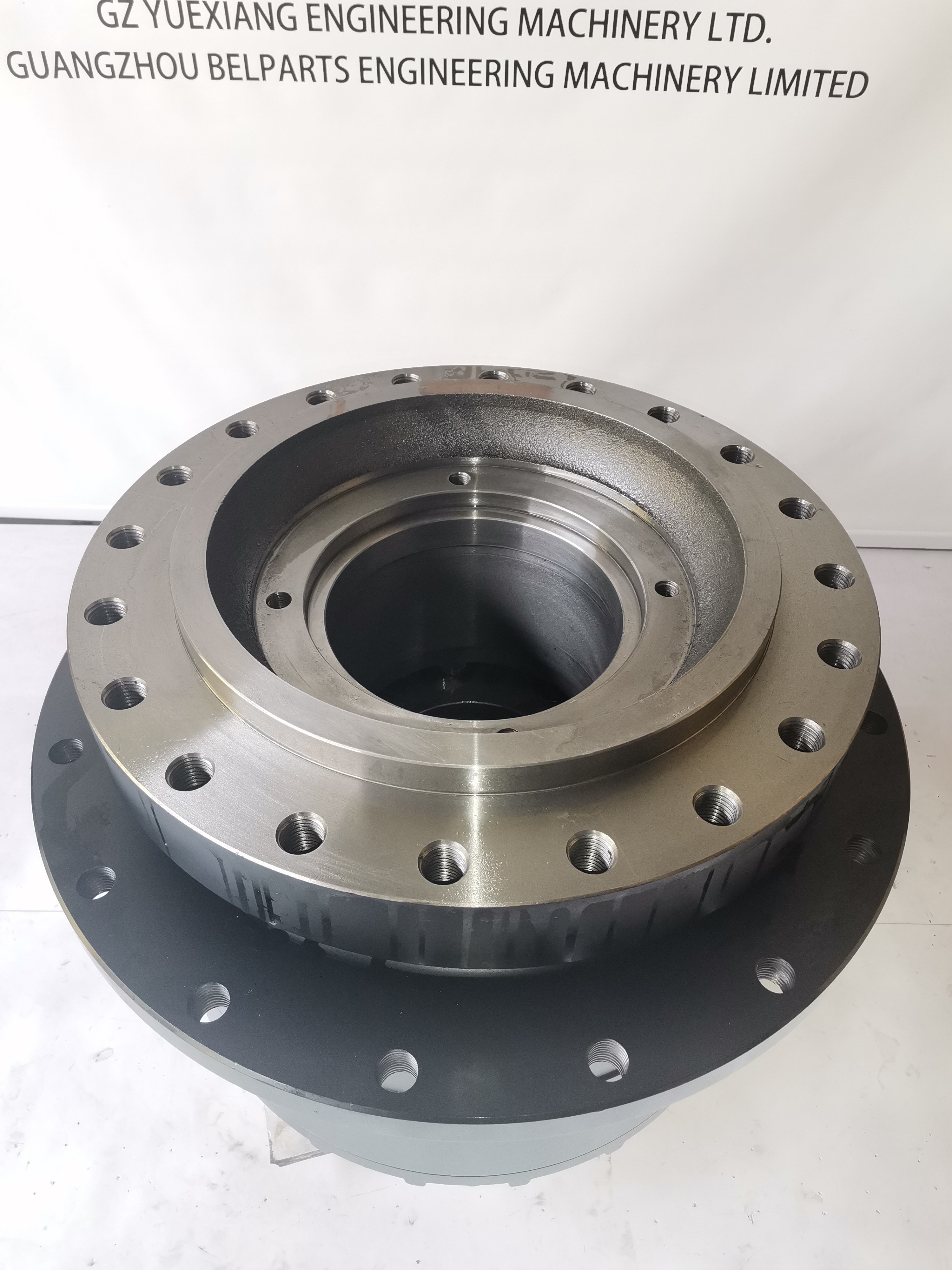

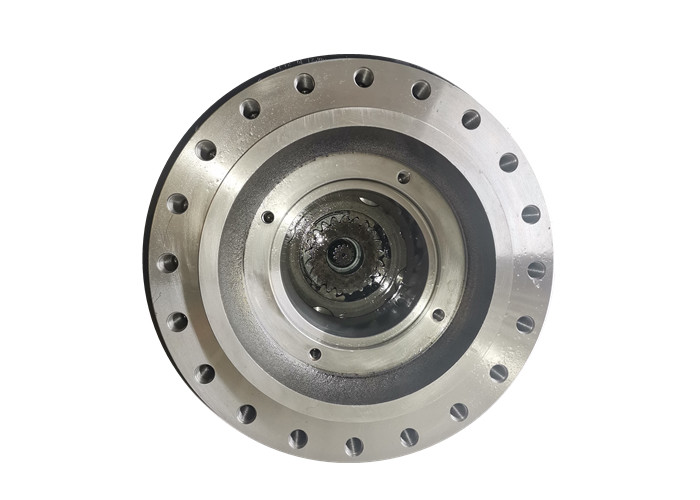

E328D E330C E330D Travel Gearbox 2276189 Final Drive Group Without Motor
Product description
Part name | Travel gearbox |
Part number | 2276189 |
Machine model | E328D E330C E330D |
Warranty | 3 months |
Appliion | Excavator |
Quality | Aftermarket |
MOQ | 1 PCS |
Condition |
Brand new
|
Drawing of the travel gearbox
List of the travel gearbox
# | Part No | Part Name | Qty. | Remark |
---|---|---|---|---|
1 | 3E2338 | PLUG-PIPE | 2 | |
2 | 7Y0639 | GEAR (SUN) (21 TEETH) | 1 | |
3 | 7Y0642 | GEAR (RING) (63 TEETH) | 1 | |
4 | 7Y0643 | CARRIER | 1 | |
5 | 7Y0645 | CARRIER | 1 | |
6 | 7Y0659 | GEAR (PLANETARY) (22 TEETH) | 3 | |
7 | 7Y0661 | SHAFT (PLANETARY) | 3 | |
8 | 7Y0662 | SHAFT (PLANETARY) | 4 | |
9 | 7Y0663 | GEAR (PLANETARY) (20 TEETH) | 4 | |
10 | 7Y0667 | RING (RETAINING) | 1 | |
11 | 7Y0673 | GEAR (RING) (73 TEETH) | 1 | |
12 | 7Y0676 | GEAR (PLANETARY) (24 TEETH) | 3 | |
13 | 7Y0731 | CARRIER AS | 1 | |
7Y0656 | SHAFT (PLANETARY) | 3 | ||
14 | 7Y1056 | SHIM (0.80 mm THICK) | 1 | |
15 | 7Y1057 | SHIM (1.00 mm THICK) | 1 | |
16 | 7Y1094 | WASHER (66X102X1-MM THK) | 14 | |
17 | 7Y5235 | BOLT (M24X3X190-MM) | 20 | |
18 | 0940577 | PLATE (7.0 mm THICK) | 1 | |
19 | 0940578 | PLATE (8.0 mm THICK) | 1 | |
20 | 0940579 | PLATE (9.0 mm THICK) | 1 | |
21 | 0940580 | PLATE (10.0 mm THICK) | 1 | |
22 | 1107231 | GEAR (SUN) (18 TEETH) | 1 | |
23 | 1141541 | PIN (DOWEL) | 6 | |
24 | 1912521 | GEAR (SUN) (23 TEETH) | 1 | |
25 | 1994582 | BEARING AS | 3 | |
26 | 1994583 | BEARING AS | 11 | |
27 | 2134737 | SEAL GROUP-DUO CONE | 1 | |
2059114 | RING (TORIC) | 2 | ||
28 | 2276190 | HOUSING-MOTOR | 1 | |
29 | 2276191 | HOUSING | 1 | |
30 | 2276192 | GEAR-COUPLING (66-TEETH) | 1 | |
31 | 2676809 | SHIM (0.75-MM THK) | 1 | |
32 | 2676810 | SHIM (0.85-MM THK) | 1 | |
33 | 2676811 | SHIM (0.9-MM THK) | 1 | |
34 | 2676812 | SHIM (0.95-MM THK) | 1 | |
35 | 2676813 | SHIM (1.2-MM THK) | 1 | |
36 | 2676814 | SHIM (1.4-MM THK) | 1 | |
37 | 2676815 | SHIM (1.8-MM THK) | 1 | |
38 | 2676816 | SHIM (2-MM THK) | 1 | |
39 | 2676817 | SHIM (2.3-MM THK) | 1 | |
40 | 2790344 | BEARING AS-TAPERED ROLLER | 2 | |
41 | 0931731 | RING - RETAINING | 1 | |
42 | 0940584 | WASHER (40.3X72X1-MM THK) | 6 | |
43 | 0950891 | PIN - SPRING | 7 | |
44 | 0963216 | SETSCREW-SOCKET (M12X1.75X12-MM) | 2 | |
45 | 1912526 | COVER | 1 | |
46 | 1912645 | COUPLING | 1 | |
47 | 2P3628 | SEAL-O-RING (ID=412.34mm) | 1 | |
48 | 6V8133 | BOLT (M24X3.0X80MM) | 10 | |
49 | 6V8237 | PLAIN WASHER - HARDENED | 10 | |
50 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 | |
51 | 7Y0595 | SPACER (58X79.6X6-MM THK) | 2 | |
52 | 7Y0644 | SPACER (163X190X8-MM THK) | 1 | |
53 | 8T4167 | WASHER-HARD (26X44X4-MM THK) | 20 | |
54 | 8T4240 | RING - RETAINING | 3 | |
55 | 9X6032 | BOLT (HEX SOCKET HEAD) (M10X1.5X30mm) | 12 | |
USE AS REQUIRED | ||||
METRIC PART |
