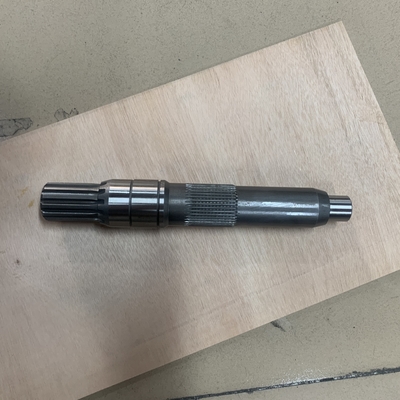

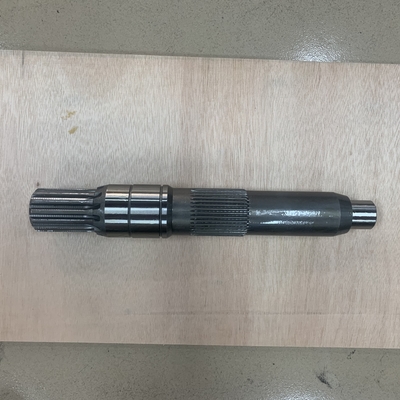

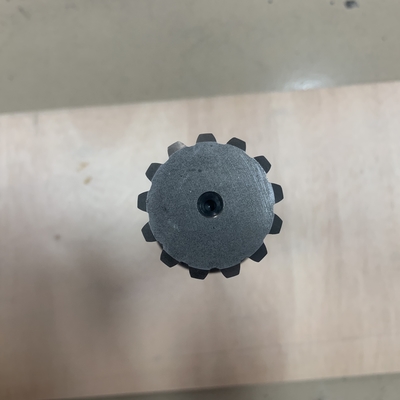

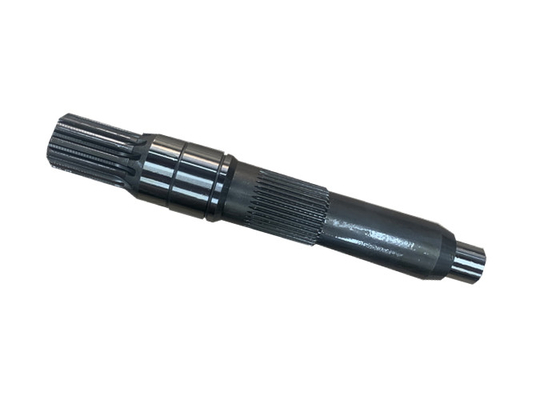

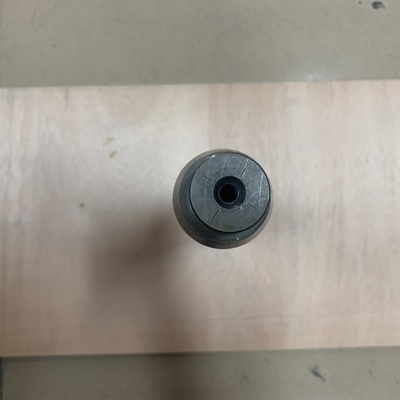

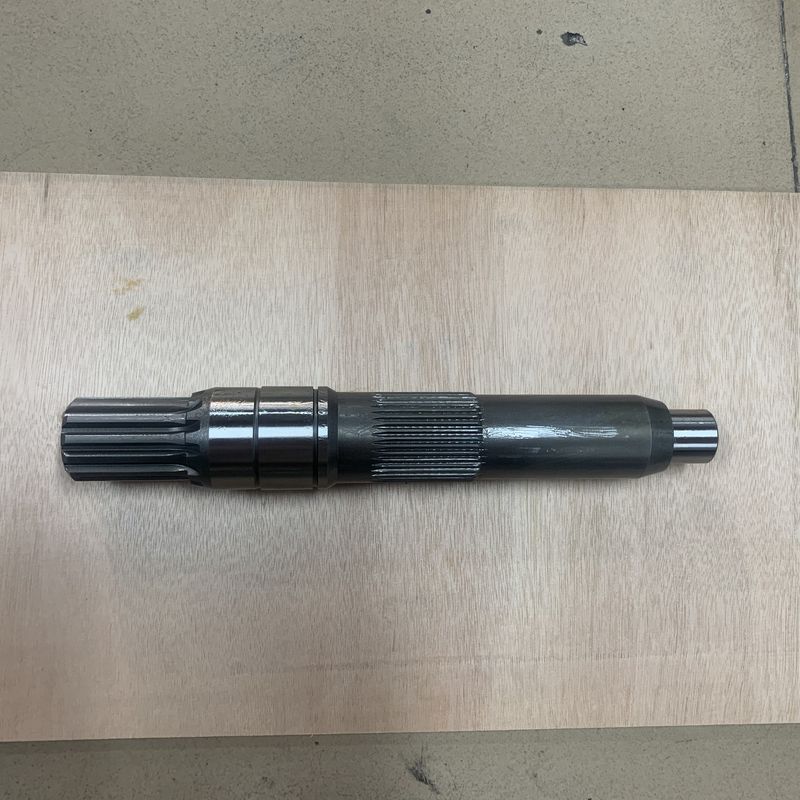

167-3855 Excavator Planetary Gear Parts E330D E336D Swing Device Motor shaft
Product description
| Appliion | Crawler excavator |
| Part name | Swing device motor shaft |
| Part number | 167-3855 |
| Machine model | E330D E336D |
| Quality | Aftermarket |
| Condition | 100% new |
| MOQ | 1 PCS |
| Warranty | 3 months |

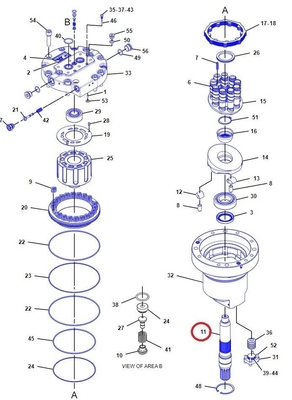

| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | 1T0936 | PLUG (PIPE) (1/16-27 THD) | 1 | |
| 2 | 4B4158 | SCREW (IDENTIFIION PLATE) MOUNTING | 4 | |
| 3 | 6V3382 | SEAL-LIP TYPE | 1 | |
| 4 | 8J2559 | PLATE-CAUTION (OIL FILL) | 1 | |
| 5 | 0874786 | ADAPTER | 1 | |
| 6 | 0961519 | SHEET | 1 | |
| 7 | 0965915 | RETAINER | 2 | |
| 8 | 1086503 | PISTON AS | 9 | |
| 9 | 1184057 | SPRING | 9 | |
| 10 | 1241541 | PIN | 2 | |
| 11 | 1241561 | SPRING (BRAKE) | 20 | |
| 12 | 1373708 | RETAINER | 1 | |
| 13 | 1673855 | SHAFT | 1 | |
| 14 | 1673857 | KEY | 1 | |
| 15 | 1673858 | KEY | 1 | |
| 16 | 1673859 | PLATE-CAM | 1 | |
| 17 | 1673862 | PLATE-RETAINER | 1 | |
| 18 | 1673863 | BALL | 1 | |
| 19 | 1673865 | PLATE-SEPARATOR | 5 | |
| 20 | 1673866 | PLATE-FRICTION | 4 | |
| 21 | 1673867 | PLATE-PORT | 1 | |
| 22 | 1673868 | PISTON-BRAKE | 1 | |
| 23 | 1673872 | SPOOL | 1 | |
| 24 | 1701612 | SEAL | 2 | |
| 25 | 1701626 | RING-BACKUP | 1 | |
| 26 | 1701627 | RING-BACKUP | 1 | |
| 27 | 1734063 | BARREL AS-MOTOR | 1 | |
| 28 | 1734066 | SPACER (63.05X79.8X7-MM THK) | 1 | |
| 29 | 1757436 | VALVE | 1 | |
| 30 | 1757887 | DOWEL | 2 | |
| 31 | 1806769 | BEARING AS | 1 | |
| 32 | 1806770 | BEARING AS | 1 | |
| 33 | 1865175 | PLUG | 1 | |
| 34 | 1893189 | RING-SEAL | 1 | |
| 35 | 1937900 | HEAD AS | 1 | |
| 36 | 1937901 | BODY AS | 1 | |
| 37 | 1964987 | PISTON-ACTUATOR | 1 | |
| 38 | 0951572 | SEAL - O-RING (4.80 MM ID) | 2 | |
| 39 | 0951585 | SEAL- -O-RING (17.80 MM ID) | 1 | |
| 40 | 0951596 | SEAL-O-RING (ID=28.70mm) | 1 | |
| 41 | 0951700 | SEAL - O-RING (34.40 MM ID) | 2 | |
| 42 | 0957380 | SPRING | 1 | |
| 43 | 0963978 | SPRING | 1 | |
| 44 | 0965919 | RING (5.00MM ID) | 2 | |
| 45 | 0997030 | RING-BACKUP | 1 | |
| 46 | 1701616 | SEAL | 1 | |
| 47 | 2D6642 | BALL 6.35 mm(.25 in.)diameter | 2 | |
| 48 | 2M9780 | SEAL--TO CONNECTOR PUMP OUTLET | 1 | |
| 49 | 2R1236 | RING-RETAINING | 1 | |
| 50 | 3F1547 | SEAL 7.484 in. (190.10 mm) I.D. | 1 | |
| 51 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 4 | |
| 52 | 4K4284 | RING-RETAINING | 1 | |
| 53 | 6V5192 | BOLT-SOCKET HEAD (M8X1.25X30-MM) | 4 | |
| 54 | 7Y5219 | SEAL-O-RING (ID=12.37mm) | 2 | |
| 55 | 8T2393 | BOLT-SOCKET HD (SOCKET HEAD) (M16X2X60MM) | 8 | |
| 56 | 9S8005 | PLUG-O-RING (STRAIGHT THREAD O-RING) | 4 | |
| 57 | 0960008 | BOLT-SOCKET HEAD (M16X2X140-MM) | 4 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 1843061 | KIT-SEAL (TRAVEL MOTOR) | 1 | ||
| KIT MARKED J SERVICES PARTS MARKED J | ||||
| METRIC PART |
