Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 9150472 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | ||
| (9155253) | TRAVEL DEVICE ASS'Y (FOR TRANSPORTATION) | 2 | ||
| 00 | 9146471 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | (9149087) | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4114753 | . SEAL; GROUP | 1 | |
| 03 | 4246793 | . BRG.; ROL. | 2 | |
| 04 | 1018736 | . DRUM | 1 | |
| 05 | 1018740 | . SPROCKET | 1 | |
| 06 | J932055 | . BOLT | 16 | |
| 07 | A590920 | . WASHER; SPRING | 16 | |
| 08 | 3047448 | . HUB | 1 | |
| 09 | 3057125 | . NUT | 1 | |
| 10 | 4246783 | . PIN; KNOCK | 1 | |
| 12 | 1019147 | . CARRIER | 1 | |
| 13 | 3063957 | . GEAR; PLANETARY | 3 | |
| 14 | 4317122 | . BRG.; NEEDLE | 6 | |
| 15 | 4284521 | . PLATE; THRUST | 6 | |
| 16 | 4315838 | . PIN | 3 | |
| 17 | 4116309 | . PIN; SPRING | 3 | |
| 18 | 3063959 | . GEAR; SUN | 1 | |
| 20 | 1020184 | . GEAR; RING | 1 | |
| 21 | J931640 | . BOLT | 24 | |
| 23 | 2034836 | . CARRIER | 1 | |
| 24 | 4192979 | . SPACER | 2 | |
| 25 | 3063956 | . GEAR; PLANETARY | 3 | |
| 26 | 4317121 | . BRG.; NEEDLE | 3 | |
| 27 | 4210851 | . PLATE; THRUST | 6 | |
| 28 | 4309995 | 3 | ||
| 29 | 4192020 | . PIN; SPRING | 3 | |
| 30 | 3063958 | . GEAR; SUN | 1 | |
| 32 | 2034835 | . CARRIER | 1 | |
| 33 | 3063955 | . GEAR; PLANETARY | 3 | |
| 34 | 4210849 | . BRG.; NEEDLE | 3 | |
| 35 | 4192910 | . PLATE; THRUST | 6 | |
| 36 | 4210853 | . PIN | 3 | |
| 37 | 4173093 | . PIN; SPRING | 3 | |
| 38 | 2034834 | . SHAFT; PROP. | 1 | |
| 40 | 2034833 | . COVER | 1 | |
| 41 | 4285323 | . PIN; STOPPER | 1 | |
| 42 | J011230 | . BOLT; SEMS | 12 | |
| 43 | 4245797 | . PLUG | 3 | |
| 47 | M492564 | . SCREW; DRIVE | 2 | |
| 48 | 3053559 | . NAME-PLATE | 1 |
|

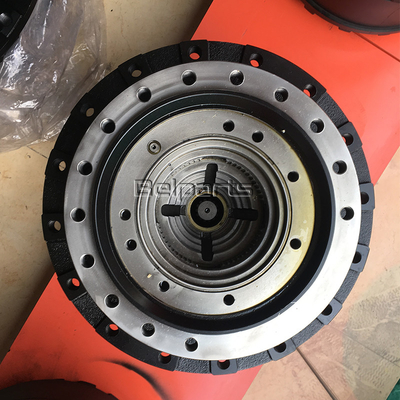

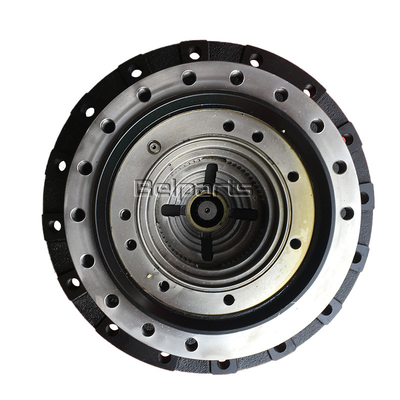

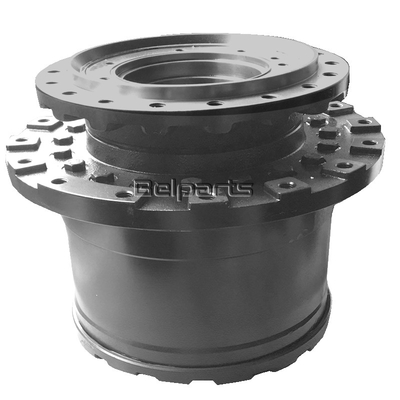

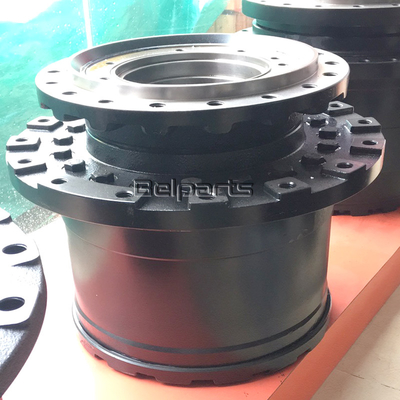

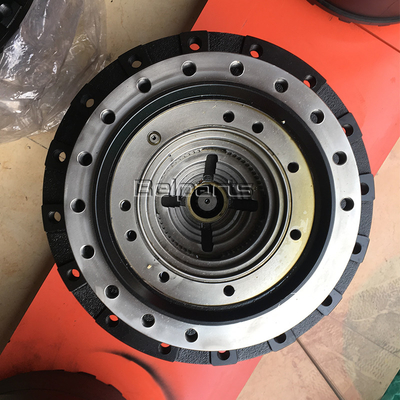

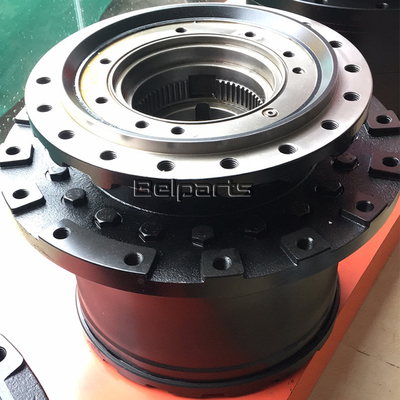

Hitachi 9150472 EX200LC-5 EX210LCH-5 travel gearbox describe
| Model NO. | EX200LC-5 EX210LCH-5 |
| Description | Long Life Hydraulic Travel Reducer For Excavator Spare Parts |
| Brand name | Belparts |
| Color | As the photo |
| Appliion | Excavator |
| Condition | 100% brand new |
| Warranty | 365 days |
| Packing | standard packing(fiberboad carton/wooden )or as customzied |
| Payment term | T/T, PayPal and Alibaba trade assurance |
| Shipment | 1-5days after getting the payment,but not for the customzied item |
| Remark | Any more detailed information about the product,pls donot hestate to inquiry with us.Also welcime to visitour company or factory if you have free time.We will be appriciate for that. Thank you. |
A foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting, and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, a strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
FAQ
1.I know only the excavator model,but can not offer parts No., what should I do?
If possible, you can send us the old photo,name plate or the size for reference.
2.How can you guarantee the quality?
If you meet with quality problem within 1 year, We will replace goods or return your funds based on the item details.
3.How can I pay the order?
We can receive payment through T/T, trade assurance.
4. How long for transport?
For express/ air, it takes about 3 days. For land/ sea, it takes about one month. It depends on your address.
5.How can I do if there is something wrong with the items?
First of all, We have confidence in the quality of our products, if you really found something wrong, please provide the old photo for us. After it is confirmed, please return to us, we will offer the correct item.
6.What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox / assy / parts, swing gearbox/assy/motor /parts, hydraulic pump assy/parts, gear parts/mini excavator. If you need other excavator parts, we also can supply as you requirements.
Engine parts: complete engine, full gasket kit, piston, liner, starter, crankshaft, block, head, rod, injector, fuel pump, turbo, alternator, fan, controller.
Undercarriage parts: rubber Track, track chain with track shoe, sprocket, sprocket, carrier roller, track roller.
Structure part: boom, arm, bucket, teeth and pin, quick coupler, cylinder, link.
Cab parts: cab body, glass, monitor, controller, seat, radio, door, joystick, pedal, air conditioning, wiper.
