Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 0147 | 9091681 | TRAVEL DEVICE ASS'Y | 2 | |
| 0147 | 9116392 | TRAVEL DEVICE ASS'Y | 2 | |
| 0147 | 9116393 | TRAVEL DEVICE ASS'Y | 2 | |
| 01 | 9101523 | . MOTOR; OIL | 1 | |
| 01 | 9116388 | . MOTOR; OIL | 1 | |
| 01 | 9116390 | . MOTOR; OIL | 1 | |
| 02 | 4114753 | . SEAL; GROUP | 1 | |
| 03 | 4246793 | . BRG.; ROL. | 2 | |
| 04 | 1013983 | . DRUM | 1 | |
| 05 | 1010203 | . SPROCKET | 1 | |
| 06 | J932055 | . BOLT | 16 | |
| 07 | 3047448 | . HUB | 1 | |
| 09 | 4246783 | . PIN; KNOCK | 1 | |
| 10 | A590920 | . WASHER; SPRING | 16 | |
| 11 | 1013981 | . GEAR; RING | 1 | |
| 12 | J931660 | . BOLT | 20 | |
| 13 | 4246792 | . O-RING | 1 | |
| 14 | 1013980 | . CARRIER | 1 | |
| 15 | 3047444 | . GEAR; PLANETARY | 3 | |
| 16 | 4210850 | . BRG.; NEEDLE | 6 | |
| 17 | 4246790 | . PIN | 3 | |
| 18 | 4116309 | . PIN; SPRING | 3 | |
| 19 | 3047443 | . GEAR; SUN | 1 | |
| 20 | 4269295 | . PLATE; THRUST | 12 | |
| 21 | 1013979 | . CARRIER | 1 | |
| 22 | 4246785 | . SPACER | 2 | |
| 23 | 3047446 | . GEAR; PLANETARY | 3 | |
| 24 | 4246786 | . BRG.; NEEDLE | 3 | |
| 25 | 4246789 | . PIN | 3 | |
| 26 | 4246358 | . PIN; SPRING | 3 | |
| 27 | 3047442 | . GEAR; SUN | 1 | |
| 29 | 1013982 | . CARRIER | 1 | |
| 30 | 3047447 | . GEAR; PLANETARY | 3 | |
| 31 | 4246787 | . BRG.; NEEDLE | 3 | |
| 32 | 4246788 | . PIN | 3 | |
| 33 | 4192020 | . PIN; SPRING | 3 | |
| 34 | 2028213 | . SHAFT; PROP. | 1 | |
| 36 | 2028212 | . COVER | 1 | |
| 38 | J011230 | . BOLT; SEMS | 16 | |
| 40 | 4245797 | . PLUG | 3 | |
| 42 | M492564 | . SCREW; DRIVE | 2 | |
| 43 | 3053559 | . NAME-PLATE | 1 | |
| 45 | 3057125 | . NUT | 1 | |
| 46 | 4192983 | . PLATE; THRUST | 6 | |
| 47 | 4285323 | . PIN; STOPPER | 1 | |
| 132 | 4248607 | BOLT | 28 | |
| 133 | 4018545 | WASHER | 28 |
|

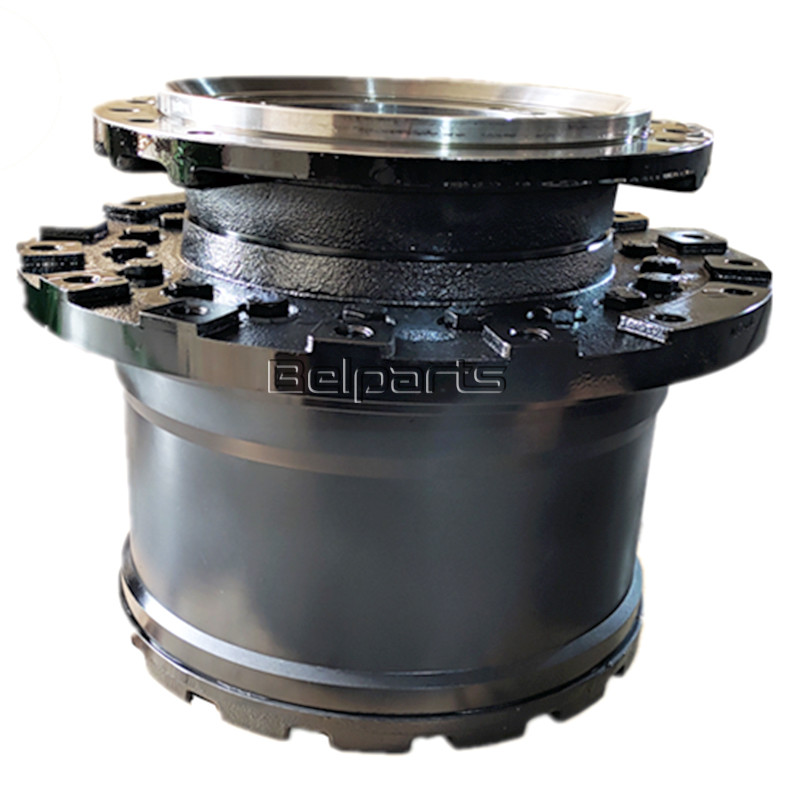

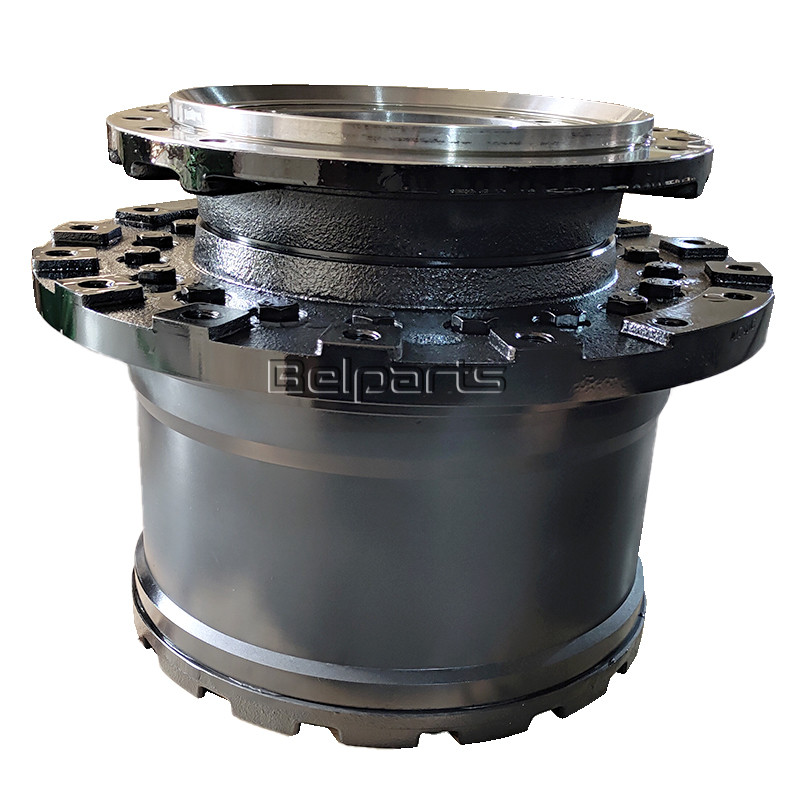

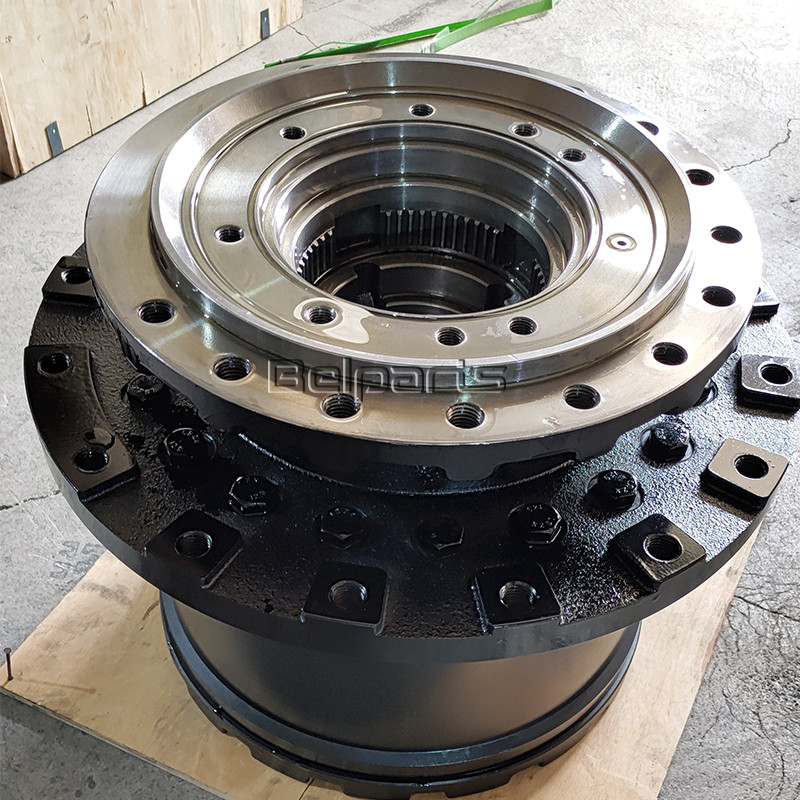

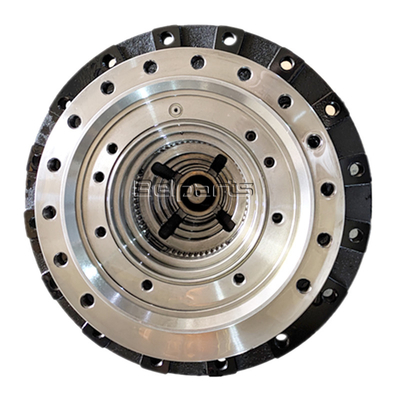

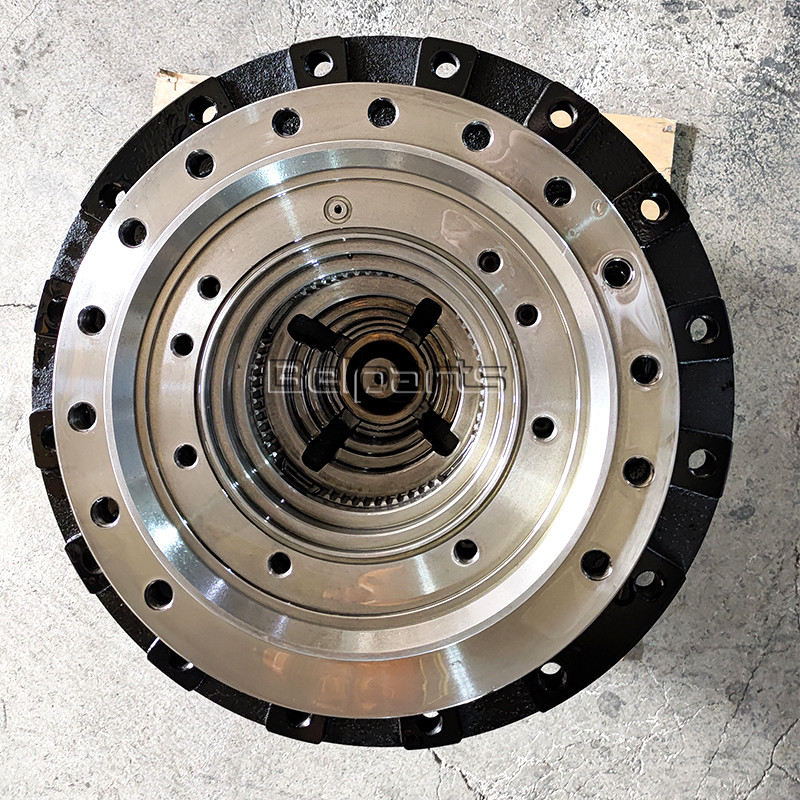

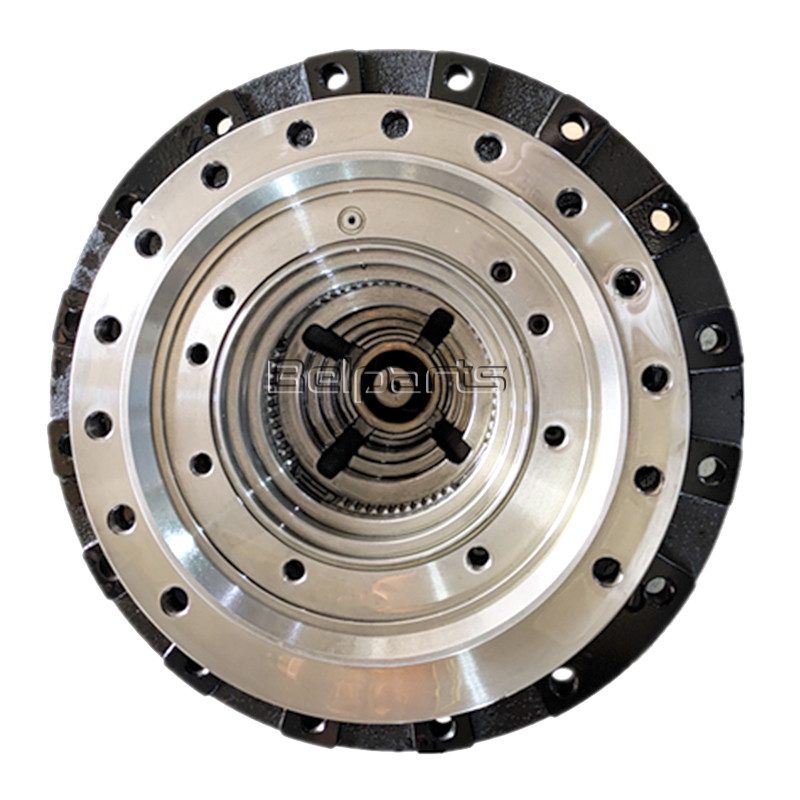

Hitachi 9091681 EX220-2 EX200LC-2 travel gearbox describe
| Appliion | Excavator |
| Part name | Travel gearbox |
| Material | Steel |
| Model | EX220-2 EX200LC-2 |
| MOQ | 1PC |
| Warranty | 12 months |
| Payment term | T/T, Paypal, Alibaba trade assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
Our advantage
1. OEM Manufacturing welcome: Product, Package...
2. When you place an order with us, we will take clear photos as your need.
3. We will reply to you with your inquiry in 24 hours.
4. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Engine parts: complete engine, full gasket kit, piston, liner, starter, crankshaft, block, head, rod, injector, fuel pump, turbo, alternator, fan, controller.
Undercarriage parts: rubber Track, track chain with track shoe, sprocket, sprocket, carrier roller, track roller.
Structure part: boom, arm, bucket, teeth and pin, quick coupler, cylinder, link.
Cab parts: cab body, glass, monitor, controller, seat, radio, door, joystick, pedal, air conditioning, wiper.
A foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting, and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, a strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
FAQ
1.I know only the excavator model,but can not offer parts No., what should I do?
If possible, you can send us the old photo,name plate or the size for reference.
2.How can you guarantee the quality?
If you meet with quality problem within 1 year, We will replace goods or return your funds based on the item details.
3.How can I pay the order?
We can receive payment through T/T, trade assurance.
4. How long for transport?
For express/ air, it takes about 3 days. For land/ sea, it takes about one month. It depends on your address.
5.How can I do if there is something wrong with the items?
First of all, We have confidence in the quality of our products, if you really found something wrong, please provide the old photo for us. After it is confirmed, please return to us, we will offer the correct item.
6.What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox / assy / parts, swing gearbox/assy/motor /parts, hydraulic pump assy/parts, gear parts/mini excavator. If you need other excavator parts, we also can supply as you requirements.
