List of spare parts
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 8277459 | ||||
| VOE 14528258 | Travel Gearbox | 1 | ||
| 1 | SA 7117-38221 | Housing SER NO 10001-10928 |
1 | |
| VOE 14521858 | Housing SER NO 10929-11467 |
1 | ||
| VOE 14522896 | Housing SER NO 11468- |
1 | ||
| 2 | SA 7117-38230 | Bearing | 2 | |
| 3 | SA 7117-38240 | Seal SER NO 10001-11467 more |
1 | |
| VOE 14522998 | Seal SER NO 11468- more |
1 | ||
| 4 | SA 7117-38251 | Nut SER NO 10001-12345 more |
1 | |
| VOE 14528319 | Nut SER NO 12346- more |
1 | ||
| 5 | SA 1036-00300 | Ring | 1 | |
| 6 | SA 7117-38271 | Planetary Gear | 4 | |
| 7 | SA 7117-38520 | Needle Bearing | 4 | |
| 8 | SA 7117-38301 | Pin | 4 | |
| 9 | SA 7117-38311 | Gear SER NO 10001-11311 |
1 | |
| VOE 14522897 | Gear SER NO 11312- |
1 | ||
| 10 | SA 9016-21620 | Bolt | 20 | |
| 11 | SA 7117-38210 | Carrier | 1 | |
| 12 | SA 7117-34320 | Washer | 6 | |
| 13 | SA 7117-38320 | Carrier | 1 | |
| 14 | SA 7117-38330 | Gear | 1 | |
| 15 | SA 7117-38340 | Ring | 1 | |
| 16 | SA 7117-38350 | Planetary Gear | 3 | |
| 17 | SA 7117-38360 | Needle Bearing | 3 | |
| 18 | SA 7117-38380 | Pin | 1 | |
| 19 | SA 9325-06012 | Spring Pin | 3 | |
| 20 | SA 1036-00290 | Ring | 1 | |
| 21 | SA 7117-38371 | Gear | 1 | |
| 22 | SA 7117-38201 | Carrier | 1 | |
| 23 | SA 7117-38180 | Pin | 1 | |
| 24 | SA 7117-38391 | Carrier | 1 | |
| 25 | SA 7117-38400 | Gear | 1 | |
| 26 | SA 7117-38410 | Ring | 1 | |
| 27 | SA 7117-38420 | Needle Bearing | 3 | |
| 28 | Planetary gear | 3 | ||
| 29 | SA 7117-38440 | Washer | 1 | |
| 30 | SA 7117-38450 | Washer | 1 | |
| 31 | SA 9325-06012 | Spring Pin | 3 | |
| 32 | SA 9541-01040 | Ring | 3 | |
| 33 | SA 9541-01038 | Ring | 1 | |
| 34 | SA 7117-38190 | Cover SER NO 10001-10255 |
1 | |
| VOE 14517931 | Cover SER NO 10256-11311 more |
1 | ||
| VOE 14522993 | Cover SER NO 11312- more |
1 | ||
| 35 | VOE 967631 | Allen Hd Screw SER NO 10001-11311 more |
16 | |
| VOE 983252 | Screw SER NO 11312- more |
16 | ||
| 36 | SA 9415-43042 | Plug SER NO 10001-10255 more |
3 | |
| SA 9415-11052 | Plug SER NO 10256-SER NO 30001- more |
3 | ||
| 37 | SA 7117-38460 | Ring | 4 | |
| 38 | SA 7117-38470 | Washer | 8 | |
| 39 | SA 9023-10803 | Set Screw SER NO 10001-12345 more |
2 | |
| VOE 14526549 | Pipe SER NO 12346- |
2 | ||
| 40 | SA 1146-06870 | Pad SER NO 10001-12345 more |
2 | |
| 41 | SA 9325-06012 | Spring Pin | 4 | |
| 42 | SA 9511-12024 | O-ring SER NO 10256-SER NO 30001- more |
3 | |
| 43 | VOE 955922 | Spring Washer SER NO 11312- more |
16 |
|

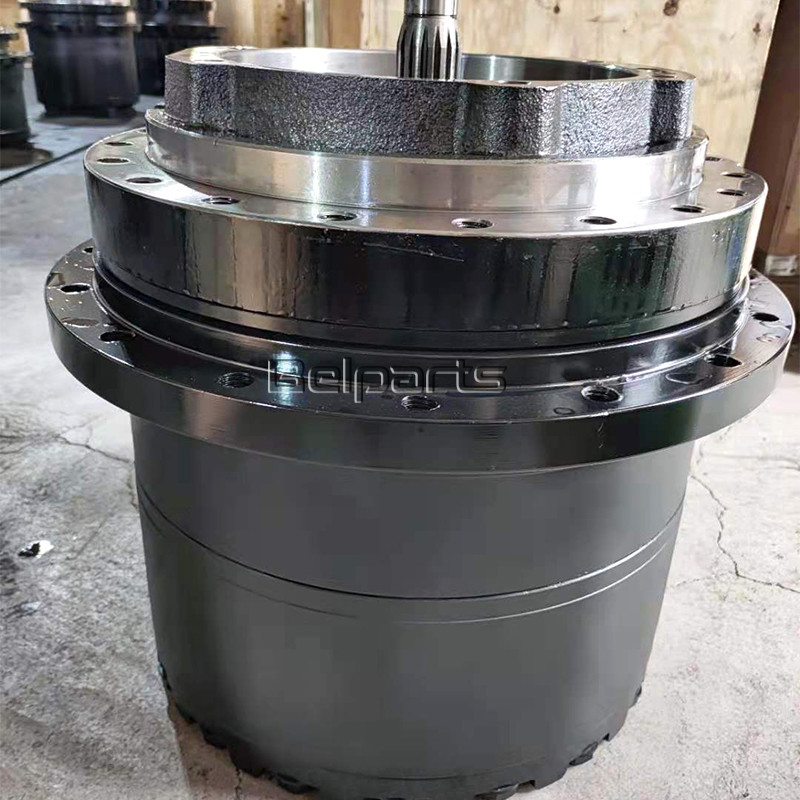

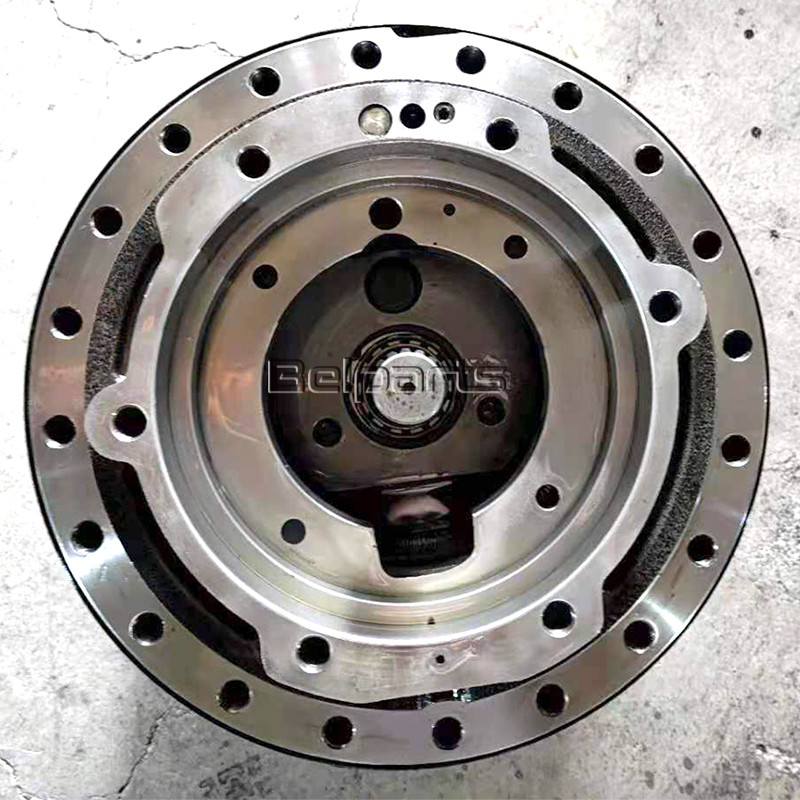

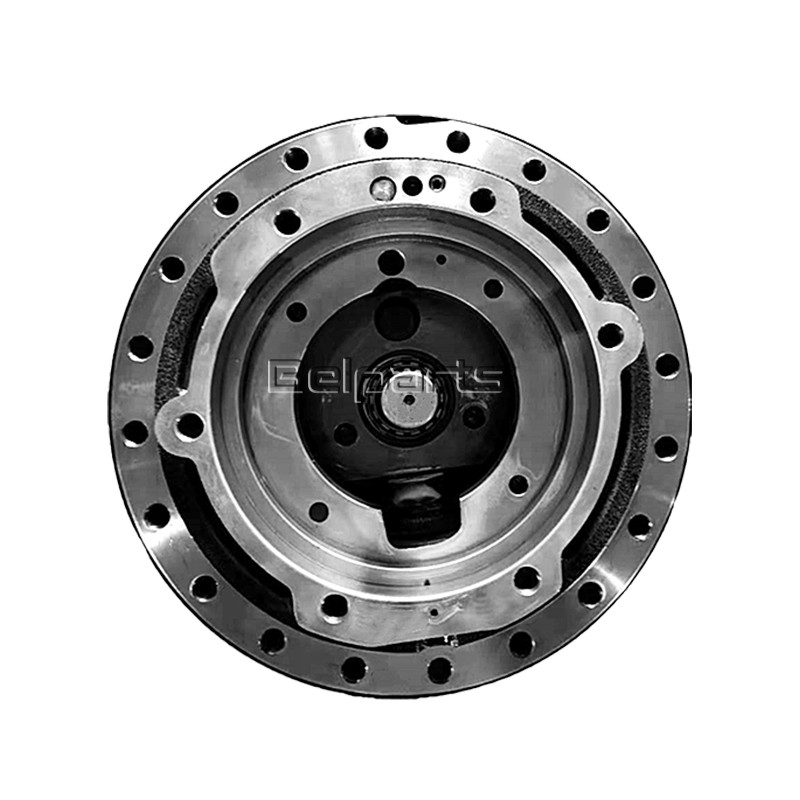

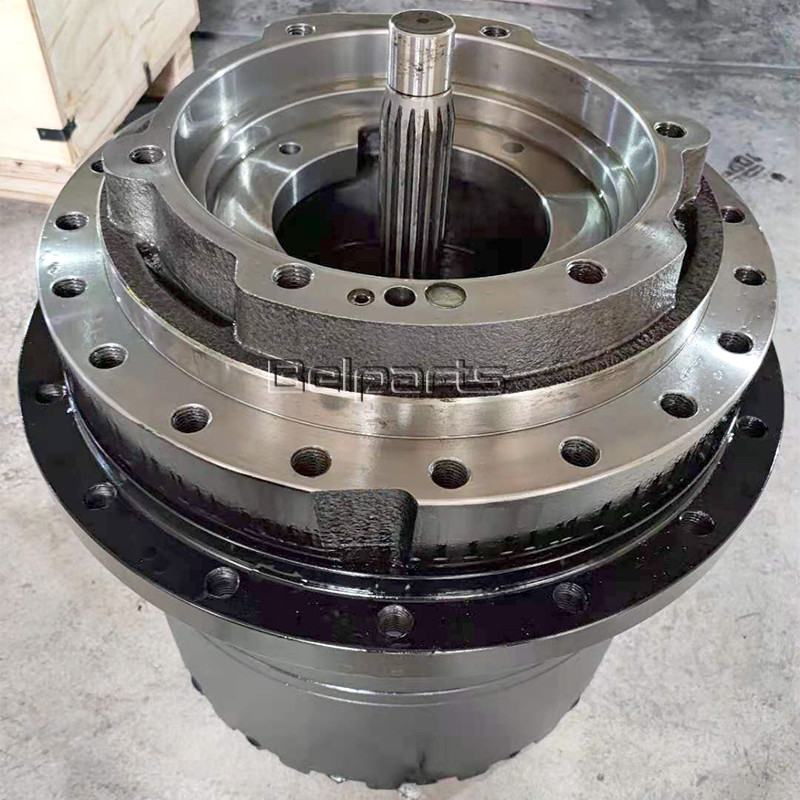

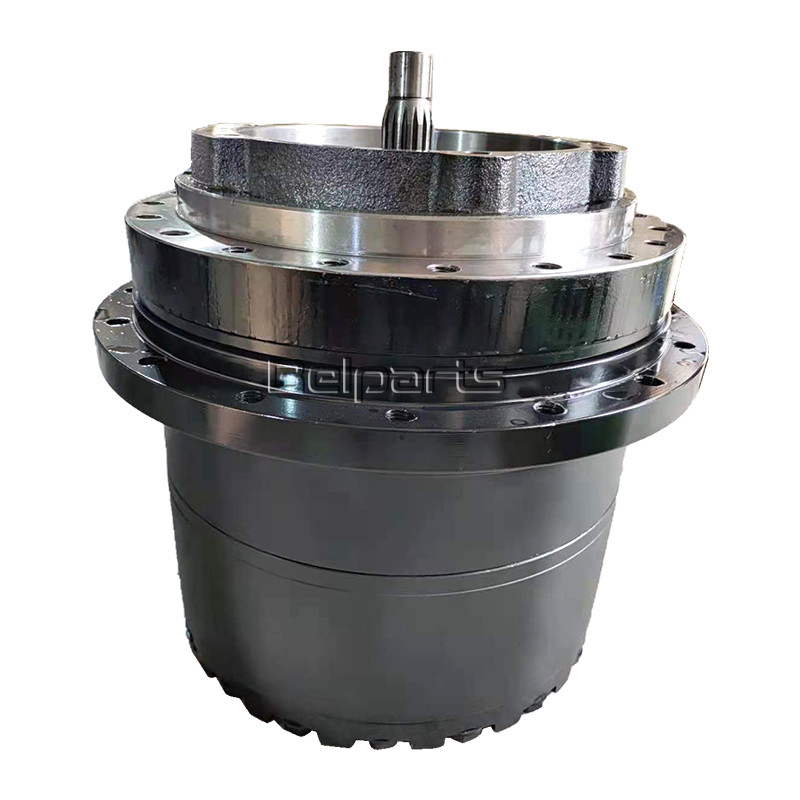

VOE145-42165 EC330 EC290 travel gearbox describe
| Appliion | Excavator |
| Part name | Travel gearbox |
| Material | Steel |
| Model | EC290 EC290B EC330 |
| MOQ | 1PC |
| Warranty | 12 months |
| Payment term | T/T, Paypal, Alibaba trade assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
Our advantage
1. OEM Manufacturing welcome: Product, Package...
2. When you place an order with us, we will take clear photos as your need.
3. We will reply to you with your inquiry in 24 hours.
4. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
A foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting, and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, a strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
FAQ
1.I know only the excavator model,but can not offer parts No., what should I do?
If possible, you can send us the old photo,name plate or the size for reference.
2.How can you guarantee the quality?
If you meet with quality problem within 1 year, We will replace goods or return your funds based on the item details.
3.How can I pay the order?
We can receive payment through T/T, trade assurance.
4. How long for transport?
For express/ air, it takes about 3 days. For land/ sea, it takes about one month. It depends on your address.
5.How can I do if there is something wrong with the items?
First of all, We have confidence in the quality of our products, if you really found something wrong, please provide the old photo for us. After it is confirmed, please return to us, we will offer the correct item.
6.What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox / assy / parts, swing gearbox/assy/motor /parts, hydraulic pump assy/parts, gear parts/mini excavator. If you need other excavator parts, we also can supply as you requirements.
Engine parts: complete engine, full gasket kit, piston, liner, starter, crankshaft, block, head, rod, injector, fuel pump, turbo, alternator, fan, controller.
Undercarriage parts: rubber Track, track chain with track shoe, sprocket, sprocket, carrier roller, track roller.
Structure part: boom, arm, bucket, teeth and pin, quick coupler, cylinder, link.
Cab parts: cab body, glass, monitor, controller, seat, radio, door, joystick, pedal, air conditioning, wiper.
