Parts scheme
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Remark |
|---|---|---|---|---|---|
| 15 | 1.115-00138 | RING | 1 | ||
| 19 | 1.414-00009 | COUPLING | 1 | ||
| 20 | 1.412-00164 | PLATE, THRUST | 2 | ||
| 23 | 1.180-00355 | RING, SEAL | 5 kg | 1 | |
| 24 | 1.109-00146 | BEARING, ANGULAR BALL | 7 kg | 2 | |
| 26 | 1.180-00512 | SEAL, FLOATING | 2 kg | 1 SET | |
| 29 | S8010230 | O-RING | 1 | ||
| 30 | 2181-1116D4 | PLUG, RECHECK | 97123-04111 | 3 | |
| 32 | S0561471 | BOLT, HEX M12X1.75X85 | 20 | ||
| 33 | S5110701 | WASHER, SPRING | 1 kg | 20 | |
| 34 | 1.123-00026 | PIN, PARALLEL | 3 | ||
| 36 | S6250200 | BALL, STELL | 1 | ||
| 39 | S8000081 | O-RING | 2 | ||
| 40 | S8003401 | O-RING | 1 | ||
| - | K1011413A | DEVICE, TRAVEL | 321 kg | 2 | |
| RG | K9005007 | REDUCTION GEAR ASS'Y | 172 kg | 1 | |
| RG1 | K9005008 | HUB ASS'Y | 1 | ||
| 1 | *NA00546 | HUB | SIS | 1 | |
| 4 | *NA00495 | GEAR, RING A | 1 | ||
| 27 | 1.123-00107 | PIN, PARALLEL D12X63 | 10 | ||
| RG2 | K9005010 | SPINDLE ASS'Y | 67 kg | 1 | |
| 2 | *NA01154 | SPINDLE | 1 | ||
| 8 | 1.404-00002 | GEAR, COUPLING | 8 kg | 1 | |
| 35 | S2224471 | BOLT, SOCKET M8X2.5X40 | 10 | ||
| 17 | 1.123-00034 | PIN | 10 | ||
| RG3 | 1.230-00053 | CARRIER ASS'Y | 33 kg | 1 | |
| 3 | 1.230-00054 | CARRIER | 29 kg | 1 | |
| 6 | 1.404-00007 | GEAR, CLUSTER | 9 kg | 3 | |
| 9 | 1.405-00121 | SHAFT, CLUSTER | 3 kg | 3 | |
| 14 | 1.114-00541 | COLLAR, THRUST | 6 | ||
| 25 | 1.109-00145 | BEARING, NEEDLE | 6 | ||
| 5 | 1.104-00003 | GAER, RING B | 17 kg | 1 | |
| 7 | 1.403-00111 | GEAR, SUN | 1 kg | 1 | |
| 12 | 1.540-00004 | PIECE, DISTANCE | 1 | ||
| 13 | 1.430-00030 | COVER | 15 kg | 1 |
|
More information
Product Description

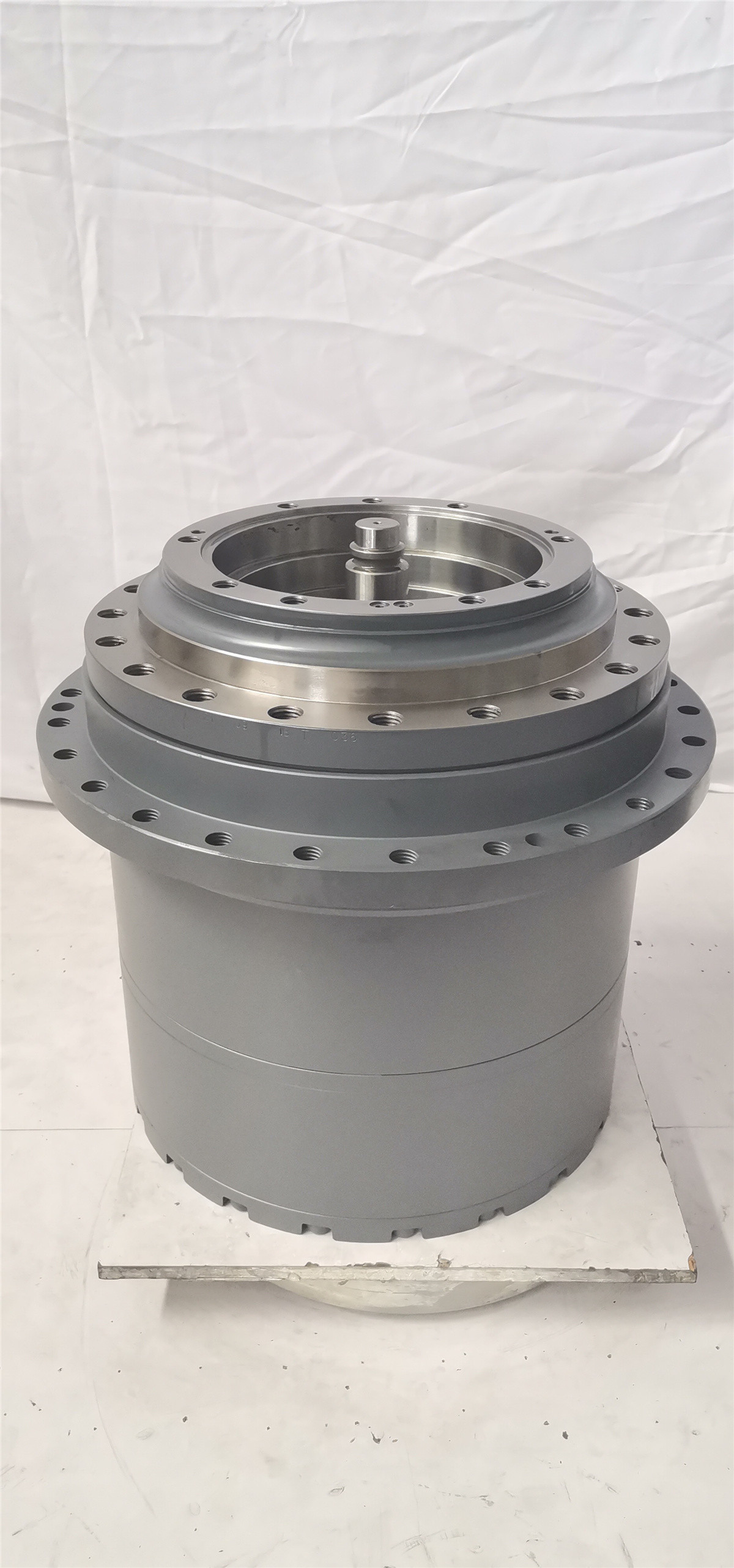

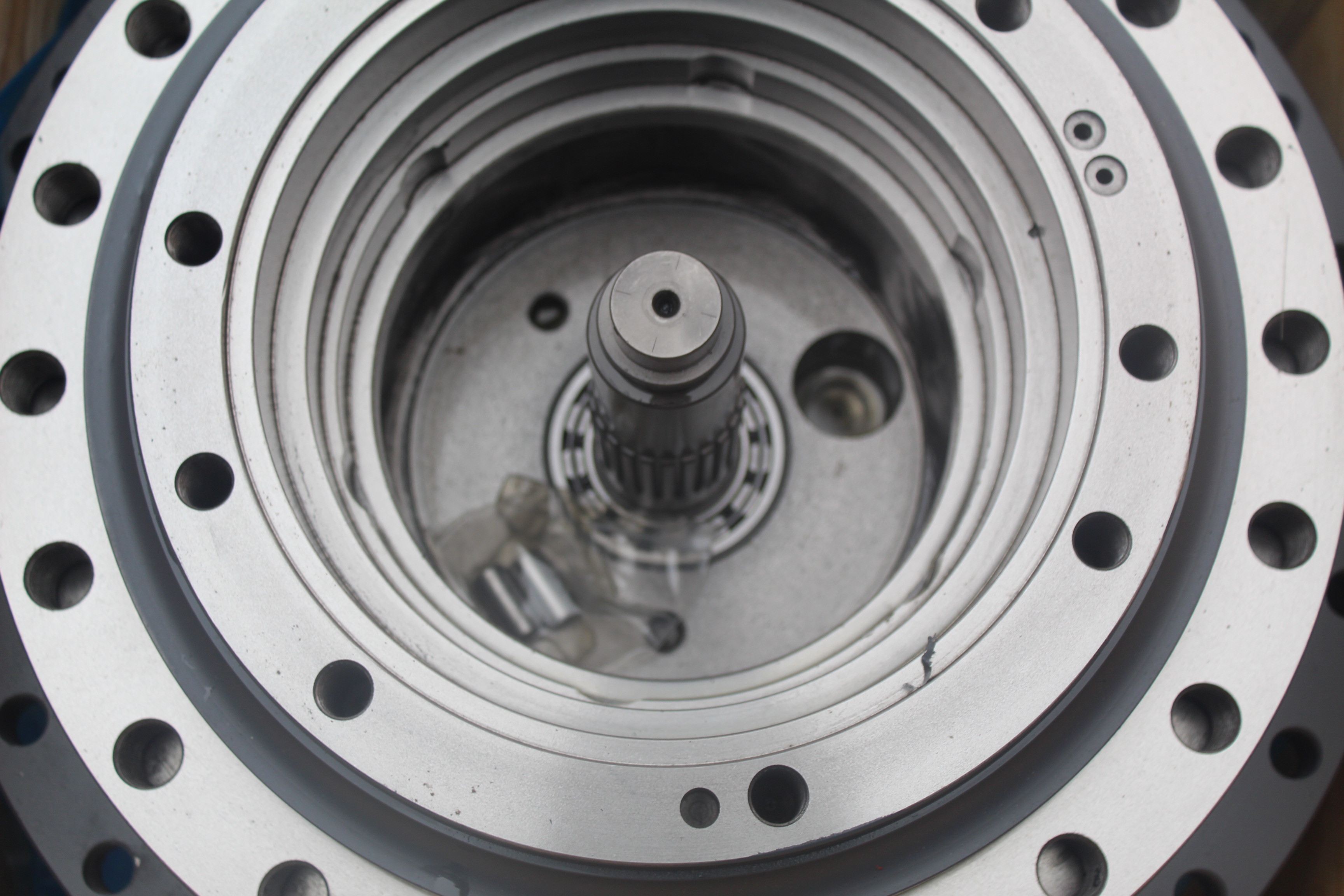

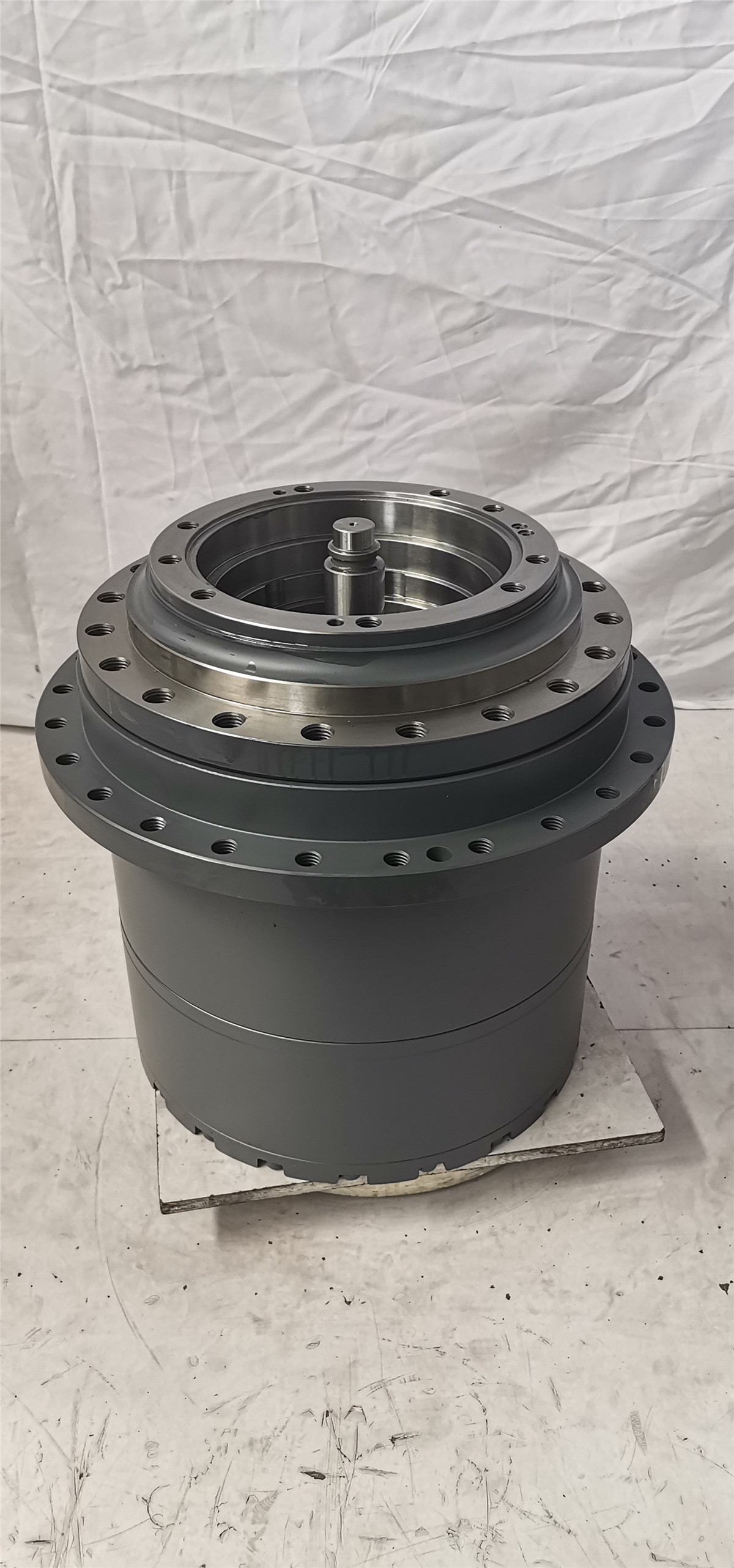

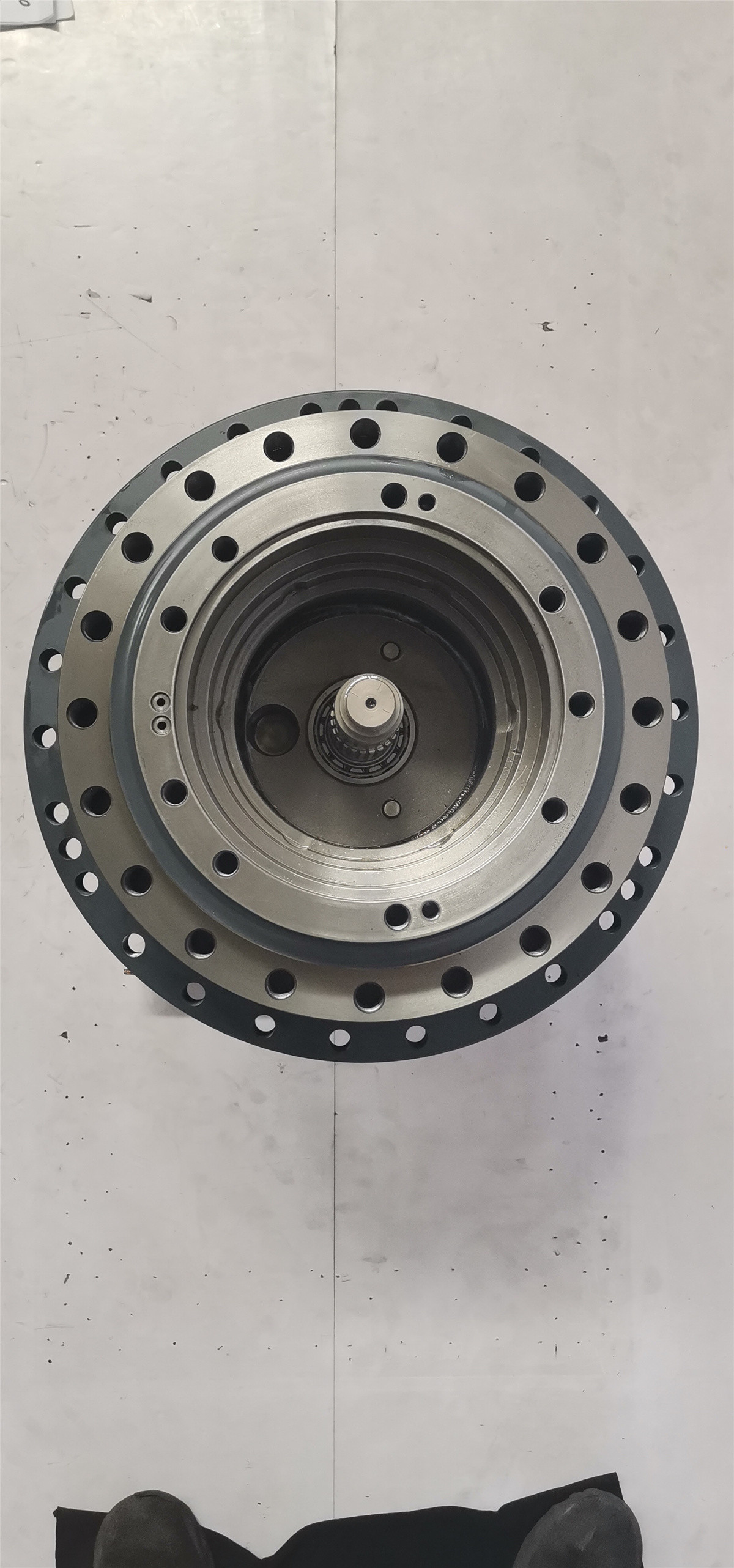

| Product name | Belparts DX255 DX258 DH255 Excavator Travel Device K9005007 K1011403A Final Drive |
| Place of Origin: | China(mainland) |
| Model: | DX255 DX258 DH255 |
| Part number: | K9005007 K1011403A Final Drive |
| MOQ: | 1 PCS |
| Payment term: | T/T & Western Union.... |
| Delivery time: | Within 2 days after receiving the payment |

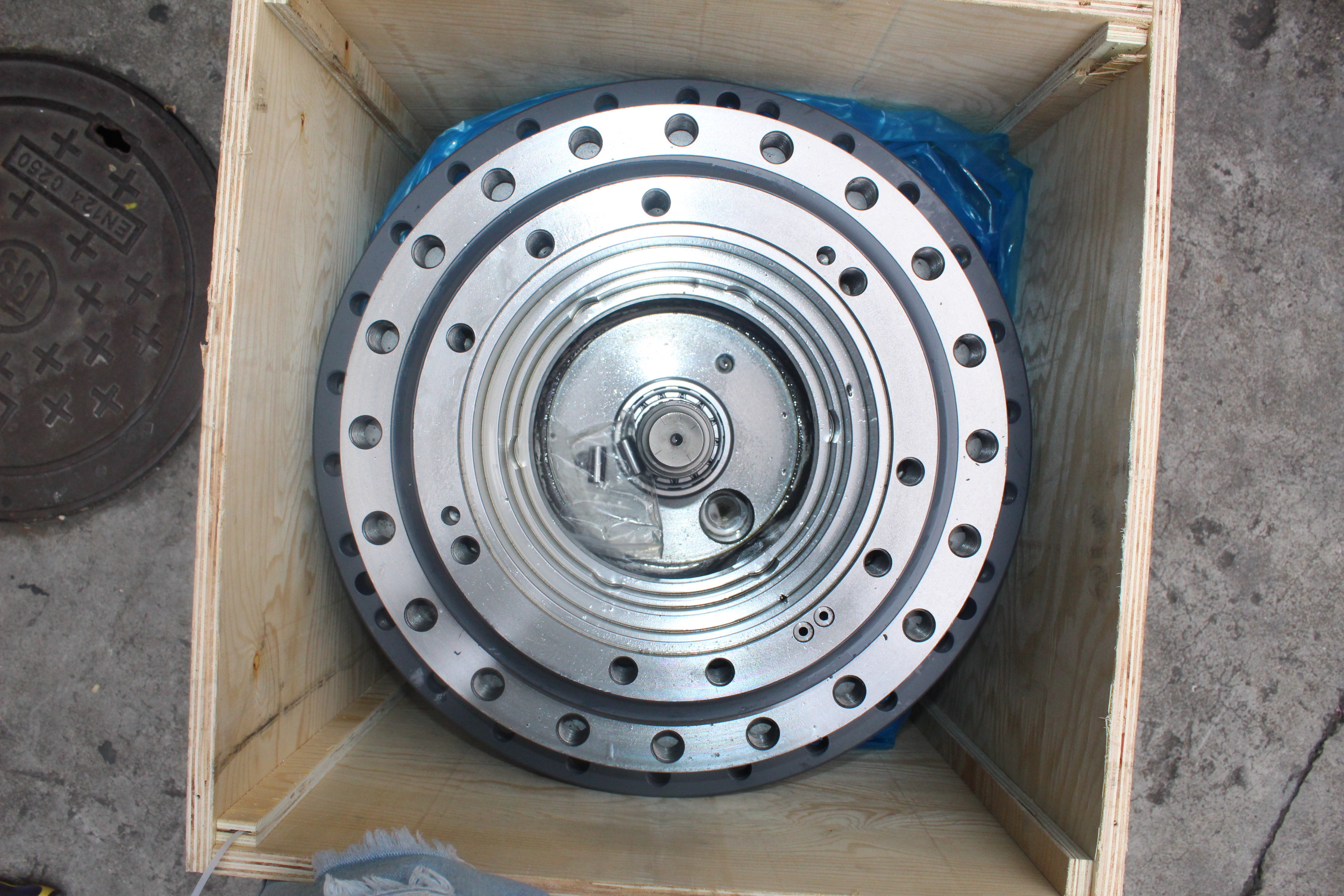

| Packing: | Standard exporting packing or as required |
Advantages
v Strong part number database
If you can provide the right model and part number, we can supply the right product.
v Professional and experienced salesperson
Our founder has been into this field for more than 6 years, with rich experiences.
v Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
v Good management system
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
v Good service attitude
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
