PC300-8MO PC350-8MO Travel Gearbox 207-27-00590 Travel Reducer Gear
Product description
| Part name | Travel gearbox |
| Part number | 207-27-00590 |
| Machine model | PC300-8MO PC350-8MO |
| Warranty | 3 months |
| Appliion | Excavator |
| Quality | Aftermarket |
| MOQ | 1 PCS |
| Condition |
Brand new
|

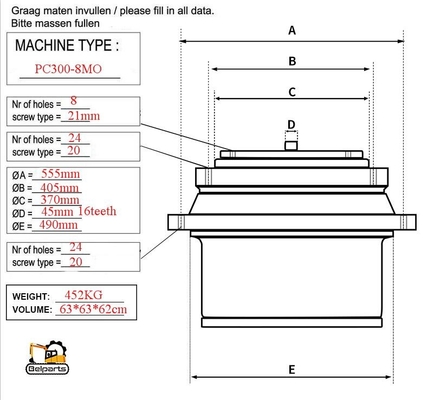

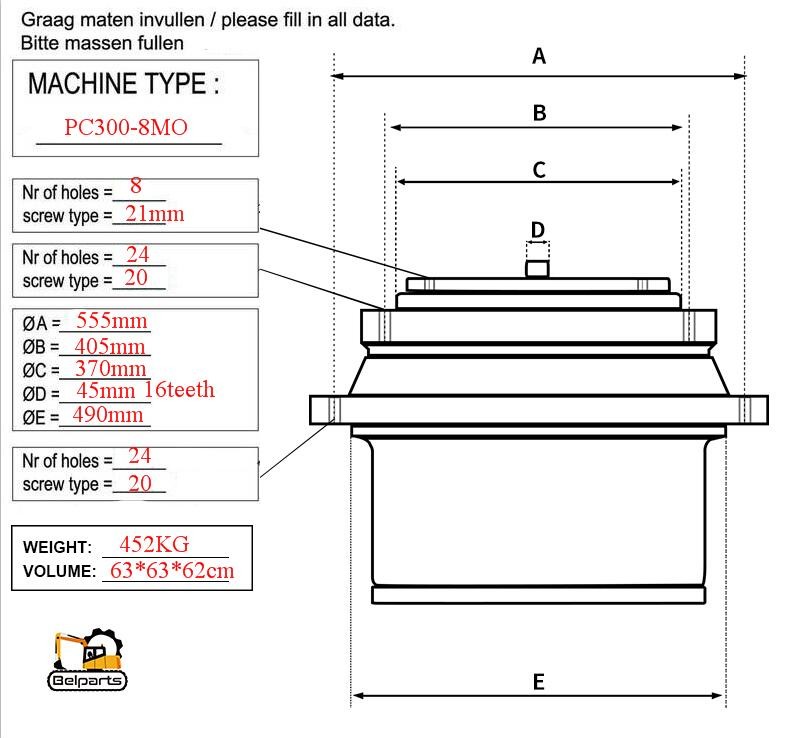

Drawing of the travel gearbox
List of the travel gearbox
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 207-27-00590 | [1] | Final Drive Assembly Komatsu China | ||
| ["SN: 80001-UP"] |$0. | ||||
| 207-27-00510 | [1] | Floating Seal Assembly Komatsu China | ||
| ["SN: 80001-UP"] |$1. | ||||
| 3. | 207-27-72290 | [1] | Hub Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 4. | 207-27-72220 | [2] | Bearing Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 5. | 207-27-52350 | [1] | O-ring Komatsu China | 0.02 kg. |
| ["SN: 80001-UP"] | ||||
| 6. | 207-27-72260 | [1] | Lock Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 7. | 207-27-72250 | [1] | Nut, Lock Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 8. | 01010-81020 | [2] | Bolt Komatsu | 0.161 kg. |
| ["SN: 80001-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 9. | 207-27-72170 | [1] | Carrier Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 10. | 207-27-72140 | [4] | Gear Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 11. | 207-27-72210 | [4] | Bearing Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 12. | 21M-27-11260 | [8] | Washer, Thrust Komatsu OEM | 0.24 kg. |
| ["SN: 80001-UP"] | ||||
| 13. | 208-27-71250 | [4] | Pin Komatsu OEM | 2.16 kg. |
| ["SN: 80001-UP"] | ||||
| 14. | 20Y-27-21290 | [4] | Pin Komatsu OEM | 0.03 kg. |
| ["SN: 80001-UP"] | ||||
| 15. | 20Y-27-13310 | [1] | Washer, Thrust Komatsu China | 0.08 kg. |
| ["SN: 80001-UP"] | ||||
| 16. | 207-27-72130 | [1] | Gear Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 17. | 207-27-72150 | [1] | Gear, Ring Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 18. | 207-27-72240 | [1] | Washer, Thrust Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 19. | 207-27-72160 | [1] | Carrier Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 20. | 207-27-72120 | [3] | Gear Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 21. | 22U-26-21320 | [3] | Bearing Komatsu | 1.1 kg. |
| ["SN: 80001-UP"] | ||||
| 22. | 206-26-71520 | [6] | Washer, Thrust Komatsu | 0.1 kg. |
| ["SN: 80001-UP"] | ||||
| 23. | 207-27-72230 | [3] | Pin Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 24. | 20Y-27-21280 | [3] | Pin Komatsu China | 0.01 kg. |
| ["SN: 80001-UP"] | ||||
| 25. | 207-27-72110 | [1] | Shaft Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 26. | 20Y-27-11250 | [1] | Spacer Komatsu OEM | 0.044 kg. |
| ["SN: 80001-UP"] analogs:["2052771570"] | ||||
| 27. | 04260-01905 | [1] | Ball Komatsu OEM | 0.029 kg. |
| ["SN: 80001-UP"] | ||||
| 28. | 207-27-72180 | [1] | Cover Komatsu China | |
| ["SN: 80001-UP"] | ||||
| 29. | 01011-61890 | [22] | Bolt Komatsu China | |
| ["SN: 80001-UP"] analogs:["0101131890", "0101151890", "0101181890"] | ||||
| 30. | 01643-31845 | [22] | Washer Komatsu China | 0.02 kg. |
| ["SN: 80001-UP"] analogs:["0164321845", "R0164331845"] | ||||
| 31. | 07049-01215 | [2] | Plug Komatsu | 0.001 kg. |
| ["SN: 80001-UP"] | ||||
| 32. | 07044-12412 | [3] | Plug Komatsu | 0.09 kg. |
| ["SN: 80001-UP"] analogs:["0704402412", "R0704412412"] | ||||
| 33. | 07002-02434 | [3] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 80001-UP"] analogs:["0700212434", "0700213434"] | ||||
| 34. | 207-27-72270 | [1] | Sprocket Komatsu | 0.000 kg. |
| ["SN: 80001-UP"] | ||||
| 35. | 207-27-51311 | [24] | Bolt Komatsu China | 0.222 kg. |
Other parts
Parts we deal with
Hydraulic Parts:
Hydraulic pump, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Pump regulator,etc.
Undercarriage Parts:
Track link and shoe assy, Track roller, Carrier roller, Idler, Sprocket, Track link guide, Track Adjuster assy, etc.
Excavator Attachments:
Bucket ,mud bucket,earth bucket, heavy duty rock bucket , skeleton bucket,hydraulic breaker, hydraulic quick coupler,ripper,etc.
Cabin Parts:
Excavator cabin, Cabin door, Side door panel, Cabin seat, Cabin glass, Engine cover, Tool box, Door lock, etc.
Electric Parts:
Controller, Monitor, Panel, Throttle motor, Solenoid valve, Wire harness, etc.
Engine Parts:
Cylinder block, Cylinder head, Crankshaft, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbocharger, Starter motor, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc.
Other Parts:
Seal kit, Floating seal, Joystick, Foot pedal valve, O-ring box, Coupling, etc.
