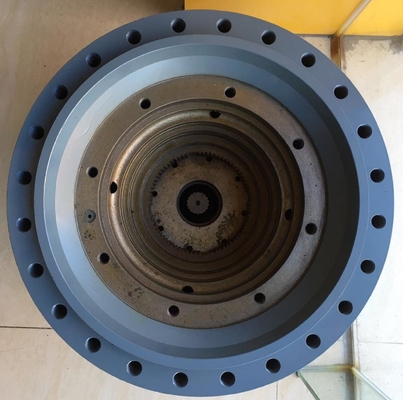

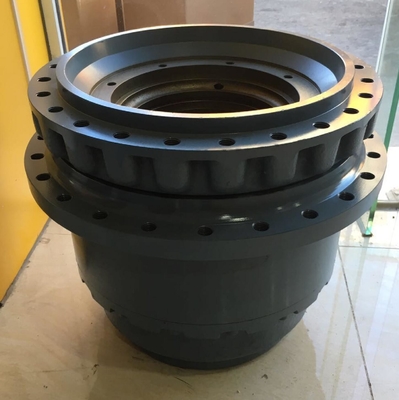

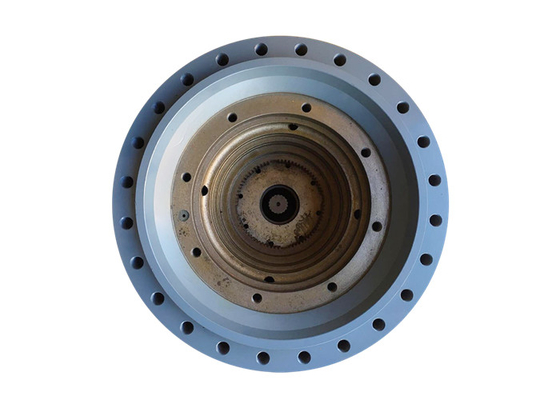

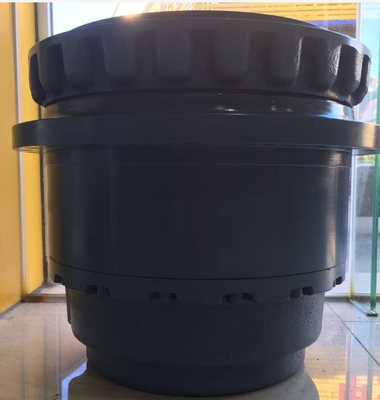

R450-7 R480-9 R500-7 R520-9 Travel Gearbox 34E7-02500 Travel Reduction Gear
Product description
| Part name | Travel gearbox |
| Part number | 34E7-02500 |
| Machine model | R450-7 R480-9 R500-7 R520-9 |
| Warranty | 3 months |
| Appliion | Excavator |
| Quality | Aftermarket |
| MOQ | 1 PCS |
| Condition |
Brand new
|
Drawing of the travel gearbox
List of the travel gearbox
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4150 |
1 | |
| *-2 | 34E7-02500 | TRACK REDUCTION GEAR | 1 | |
| 4 | ZTAJ-00004 | COVER SET | 1 | |
| 1 | ZTAJ-00001 | WASHER | 2 | |
| 2 | ZTAJ-00002 | PLUG-BREATHER | 2 | |
| 5 | ZTAJ-00005 | O-RING | 1 | |
| 6 | ZTAJ-00006 | PAD | 1 | |
| 3 | ZTAJ-00003 | SCREW | 16 | |
| 7 | ZTAJ-00007 | GEAR-SUN | 1 | |
| 8 | ZTAJ-00008 | REDUCTION ASSY(1ST) | 1 | |
| 9 | ZTAJ-00009 | GEAR-SUN | 1 | |
| 10 | ZTAJ-00010 | REDUCTION ASSY(2ND) | 1 | |
| 11 | ZTAJ-00013 | SCREW | 4 | |
| 12 | ZTAJ-00012 | REDUCTION ASSY(3RD) | 1 | |
| 13 | ZTAJ-00014 | BUSHING | 4 | |
| 14 | ZTAJ-00015 | GEAR-SUN | 1 | |
| 15 | ZTAJ-00016 | HOUSING | 1 | |
| 16 | ZTAJ-00017 | SEAL-LIFETIME | 1 | |
| 17 | ZTAJ-00018 | HUB | 1 | |
| 18 | ZTAJ-00019 | SPACER | 1 | |
| 19 | ZTAJ-00020 | SHAFT-BRAKE | 1 | |
| 20 | ZTAJ-00021 | O-RING | 1 | |
| 21 | ZTAJ-00072 | DISC-SINTERED 2T264800242 |
7 | |
| 21 | ZTAJ-00074 | DISC-SINTERED 2T264800742 |
7 | |
| 22 | ZTAJ-00073 | RING-STEEL | 6 | |
| 23 | ZTAJ-00024 | RING-BACK UP | 1 | |
| 24 | ZTAJ-00025 | O-RING | 1 | |
| 25 | ZTAJ-00026 | O-RING | 1 | |
| 26 | ZTAJ-00027 | RING-SPIRAL | 1 | |
| 27 | ZTAJ-00028 | PISTON | 1 | |
| 28 | ZTAJ-00029 | SPRING | 21 | |
| 29 | ZTAJ-00030 | SPACER | 1 | |
| 30 | ZTAJ-00031 | CIRCLIP | 1 | |
| 31 | ZTAJ-00032 | FLANGE | 1 | |
| 32 | ZTAJ-00033 | O-RING | 1 | |
| 33 | ZTAJ-00034 | SCREW | 2 | |
| 34 | ZTAJ-00035 | PLUG | 1 | |
| 35 | ZTAJ-00036 | SCREW | 8 | |
| 36 | ZTAJ-00037 | O-RING | 1 |
Other parts
Parts we deal with
Hydraulic Parts:
Hydraulic pump, Travel motor, Swing motor, Travel gearbox, Swing gearbox, Main control valve, Hydraulic cylinder assy, Gear pump, Pump regulator,etc.
Undercarriage Parts:
Track link and shoe assy, Track roller, Carrier roller, Idler, Sprocket, Track link guide, Track Adjuster assy, etc.
Excavator Attachments:
Bucket ,mud bucket,earth bucket, heavy duty rock bucket , skeleton bucket,hydraulic breaker, hydraulic quick coupler,ripper,etc.
Cabin Parts:
Excavator cabin, Cabin door, Side door panel, Cabin seat, Cabin glass, Engine cover, Tool box, Door lock, etc.
Electric Parts:
Controller, Monitor, Panel, Throttle motor, Solenoid valve, Wire harness, etc.
Engine Parts:
Cylinder block, Cylinder head, Crankshaft, Engine assy, Injector, Fuel injection pump, Oil pump, Feed pump, Oil cooler, Filter, Turbocharger, Starter motor, Alternator, Water pump, Fan blade, Liner kits, Bearings, Valves, Gasket kit, etc.
Other Parts:
Seal kit, Floating seal, Joystick, Foot pedal valve, O-ring box, Coupling, etc.
Good reputation
FAQ
Q. When will get the items after I place order?
A. Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
Q. If I only know the excavator model, but can not offer parts No., what should I do ?
A. If possible, you can send us pictures of old products, nameplate or the size for reference.
Q. How can you guarantee the quality?
A. We will 100% test the goods before delivery. If you meet with quality problem, we promise to replace goods or return your funds.
Q. How long will it take to delivery to my address?
A. The normal delivery time is 3-5 days, depending on which country you are in.
Q. Do you accept sample order?
A. Yes, sample order can accept.
Q: What's package? Can you give me the package according my requirement?
A. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
Q: What's brand you can offer in your company?
A. OEM, original, as per your need.
