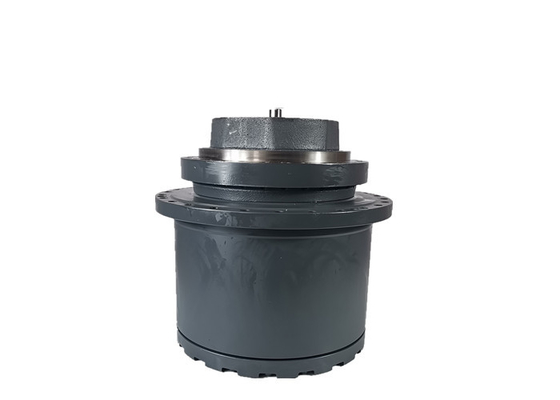

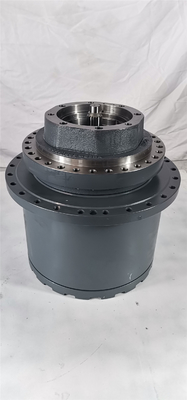

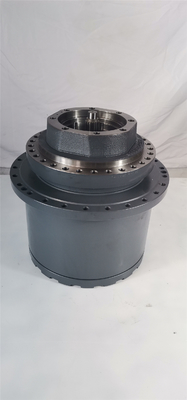

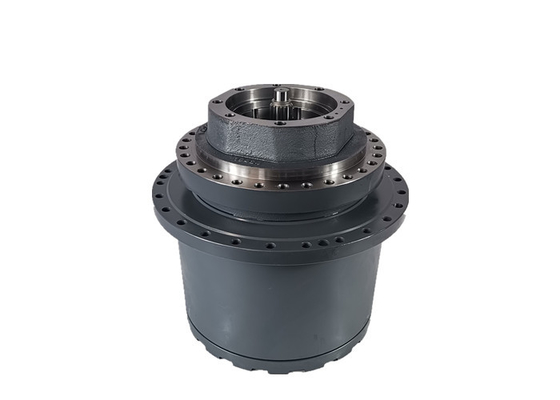

Excavator Kobelco SK200-8 SK210-8 travel gearbox YN15V00037F2 YN15V00037F1 travel reduction gear
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Name | Travel Reduction Gear | Part Number | YN15V00037F2 |
|---|---|---|---|
| Quality | Aftermarket | Condition | Brand New |
| Appliion | Crawler Excavator | Machine Model | SK200-8 SH210 |
| Highlight | YN15V00037F1 Final Drive Assy,SK210-8 Final Drive Assy,YN15V00037F2 Final Drive Assy |
||
Product Description
Excavator Kobelco SK200-8 SK210-8 travel gearbox YN15V00037F2 YN15V00037F1 travel reduction gear
Parts on group (200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN02F00164F1 | [1] | Low | |
| A1. | YN02F00149P1 | [1] | Low | |
| A1-1. | YN07F01270P1 | [4] | SUPPORT | KOB |
| A1-2. | YN41C00060P1 | [4] | STEP | KOB Superseded by part number: YN41C00077P1 |
| A1-3. | YN07F01075P1 | [2] | GUIDE | KOB |
| A1-4. | YN07F01076P1 | [2] | GUIDE | KOB |
| . . | YN01F00043F1 | [1] | Low Group | |
| B1. | YN01F01080P1 | [2] | COVER | KOB |
| B2. | YN63D00003P1 | [2] | GUIDE | KOB Track Superseded by part number: YN63D00003P2 |
| B3. | 2422T556 | [1] | PLATE | KOB |
| B4. | 2418T12274 | [1] | PACKING | KOB Rubber |
| B5. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOB Cap |
| B6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOB Sems |
| B7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOB Cap |
| B8. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| . . | YN01F01083F1 | [1] | ||
| C1. | YN01F01040P1 | [32] | CAP | KOB Superseded by part number: YY01F01047P1 |
| . . | YN19H00053F1 | [1] | Instal, Swivel | |
| D1. | YN55V00053F1 | [1] | CENTER JOINT | KOB Assy, Swivel |
| D2. | ZM73C12025 | [3] | BOLT,M12x25mm - Course Thread | KOB Sems |
| . . | YN53D00012F1 | [1] | HYDRAULIC MOTOR | KOB Instal, Propel |
| E3. | 2420P2963D3 | [52] | CAP | KOB |
| E4. | YN53D00015F1 | [2] | HYDRAULIC MOTOR | KOB Instal, Propel, Serial Range: YN11-46492-YN11-49613 |
| . . | YN53D00015F2 | [2] | HYDRAULIC MOTOR | KOB Instal, Propel, Start Serial: YN11-49614 |
| E4-1. | YN15V00037F1 | [1] | HYDRAULIC MOTOR | SM Assy, Propel Superseded by part number: YN15V00037F2 |
| E4-2. | YN51D01003P1 | [1] | DRIVING SPROCKET | SM |
| E4-3. | ZS13C16045 | [26] | SCREW | KOB Screw |
| E4-4. | YN15V00037F2 | [1] | HYDRAULIC MOTOR | KOB Assy, Propel |
FAQ
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
