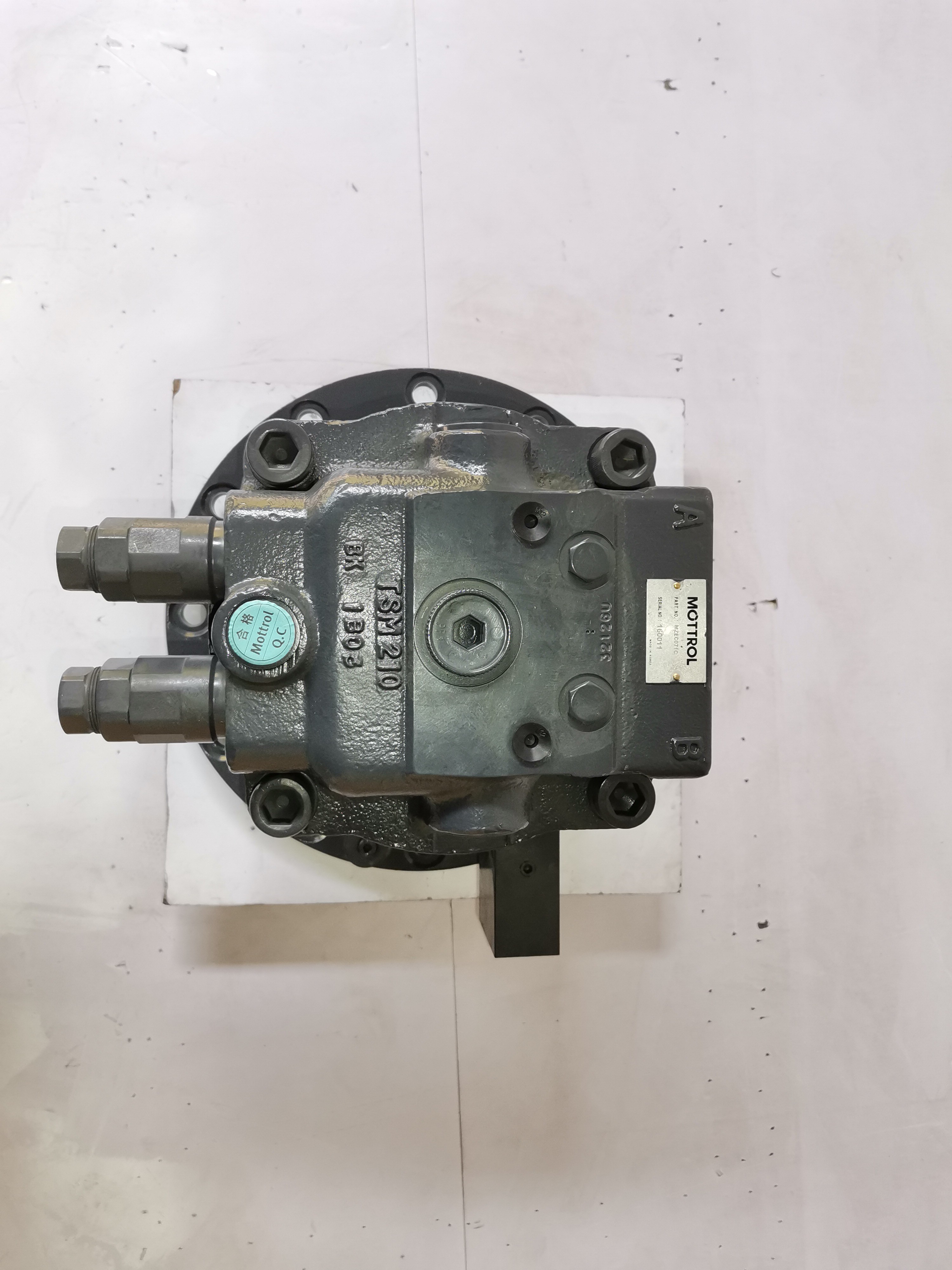

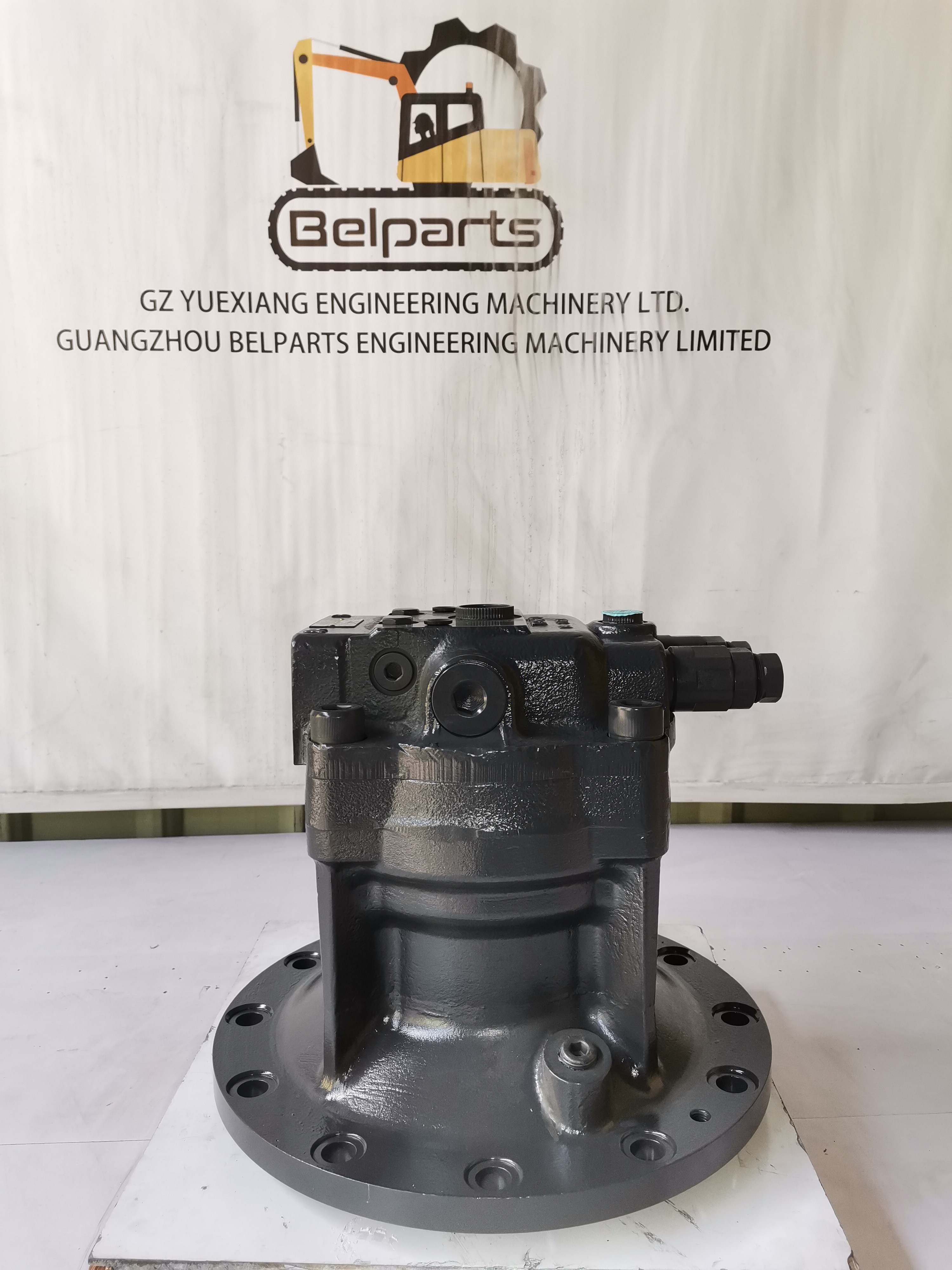

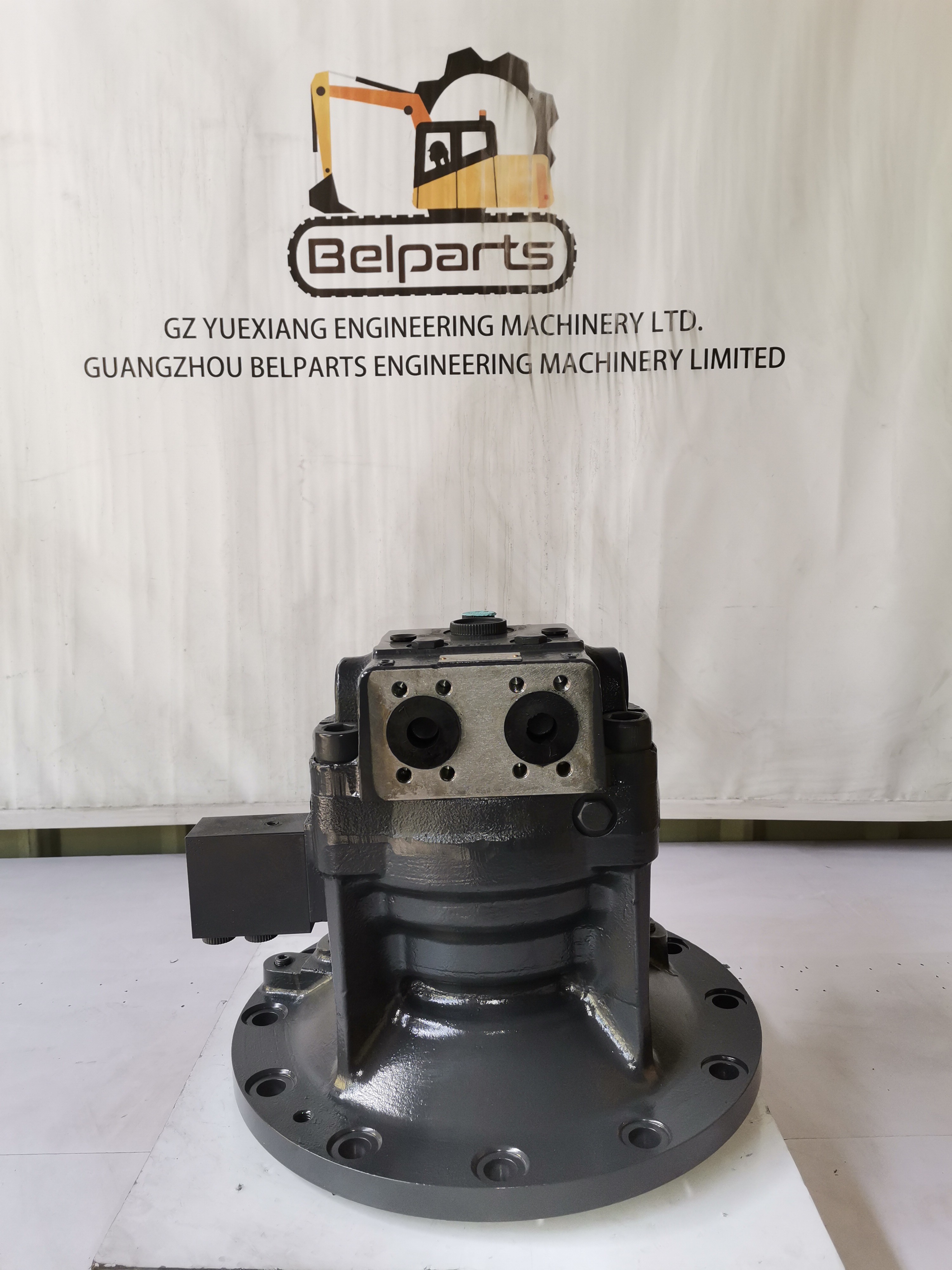

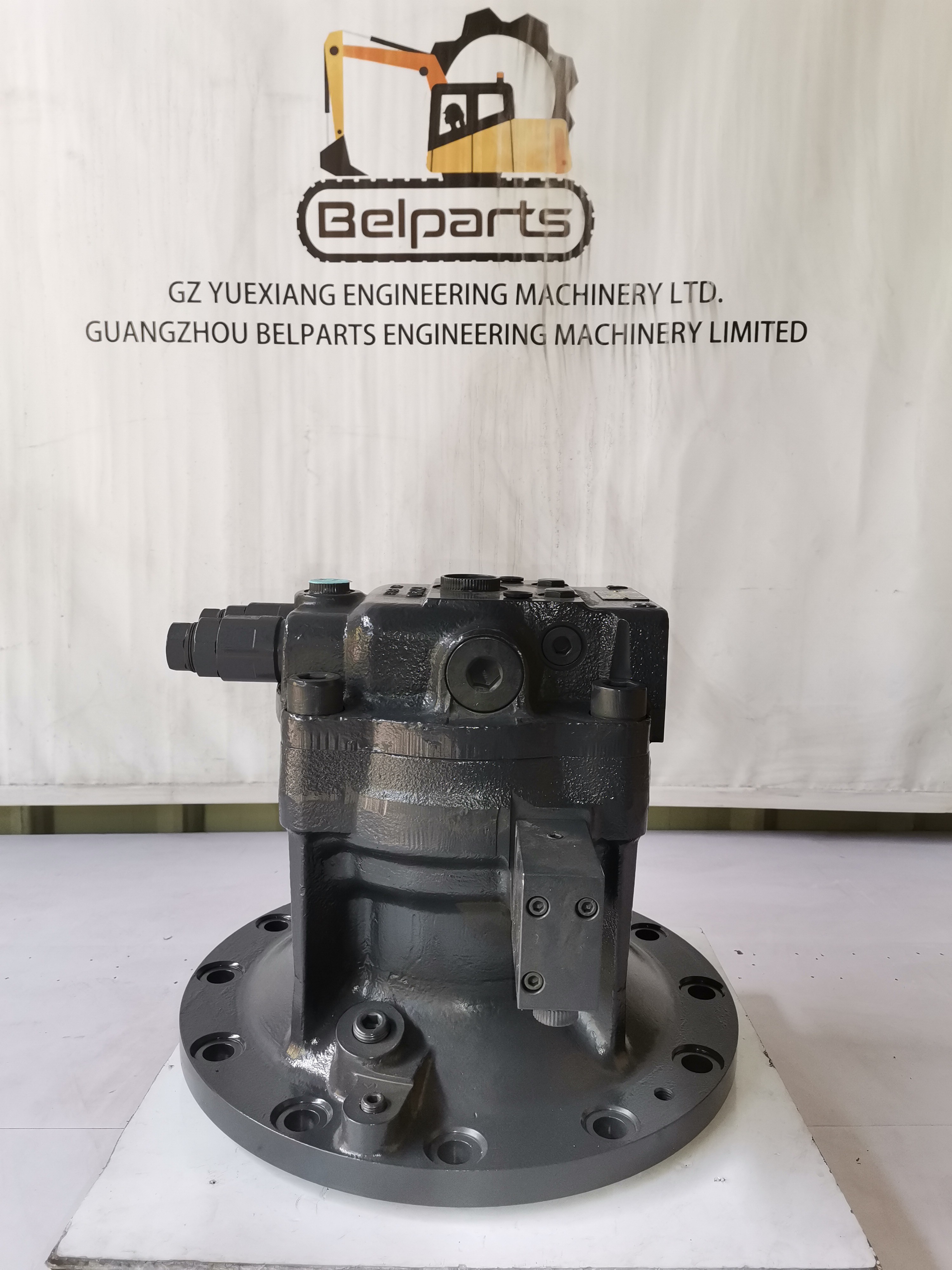

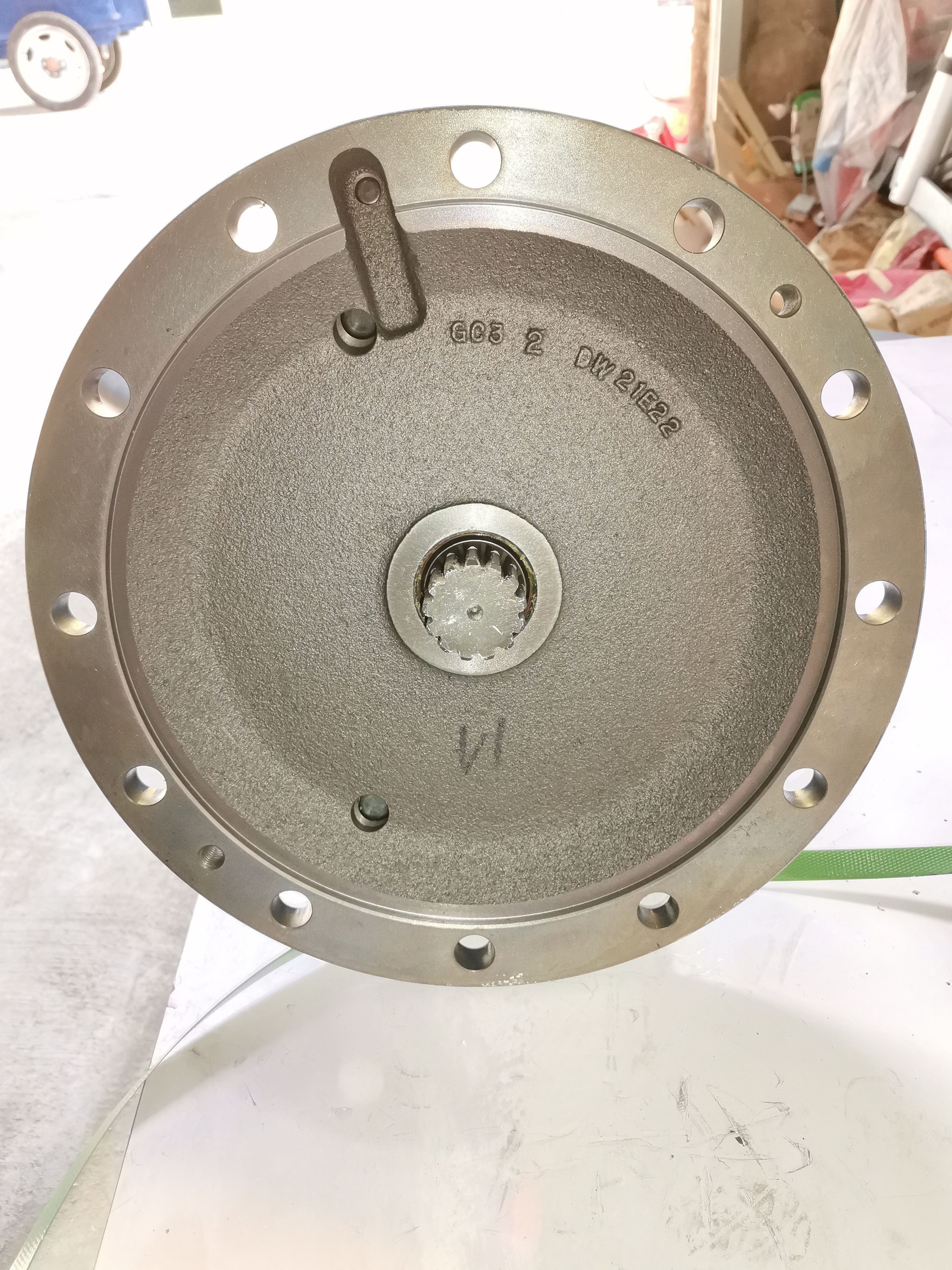

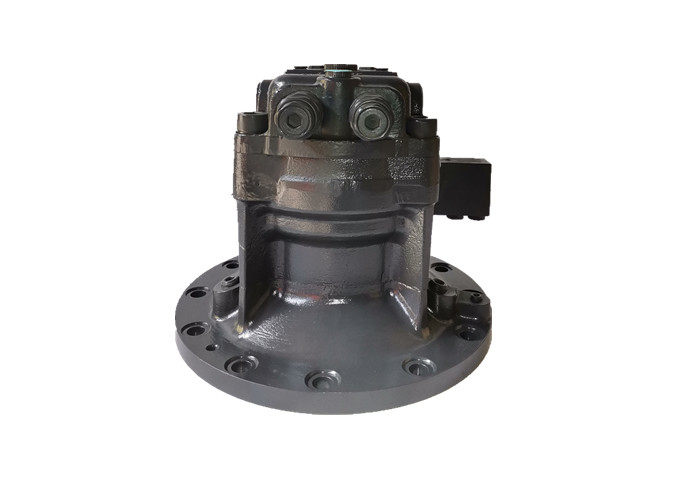

DX255 DX260 Excavator Parts Swing Motor K1007950A 170303-00052 Rotary Device
Product description
| Part name | Swing motor |
| Part number | K1007950A 170303-00052 |
| Machine model | DX255 DX260 |
| Warranty | 1 year |
| Appliion | Crawler excavator |
| Quality | Aftermarket |
| MOQ | 1 PCS |
| Condition |
Brand new
|
Drawing of the pump
List of the pump
| # | Part No | Part Name | Comment | Qty. | Remark |
|---|---|---|---|---|---|
| - | K1007950A | MOTOR, SWING | 48 kg | 1 | |
| 101 | *NA00351 | CASING, VALVE | 1 | ||
| 102 | 2.121-00009 | PLUG | 2 | ||
| 103 | K9001840 | SPRING | 2 | ||
| 104 | K9001841 | PLUNGER | 2 | ||
| 105 | S8000341 | O-RING | E6300761 | 2 | |
| 106 | 1.420-00016 | VALVE, SWING REACTIONLESS | 1 kg | 1 | |
| 107 | 420-00195 | VALVE, RELIEF | 1 kg | 2 | |
| 108 | K9004567 | BEARING, ROLLER | 1 | ||
| 109 | S2230561 | BOLT, HEX SOCKET | 4 | ||
| 110 | 2181-1950D1 | PLUG, RECHECK | 3 | ||
| 111 | S8000111 | O-RING | 1BP11 | 3 | |
| 112 | 2180-1217D158 | O-RING | 1 | ||
| 113 | S5741162 | PIN, SPRING | D8X16L | 2 | |
| 201 | K9004561 | SHAFT, DRIVE | 3 kg | 1 | |
| 202 | K9004556 | PLATE, FRONT | 1 kg | 1 | |
| 203 | K9004568 | PISTION ASS'Y | 4 kg | 1 | |
| 205 | K9004570 | BLOCK, CYLINDER | 6 kg | 1 | |
| 206 | K9004571 | BUSH, SPHERICAL | 1 | ||
| 207 | K9004555 | PLATE, RETAINER | 1 | ||
| 208 | K9004558 | SPACER | 1 | ||
| 209 | K9004560 | ROD, PUSH | 12 | ||
| 210 | K9004557 | SPACER | 1 | ||
| 211 | K9004564 | SPRING | 1 | ||
| 212 | S6510620 | RING, RETAINING | 1 | ||
| 213 | K9004563 | PLATE, VALVE | 1 kg | 1 | |
| 214 | K9004559 | SPACER | 1 | ||
| 301 | *NA00342 | CASING | 1 | ||
| 302 | K9004565 | SEAL, OIL | 1 | ||
| 303 | K9004566 | BEARING, ROLLER | 1 kg | 1 | |
| 304 | 412-00036 | SEPARATION PLATE | 3 | ||
| 305 | 412-00037 | PLATE, FRICTION | 2 | ||
| 306 | 2180-1217D156 | O-RING | 1 | ||
| 307 | 2180-1217D159 | O-RING | 1 | ||
| 308 | K9004562 | PISTON, BRAKE | 3 kg | 1 | |
| 309 | 129-00062 | SPRING, BRAKE | 20 | ||
| 310 | 2181-1116D5 | PLUG, RECHECK | 2 | ||
| 311 | 2181-1116D2 | PLUG, RECHECK | 1 | ||
| 400 | K9004569 | VALVE, BRAKE | 1 kg | 1 | |
| 401 | S2206261 | BOLT, HEX SOCKET HEAD | 3 | ||
| * | K9004885 | SEAL KIT, SWING MOTOR | 1 |
