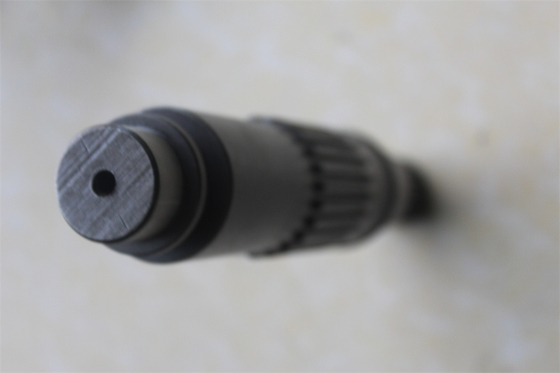

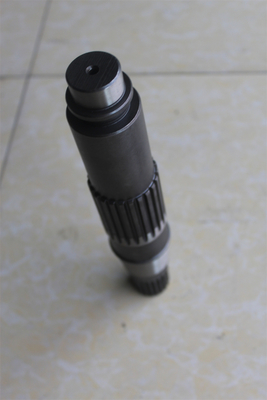

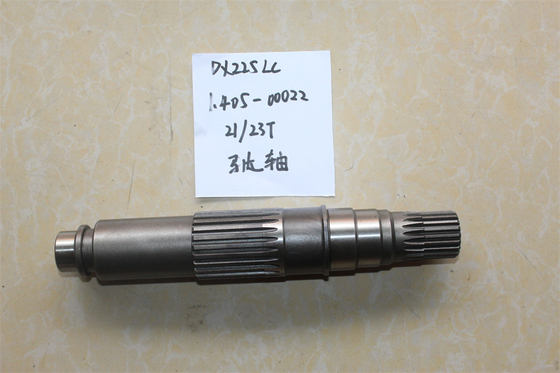

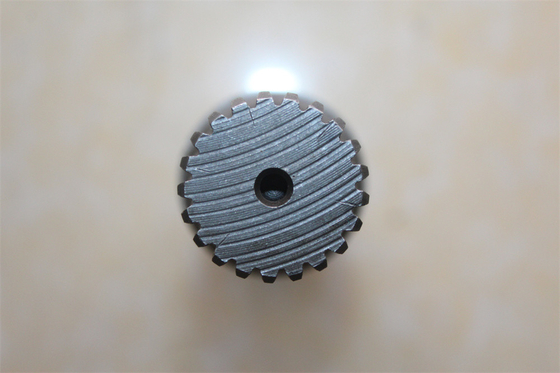

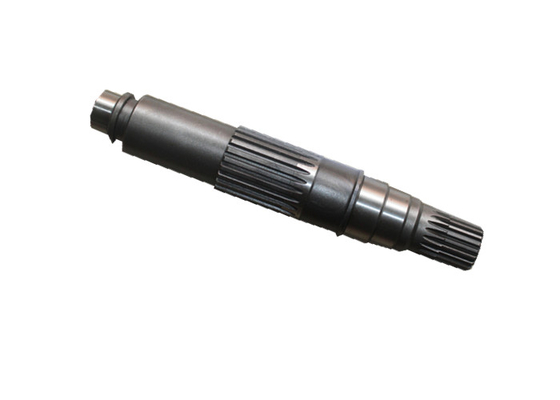

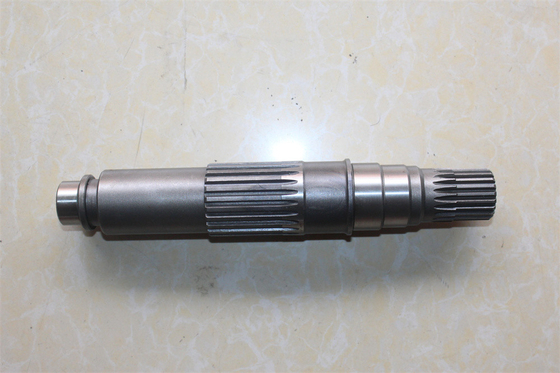

1.405-00022 Excavator Planetary Gear Parts DX225 DX235 Solar 220 Solar 225 motor main shaft
Product description
| Appliion | Crawler excavator |
| Part name | Motor main shaft |
| Part number | 1.405-00022 |
| Machine model | DX225 DX235 Solar 220 Solar 225 |
| Quality | Aftermarket |
| Condition | 100% new |
| MOQ | 1 PCS |
| Warranty | 3 months |
| Pos. | Part No | Qty | Parts name | Remark |
|---|---|---|---|---|
| -. | K1000681A | [2] | TRAVEL DEVICE | |
| 102. | 1.405-00022 | [1] | SHAFT;MAIN | |
| 103. | 1.412-00202 | [1] | PLATE;SWASH | |
| 104. | 1.441-00292 | [1] | BLOCK;CYL'D | |
| 105. | 1.409-00232 | [9] | PISTON | |
| 106. | 1.355-00011 | [9] | SHOE | |
| 107. | 1.412-00093 | [1] | PLATE;RETAINER | |
| 108. | 1.148-00016 | [1] | BALL;THRUST | |
| 109. | 1.412-00203 | [1] | PLATE;TIMING | |
| 110. | 1.114-00305 | [2] | WASHER | |
| 112. | 1.409-00115 | [1] | PISTON;PARKING | |
| 113. | 1.131-00055 | [9] | SPRING;P/PISTON | |
| 114. | 1.129-00019 | [1] | SPRING;FOR CYL'D | |
| 115. | 1.412-00061 | [3] | PLATE;FRICTION | |
| 116. | 1.412-00072 | [4] | PLATE;MATING | |
| 132. | 1.180-00631 | [1] | SEAL;OIL | |
| 139. | S8002101 | [1] | O-RING | |
| 145. | S6510700 | [1] | RING;SNAP | |
| 149. | 1.109-00147 | [1] | BEARING;BALL | |
| 150. | 1.109-00026 | [1] | BEARING;BALL | |
| 151. | 1.109-00135 | [6] | ROLLER | |
| 161. | 1.409-00116 | [1] | PISTON | |
| 162. | 1.355-00012 | [1] | SHOE | |
| 163. | 1.131-00042 | [1] | SPRING | |
| 167. | 1.540-00006 | [2] | PIVOT | |
| 178. | S8011951 | [1] | O-RING | |
| 181. | S5701242 | [2] | PIN | |
| 201. | *NA00460 | [1] | . FLANGE;REAR | |
| 218. | 1.427-00029 | [1] | VALVE;SEAT T-TYPE | |
| 219. | 1.420-00009 | [1] | VALVE;T-TYPE | |
| 220. | 1.131-00041 | [1] | SPRING;T-TYPE | |
| 221. | 2181-1890D4 | [1] | PLUG | |
| 222. | 1.115-00139 | [1] | . RING;T-TYPE | |
| 223. | 1.424-00062 | [1] | SPOOL;MAIN | |
| 224. | 1.181-00059 | [2] | PLUG;FOR MAIN | |
| 226. | 1.181-00067 | [2] | PLUG;CHECK | |
| 227. | 1.420-00013 | [2] | VALVE;CHECK | |
| 228. | 1.131-00058 | [2] | SPRING;FOR MAIN | |
| 230. | 1.129-00006 | [2] | SPRING;CHECK | |
| 233. | S8000091 | [1] | O-RING | |
| 234. | S8002731 | [2] | O-RING | |
| 238. | S8000181 | [1] | O-RING | |
| 241. | S5700891 | [2] | PIN;PARALLEL | |
| 242. | 1.420-00014 | [1] | VALVE;REDUCING | |
| 244. | 2181-1116D1 | [1] | PLUG | |
| 252. | 2181-1116D2 | [4] | PLUG | |
| 263. | 422-00031 | [1] | VALVE;TWO SPEED | |
| 264. | K9001047 | [1] | PLUG | |
| 265. | S8000111 | [1] | O-RING | |
| 266. | 1.131-00099 | [1] | . SPRING;TWO SPEED | |
| 268. | S6250161 | [2] | . BALL;STEEL | |
| 272. | 1.427-00031 | [1] | SEAT;VALVE REDUCING | |
| 275. | 1.131-00062 | [1] | SPRING;REDUCING V/V | |
| 276. | 1.115-00141 | [1] | RING;REDUCING | |
| 279. | S8000321 | [2] | O-RING | |
| 282. | S2221471 | [9] | BOLT,SOCKET | |
| 294. | 1.416-00027 | [1] | STOPPER | |
| 295. | 1.424-00063 | [1] | SPOOL;MAIN | |
| 296. | 1.129-00018 | [1] | SPRING | |
| 297. | 1.114-00542 | [1] | WASHER | |
| 297. | 1.415-00005 | [1] | ORIFICE | |
| 298. | S6550100 | [1] | RING;SNAP | |
| 301. | 1.429-00037 | [1] | SEAT | |
| 302. | 1.424-00064 | [1] | PLUNGER | |
| 303. | 1.424-00065 | [1] | ROD | |
| 304. | 1.409-00233 | [1] | PISTON | |
| 305. | 1.441-00295 | [1] | BODY | |
| 306. | 1.181-00154 | [1] | PLUG | |
| 307. | 1.129-00020 | [1] | SPRING | |
| 308. | 1.114-00543 | [1] | SHIM | |
| 309. | S8000181 | [1] | O-RING | |
| 310. | S8000181 | [1] | O-RING | |
| 311. | S8060181 | [1] | . RING;BACKUP | |
| 900. | 2401-9082K | [1] | SEAL KIT | |
| M. | 1.401-00011 | [1] | MOTOR PART | |
| M1. | 1.441-00291 | [1] | KIT;CYL'D BLOCK & PISTON | |
| M11. | 1.409-00231 | [1] | PISTON ASS'Y | |
| M2. | K9001814 | [1] | PISTON ASS'Y | |
| R-1. | 1.426-00024 | [2] | RELIEF VALVE ASS'Y | |
| RL. | K9001812 | [1] | REAR FLANGE ASS'Y | |
| RL1. | K9001813 | [1] | KIT;REAR FLANGE | |
| RL2. | 1.416-00026 | [2] | STOPPER ASS'Y |
