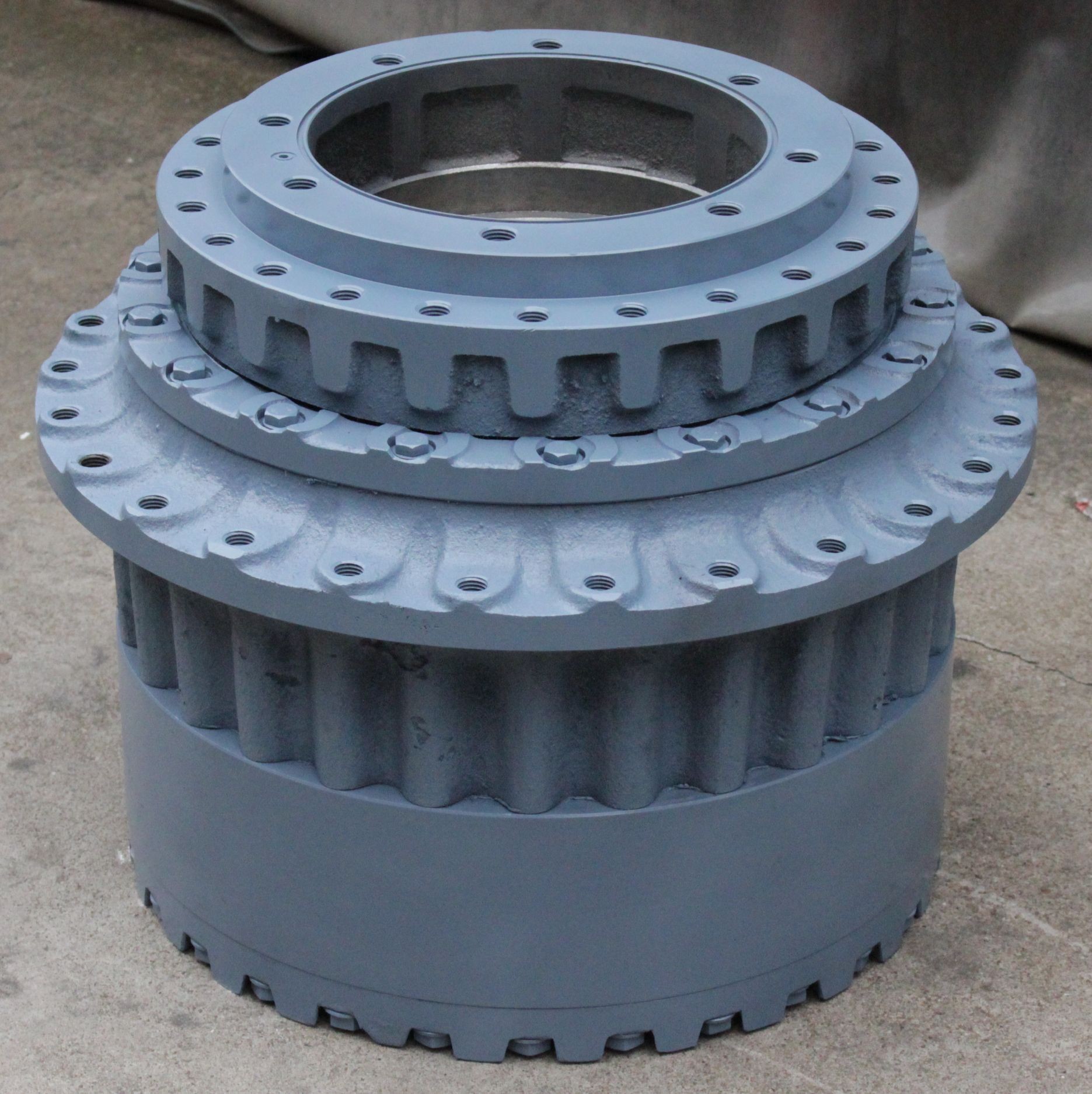

Belparts 706-88-40110 TRAVEL REDUCER GEARBOX FOR PC400-6 PC400-7
Product Description
| Appliion | Excavator |
| Part name | Belparts 706-88-40110 TRAVEL REDUCER GEARBOX FOR PC400-6 PC400-7 |
| Material | Steel |
| Model | PC400-6 PC400-7 |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
| Part No | (*706-88-40110) |
| Part Name | ,MOTOR |
Mobile Debris Crusher
BR500JG-1;
Hydraulic Excavator
PC400-6; PC400-6C; PC400-6Z; PC400LC-6; PC400LC-6; PC400LC-6Z; PC400LC-6Z; PC450-6; PC450-6; PC450LC-6; PC450LC-6; PC400LC-6Z; PC400LC-6Z;
Aggregates comprising the spare part (*706-88-40110) ,MOTOR
|
Model |
Section node |
|---|---|
|
BR500JG-1 |
CRUSHER CONTROL SYSTEM / TRAVEL MOTOR (1/3) |
|
PC400-6C |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) (FOR CIS)(#30249-) |
|
PC400-6Z |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
|
PC400-6 |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
|
PC400LC-6 |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
|
PC400LC-6Z |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
|
PC400LC-6 |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
|
PC400LC-6Z |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) (FOR CIS)(#30249-) |
|
PC400LC-6Z |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
|
PC400LC-6Z |
SERVICE KIT AND COMPONENT PARTS / TRAVEL MOTOR (1/3) |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 706-88-00151 | MOTOR ASS'Y | 1 | |
| 1 | 706-88-00150 | MOTOR ASS'Y | 1 | |
| 1 | 706-88-00112 | MOTOR ASS'Y | 1 | |
| 1 | 706-88-00111 | MOTOR ASS'Y | 1 | |
| 1 | 706-88-00110 | MOTOR ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0 | ||||
| 1 | (*706-88-40140) | ,MOTOR | 1 | |
| 1 | (*706-88-40110) | ,MOTOR | 1 | |
| 2 | 706-88-00020 | END COVER SUB ASS'Y | 1 | |
| 2 | COVER,END | 1 | ||
| 3 | (*706-88-00010) | PLATE ASS'Y,VALVE | 1 | |
| 4 | Spool | 1 | ||
| 5 | Plug | 18 | ||
| 6 | (*708-8K-15190) | PIN,DOWEL | 1 | |
| 7 | 706-77-72280 | Plug | 4 | |
| 8 | 07002-12034 | O-RING,(FOR WITHOUT BRAKE ASSISTOR) | 4 | |
| 9 | 20B-27-11210 | Bleeder | 1 | |
| 10 | (*706-88-50030) | Piston | 1 | |
| 11 | (*706-88-50010) | Pin | 1 | |
| 12 | (*706-87-51120) | Screw | 1 | |
| 13 | 706-75-74540 | Valve | 2 | |
| 14 | 706-75-74550 | Spring | 2 | |
| 15 | 706-75-74850 | Plug | 2 | |
| 16 | 07002-13334 | O-RING,(FOR FRONT ATTACHMENT) | 2 | |
| 17 | 706-78-71170 | Piston | 2 | |
| 17 | 706-78-71160 | Piston | 2 | |
| 18 | 708-8H-36121 | Spring | 2 | |
| 19 | 706-78-71140 | Plug | 2 | |
| 20 | 07002-13634 | O-RING,SEE FIG. K4010-65A0 | 2 | |
| 21 | 706-88-50110 | Sleeve | 1 | |
| 22 | 07002-15234 | O-RING,(F4350-59A0 -23 ) | 1 | |
| 23 | 07000-13035 | O-RING, UPPER COOLER INLET AND OUTLET PORTS | 1 | |
| 24 | 07001-03035 | RING,(TM0859-217) | 1 | |
| 25 | 07000-13038 | O-RING, (WITHOUT EMERGENCY STEERING) | 1 | |
| 26 | 07001-03038 | RING,BACK-UP | 1 | |
| 27 | 706-8E-14170 | Spring | 1 | |
| 28 | 706-88-50140 | Spool | 1 | |
| 29 | 706-88-50160 | Plug | 1 | |
| 30 | 07002-13034 | O-RING,(F2310-59A0 -4 ) | 1 | |
| 31 | 706-88-50170 | Plug | 1 | |
| 32 | 07002-13034 | O-RING,(F2310-59A0 -4 ) | 1 | |
| 33 | 04260-00793 | BALL,STEEL | 2 | |
| 34 | 706-8E-14110 | Plug | 2 | |
| 35 | 07002-11023 | O-RING,(F4350-66A1 -1C ) | 2 | |
| 36 | 708-8E-16180 | Valve | 1 | |
| 37 | 706-78-71150 | Valve | 1 | |
| 38 | 708-8E-16160 | Plug | 2 | |
| 39 | 07002-11023 | O-RING,(F4350-66A1 -1C ) | 2 | |
| 40 | 706-78-71130 | Plug | 1 | |
| 41 | 07002-11423 | O-RING,(FOR 2ND TRAVEL SPEED) (OP) | 1 | |
| 42 | 07000-11007 | O-RING - (K10) | 1 | |
| 43 | 07001-01007 | RING,BACK-UP |
