E315 1550157 E315B Excavator Travel Transfer Gearbox 155-0157
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Warranty | 1 Year |
|---|---|---|---|
| Appliion | Crawler Excavator | Model | E315B |
| Part Name | Excavator Final Drive Gear | P/N | 350-0452 |
| Highlight | E315 Travel Transfer Gearbox,E315B Travel Transfer Gearbox,1550157 Final Drive Gear |
||
Product Description

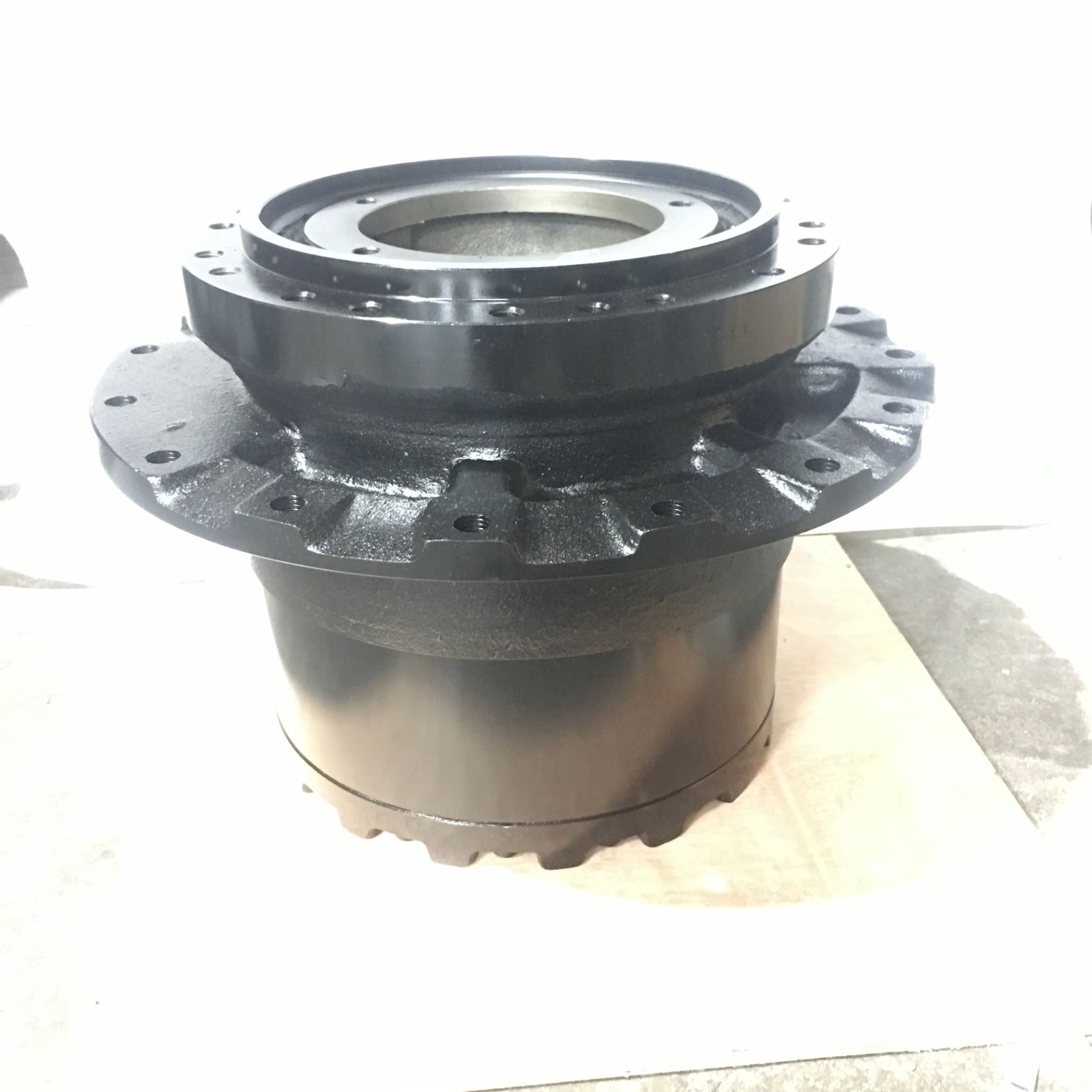

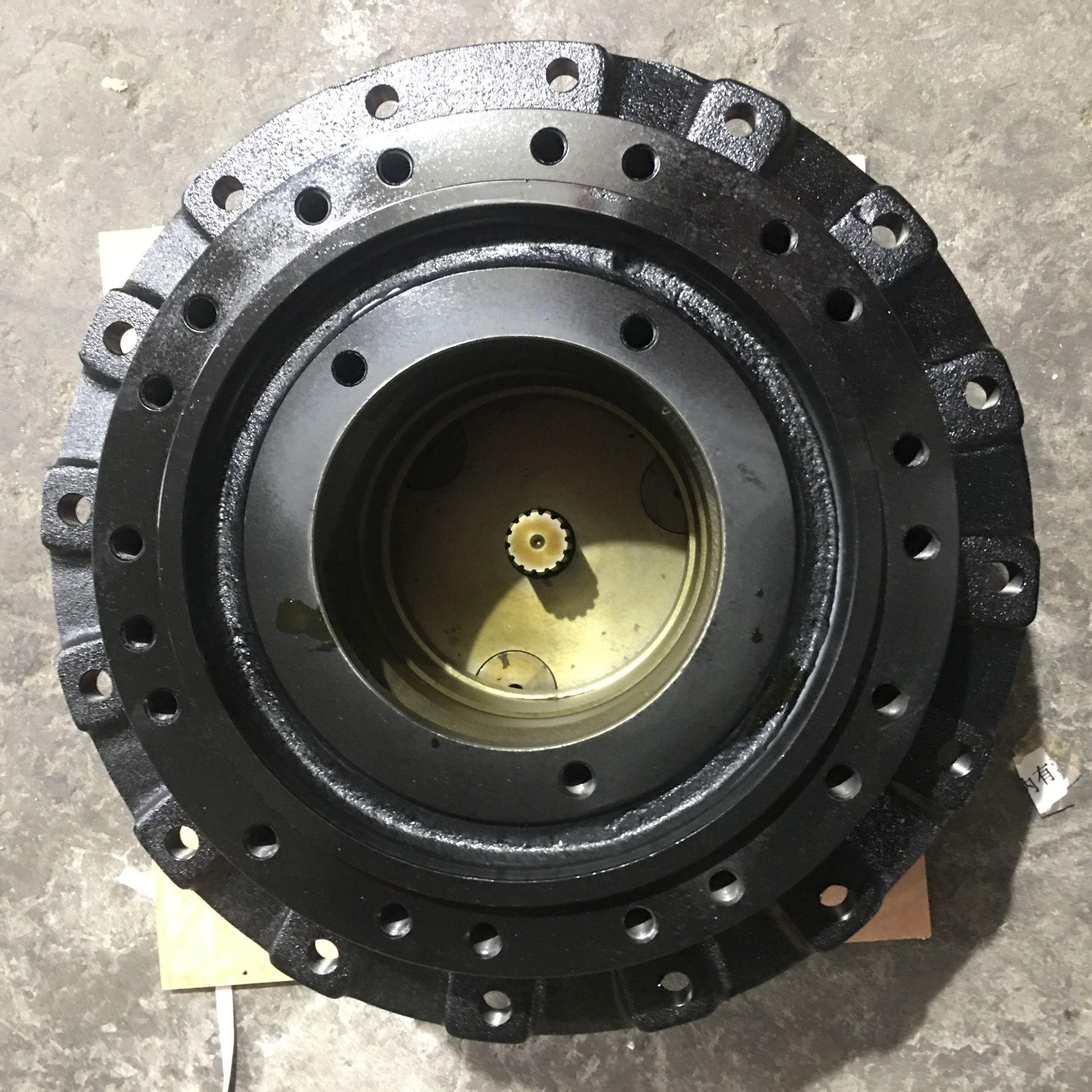

E315 Final Drive Gear 1550157 For E315B Excavator Travel Transfer Gearbox 155-0157
Product description
Models comprising the spare part 1550157 FINAL DRIVE GROUP
ENGINE - MACHINE
3054;
EXCAVATOR
315B L;
Aggregates of the spare part 1550157 FINAL DRIVE GROUP
| Part No | Part Name | Part Info |
|---|---|---|
| 1550157 | FINAL DRIVE GROUP section: POWER TRAIN |
155-0157 FINAL DRIVE GP S/N 5SW1-UP PART OF 151-5108, 185-8530 DRIVE GP-FINAL |
Aggregates comprising the spare part 1550157 FINAL DRIVE GROUP
| Part No | Part Name | Part Info |
|---|---|---|
| 1515108 | FINAL DRIVE GROUP section: POWER TRAIN |
151-5108 FINAL DRIVE GP S/N 5SW1-UP PART OF 147-5280 POWER TRAIN AR |
| 1858530 | FINAL DRIVE GROUP section: POWER TRAIN |
185-8530 FINAL DRIVE GP S/N 5SW1-UP PART OF 147-5280 POWER TRAIN AR |
Aggregate
| Part No | Part Name | Price request |
|---|---|---|
| 1550157 | FINAL DRIVE GROUP |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 1550164 | COVER AS | 1 | |
| 2 | 1550165 | FASTENER GROUP-FINAL DRIVE (COVER) | 1 | |
| (INCLUDES BOLTS & O-RING SEAL) | ||||
| 3 | 1550166 | SHAFT-SUN GEAR | 1 | |
| 4 | 1550167 | KIT-PLANETARY GEAR | 1 | |
| (INCLUDES GEARS, BEARINGS & RINGS) | ||||
| 5 | 1281867 | DISC | 3 | |
| 6 | 1550169 | CARRIER GROUP-PLANETARY | 1 | |
| (INCLUDES CARRIER, BOLT & RINGS) | ||||
| 7 | 1550170 | GEAR AS-SUN (2ND STAGE) | 1 | |
| (INCLUDES GEAR AND RINGS) | ||||
| 8 | 1550171 | GEAR GROUP-PLANETARY (2ND STAGE)(2ND STAGE) | 1 | |
| (INCLUDES GEAR, BEARING & RING) | ||||
| 9 | 1550173 | CARRIER GROUP (2ND STAGE) | 1 | |
| (INCLUDES CARRIER, BOLT & RING) | ||||
| 10 | 1550174 | GEAR AS-SUN (23RD STAGE) | 1 | |
| (INCLUDES GEAR & RING) | ||||
| 11 | 1550180 | GEAR-RING | 1 | |
| 12 | 1550181 | LINK-SHAFT | 1 | |
| 13 | 1582453 | GEAR GROUP-PLANETARY (3RD STAGE) | 1 | |
| (INCLUDES GEARS, BEARINGS & RINGS) | ||||
| 14 | 1953279 | NUT GROUP-ADJUSTMENT (BEARING) | 1 | |
| (INCLUDES WASHERS, BALLS, BOLTS & NUT) | ||||
| 15 | 1550184 | BEARING | 1 | |
| 16 | 1550185 | BRAKE GROUP-PARKING | 1 | |
| (INCLUDES RINGS, DISKS, PISTON & REPAIR KIT) | ||||
| 17 | 2030837 | SEAL GROUP-DUO-CONE | 1 | |
| 18 | 1550188 | SPINDLE | 1 | |
| 19 | 8T4779 | BOLT-PLT (M16 X 2.0 X 35) | 2 | |
| 20 | 8T9521 | BAND (L1, RED) | 1 | |
| 21 | 1582452 | KIT-PLUG (DRAIN) | 1 | |
| (INCLUDES PLUGS & RINGS) | ||||
| METRIC PART |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Our Services
1. We have advanced technoledge and 100% testing before delivery.
2. Quick delivery and competitive price.
3. The larger quantity you order, the better price and faster delivery we can supply.
4. We have a professional team to offer professional service for you.
5. We can offer used and new, oem, good quality, made in china parts to you.
6. The parts will give weight, price when quotation.
7. Genuine parts stock pictures will send before order.
8. All parts can check with part number, all parts can order follow part number.
9. Safe packing to protect the goods, such as wooden box, Iron sheet for our parts.
10. Small quantity can accept,Sample order also accept.
11. 24 hours oversea service.
Packaging & Shipping
1. Our shipment is by air/sea/express (DHL/FEDEX/TNT/UPS/EMS).
2. Once we get confirmation of payment, we will ship products in 2 days.
3. Our packaging is standard export wooden box or others as your requirement.
4. We'll check the products before shipping ,and give the pictures to our customers to confirm.
FAQ
Q: When will ship my order?
A:Once we get confirmation of payment, we will try our best to ship order within 2 days.
Q: Which shipping term you can supply?
A:By sea, air or by express ( DHL, Fedex, TNT, UPS, EMS)
Q: How long does it take to my address?
A:The Normal delivery time is 4-7 days, depending on which country you are in.
Q: How can I trace my order?
A:We will send you the tracking number by email.
Q: If I am not satisfied with the products, can I returns goods?
A:Yes, we offer exchange and repair service under warranty. Please contact us before you return.
