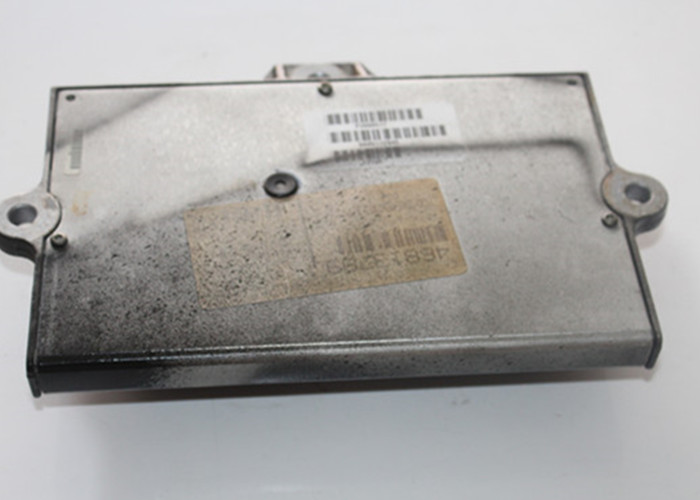

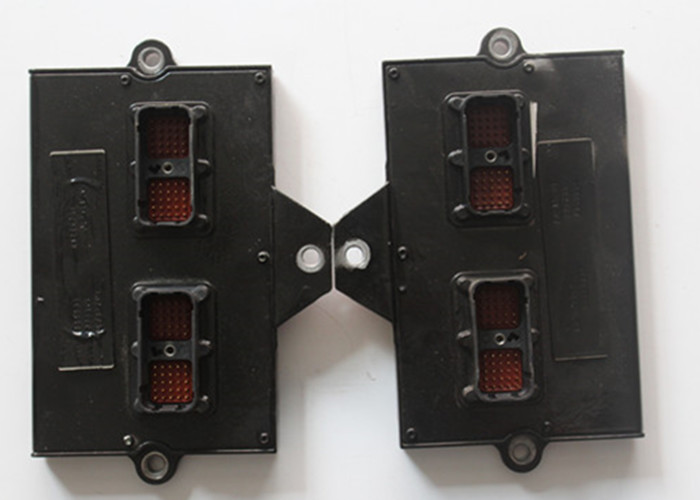

Controller ECU For Excavator R290LC-7 Controller Panel 21N8-32500 ECU Control Unit Box
Product Description
| Part No | 21N8-32500 |
| Part Name | MACHINE CONTROL UNIT |
CRAWLER EXCAVATOR
R290LC-7A;
Aggregates comprising the spare part 21N8-32500 MACHINE CONTROL UNIT
|
Model |
Section node |
|---|---|
|
R290LC-7A |
ELECTRIC SYSTEM / ELECTRIC BOX |
List of spare parts
|
# |
Part No |
Part Name |
Qty. |
Price request |
|---|---|---|---|---|
|
K6 |
21E4-0011 |
RELAY-4P |
1 |
|
|
15 |
21N4-10441 |
SWITCH-MASTER |
1 |
|
|
K15 |
21L7-10500 |
SWITCH-MASTER |
1 |
|
|
K15 |
21L7-10501 |
SWITCH-MASTER |
1 |
|
|
K18 |
21N8-00701 |
ELECTRIC BOX ASSY |
1 |
|
|
18-1 |
21N8-00710 |
ELECTRIC BOX WA |
1 |
|
|
18-2 |
21N6-20152 |
PLATE-FRONT COVER |
1 |
|
|
18-3 |
S017-100152 |
BOLT-HEX |
5 |
|
|
18-4 |
S411-100002 |
WASHER-SPRING |
4 |
|
|
18-5 |
21N6-20180 |
PAD-RUBBER |
2 |
|
|
29 |
21N8-32500 |
MACHINE CONTROL UNIT |
1 |
|
|
N29-1 |
21N6-32112 |
BODY-CONTROLLER |
1 |
|
|
30 |
24L1-05100 |
RELAY-24V |
5 |
|
|
34 |
S037-102022 |
BOLT-W/WASHER HEX |
9 |
|
|
35 |
S035-082022 |
BOLT-W/WASHER HEX |
5 |
|
|
39 |
S035-061522 |
BOLT-W/WASHER |
10 |
|
|
39 |
S035-061522 |
BOLT-W/WASHER |
4 |
|
|
42 |
S543-400002 |
CLAMP-TUBE |
1 |
|
|
44 |
S543-200002 |
CLAMP-TUBE,INS SINGLE |
2 |
|
|
47 |
S543-060002 |
CLAMP-TUBE |
1 |
|
|
K48 |
21N8-12040 |
DECAL-EMER CONTROL |
1 |
|
|
49 |
21N4-10451 |
DECAL-MASTER SW |
1 |
|
|
K49 |
21LD-34180 |
DECAL-MASTER SWITCH |
1 |
|
|
52 |
21E9-4018 |
PROLIX RESISTOR |
1 |
|
|
K52 |
21Q4-20100 |
RESISTOR ASSY |
1 |
|
|
K55 |
21E4-0011 |
RELAY-4P |
1 |
|
|
K56 |
21N8-40061 |
DECAL-RELAY |
1 |
|
|
K57 |
21N8-40170 |
HARNESS-MASTER SW |
1 |
|
|
K58 |
21E4-0011 |
RELAY-4P |
1 |
|
|
60 |
21E7-0612 |
PLATE-CONNECTOR |
1 |
|
|
K61 |
21E4-0011 |
RELAY-4P |
1 |
|
|
k62 |
S035-061526 |
BOLT W/WASHER-HEXAGON |
6 |
|
|
K |
21N8-17400 |
ELEC. BOX KIT ASSY |
1 |
|
