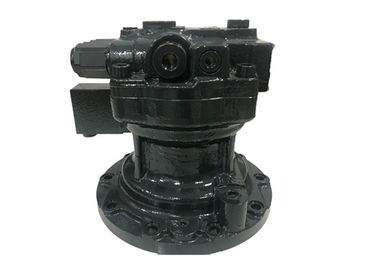

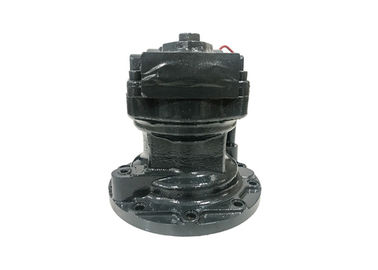

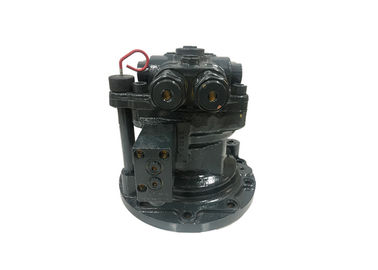

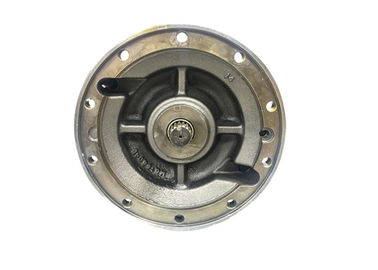

Excavator parts swing motor 31Q4-11130 Slew Motor ASSEMBLY for R140W
Product parameter:
| Product name | Excavator parts swing motor 31Q4-11130 Slew Motor ASSEMBLY for R140W-9 R140LC-9 R305LC-7 |
| Place of Origin: | China(mainland) |
| Model: | R140W-9 R140LC-9 R305LC-7 |
| Part number: | 31Q4-11130 |
| MOQ: | 1 PCS |
| Payment term: | T/T & Western Union & Paypal |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
Spare part 31Q4-11130 SWING MOTOR UNIT (Hyundai)
|
Part No |
31Q4-11130 |
|
Part Name |
SWING MOTOR UNIT |
Schemes of the spare part 31Q4-11130 SWING MOTOR UNIT
Number *-1 on the scheme, Qty 1
R140LC-9; R145CR-9;
R140W-9;
| Model | Section node |
|---|---|
| R140LC-9 | HYDRAULIC COMPONENT / SWING MOTOR |
| R140W-9 | HYDRAULIC COMPONENT / SWING MOTOR |
| R145CR-9 | HYDRAULIC COMPONENT / SWING MOTOR |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| N* | @ | FUEL INJECTION PIPE & NOZZLE *-1,*-2 |
1 | |
| *-1 | 31Q4-11130 | SWING MOTOR UNIT | 1 | |
| 1 | XKAY-01099 | BODY | 1 | |
| K2 | XKAY-00281 | SEAL-OIL | 1 | |
| 3 | XKAY-00282 | BEARING-ROLLER | 1 | |
| 4 | XKAY-00283 | RING-SNAP | 1 | |
| 5 | XKAY-01100 | SHAFT | 1 | |
| 6 | XKAY-00285 | BUSHING | 1 | |
| 7 | XKAY-00625 | PIN | 1 | |
| 8 | XKAY-01101 | PLATE-SHOE | 1 | |
| 9 | XKAY-01102 | ROTARY KIT | 1 | |
| 9-1 | XKAY-01103 | BLOCK KIT-CYLINDER | 1 | |
| N9-11 | XKAY-01104 | BLOCK-CYLINDER | 1 | |
| N9-12 | XKAY-00291 | SPRING | 9 | |
| 9-2 | XKAY-01105 | RETAINER KIT | 1 | |
| N9-21 | XKAY-01584 | GUIDE-BALL | 1 | |
| N9-22 | XKAY-01106 | PLATE-SET | 1 | |
| 9-3 | XKAY-01107 | PISTON KIT | 1 | |
| N9-31 | XKAY-01108 | PISTON ASSY | 9 | |
| 14 | XKAY-01109 | PLATE-FRICTION | 2 | |
| 15 | XKAY-01110 | PLATE | 2 | |
| 16 | XKAY-01111 | PISTON-BRAKE | 1 | |
| K17 | XKAY-00301 | O-RING | 1 | |
| K18 | XKAY-01112 | O-RING | 2 | |
| 19 | XKAY-01585 | SPRING | 16 | |
| 20 | XKAY-01113 | COVER-REAR | 1 | |
| 21 | XKAY-00304 | BEARING-NEEDLE | 1 | |
| 22 | XKAY-00562 | PIN | 2 | |
| N23 | XKAY-01114 | PLATE-VALVE | 1 | |
| 24 | XKAY-00308 | BOLT-WRENCH | 4 | |
| 25 | XKAY-00309 | PLUG | 2 | |
| K26 | XKAY-00141 | RING-BACK UP | 2 | |
| K27 | XKAY-00310 | O-RING | 2 | |
| 28 | XKAY-00311 | SPRING | 2 | |
| 29 | XKAY-00312 | CHECK | 2 | |
| 30 | XKAY-01586 | RELIEF VALVE ASSY | 2 | |
| 31 | XKAY-00314 | REACTIONLESS V/V ASSY | 2 | |
| 32 | XKAY-01470 | TIME DELAY VALVE ASSY | 1 | |
| 33 | XKAY-00149 | BOLT-WRENCH | 3 | |
| 34 | XKAY-00150 | PLUG | 3 | |
| K35 | XKAY-00256 | O-RING | 3 | |
| 36 | XKAY-00140 | PLUG | 1 | |
| 37 | XKAY-00317 | PLUG | 1 | |
| 38 | XKAY-01115 | GAUGE-LEVEL | 1 | |
| 39 | XKAY-01116 | NAME PLATE | 1 | |
| 40 | XKAY-00277 | RIVET | 2 | |
| 41 | XKAY-00322 | PLUG | 2 | |
| K42 | XKAY-00324 | O-RING | 2 | |
| K43 | XKAY-00247 | O-RING | 2 | |
| K44 | XKAY-00605 | RING-BACK UP | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4110 |
1 | |
| K | XKAY-01117 | SEAL KIT SEE ILLUST |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Our advantages:
ℵStrong part number database. If you can provide the right model and part number, we can supply the right product.
ℵProfessional and experienced salesperson. Our founder has been into this field for more than 6 years, with rich experiences.
ℵStrict and complete company rules. We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
ℵGood management system. No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
ℵGood service attitude. As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
| MODEL | |
| KOMATSU | PC20 PC30 PC35 PC40-5 PC40-6 PC40-7/8 PC45 PC50 PC56-7 PC60-1 PC60-3/5/6/7 PC70-8 PC75 PC80 PC90-1 PC100-1/2/3 PC100-5 PC PC120-2 PC120-5/6 PC128US-2 PC130 PC130-7 PC140 PC150-3 PC200-1 /2/3/5/6/7 PC220-5/6/7 PC240-3 PC300-2/3/5/6/7 PC350 PC400-5/6 PC360-7 PC400-1/3/5 PC400-6 PC410 PC450-8 PC650 PC650-8 PC710-5 PC1000-1 |
| HITACHI | HITACHI UH045 UH052 UHO53 UH063 UH07-5 UH09-7 UH04-7 UH083 |
| EX20UR-1/2 EX27 EX30 EX40-1 EX45-1 EX50UR EX60-1/2/3/5 | |
| EX70 EX90 EX100 EX100-W/WD-2/2/3/4 EX120/-2/3/5 EX130 EX150 EX160WD EX200 EX200-1/2/3/5 EX210 EX220-1/3/7 EX220-2/5 EX225 EX240 EX270-1/5 EX280-1 EX300-1/2/3/5/6 EX320 EX330 EX350 EX400 EX400-5 UH03-3/5/7 UH04/2/5 UH05 UN055-7 UH06 UH07 ZAX60 ZAX70 ZAX120 ZAX200 ZX230 ZAX240 ZAX250 ZAX330 ZAX350 ZAX360 ZAX360 | |
| E40B E70 E70B E110 E120B E140 E180 E200B E240 E300 E200-5 E450 E650 | |
| E235B/B/D E245B/D E307 E311B E312C/CL E315C/CL E318B E320/320L E322 E325 E330 E350 E375 E450 | |
| KOBELCO | K903 K904B K904 C K907B K907C K907D SK07 SK027 SK04N2 SK07N2 SK09N2 SK60 SK100 SK120-3/6 SK120LC SK200 SK200-5/6 SK210-8 SK230-6E SK250-6/8 SK300 SK320 SK330-6/8 SK350-6/8 SK400 SK450-6/8 SK480-6 |
| HYUNDAI | R55-7 R60-5/7 R80-7/9 R85-7 R110 R130R150LC R200 R210 R215-7/9 R220 R225LC-7/9 R260-5 R265LC-7/9 R280 R290 R290LC-7 R300 R305LC-9 R320 R335LC-7/9 R375LC R385 R455 R485LC R505LC-7 R515LC-9T R805LC-7 R914B |
| KATO | HD250 HD250SE HD300GS HD307 HD350 HD400G HD400-5 HD450 HD400G HD400SE HD450SE HD510 HD512 HD550SE HD700G HD700-5/7 HD800-5/7 HD820 HD880-1HD820 HD880 HD900SEV |
| HD900-2/5/7 HD1023 HD1100 HD1200 HD1220 HD1250-7 HD1500 HD1880G HD1880SE |
| SUMITOMO | LX02/03 LX08 SH45 SH55 SH60 SH75-3 SH100 SH120 SH145U SH200 SH200A3 SH210 SH220 SH240 SH250 SH260 SH280 SH300 SH340 SH350 SH400 SH450 |
| LS200 LS200 LS280 LS1200 LS1600 LS2035 LS2050L LS2650 LS2800 LS2800FJ2 LS3400EJ LS4300FJ2 LS5800C2 SC800 SC1000 | |
| DAEWOO/DOOSAN | DH55 DH60-7 DH130 DH150 DH170 DH220-3/5 DH220-9E DH258LC-V DH280-3 DH300-5 DH DH320 DH330 DH360-5 DH220-9E |
| VOLVO | EC55BLC EC60 EX130 EC140B EC210B EC240B EC290B EC330 EC360 EC460B |
| BULLDOZER | D20 D30 D31 D3B D3C D3D D40-1 D4C D4D D4H D5 D50 D5B D5H D5M D6B D6C D6D D6H D6R D65 D7 D7E D7F D7G D7R D80 D85-12 D85-18 D8L D8G D8H D8K D8N D8R D9L D9N D155 D155A-1 D155AX D275 D355 D355A-3 D375-2/3 |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
Our products are sold all over the world, you can rest assured.
