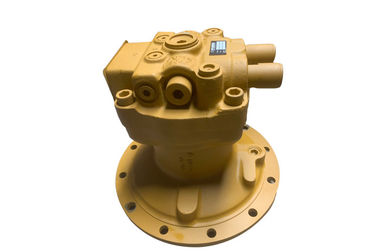

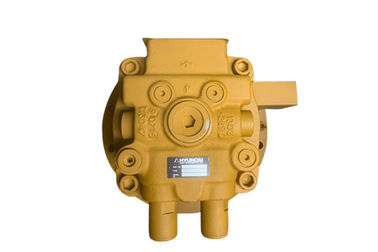

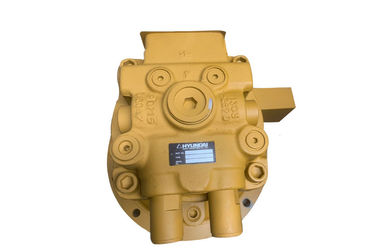

31N7-10130 Swing Motor without Reduction for R250LC-7 R275-9 Hyundai Excavator
Basic Info : R250LC-7 R275-9 31N7-10130 Swing Motor
| Power | Hydraulic |
| Fuel | Diesel |
| Model | Hyundai R250LC-7, R275-9 |
| Weight | About 80kg |
| Trademark | Belparts |
| Specifiion | 30*20*50 |
| Part No | 31N7-10130 |
R250LC-7;
| Model | Section node |
|---|---|
| R250LC-7 | HYDRAULIC COMPONENT / SWING MOTOR(STD) |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| * | 31N7-10150 | SWING MOTOR ASSY *-1, *-2 |
1 |
| *-1 | 31N7-10130 | SWING MOTOR UNIT | 1 |
| 1 | XJDB-00002 | RACE-INNER | 1 |
| 2 | XJDB-00003 | SEAL-OIL | 1 |
| 3 | XJDB-00004 | BEARING-ROLLER | 1 |
| 5 | XJDB-00005 | SPRING-BACKING | 1 |
| 6 | XJDB-00006 | PLATE-CAM | 1 |
| 7 | XJDB-00007 | PLATE-RETURN | 1 |
| 8 | XJDB-00226 | PISTON ASSY | 9 |
| 9 | XJDB-00009 | PLATE-LINING | 3 |
| 10 | XJDB-00010 | PLATE | 3 |
| 11 | XJDB-00011 | O-RING | 1 |
| 12 | XJDB-00012 | PISTON | 1 |
| 13 | XJDB-00013 | O-RING | 2 |
| 14 | XJDB-00014 | SPRING | 15 |
| 15 | XJDB-00015 | PIN-PARALLEL | 2 |
| 16 | XJDB-00016 | PISTON | 2 |
| 17 | XJDB-00018 | O-RING | 3 |
| 18 | XJDB-00017 | CAP | 3 |
| 19 | XJDB-00019 | SCROWWAVE | 4 |
| 20 | XJDB-00020 | RING-TEFLON | 4 |
| 21 | XJDB-00021 | BUSHING | 4 |
| 22 | XJDB-00022 | PLATE-BALANCE | 1 |
| 23 | XJDB-00023 | BEARING-NEEDLE | 1 |
| 24 | XJDB-00024 | RING-SNAP | 1 |
| N25 | XJDB-00025 | CYLINDER ASSY | 1 |
| N26 | XJDB-00256 | HOUSING | 1 |
| 27 | XJDB-00027 | COLLAR | 1 |
| 28 | XJDB-00028 | PLUG | 2 |
| 29 | XJDB-00029 | RING-SNAP | 1 |
| 30 | XJDB-00030 | BYPASS VALVE ASSY | 2 |
| 31 | XJDB-00031 | RING-BACK UP | 2 |
| 32 | XJDB-00032 | O-RING | 2 |
| 33 | XJDB-00033 | O-RING | 2 |
| N34 | XJDB-00034 | COVER | 1 |
| 35 | XJDB-00038 | VALVE-TIME DELAY | 1 |
| 36 | XJDB-00037 | BOLT-SOCKET | 3 |
| 37 | XJDB-00039 | O-RING | 1 |
| 38 | XJDB-00040 | O-RING | 2 |
| 39 | XJDB-00035 | RELIEF VALVE ASSY | 2 |
| 40 | XJDB-00036 | O-RING | 4 |
| 41 | XJDB-00041 | BOLT-SOCKET | 4 |
| 42 | XJDB-00042 | VALVE-CHECK | 2 |
| 43 | XJDB-00043 | SPRING | 2 |
| 44 | XJDB-00044 | CAP | 2 |
| 45 | XJDB-00045 | RING-BACK UP | 2 |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4110 |
1 |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Business scope :
| Engine Parts | complete engine, cylinder block & head, crankshaft, camshaft, connecting rod & bearing, liner/repair kit, piston kit, gasket set, intake & exhaust valve, fuel pump valve seal, water pump, Turbocharger, etc. |
| Hydraulic Parts | hydraulic / main pump, swing motor, final drive, gearbox, control valve, pump spare parts, etc. |
| Undercarriage Parts | track link, top / bottom roller, front idler, sprocket, teeth, pin, rubber track, etc. |
| Seal Kit | arm/boom/bucket cylinder sesal kit, adjuster cylinder seal kit, O-ring box, gear pump seal kit, swing/travel motor seal kit, etc. |
| Electrical Part | senor, alternator/generator, filter, clutch, controller/ECU/monitor/computer board, solenoid valve, roller bearing, starter/starting motor, etc. |
Shipping and Packing :
| Shipping Mode: | By air, by sea ,by express (DHL,Fedex, ,etc.) |
| Standard Shipping Time: | By air within 5-6 days. By DHL: within 4-5days.by sea about 1 month |
| Standard Packing: | Carton or wooden |
| Special Packing: | We can discuss and support you. |
General Order Process:
*Step1: Contact us by online, Email ,skype ,WhatsApp
*Step2: We discuss prices, lead time, payment terms, shipping mode, packing.
*Step3: Issuing PI for you and you confirm .
*Step4: Arrange payment
*Step5: Delivery
*Step6: Goods reach you.
*Step7: After-sale service special for you.
R250LC-7 R275-9 Hyundai Swing Motor
FAQ
Once we get confirmation of payment , we will try the best to ship order within 24 hours .
We have many stock for each item . so don ' t worry . we have enought stock for you .
3. Which shipment you can supply ?
We can supply by sea, by air or by express ( DHL , FEDEX ,TNT , UPS , EMS )
4. How long does it take to clients address ?
The normal delivery time is 4-5 days , depending one which country you are in .
5. How can I know my order it already shipping ?
When the goods shipping , i will email you for tracking number for goods . If by sea or by air , I can offer bill of lading to you .
6. If I was not satisfied with the products, can I return goods ?
Yes , we offer exchanged and repair service in the warranty time , please contact us .
