EX200-5 Excavator Parts Swing Motor M2X146B-CHB-10A-01 315 4330222 24841971
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Swing Motor | Model | EX200LC-5 EX200-5 EX210H-5 EX210LCH-5 |
|---|---|---|---|
| Brand Name | Belparts | Motor Model | M2X146B-CHB-10A-01 |
| Part Number | 4330222 24841971 | Color | Grey |
| Highlight | excavator slew motor,swing drive hydraulic motor |
||
Product Description

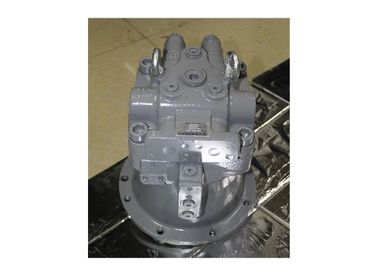

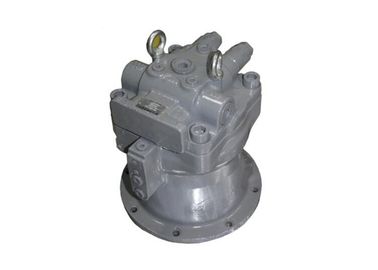

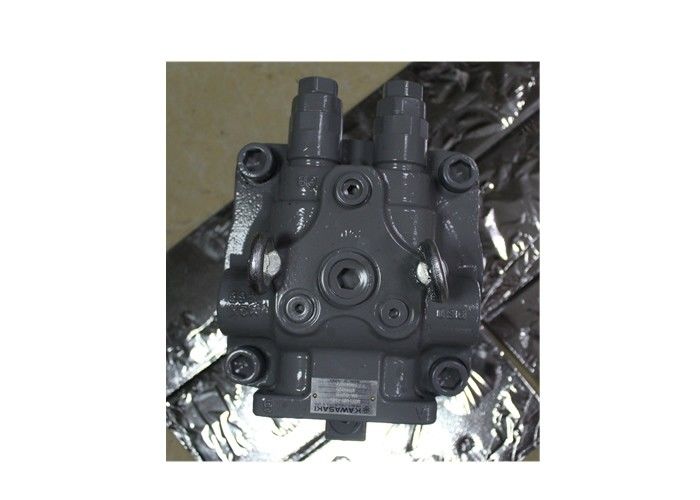

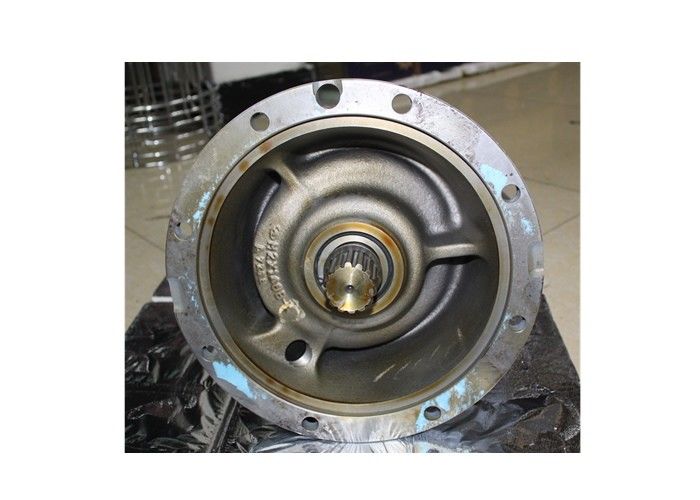

M2X146B-CHB-10A-01 315 4330222 24841971 Grey Excavator Parts EX200-5 Swing Motor
What important information you need to send us :
Please send us the number of the frame hole and sprocket hole as well as inner diameter of the sprocket , so we can check if the China brand swing motor can replace it . So you can use the best price to buy a perfect replacement .
Quick Details
| Place of Origin | Guangdong, China (Mainland) |
| Warranty | 6 Months |
| After-sales Service | Online support |
| Delivery time | 1-3 Days |
| Packing | Wooden |
| Material | Steel |
EXCAVATOR Hitachi EX200LC-5
EX200LC-5 (s.n. AMD300001 - ) PARTS / UPPERSTRUCTURE
SWING DEVICE
List of spare parts
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 00 | 2036775 | SHAFT; PROP. | 1 |
| 01 | 3045362 | SLEEVE | 1 |
| 02 | A811120 | O-RING | 1 |
| 04 | 4281798 | BRG.; SPH. ROL. | 1 |
| 06 | 4246275 | SEAL; OIL | 1 |
| 08 | 3060672 | COVER | 1 |
| 10 | 1020333 | HOUSING | 1 |
| 11 | 4364756 | BRG.; ROL. | 1 |
| 12 | 991352 | RING; RETAINING | 1 |
| 13 | J011240 | BOLT; SEMS | 8 |
| 16 | 1020329 | CARRIER | 1 |
| 17 | 4176073 | PLATE; THRUST | 2 |
| 19 | 9742777 | GEAR; PLANETARY | 3 |
| 21 | 4266933 | PLATE; THRUST | 6 |
| 23 | 4336925 | PIN | 3 |
| 24 | 4027427 | PIN; SPRING | 3 |
| 26 | 4337206 | O-RING | 1 |
| 28 | 1019790 | GEAR; RING | 1 |
| 29 | M341645 | BOLT; SOCKET | 12 |
| 30 | 3069514 | GEAR; SUN | 1 |
| 32 | 1020328 | CARRIER | 1 |
| 33 | 3069510 | GEAR; PLANETARY | 3 |
| 34 | 4336945 | BRG.; NEEDLE | 3 |
| 35 | 4336926 | PLATE; THRUST | 6 |
| 36 | 4336923 | PIN | 3 |
| 37 | 4051262 | PIN; SPRING | 3 |
| 39 | 3069512 | GEAR; SUN | 1 |
| 41 | 425176 | CORK | 2 |
| 43 | 8060496 | PIPE | 1 |
| 44 | 94-2013 | PLUG | 1 |
| 61 | 8053414 | COVER (FOR TRANSPORTATION) | 1 |
| 62 | J011250 | BOLT; SEMS (FOR TRANSPORTATION) | 8 |
| 63 | 94-2011 | PLUG (FOR TRANSPORTATION) | 1 |
| 100 | 4330222 | MOTOR; OIL | 1 |
| 101 | 962002 | RING; RETAINING | 1 |
| 103 | M341228 | BOLT; SOCKET | 8 |
| 104 | 4264452 | PIPE | 1 |
| 106 | 4332658 | PIPE | 1 |
| 107 | 4343365 | CAP | 1 |
| 109 | 3074223 | GAUGE; LEVEL | 1 |
| 111 | 3053093 | NAME-PLATE | 1 |
| 112 | M492564 | SCREW; DRIVE | 2 |
| 200 | 9148922 | SWING DEVICE (WITHOUT MOTOR) | 1 |
Advantage
| 1. Big scale |
| 2. Quality guaranteed |
| 3. Quick response service |
| 4. Various logistic solution |
FAQ
Q1: Do you have your own warehouse ? Can we have a visit ?
A1: Absolutely , you are always welcome to visit our warehouse .
Q2: How do you control the quality for the products ?
A2: All products will be inspected by QC before shipment .
Q3: How long is the warranty period ?
A3: 3 months . All items have warranty except for damage caused by line fault .
