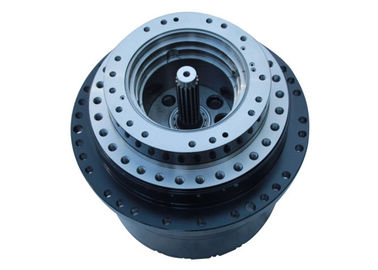

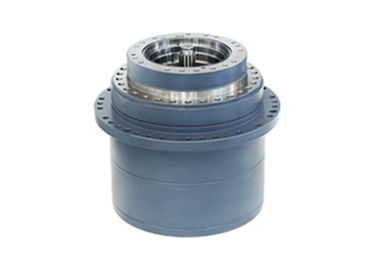

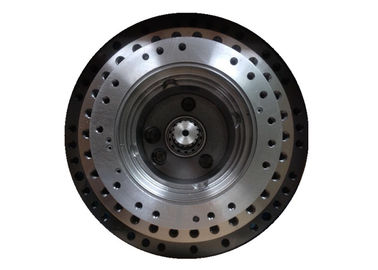

31Q6-40020 Hitachi Gearbox R220-9 R225-9 R220LC-9s Hitachi Final Drive Parts
Product Description
| Appliion | Hitachi Excavator |
| Part name | Excavator travel gearbox |
| Part number | 9233692 |
| Model | ZAX225-3 ZAX210-3 ZAX200-3 ZAX200-5G ZAX210-5G |
| MOQ | 1PC |
| Warranty6 | months |
| Payment term | T/T, Western union, PayPal |
| Delivery | 1 days after the payment received |
| Shipment | by sea, by air, by express or as required |
The information need to check:The part number and the picture of your used gearbox.
For the common type,we can check the parts directly.
We have been the factory agent this year,so the price of our parts will be better than other supplier.
Our products are developed according to the original product parameters,It's perfectly replaceable.That means you can buy a replacement product for less money
1 . Strong part number system
If you can provide the right model and part number, we can check with the informations you sent me and supply the right product.
2 . Professional and experienced salesperson.
Our founder has been into this field for more than 7 years , with rich experiences.We will conduct professional knowledge training and assessment for sales staff every month .
3 . Strict and complete company rules.
We will try our best to meet customer’s delivery time . Before delivery, we must verify the part number or pictures of products one by one , to make sure that customers can receive high-quality and right-quantity goods .
4 . Good management system.
No matter how big or small order , as long as customers place the order , we will provide exporting service free for charge .
5 . Good service attitude.
If the customer has any questions about the product , In our receiving and knowing the situation , we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable , we will endeavour to make them satisfied .
ZAX200-3 Travel gearbox explosive view
Part number system
| Part No | Part Name | Qty. |
| @ | FUEL INJECTION PIPE & NOZZLE | 1 |
| SEE 4150 | ||
| 31Q6-40020 | TRAVEL REDUCTION GEAR | 1 |
| XKAQ-00217 | HOUSING | 1 |
| XKAQ-00218 | BEARING-MAIN | 2 |
| XKAQ-00219 | SEAL-FLOATING | 1 |
| XKAQ-00220 | SHIM | 1 |
| XKAQ-00221 | RETAINER | 1 |
| XKAQ-00222 | BOLT-HEX | 12 |
| XKAQ-00223 | PIN-PARALLEL | 2 |
| XKAQ-00224 | GEAR-RING | 1 |
| XKAQ-00225 | COUPLING | 1 |
| XKAQ-00226 | CARRIER ASSY 2 | 1 |
| XKAQ-00227 | CARRIER 2 | 1 |
| XKAQ-00228 | GEAR PLANET 2 | 4 |
| XKAQ-00229 | BEARING-NEEDLE 2 | 8 |
| XKAQ-00230 | WASHER-THRUST | 8 |
| XKAQ-00231 | PIN 2 | 4 |
| XKAQ-00232 | PIN-SPRING | 4 |
| XKAQ-00208 | RING-THRUST 1 | 2 |
| XKAQ-00653 | CARRIER 1 ASSY | 1 |
| XKAQ-00234 | CARRIER 1 | 1 |
| XKAQ-00235 | GEAR-SUN 2 | 1 |
| XKAQ-00236 | RING-RETAINING | 1 |
| XKAQ-00237 | GEAR-PLANET 1 | 3 |
| XKAQ-00238 | BEARNG-NEEDLE 1 | 3 |
| XKAQ-00657 | WASHER-THRUST | 6 |
| XKAQ-00240 | PIN 1 | 3 |
| XKAQ-00241 | PIN-SPRING | 3 |
| XKAQ-00655 | PIN-SPRING | 1 |
| XKAQ-00402 | GEAR-SUN 1 | 1 |
| XKAQ-00243 | COVER | 1 |
| XKAQ-00214 | PAD | 1 |
| XKAQ-00244 | BOLT-HEX SOCKET | 20 |
| XKAQ-00245 | SCREW-HEX SOCKET | 2 |
| XKAQ-00246 | PLUG-HYDRAULIC | 3 |
| XKAQ-00247 | O-RING | 3 |
| XKAQ-00248 | NAME PLATE | 1 |
| @ | FUEL INJECTION PIPE & NOZZLE | AR |
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
