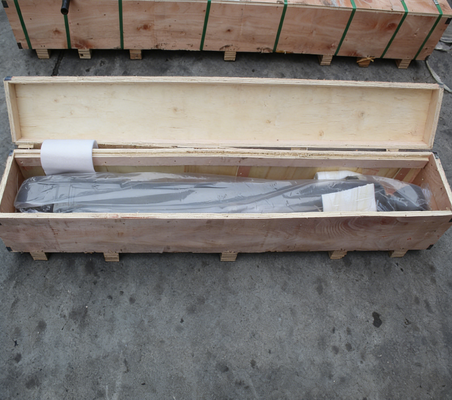

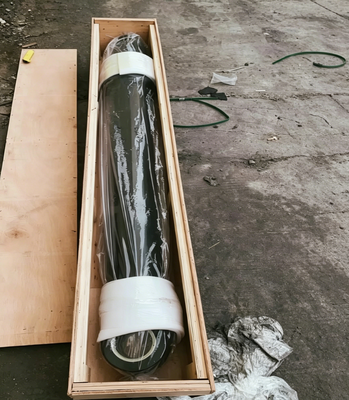

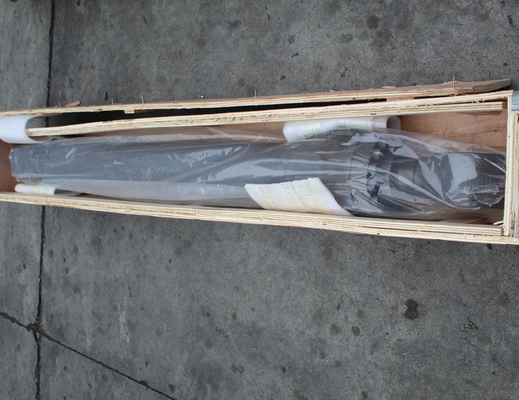

SK330LC VI SK330 VI Hydraulic Arm Cylinder for Kobelco Excavator Spare Parts LC01V00005F1 Aftermarket High Quality
| # | Part No. | Description | Qty |
|---|---|---|---|
| C12 | ZD12P03400 | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro; ID 33.70 ± 0.33 x OD 40mm | 2 |
| A8 | HG23T16016G1 | HYD CONNECTOR | 2 |
| C9 | ZS28C12040 | SCREW,Hex Socket Head, M12 x 40mm; M12x1.75x40mm | 8 |
| B9 | ZN18C14011 | NUT; M14x2.0mm | 2 |
| A9 | 2432T5924 | CLAMP; Single Block -- 80x50x25mm | 2 |
| B10 | ZW26K12000 | LOCK WASHER; ID 12 x OD 17.8 x Th 2.5mm | 32 |
| A10 | LS43H01005P1 | CLAMP,43mm ID, 12mm Bolt Hole, J Type | 8 |
| C10 | ZW16H10000 | WASHER; ID 11 x OD 24 x Th 3.2mm | 2 |
| B11 | ZW16H14000 | WASHER; ID 15 x OD 29 x Th 3.2mm | 2 |
| A11 | LC42H01103P1 | CLAMP | 8 |
| C11 | ZW26K12000 | LOCK WASHER; ID 12 x OD 17.8 x Th 2.5mm | 8 |
| B12 | ZH22Z04000 | HYD CONNECTOR; 1/4"PTx1/4"PFx37mm Long | 2 |
| A12 | LC42H01021P1 | CLAMP | 2 |
| C8 | ZS18C10030 | SCREW,Hex, M10 x 30mm; M10x1.50x30mm | 2 |
| C13 | ZD12A02100 | O-RING; ID 23.52 ± 0.15 x OD 27.08mm | 1 |
| A13 | LC42H01020P1 | BUSHING,34mm ID x 53mm OD x 68mm L | 12 |
| B13 | ZG91S02000 | LUBE NIPPLE,1/8" NPT x 1/8" NPT; 1/8" PT -- Straight | 2 |
| C14 | ZG91V02000 | LUBE NIPPLE,67 Degree x 1/8" PT; 67° x 1/8" PT | 1 |
| A14 | ZD12A02100 | O-RING; ID 23.52 ± 0.15 x OD 27.08mm | 12 |
| B14 | ZD12P03400 | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro; ID 33.70 ± 0.33 x OD 40mm | 8 |
| B15 | ZX20U16086 | FLEXIBLE HOSE | 4 |
| A15 | ZS18C12055 | SCREW,Hex, M12 x 55mm; M12x1.75x55mm | 8 |
| A16 | ZS18C10030 | SCREW,Hex, M10 x 30mm; M10x1.50x30mm | 16 |
| B16 | ZS28C12045 | SCREW,Hex Socket Head, M12 x 45mm; M12x1.75x45mm | 16 |
| A17 | ZW16H12000 | WASHER; ID 13 x OD 26 x Th 3.2mm | 8 |
| A18 | ZW16H10000 | WASHER; ID 11 x OD 24 x Th 3.2mm | 16 |
| A4 | LC42H01059P1 | RIGID TUBE | 1 |
| A1 | LC42H01056P1 | RIGID TUBE | 1 |
| C1 | LC42H01064P1 | TUBE | 1 |
| B2 | LC42H01105P1 | RIGID TUBE | 1 |
| C2 | LQ02B01017D8 | FLEXIBLE HOSE | 1 |
| A2 | LC42H01057P1 | RIGID TUBE | 1 |
| A3 | LC42H01058P1 | RIGID TUBE | 1 |
| B3 | LC42H01099P1 | RIGID TUBE | 1 |
| C3 | YN02B01030D2 | HOSE; 1170mm Long (46-1/16 in) | 1 |
| C4 | LS43H01005P1 | CLAMP,43mm ID, 12mm Bolt Hole, J Type | 2 |
| B1 | LC42H01104P1 | RIGID TUBE | 1 |
| B4 | LC42H01100P1 | RIGID TUBE | 1 |
| C5 | LC42H01020P1 | BUSHING,34mm ID x 53mm OD x 68mm L | 1 |
| A5 | LC42H01060P2 | TUBE | 1 |
| B5 | ZE13X16000 | FLANGE; Clamp, Half -- (Incls. Capscrew & Lockwasher) | 8 |
| A6 | LC42H01061P2 | TUBE | 1 |
| B6 | 2432T5986 | CLAMP; Double Block -- 125x32x27mm | 4 |
| C6 | ZH22Z04000 | HYD CONNECTOR; 1/4"PTx1/4"PFx37mm Long | 1 |
| B7 | ZS28C12040 | SCREW,Hex Socket Head, M12 x 40mm; M12x1.75x40mm | 16 |
| A7 | ZX20H16145 | HOSE; 1450mm Long (57-5/64 in) | 2 |
| C7 | ZE13X16000 | FLANGE; Clamp, Half -- (Incls. Capscrew & Lockwasher) | 2 |
| B8 | ZS18C14085 | SCREW,Hex, M14 x 85mm; M14x2.0x85mm | 2 |
| 01 | LC01V00001F1 | CYLINDER; RH, Remarks: SEE CPM | 1 |
| 02 | LC01V00002F1 | CYLINDER; LH, Remarks: SEE CPM | 1 |
| 03 | LC01V00005F1 | CYLINDER; ARM, Remarks: SEE CPM | 1 |
What's Cylinder ?
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
Guangzhou Belparts Engineering Machinery Limited
A foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
Best-selling Products
RAQ
What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, the delivery time will be communied in advance, usually 3-7 days.
What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel motor, swing motor, travel gearbox, swing gearbox, gear parts, hydraulic pump, hydraulic parts, etc. If you need other excavator parts, we also can supply as your requirements.
How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assura.
