| # | Part No. | Description | Qty |
|---|---|---|---|

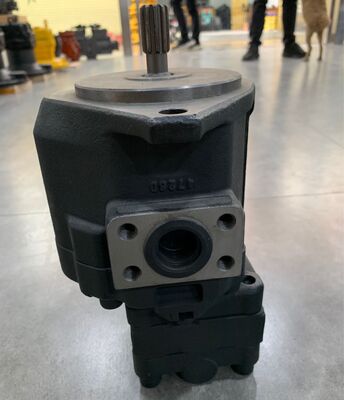

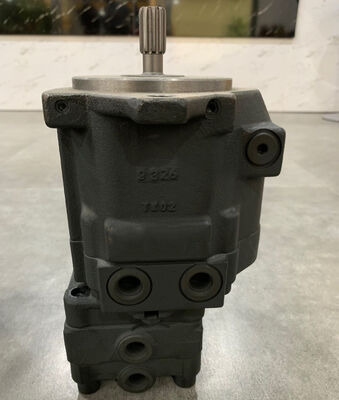

| All | 2081149 | PUMP GROUP-PISTON & GEAR; -MAIN HYDRAULIC | 1 |
| 1 | 1913915 | BEARING | 1 |
| 2 | 0951295 | DOWEL | 3 |
| 3 | 1913918 | WASHER | 1 |
| 4 | 1913919 | SHAFT | 1 |
| 5 | 1913920 | WASHER | 1 |
| 6 | 1913921 | GASKET | 1 |
| 7 | 6V7723 | RING-RETAINING | 1 |
| 8 | 1913924 | SEAL | 1 |
| 9 | 1913925 | BEARING | 1 |
| 10 | 1913926 | BUSHING | 2 |
| 11 | 1913928 | PLATE | 1 |
| 12 | 1913912 | BARREL AS | 1 |
| 13 | 1913913 | KIT-RETAINER | 1 |
| 14 | 2195222 | KIT-ORIFICE | 1 |
| 15 | 1913930 | HOLDER | 1 |
| 16 | 1500881 | ORIFICE | 2 |
| 17 | 1913932 | SEAT | 1 |
| 18 | 2195226 | SPRING | 1 |
| 19 | 2195227 | SPRING | 1 |
| 20 | 1913934 | SEAT | 1 |
| 21 | 1963905 | WASHER | 1 |
| 22 | 1913937 | PIN | 1 |
| 23 | 2195231 | PIN | 1 |
| 24 | 2195232 | STOP | 1 |
| 25 | 1913941 | SPRING | 3 |
| 26 | 1913942 | WASHER | 1 |
| 27 | 1913943 | PLUG | 1 |
| 28 | 0951582 | SEAL-O-RING (ID=13.80mm) | 1 |
| 29 | 1913946 | PLUG | 6 |
| 30 | 1397336 | PLUG | 2 |
| 31 | 0951579 | SEAL-O-RING (ID=10.80mm) | 3 |
| 32 | 1913964 | ROTOR AS | 1 |
| 33 | 1913949 | BUSHING | 1 |
| 34 | 1913950 | PLATE | 1 |
| 35 | 1913951 | SEAL-O-RING | 1 |
| 36 | 2195242 | SEAL | 3 |
| 37 | 1432337 | BALL | 1 |
| 38 | 1913963 | PLUNGER | 1 |
| 39 | 1913957 | SPRING | 1 |
| 40 | 1913962 | SHIM | 2 |
| 41 | 2240034 | SCREW | 2 |
| 42 | 1913958 | PLUG | 1 |
| 43 | 2195247 | PUMP GROUP | 1 |
| 44 | 8T3338 | SEAL-O-RING (ID=84.40mm) | 1 |
| 45 | 2240035 | BOLT | 2 |
| 46 | 1913939 | PIN | 1 |
| 47 | 2240036 | NUT | 1 |
| 48 | 6V8200 | BOLT-SOCKET HEAD; (M12X1.75X35-MM) | 4 |
| 49 | 6V7660 | SEAL-O-RING | 1 |
| ---- | |||
| ---- | AVAILABLE REPAIR KIT(S): | ||
| 2195250 | KIT-SEAL; (MAIN HYDRAULIC PUMP) | 1 | |
| ---- | KIT MARKED J SERVICES PARTS MARKED J | ||
| ---- | KIT MARKED L SERVICES PART MARKED L | ||
| ---- | METRIC PART |
