| MOQ: | 1 piece |
| Price: | Negotiable price |
| Standard Packaging: | Wooden packing |
| Delivery Period: | 1-5days |
| Payment Method: | T/T, Paypal and Trade Assurance |
| Supply Capacity: | 1000pieces |

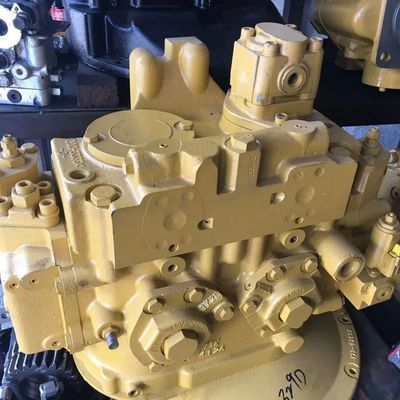

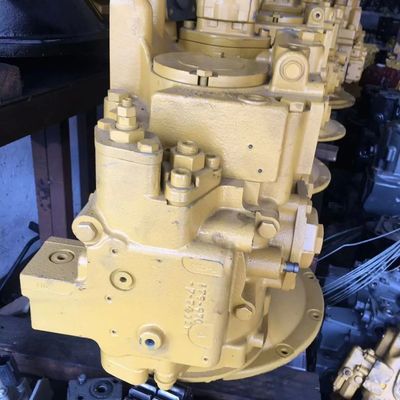

322C 325C 324D 325D 326D 329D hydraulic pump for Excavator spare parts 2726957 2726959 Axial Piston pump
Belparts (GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED), is a foreign trade company integrating development, sales, procurement, warehousing, transportation and service. Founded in September 2013, we have more than ten years of experience in machinery trade.
Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.
Please feel free to contact me if needed.
| VRD63 | 100/120/120B |
| SBS80 | 311/311D/312C/312D/314 |
| SBS80(D2GC) | 312D2GC |
| SBS120 | 320C/320D |
| SBS140 | 324D/325D/326D/329D/325C |
| SBS180 | 336E 336F |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 4I1022 | ORIFICE | 2 | |
| 2 | 7Y4215 | SPACER | 2 | |
| 3 | 0963983 | RING-RETAINING | 1 | |
| 4 | 1262016 | PUMP GROUP-GEAR (PILOT) | 1 | |
| 9T0835 | RING-RETAINING | 1 | ||
| 5 | 1297853 | PLATE-CREEP | 2 | |
| 6 | 1297854 | CASE | 1 | |
| 7 | 1297863 | COVER | 1 | |
| 8 | 1297921 | RING-RETAINING | 2 | |
| 9 | 1297925 | SEAL-O-RING (ID=11.89mm) | 1 | |
| 10 | 1297927 | BEARING | 2 | |
| 11 | 1505782 | COVER | 2 | |
| 12 | 1733427 | GUIDE-BALL | 2 | |
| 13 | 1772470 | COVER | 1 | |
| 14 | 1772471 | COVER | 1 | |
| 15 | 1799763 | FLANGE | 1 | |
| 16 | 1884210 | PISTON AS | 2 | |
| 17 | 1904896 | PLUG | 2 | |
| 18 | 1920573 | PIN-DOWEL | 4 | |
| 19 | 1948325 | SET-BEARING | 2 | |
| 20 | 2003333 | HEAD-PUMP | 1 | |
| 21 | 2003334 | COVER | 1 | |
| 22 | 2254541 | SHAFT-DRIVE | 1 | |
| 23 | 2254542 | SHAFT-DRIVEN | 1 | |
| 24 | 1297857 | GASKET | 1 | |
| 25 | 1297855 | GASKET | 1 | |
| 26 | 2478782 | BODY | 1 | |
| 27 | 2478920 | ORIFICE | 2 | |
| 28 | 2560081 | BARREL AS-DRIVE | 1 | |
| 29 | 2560083 | BARREL AS-PUMP | 1 | |
| 30 | 2560088 | ACTUATOR GROUP-PUMP -DRIVE | 1 | |
| 31 | 2560089 | ACTUATOR GROUP-PUMP -DRIVEN | 1 | |
| 33 | 0941875 | PIN, ROLLER | 6 | |
| 34 | 0941882 | PLUG, TAPERED | 16 | |
| 35 | 0950946 | RING (RETAINING) | 2 | |
| 37 | 0963944 | SEAL-O-RING | 1 | |
| 38 | 0964389 | SPRING | 18 | |
| 39 | 1297979 | DOWEL | 4 | |
| 40 | 1778740 | SEAL-O-RING | 1 | |
| 41 | 1899763 | SEAL (13.6mm OD) | 1 | |
| 42 | 1931736 | SEAL (85.6mm OD) | 4 | |
| 43 | 2426801 | SWASHPLATE AS | 2 | |
| 43A | 1733428 | BEARING-SLEEVE | 1 | |
| 0941875 | PIN, ROLLER | 1 | ||
| 2426803 | PIN-DOWEL | 2 | ||
| 44 | 2426804 | BEARING | 4 | |
| 45 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 2 | |
| 46 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 | |
| 47 | 7X2557 | BOLT (M16X2.0X140MM) | 1 | |
| 48 | 8J4645 | PLUG (FRONT 5 STEM MAIN CONTROL VALVE) | 2 | |
| 49 | 8T3338 | SEAL-O-RING (ID=84.40mm) | 2 | |
| 50 | 8T4136 | CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9) | 18 | |
| 51 | 8T4137 | BOLT (M10X1.50X20MM) | 2 | |
| 52 | 8T4139 | CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9) | 10 | |
| 53 | 8T4140 | BOLT-PLT (M16 X 2.0 X 60) | 4 | |
| 54 | 8T4175 | BOLT (M16X2X90-MM) | 2 | |
| 55 | 8T4176 | BOLT-PLT (M12 X 1.75 X 90) | 2 | |
| 56 | 8T4192 | CAPSCREW (HEX HD) (M12 X 1.75 X 25, GR10.9, Z) | 10 | |
| 57 | 8T4196 | CAPSCREW (HEX HD) (M10 X1.5 X 35, GR10.9, Z) | 2 | |
| 58 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 2 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 2502503 | KIT-SEAL (PILOT GEAR PUMP) | 1 | ||
| (INCLUDES RING-RETAINING, GASKETS, & SEALS) | ||||
| CHANGE FROM PREVIOUS TYPE | ||||
| KIT MARKED J SERVICES PART MARKED J | ||||
| METRIC PART | ||||
| SEPARATE ILLUSTRATION |
1,Warm up after startup: After starting the engine, let it idle for 3-5 minutes. Only operate when the hydraulic oil temperature rises above 20℃. Avoid sudden acceleration or rapid action switching when the machine is cold to prevent pump wear due to insufficient lubrication.
2,Smooth operation: Push the control lever slowly and avoid sudden load increases. For example, do not force digging in hard soil, and do not perform rapid rotation and boom lifting simultaneously to reduce instantaneous pressure impact on the pump.
3,Avoid long-term high-pressure idling: Do not run the pump under high pressure (e.g., full bucket suspended, digging stuck on hard rock) for more than 30 seconds. If the time is exceeded, relieve pressure first (e.g., retract the bucket, lower the boom) to prevent pump overheating and damage.
