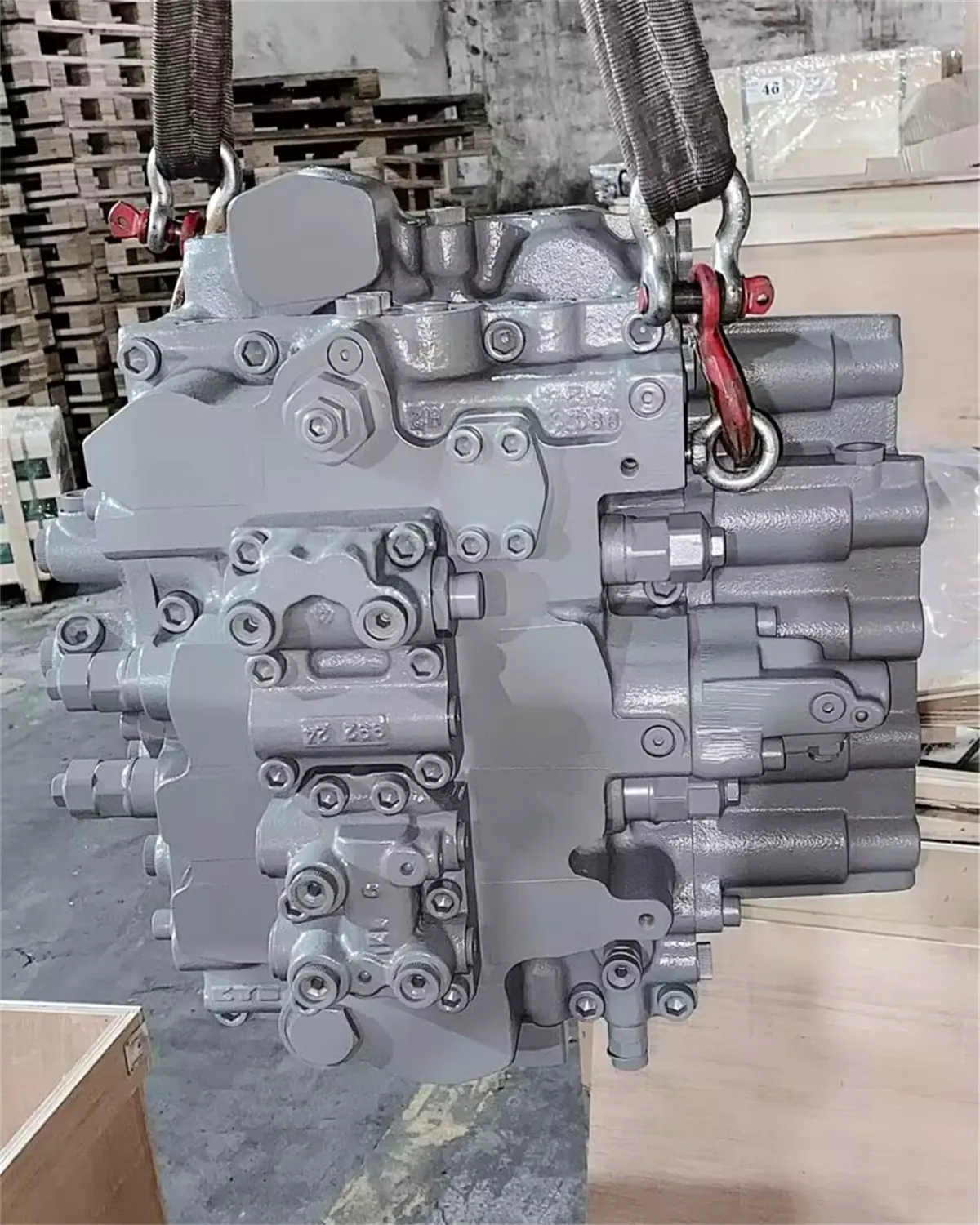

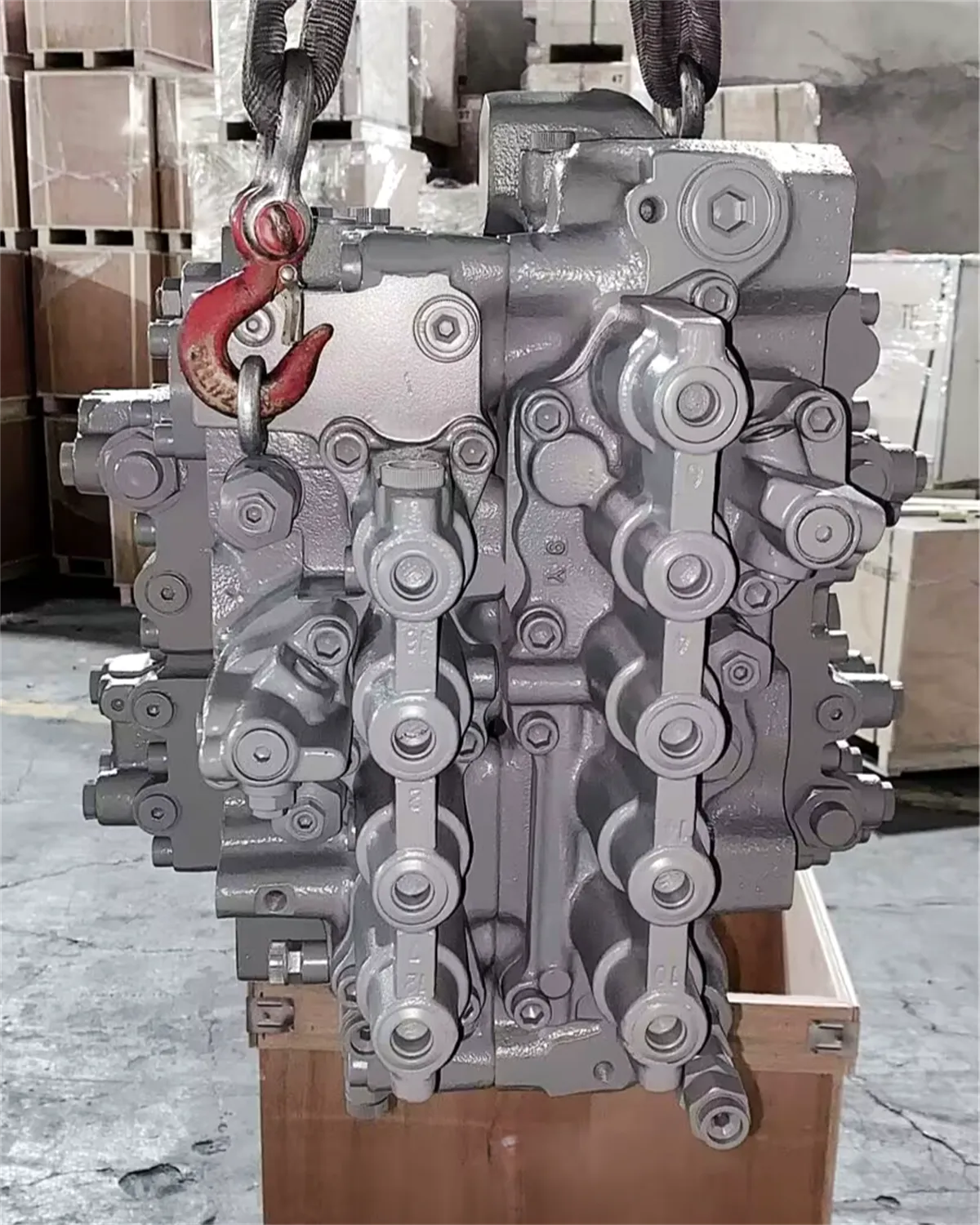

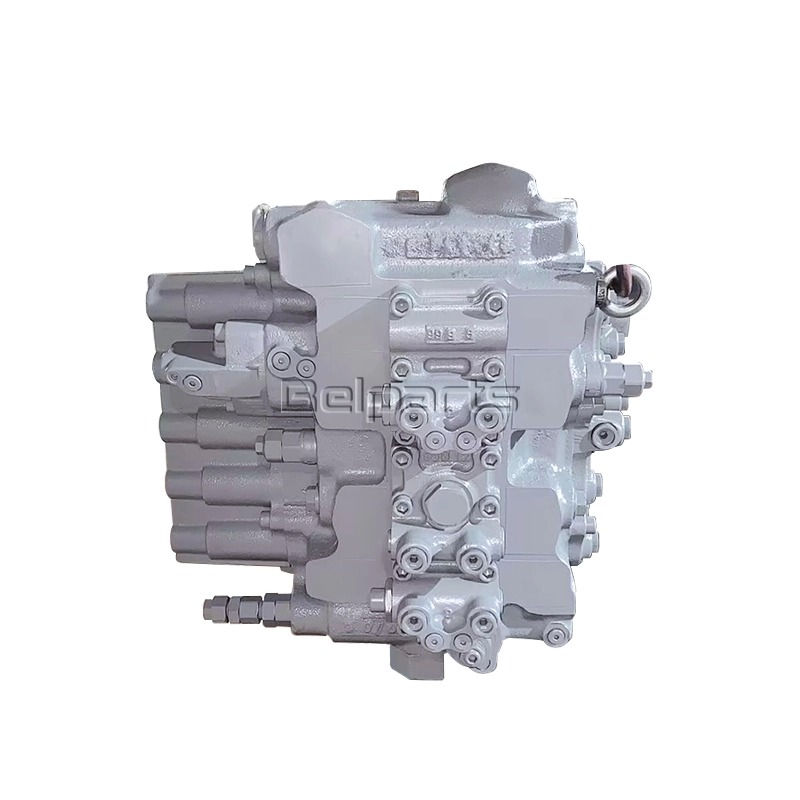

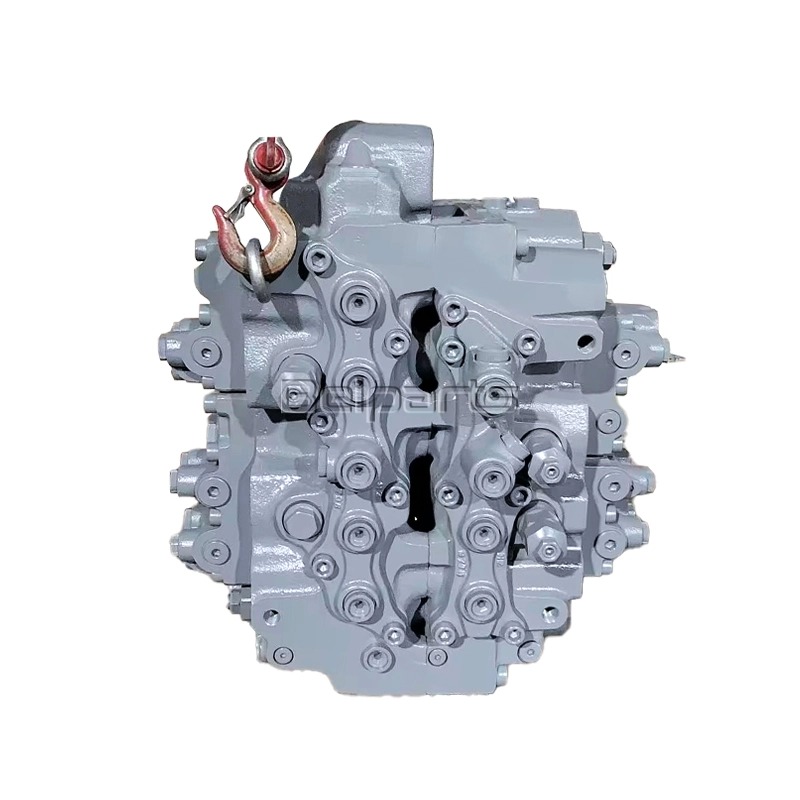

Hitachi EX200-5 Control Valve 4366959 Hydraulic Distributor

Hyundai EX200-5 4366959 control valve Hydraulic distributor for excavator parts

The control valve (also known as the main control valve or multi-valve block) is the central hydraulic control component in excavators. It consists of multiple parallel spools that precisely distribute high-pressure oil from the pump to actuators (e.g., hydraulic cylinders, motors) based on operational demands, enabling coordinated machine movements.

Working Principle

1. Flow Distribution:
   Operator joystick or electronic signals shift valve spools, adjusting port openings to control oil flow rate and direction to each actuator.

2. Pressure Regulation:
   Integrated pressure compensators and overload relief valves maintain stable flow under varying loads while preventing pressure spikes.

3. Multi-circuit Coordination:
   Parallel spool design allows simultaneous operation of multiple actuators (e.g., boom lifting + arm retraction), with the system automatically splitting pump flow.

4. List of spare parts

   #	Part No	Part Name	Qty.	Price request
   	4327129	VALVE; CONTROL (1/6)	1
   1		. HOUSING	1
   2		. SPOOL ASS'Y	1
   2A	0413501	.. END
   2B	0353204	.. SEAT; SPRING
   2C	0413502	.. SPRING
   2D	0413503	.. SPRING	1
   3		. SPOOL ASS'Y	1
   3A	0413501	.. END
   3B	0353204	.. SEAT; SPRING
   3C	0413502	.. SPRING
   3D	0413503	.. SPRING
   4		. SPOOL ASS'Y	1
   4A	0413501	.. END
   4B	0353204	.. SEAT; SPRING
   4C	0413502	.. SPRING
   4D	0413503	.. SPRING
   5	0617001	. CAP ASS'Y
   5A	0413512	.. CAP
   5B	0617002	.. PLUG
   5C	0617003	.. ADJUSTER
   5D	0617003	.. ADJUSTER	1
   5E	4509180	.. O-RING	1
   5F	0617004	.. NUT
   5G	0413516	.. CAP
   5H	94-2010	.. PLUG	1
   5I	A810050	.. O-RING	4
   5J	4506420	.. O-RING	2
   6	0617005	. CAP ASS'Y
   6A	0413517	.. CAP
   6B	0617002	.. PLUG
   6C	4506429	.. O-RING	1
   6D	0617003	.. ADJUSTER	1
   6E	4509180	.. O-RING	1
   6F	0617004	.. NUT
   6G	0413516	.. CAP	1
   6H	A810040	.. O-RING	4
   10	0413504	. PLUG ASS'Y
   10A	4506408	.. O-RING	1
   11	0413505	. SPACER
   16	4289602	. VALVE; RELIEF	1
   16A	0111809	.. O-RING
   50	0413506	. POPPET
   51	0413507	. SPRING
   52	0413508	. PISTON
   53		. SLEEVE	1
   54		. SPOOL	1
   55	0413509	. SEAT; SPRING
   56	0413510	. SPRING
   57		. SPOOL ASS'Y	1
   57A	0413501	.. END
   57B	0353204	.. SEAT; SPRING
   57C	0413502	.. SPRING
   57D	0413503	.. SPRING
   62	0413511	. BOLT; SOCKET
   105	0413518	. PLUG ASSY
   105A	4509180	.. O-RING	1
