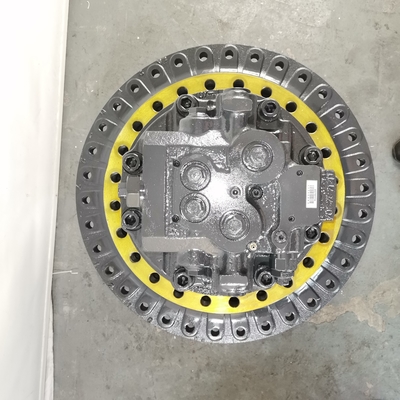

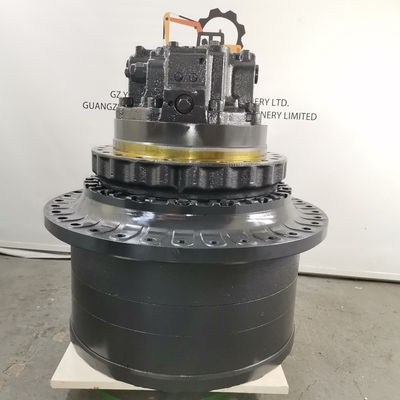

Belparts excavator 21M-27-00050 708-88-40220 Excavator Travel Motor Assembly for PC600-6 PC650-6 PC600-7
| PRODUCT DESCRIPTION |
||
| Model:Travel motor assembly 21M-27-00050 708-88-40220 706-88-01101 706-88-01101 Excavator final drive PC600-6 PC650-6 PC600-7 PC600-8 | Ategory: Walking motor assembly |
|
| Brand:Komatsu |
Place of Origin:Other Country |
|
| Condition: Original & Oem |
Warranty: 12 months |
|
| MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
| Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
| Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

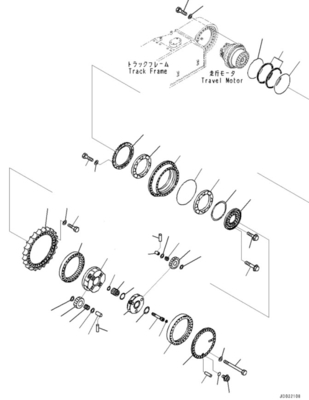

| Parts on group : | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 21M-27-00050 | [1] | Final Drive Assembly Komatsu China | ||
| ["SN: 65001-UP"] |$0. | ||||
| 706-8L-01010 | [1] | Motor Assembly Komatsu | 268 kg. | |
| ["SN: 65001-UP"] |$1. | ||||
| 1 | 706-88-40220 | [1] | Motor, Motor Komatsu | 142 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 706-8L-00010 | [1] | Cover Assembly, End Komatsu China | ||
| ["SN: 65001-UP", "SCC: C2"] |$3. | ||||
| 7 | 708-8K-15190 | [1] | Pin, Dowel Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 8 | 706-77-72170 | [4] | Plug Komatsu | 0.115 kg. |
| ["SN: 65001-UP"] | ||||
| 9 | 07002-12434 | [4] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 65001-UP"] analogs:["0700202434", "0700213434"] | ||||
| 10 | 20B-27-11210 | [1] | Bleeder Komatsu | 0.02 kg. |
| ["SN: 65001-UP"] | ||||
| 11 | 706-8L-51010 | [1] | Piston Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 12 | 706-8L-51020 | [1] | Pin Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 13 | 706-87-51120 | [1] | Screw Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 14 | 706-7G-71710 | [2] | Valve Komatsu | 0.1 kg. |
| ["SN: 65001-UP"] | ||||
| 15 | 706-75-74550 | [2] | Spring Komatsu | 0.012 kg. |
| ["SN: 65001-UP"] | ||||
| 16 | 706-75-74850 | [2] | Plug Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 17 | 07002-13334 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 65001-UP"] analogs:["0700203334"] | ||||
| 18 | 706-78-71580 | [2] | Piston Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 19 | 706-78-71280 | [2] | Spring Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 20 | 706-78-71230 | [2] | Plug Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 21 | 07002-13634 | [2] | O-ring Komatsu China | 0.013 kg. |
| ["SN: 65001-UP"] analogs:["0700203634"] | ||||
| 706-88-00210 | [1] | Sleeve Subassembly Komatsu China | ||
| ["SN: 65001-UP"] |$24. | ||||
| 22 | 706-88-50250 | [1] | Sleeve Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 23 | 07002-15234 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 65001-UP"] analogs:["855021829", "0700205234"] | ||||
| 24 | 07000-13035 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 65001-UP"] analogs:["0700003035"] | ||||
| 25 | 706-88-50310 | [1] | Ring, Back-up Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 26 | 07000-13038 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 65001-UP"] analogs:["0700213038"] | ||||
| 27 | 706-88-50320 | [1] | Ring, Back-up Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 28 | 706-8E-14170 | [1] | Spring Komatsu | 0.01 kg. |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 29 | 706-88-50240 | [1] | Spool Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 30 | 706-88-50160 | [1] | Plug Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 31 | 07002-13034 | [1] | O-ring Komatsu China | 0.005 kg. |
| ["SN: 65001-UP"] analogs:["0700203034"] | ||||
| 32 | 706-77-71670 | [1] | Plug Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 34 | 706-86-53410 | [2] | Valve Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 35 | 708-8E-16160 | [2] | Plug Komatsu | 0.01 kg. |
| ["SN: 65001-UP"] | ||||
| 36 | 07002-11023 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 65001-UP"] analogs:["0700201023"] | ||||
| 37 | 708-8E-16180 | [2] | Valve Komatsu | 0.004 kg. |
| ["SN: 65001-UP"] | ||||
| 40 | 706-78-71430 | [1] | Spool Komatsu China | |
| ["SN: 65001-UP", "SCC: C2"] | ||||
| 41 | 706-78-71440 | [2] | Spring Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 42 | 706-78-71260 | [2] | Plug Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 43 | 07002-12034 | [2] | O-ring Komatsu China | 0.94 kg. |
