Belparts K5V140DTP-9C12-17T Hydraulic Main Pump 31N8-10011 31N8-10070 Main Pump Assy
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | R350-7 | Part Number | 31N8-10070 31N8-10011 |
|---|---|---|---|
| Part Name | Hitachi PUMP PISTON | Product Name | Hydraulic Main Pump |
| Warranty | 6 Months, 6 Months | Material | Steel |
| Highlight | 31N8-10070 Hydraulic Main Pump,Belparts Hydraulic Main Pump,31N8-10011 Hydraulic Main Pump |
||
Product Description

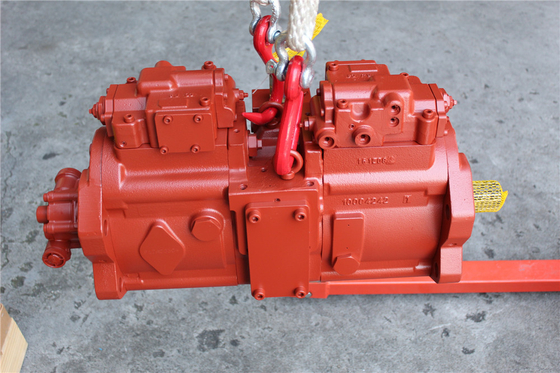

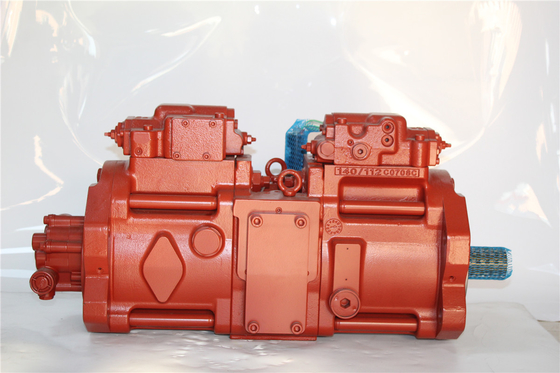

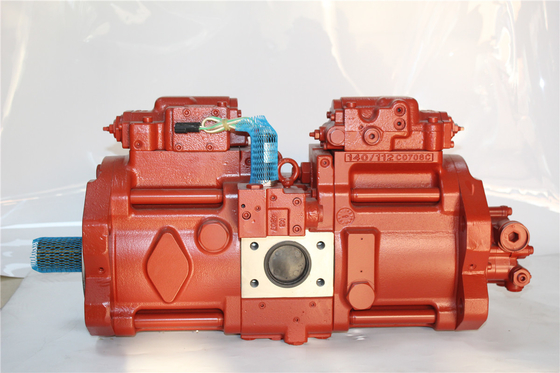

Belparts K5V140DTP-9C12-17T Hydraulic Main Pump 31N8-10011 31N8-10070 main pump assy
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 31N8-10011 31N8-10070 |
| Model | R350 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |
Our high-efficiency excavator hydraulic pump is a high-performance core component of the hydraulic system designed for modern excavators. Manufactured using advanced hydraulic technology and premium materials, it ensures stable and efficient hydraulic power output in various working environments. Whether it's construction sites, mining operations, or agricultural tasks, this hydraulic pump significantly enhances the efficiency and reliability of excavators.
| # | Part No | Part Name | Qty. | Price request |
| * | 31N8-10011 | MAIN PUMP | 1 | |
| *-1 | XJBN-00996 | MAIN PUMP UNIT | 1 | |
| 111 | XJBN-00015 | SHAFT-DRIVE(F) | 1 | |
| 113 | XJBN-00153 | SHAFT-DRIVE(R) | 1 | |
| 114 | XJBN-00367 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00017 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00018 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00019 | SPACER-BEARING | 3 | |
| NS141 | XJBN-00007 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-00004 | PISTON | 18 | |
| NS152 | XJBN-00748 | SHOE | 18 | |
| 153 | XJBN-00020 | PLATE-SET | 2 | |
| 156 | XJBN-00021 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00022 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | PLATE-SHOE | 2 | |
| NS212 | XJBN-00012 | PLATE-SWASH | 2 | |
| NS214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00024 | SUPPORT | 2 | |
| 261 | XJBN-00025 | COVER(FR)-SEAL | 1 | |
| 271 | XJBN-00026 | CASING-PUMP | 2 | |
| 312 | XJBN-00027 | BLOCK-VALVE | 1 | |
| NS313 | XJBN-00008 | PLATE(R)-VALVE | 1 | |
| NS314 | XJBN-00010 | PLATE(L)-VALVE | 1 | |
| N325 | XJBN-00380 | CASING-VALVE | 1 | |
| 401 | XJBN-00028 | SCREW | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 407 | XJBN-00381 | SCREW | 3 | |
| 466 | XJBN-00356 | PLUG | 3 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 32 | |
| NS531 | XJBN-00369 | PIN-TILTING | 2 | |
| 532 | XJBN-00033 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER(L) | 2 | |
| 535 | XJBN-00035 | STOPPER(S) | 2 | |
| N541 | XJBN-00036 | SEAT | 4 | |
| N543 | XJBN-00037 | STOPPER 1 | 2 | |
| N544 | XJBN-00039 | STOPPER 2 | 2 | |
| N545 | XJBN-00359 | BALL-STEEL | 4 | |
| NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 710 | XJBN-00041 | O-RING | 1 | |
| 717 | XJBN-00042 | O-RING | 2 | |
| 719 | XJBN-00043 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 8 | |
| 727 | XJBN-00283 | O-RING | 1 | |
| 728 | XJBN-00363 | O-RING | 3 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-00048 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SCREW-SET | 2 | |
| 954 | XJBN-00057 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | XJBN-00001 | REGULATOR | 1 | |
| *-3 | XJBN-00002 | GEAR PUMP | 1 | |
| *-4 | XJBN-00014 | CASING ASSY-EPPR VLV | 1 | |
| 011 | XJBN-00003 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-00006 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-00009 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00011 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| 053 | XJBN-00371 | TILTING PIN ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
| Brand | Model |
|
PC40, PC60-5-6-7, PC100, PC120, PC130, PC240, PC270, PC300,PC360,PC400,PC450,PC650,PC1250 PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC400-1-3-5, D20, D30, D31, D50, D60, D75, D80 (D85), D155 |
|
| Hitachi |
EX40, EX60, EX150, EX100M, EX100, EX120, EX150, EX200-1-2-3, EX300-1-3-5, EX400, ZX450,ZX470,ZX870,ZX1200 |
| EC55/60, EC140,EC210, EC240, EC290, EC360, EC460, EC700 | |
| Doosan | DH215, DH220, DH260, DH280, DH300, DH370, DH420, DH450, DH500 |
| Hyundai | R200, R210, R225, R265, R335, R455, R505 |
| Kato | HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, HD1020, HD1220 (HD1250), HD1430, DH1880 |
| Kobelco | SK200,SK210, SK220,SK260, SK300, SK330, SK350, SK450,SK460,SK480,SK800 |
| Sumitomo | SH120, SH200, SH280, SH300, SH350, SH400, SH450, SH460, SH700 |
We could supply the rexroth hydraulic pump and motor, also the inner spare parts as below model:
1 A8VO: A8VO55,A8VO80,A8VO107,A8VO160
2,A2FO: A2FO5 A2FO10 A2F12 A2FO16 A2FO23,A2FO28,A2FO32,A2FO45,A2FO56,A2FO63 A2FO80
3,A4VSO: A4VSO40,A4VSO45,A4VSO56,A4VSO71,A4VSO125,A4VSO180,A4VSO250,A4VSO500,
4,A4VG: A4VG28,A4VG45,A4VG50,A4VG56,A4VG71,A4VG125,A4VG180,A4VG250
5,A6V: A6V55,A6V80,A6V107,A6V160,A6V225,A6V250
6,A7V: A7V16,A7V28,A7V55,A7V80,A7V107,A7V160,A7V200,A7V250
7,A8V: A8V55,A8V80,A8V107,A8V115,A8V172
8,A10VSO: A10VSO10,A10VSO18 A10VSO28,A10VSO43,A10VSO45,A10VSO71,A10VSO100,A10VSO140
9,A10VD: A10VD17,A10VD21,A10VD28,A10VD43,A10VD71
10,A11V: A11V50 A11V90 A11V130,A11V145 A11V160,A11V190,A11V250
company model three
GZ YUEXIANG ENGINEERING MACHINERY LTD
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. And by now, our products sell well all over the world and the current exporting countries and regions has more than 120.
With a stable production, strict quality control and strong supply capacity, most of our parts can be shipped in 1-2 days, we sell many parts to the world and get reputations from our clients.
Advantage:
Strong part number database. If you can provide the right model and part number, we can supply the right product.
Professional and experienced salesperson. Our founder has been into this field for more than 6 years, with rich experiences.
Strict and complete company rules. We will try our best to meet customer’s delivery time. Before delivery, we must verify the part
