| MOQ: | 1PCS |
| Price: | Negotiated price |
| Standard Packaging: | Wooden |
| Delivery Period: | 2-5days |
| Payment Method: | T/T, Western Union,Paypal |
| Supply Capacity: | 500 pieces per month |

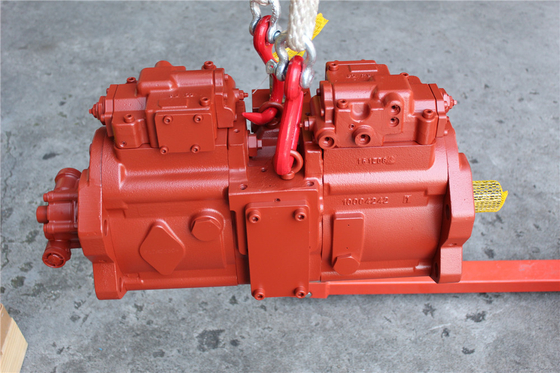

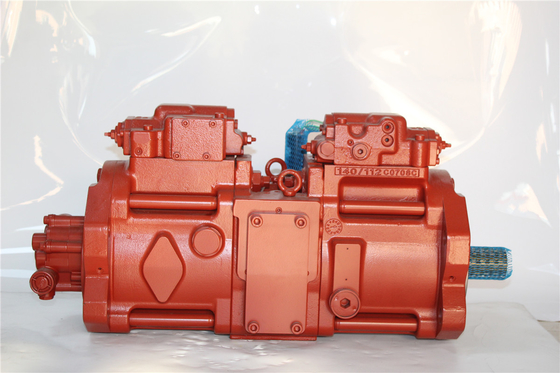

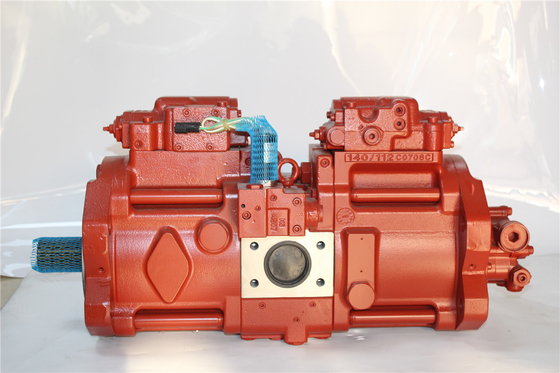

K5V140DTP-9C12-17T Hydraulic Main Pump 31N8-10011 main pump assy 31N8-10070
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 31N8-10011 31N8-10070 |
| Model | R350 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |
| # | Part No | Part Name | Qty. | Price request |
| * | 31N8-10011 | MAIN PUMP | 1 | |
| *-1 | XJBN-00996 | MAIN PUMP UNIT | 1 | |
| 111 | XJBN-00015 | SHAFT-DRIVE(F) | 1 | |
| 113 | XJBN-00153 | SHAFT-DRIVE(R) | 1 | |
| 114 | XJBN-00367 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00017 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00018 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00019 | SPACER-BEARING | 3 | |
| NS141 | XJBN-00007 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-00004 | PISTON | 18 | |
| NS152 | XJBN-00748 | SHOE | 18 | |
| 153 | XJBN-00020 | PLATE-SET | 2 | |
| 156 | XJBN-00021 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00022 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | PLATE-SHOE | 2 | |
| NS212 | XJBN-00012 | PLATE-SWASH | 2 | |
| NS214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00024 | SUPPORT | 2 | |
| 261 | XJBN-00025 | COVER(FR)-SEAL | 1 | |
| 271 | XJBN-00026 | CASING-PUMP | 2 | |
| 312 | XJBN-00027 | BLOCK-VALVE | 1 | |
| NS313 | XJBN-00008 | PLATE(R)-VALVE | 1 | |
| NS314 | XJBN-00010 | PLATE(L)-VALVE | 1 | |
| N325 | XJBN-00380 | CASING-VALVE | 1 | |
| 401 | XJBN-00028 | SCREW | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 407 | XJBN-00381 | SCREW | 3 | |
| 466 | XJBN-00356 | PLUG | 3 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 32 | |
| NS531 | XJBN-00369 | PIN-TILTING | 2 | |
| 532 | XJBN-00033 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER(L) | 2 | |
| 535 | XJBN-00035 | STOPPER(S) | 2 | |
| N541 | XJBN-00036 | SEAT | 4 | |
| N543 | XJBN-00037 | STOPPER 1 | 2 | |
| N544 | XJBN-00039 | STOPPER 2 | 2 | |
| N545 | XJBN-00359 | BALL-STEEL | 4 | |
| NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 710 | XJBN-00041 | O-RING | 1 | |
| 717 | XJBN-00042 | O-RING | 2 | |
| 719 | XJBN-00043 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 8 | |
| 727 | XJBN-00283 | O-RING | 1 | |
| 728 | XJBN-00363 | O-RING | 3 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-00048 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SCREW-SET | 2 | |
| 954 | XJBN-00057 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | XJBN-00001 | REGULATOR | 1 | |
| *-3 | XJBN-00002 | GEAR PUMP | 1 | |
| *-4 | XJBN-00014 | CASING ASSY-EPPR VLV | 1 | |
| 011 | XJBN-00003 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-00006 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-00009 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00011 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| 053 | XJBN-00371 | TILTING PIN ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
The hydraulic pump for excavators is a high-performance component designed to deliver reliable and efficient power for your heavy-duty machinery. Engineered with precision, it ensures smooth operation and optimal hydraulic flow, enhancing the overall productivity of your excavator.
Key Features:
Durable Construction: Built to withstand tough working conditions, ensuring long-lasting performance.
High Efficiency: Delivers consistent hydraulic power, reducing fuel consumption and operational costs.
Easy Maintenance: Designed for quick and hassle-free servicing, minimizing downtime.
Compatibility: Suitable for a wide range of excavator models, offering versatile application.
| Brand | Model |
|
PC40, PC60-5-6-7, PC100, PC120, PC130, PC240, PC270, PC300,PC360,PC400,PC450,PC650,PC1250 PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC400-1-3-5, D20, D30, D31, D50, D60, D75, D80 (D85), D155 |
|
| Hitachi |
EX40, EX60, EX150, EX100M, EX100, EX120, EX150, EX200-1-2-3, EX300-1-3-5, EX400, ZX450,ZX470,ZX870,ZX1200 |
| EC55/60, EC140,EC210, EC240, EC290, EC360, EC460, EC700 | |
| Doosan | DH215, DH220, DH260, DH280, DH300, DH370, DH420, DH450, DH500 |
| Hyundai | R200, R210, R225, R265, R335, R455, R505 |
| Kato | HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, HD1020, HD1220 (HD1250), HD1430, DH1880 |
| Kobelco | SK200,SK210, SK220,SK260, SK300, SK330, SK350, SK450,SK460,SK480,SK800 |
| Sumitomo | SH120, SH200, SH280, SH300, SH350, SH400, SH450, SH460, SH700 |
GZ YUEXIANG ENGINEERING MACHINERY LTD
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
