Excavator DH55 2401-9232 588B2000-00-QA 588B2100-00-A Travel Motor Assy For Mini Excavator
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DH55 | Motor Model | GM07 TM07 |
|---|---|---|---|
| Part Number | 2401-9232 588B2000-00-QA 588B2100-00-A | Application | Excavator Parts |
| Brand Name | Doosan | Name | Travel Motor Assy |
| Warranty | 6 Months | Material | Steel |
| Highlight | 588B2100-00-A travel motor assy,mini excavator travel motor assy,2401-9232 travel motor assy |
||
Product Description

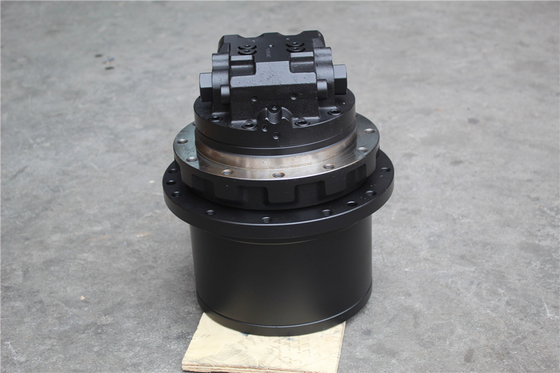

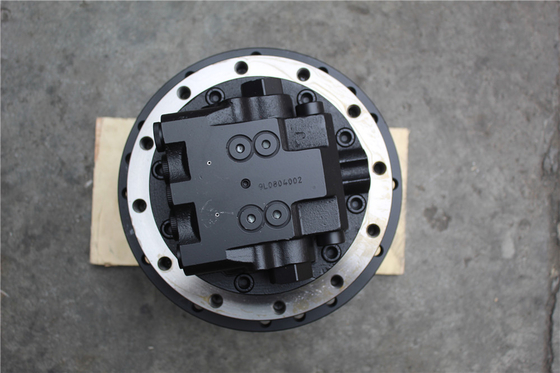

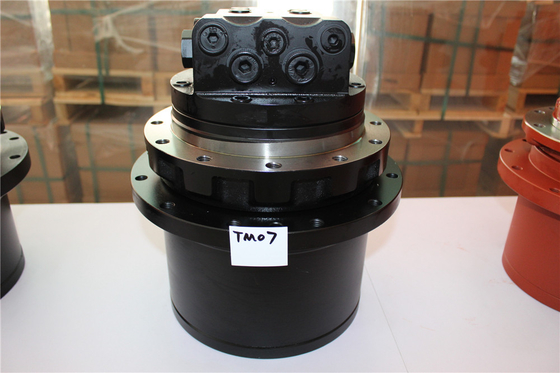

Excavator DH55 2401-9232 588B2000-00-QA 588B2100-00-A travel motor assy for mini excavator
Product Description
| Appliion | Excavator |
| Model | DH55 |
| Part number | 2401-9232 588B2000-00-QA 588B2100-00-A |
| Weight | 87.3KG |
| Brand | doosan |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T , LC , PayPal |
| Delivery | 5 days after the payment received |
| Shipment | by sea , by air , by express or as required |
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | 2401-9232 | TRAVEL DEVICE | 41 kg | 2 | |
| - | 588B2000-00-QA | TRAVEL MOTOR | 12 kg | 1 | |
| - | 588B2100-00-A | REAR FLANGE ASS'Y | 1 | ||
| - | 588B2101-00-A | REAR FLANGE KIT | 1 | ||
| 101 | 588B2001-00 | FLANGE, REAR | 1 | ||
| 123 | 573B2050-00-A | .. BARBOTIN | 2 | ||
| 152 | *NA00878 | PLUG, HEX. SOCKET(GM-1/8) | 10 | ||
| 176 | S0605 | ORIFICE | 1 | ||
| 179 | 571B2079-00 | PLUG | 2 | ||
| 180 | 263B2079-01 | FILTER | 1 | ||
| 118 | 312A2018-00 | SEAT, VALVE | 1 | ||
| 119 | 571B2019-02 | VALVE | 1 | ||
| 120 | 312A2020-00 | SPRING | 1 | ||
| 121 | 512B2021-00 | PLUG | 1 | ||
| 122 | 312A2022-00 | RING | 1 | ||
| 124 | 571B2051-01 | PLUG | 2 | ||
| 126 | 300A2053-00 | PLUG | 2 | ||
| 127 | 300A2054-00 | VALVE | 2 | ||
| 128 | 571B2066-00 | SPRING | 2 | ||
| 130 | 300A2055-00 | SPRING | 2 | ||
| 133 | *NA00735 | O-RING(P7-90) | 1 | ||
| 136 | *NA00734 | O-RING(P22-90) | 2 | ||
| 137 | *NA00733 | O-RING(P12-90) | 2 | ||
| 138 | *NA00732 | O-RING(P11-90) | 1 | ||
| 163 | 200B2073-00 | VALVE | 1 | ||
| 164 | 300B2039-00 | STOPPER | 1 | ||
| 165 | 300B2042-00 | RING | 1 | ||
| 166 | 300B2043-01 | SPRING | 1 | ||
| 168 | *NA00039 | BALL, STEEL(1501-3/16) | 2 | ||
| 102 | 573B2002-00 | SHAFT | 1 | ||
| 103 | 573B2003-00-Q | PLATE, SWASH | 1 kg | 1 | |
| 104 | 510B2004-01 | BLOCK, CYLINDER | 1 kg | 1 | |
| - | 510B2105-00 | PISTON ASSY KIT , TRAVEL MOT | 1 KIT | ||
| - | 510B2030-00 | PISTON SHOE , TRAVEL MOTOR(5 | 9 | ||
| 105 | 510B2005-00 | . PISTON | 1 | ||
| 106 | 510B2006-00 | . SABOT | 1 | ||
| 107 | 310B2007-01 | PLATE, RETAINER | 1 | ||
| 108 | 310B2008-00 | BALL, THRUST | 1 | ||
| 109 | 550A2009-00 | PLATE, TIMING | 1 | ||
| 110 | 310B2010-00 | WASHER | 2 | ||
| 112 | 571B2012-02 | PISTON | 1 kg | 1 | |
| 113 | 550A2013-00 | SPRING | 8 | ||
| 114 | 510B2014-00 | SPRING | 1 | ||
| 115 | 571B2015-00 | PLATE, FRICTION | 2 | ||
| 116 | 550A2016-00 | PLATE, MATING | 2 | ||
| 132 | *NA01094 | SEAL, OIL(15Z-17X35X8) | 1 | ||
| 143 | *NA00175 | BOLT, SOCKET(M8X20X12.9) | 6 | ||
| 144 | 310B2032-01 | PLATE, THRUST | 1 | ||
| 145 | IRTW-32 | RING, SNAP | 1 | ||
| 149 | 510B2029-00 | BEARING, ROLLER | 1 | ||
| 150 | *NA00059 | BEARING, ROLLER | 1 | ||
| 151 | *NA01020 | ROLLER(1506-2X20.8) | 3 | ||
| - | 573B2070-00 | PISTON & SHOE ASS'Y | 1 | ||
| 161 | 573B2071-00 | PISTON | 1 | ||
| 162 | 573B2072-00 | SABOT | 1 | ||
| 167 | 534B2076-00 | PIVOT | 2 | ||
| 169 | 310B2074-00 | PLATE, MATING | 1 | ||
| 171 | 534B2077-00 | PIN, PARALLEL | 4 | ||
| 178 | 571B2078-01 | JOINT TORIQUE | 1 | ||
| 190 | 573B2085-00 | SPRING | 1 | ||
| * | 575B9000-00 | SEAL KIT, TRAVEL DEVICE | 1 kg | 1 | |
| 135 | 571B2035-01 | O-RING | 1 | ||
| 139 | 571B2039-01 | JOINT TORIQUE | 1 | ||
| 141 | *NA00777 | PIN, PARALLEL(4X10) | 2 |
The excavator travel assembly is a crucial component of the excavator, primarily composed of the travel motor, reduction gear, track frame, sprocket, carrier roller, idler, and track. The core principle involves the hydraulic system driving the travel motor, which transmits power to the reduction gear, and then through the sprocket to drive the track, enabling smooth movement of the excavator. The design of the travel assembly fully considers load distribution, power transmission efficiency, and durability, ensuring stable operation under various working conditions.
Product Advantages:
-
High Reliability: Undergoes strict durability tests to ensure stable operation under extreme conditions.
-
Energy Saving and Environmental Protection: Optimized design reduces energy loss, lowers fuel consumption, and meets environmental requirements.
-
Operator Comfort: Shock absorbers and low-noise design enhance operator comfort and reduce fatigue.
-
Intelligent Control: Optional intelligent control systems enable precise control and remote monitoring, improving operational efficiency.
FAQ
Q1: Could you design products at my demand ?
A: We will do our best to manufacture it according to your request .
Q2: How can you promise the quality ?
A: Usually , One year warranty against B / L date . If you meet with quality problem , we promise to be responsible for it.
Q3: If we can not find what we want on your website , what should we do ?
A: You can email us the descriptions and pictures of the products you need , We will check whether we can have it .
Q4: Can we purchase some of your products for quality testing ?
A: Yes , of cource , we are confident for our products . Welcome customers to buy for quality testing .
Q5: What is the lead time ?
A: For swing gearbox , normally 3 days , 3 days and lead time is calculated from the day we receive your deposit .
Exact time is determined by factory schedule .
