Belparts K3V112DT-9C32-12T Excavator Main Pump R210-7 R215-7 R220-5 R225-7 For Hyundai
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Excavator Machinery Equipment | Pump Number | K3V112DT-9C32-12T |
|---|---|---|---|
| Part Name | Hydraulic Main Pump Assy | Model | R210-7 R215-7 R220-5 R225-7 |
| Type | Hydraulic | Weight | 135kg |
| Warranty | 6 Months | Package | Wooden Box |
| Highlight | R220-5 excavator main pump,R215-7 excavator main pump,R210-7 excavator main pump |
||
Product Description

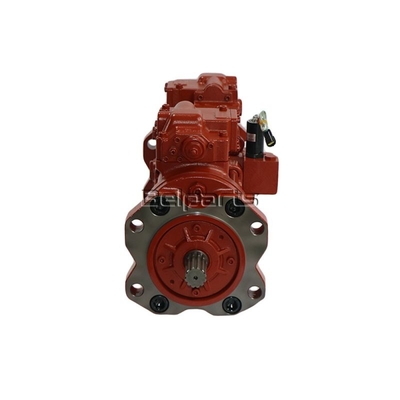

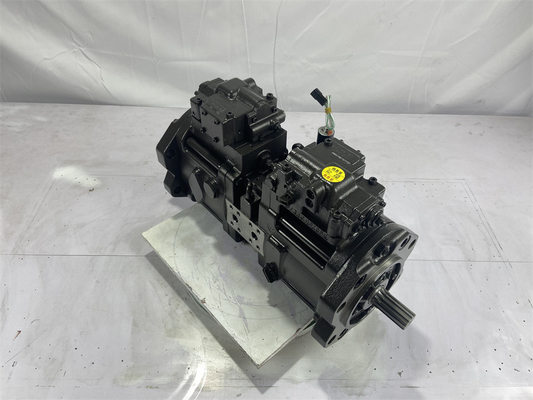

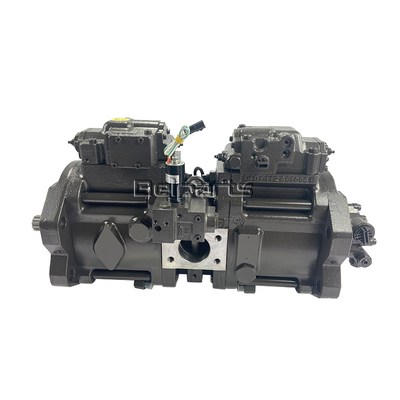

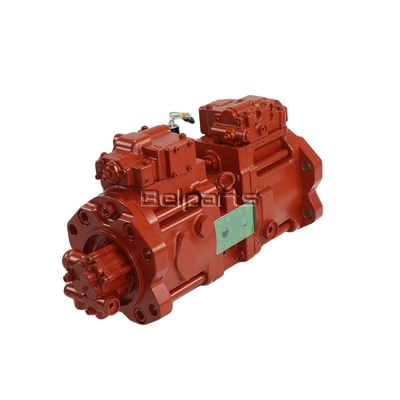

Belparts K3V112DT-9C32-12T excavator main pump R210-7 R215-7 R220-5 R225-7 for hyundai
|
Mainly engaged in excavator hydraulic pumps, final drive, travel motors, swing motors, distribution valves,control valve assy,reduction gearbox,cylinder assy and various hydraulic spare parts.
Excavator hydraulic one-stop service, we can provide Komatsu, Hitachi, Kato, Doosan, Hyundai, Sany, Liugong, Sunward Intelligent, hydraulic pumps of various tonnage models, distribution valves, travel assemblies, travel motors, swing motors and hydraulic spare parts.
If you are interested in any models, please tell us the OEM model code, and we can check the prices for you very soon.
Other models also available:
| Model | Pump number |
| ЕС210 | K3V112DT-9N-14Т |
| R210-7 | K3V112DT-9С-12Т |
| JS220 | K3V112DTP-9С-14Т |
| DX225 | K3V112DTP-9N-12Т |
| S255 | K3V112DTP-HNOV-14T |
| S225LC-V | K3V112DT-HNOV-12T |
| DH258-5-7 | K3V112DTP-HNOV-14T |
| ЕС140 | K3V63DT-9N-14Т |
| R130 | K3V63DT-9С-14Т |
| JS160 | K3V63DTP-9С-14Т |
| DX300 | K5V140DTP-9N-17Т |
| EC460 | K5V200DTH-9N-17Т |
| R450-7 | K5V200DTH-9С-17Т |
| EC180 | K5V80DT-9N |
| ZAX160 | K3V63DTP-9N-14Т |
| JS160 | K3V63DTР-9С-14Т |
| R330-9 | K3V180DT-9N-17Т |
| R290-7 | K3V140DT-9С-17Т |
| R320-7 | K3V180DT-9С-17Т |
| SK200 | K5V80DTP-9R |
| R170W-7 | K5V80DTP-9С-12Т |
| HPV145 H | 9257309 |
| E330 | 497-8499 |
| Pump Model | Machine Model | Part name |
| AP2D28 | R60-7 | Hydraulic pump |
| AP2D28 | DH55 | Hydraulic pump |
| K3VL80 | SY75 | Hydraulic pump |
| K3VL80 | SY75 | Hydraulic pump |
| K3SP36C | JCM908 | Hydraulic pump |
| K3SP36C(Takeuchi175) | Takeuchi175 | Hydraulic pump |
| PSVD2-27E | Sunward70 | Hydraulic pump |
| AP2D36-14T | DH80G | Hydraulic pump |
| AP2D36-15T | SK60 | Hydraulic pump |
| PVC90R | YC85 | Hydraulic pump |
| A10V071-14T | SY60 | Hydraulic pump |
| A10V063-15T | LG60 | Hydraulic pump |
| K3V63DT-HNOV-14T | DH150-7 | Hydraulic pump |
| K3V63DT-9C22-14T | R130-5 | Hydraulic pump |
| K3V63DT-9N09-14T | EC140 | Hydraulic pump |
| K3V63DT-9POH-14T | SY135-8 | Hydraulic pump |
| K3V63DT-9N3D-14T | E312 | Hydraulic pump |
| K3V63DTP-9C22-14T | JCB130 | Hydraulic pump |
| K3V63DTP-9N09-14T(PTO) | Takeuchi135 | Hydraulic pump |
| K3V63DTP-OE02-14T | SK135SR | Hydraulic pump |
| K7V63DTP-9N0E-14T | LG915E | Hydraulic pump |
| K7V63DTP-0E23-14T | SY135-9,SK140-8 | Hydraulic pump |
| K5V80DTP-9N61-12T | R150-9 | Hydraulic pump |
| K5V80DT-9N61-12T | DX150LC | Hydraulic pump |
| K5V80DTP-HNOV-12T | DH150W-7 | Hydraulic pump |
| K5V80DTP-OE02-12T | SK200SR | Hydraulic pump |
| K3V112S-1NCJ-12T | EX120-2-3,PC120-6 | Hydraulic pump |
| K3V112DT-HNOV-12T | DH225-7 | Hydraulic pump |
| K3V112DT-HNOV-14T | JCM921 | Hydraulic pump |
| K3V112DT-9C32-12T | R225-7 | Hydraulic pump |
| K3V112DT-9C32-14T | SH200A1 | Hydraulic pump |
| K3V112DT-9N24-12T | HD820 | Hydraulic pump |
| K3V112DT-9N24-14T | EC210 | Hydraulic pump |
| K3V112DT-9N24-14T | LG225 | Hydraulic pump |
| K3V112DTP-9C32-14T | JCB220 | Hydraulic pump |
| K3V112DTP-9P12-12T | R225-9 | Hydraulic pump |
| K3V112DTP-9N24-12T | R225-9T | Hydraulic pump |
| K3V112DTP-9N24-14T | LG922E | Hydraulic pump |
| K3V112DTP-9N24-12T | DX225LC | Hydraulic pump |
| K3V112DTP-9N24-14T(PTO) | SH200A3 | Hydraulic pump |
| K3V112DTP-9N24-14T(PTO) | DX260LC | Hydraulic pump |
| K3V112DTP-HNOV-14T(PTO) | DH258-7 | Hydraulic pump |
| K3V112DTP-HNOV-14T(PTO) | DH225-9 | Hydraulic pump |
| K3V112DTP-9N24-14T(PTO) | DH220-9E | Hydraulic pump |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N6-10090 | MAIN PUMP ASSY | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00077 | DRIVE SHAFT(F) | 1 | |
| 113 | XJBN-00078 | DRIVE SHAFT(R) | 1 | |
| 114 | XJBN-00351 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00950 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00786 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00081 | SPACER-BEARING | 4 | |
| S141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-01032 | PISTON | 18 | |
| S152 | XJBN-01214 | SHOE | 18 | |
| 153 | XJBN-00945 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| S212 | XJBN-00070 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | SUPPORT | 2 | |
| 261 | XJBN-00087 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-01034 | CASING-PUMP | 2 | |
| 312 | XJBN-00089 | BLOCK-VALVE | 1 | |
| S313 | XJBN-01035 | PLATE-VALVE(R) | 1 | |
| S314 | XJBN-01036 | PLATE-VALVE(L) | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 18 | |
| S531 | XJBN-00358 | PIN-TILTING | 2 | |
| 532 | XJBN-00955 | PISTON-SERVO | 2 | |
| 534 | XJBN-01037 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| S541 | XJBN-00859 | SEAT | 4 | |
| S543 | XJBN-00860 | STOPPER | 2 | |
| S544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | BALL-STEEL | 4 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00918 | O-RING | 2 | |
| 710 | XJBN-00095 | O-RING | 1 | |
| 717 | XJBN-00096 | O-RING | 4 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 4 | |
| 728 | XJBN-00363 | O-RING | 4 | |
| 732 | XJBN-00912 | O-RING | 2 | |
| 774 | XJBN-00962 | SEAL-OIL | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 792 | XJBN-00100 | BACK-UP RING | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 808 | XJBN-00364 | NUT | 2 | |
| 824 | XJBN-00102 | RING-SNAP | 2 | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00106 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
| 011 | XJBN-01212 | PISTON SUB ASSY | 2 | |
| 013 | XJBN-01040 | CYLINDER SUB ASSY-RH | 1 | |
| 014 | XJBN-01041 | CYLINDER SUB ASSY-LH | 1 | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY | 2 | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 | 2 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 | 2 | |
| 530 | XJBN-00366 | TILTING PIN ASSY | 2 |
Mini Excavator Main Pump Product display:
Two types
Gear pump: With a simple structure, low cost, and strong anti pollution ability, but with large flow pulsation and high noise, it is mostly used in small excavators or auxiliary systems.
Piston pump: with complex structure and high cost, but high working pressure, large flow rate, high efficiency, and high control accuracy, it is widely used in medium and large excavators.
Working principle
Oil suction process: The plunger moves backwards, the pump chamber volume increases, forming a vacuum, and the hydraulic oil in the oil tank enters the pump chamber under atmospheric pressure.
Oil pressure process: The plunger moves forward, the pump chamber volume decreases, the hydraulic oil is compressed, the pressure increases, the oil outlet valve is pushed open, and high-pressure oil enters the hydraulic system.
performance parameter
Displacement: The volume of oil discharged by the pump shaft per revolution determines the working speed and force of the excavator.
Pressure: The pressure of the oil at the pump outlet determines the working capacity of the excavator.
Rotational speed: The rotational speed of the pump shaft affects the flow rate and lifespan of the pump.
Efficiency: The ratio of output power to input power of a pump, reflecting energy loss.
FAQ
Q: How to guarantee the same?
A: Before sending, We will take pictures and size, Find problems and replace them free of charge.
Q: When to ship?
A: Once getting payment then arrange.
Q: Import customs fee?
A: It depends on import country. We can make lower valve so that you can pay lower customs fee even no need to pay.
Q: How long for transport?
A: For express/ air, it takes about 5 days. For land/ sea, it takes about half one month/ one month. It depeds on your address.
Q: Product usage?
A; If any problem about usage, Our engineers will solve at first time.
