Hydraulic Main Pump DH220-5 DH220-7 For K3V112DT-HNOV-12T Excavator Spare Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Excavator Machinery Equipment | Pump Number | K3V112DT-HNOV-12T |
|---|---|---|---|
| Model | DH220-5 DH220-7 DH215-7 DH225-7 | Part Name | Excavator Hydraulic Main Pump |
| Weight | 135kg | Package | Wooden Box |
| Type | Hydraulic | Warranty | 6 Months |
| Highlight | DH220-5 Hydraulic main pump,K3V112DT-HNOV-12T Hydraulic main pump,DH220-7 Hydraulic main pump |
||
Product Description

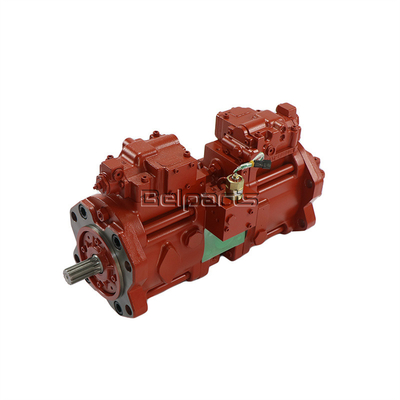

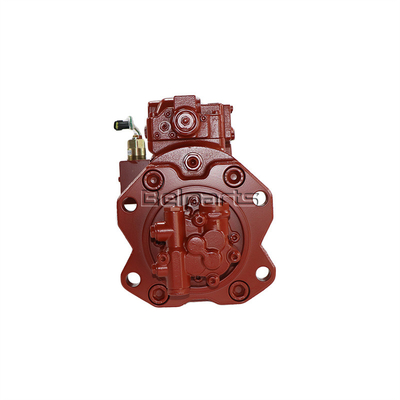

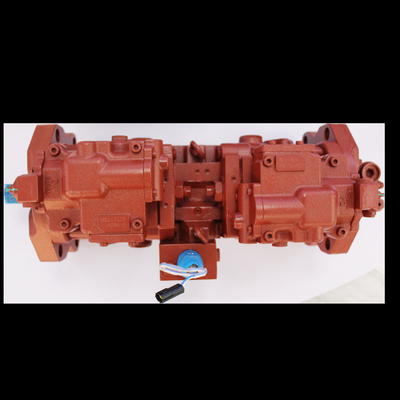

Hydraulic main pump DH220-5 DH220-7 DH215-7 DH225-7 for K3V112DT-HNOV-12T excavator spare parts
The hydraulic pump of an excavator is the core component of the hydraulic system, providing power to the entire system like a heart. It converts the mechanical energy of the engine into hydraulic energy, drives the hydraulic cylinder and hydraulic motor to work, and thus completes various actions of the excavator.
Product Description
| Pump Model | Machine Model |
| AP2D28(without solenoid valve) | R60-7 |
| AP2D28(with solenoid valve) | DH55 |
| K3VL80(without solenoid valve) | SY75 |
| K3VL80(with solenoid valve) | SY75 |
| K3SP36C | JCM908 |
| K3SP36C(Takeuchi175) | Takeuchi175 |
| PSVD2-27E | Sunward70 |
| AP2D36-14T | DH80G |
| AP2D36-15T | Change pump:SK60 |
| PVC90R | YC85 |
| A10V071-14T | SY60 |
| A10V063-15T | LG60 |
| K3V63DT-HNOV-14T | DH150-7 |
| K3V63DT-9C22-14T | R130-5 |
| K3V63DT-9N09-14T | EC140 |
| K3V63DT-9POH-14T | SY135-8(positive control) |
| K3V63DT-9N3D-14T | E312 |
| K3V63DTP-9C22-14T | JCB130 |
| K3V63DTP-9N09-14T(PTO) | Takeuchi135 |
| K3V63DTP-OE02-14T(PTO)+ (with solenoid valve) |
SK135SR |
| K7V63DTP-9N0E-14T | LG915E |
| K7V63DTP-0E23-14T (with solenoid valve) |
SY135-9,SK140-8 |
| K5V80DTP-9N61-12T | R150-9 |
| K5V80DT-9N61-12T | DX150LC |
| K5V80DTP-HNOV-12T(PTO)+(brake pump) | DH150W-7(Wheel) |
| K5V80DTP-OE02-12T(PTO)+ (with solenoid valve) |
SK200SR |
| K3V112S-1NCJ-12T(single pump) | Change pump:EX120-2-3,PC120-6 |
| K3V112DT-HNOV-12T | DH225-7 |
| K3V112DT-HNOV-14T | JCM921 |
| K3V112DT-9C32-12T | R225-7 |
| K3V112DT-9C32-14T | SH200A1 |
| K3V112DT-9N24-12T | HD820 |
| K3V112DT-9N24-14T(positive) | EC210 |
| K3V112DT-9N24-14T(negative) | LG225 |
| K3V112DTP-9C32-14T | JCB220 |
| K3V112DTP-9P12-12T | R225-9(positive control) |
| K3V112DTP-9N24-12T | R225-9T(negative control) |
| K3V112DTP-9N24-14T | LG922E |
| K3V112DTP-9N24-12T | DX225LC |
| K3V112DTP-9N24-14T(PTO) | SH200A3 |
| K3V112DTP-9N24-14T(PTO) | DX260LC |
| K3V112DTP-HNOV-14T(PTO) | DH258-7 |
| K3V112DTP-HNOV-14T(PTO) | DH225-9 |
| K3V112DTP-9N24-14T(PTO) | DH220-9E |
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | 2401-9303 | PUMP (K3V112DTP) | 100 kg | 1 | |
| 79 | 2931100-0056 | REDUCING VALVE | 1 | ||
| 11 | 3853802464 | PISTON ASS'Y | 2 SET | ||
| 151 | 38901-151 | PISTON | 9 | ||
| 152 | 38900-152 | SHOE, TRACK | 9 | ||
| 30 | 2953801990 | SWASH PLATE ASS'Y | 2 | ||
| 212 | 2933800813 | SWASH PLATE/SPHER BUSH | 1 | ||
| 214 | P1R2025125 | BUSH, TILTING | 1 | ||
| 13 | 2953801893 | CYLINDER ASS'Y(R) | 1 | ||
| 141 | 2933800787 | BLOCK, CYLINDER | 1 | ||
| 313 | 3890R-313N | PLATE, VALVE(R.H.) | 1 | ||
| 14 | 2953801894 | CYLINDER ASS'Y(L) | 1 | ||
| 141 | 2933800787 | BLOCK, CYLINDER | 1 | ||
| 314 | 3890L-314N | 2953801893K VALVE PLATE(L) | 1 | ||
| 53 | 2953801989 | TILTING PIN ASSY | 2 | ||
| 531 | 2943800517 | PIN, TILTING | 1 | ||
| 548 | 2953802202 | PIN, FEED BACK | 1 | ||
| 111 | 2933800982 | SHAFT, DRIVING(F) | 3 kg | 1 | |
| 113 | 2933800883 | SHAFT, DRIVING(R) | 1 | ||
| 116 | 2903190-0083 | COUPLING, SPLINE | 1 kg | 1 | |
| 123 | PNUP308K | BEARING, ROLLER | 2 | ||
| 124 | PRNA6906 | BEARING, NEEDLE | 2 | ||
| 127 | 38800-127 | SPACER, BEARING | 4 | ||
| 153 | 2943800463 | PLATE, SET | 2 | ||
| 156 | 2953801765 | BUSH, SPHERICAL | 2 | ||
| 157 | 2953801769 | SPRING, CYLINDER | 18 | ||
| 158 | 2953801764 | SPACER | 2 | ||
| 211 | 68710-00-211 | PLATE, SHOE | 2 | ||
| 251 | 2923800809 | SUPPORT-S | 10 kg | 2 | |
| 261 | 2943800572 | COVER, SEAL(F) | 1 | ||
| 263 | 2943800465 | COVER, SEAL(R) | 1 | ||
| 271 | 2923800807 | CASING, PUMP | 2 | ||
| 312 | 2923370-0044 | BLOCK, VALVE | 1 | ||
| 401 | 2953801767 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | OSBM820 | SCREW, HEX. S.H.C M8X20 | 8 | ||
| 466 | OVP14 | PLUG, VP | 2 | ||
| 468 | OVP34 | 108847 VP-PLUG | 4 | ||
| 490 | PBP116-2403 | PLUG | 27 | ||
| 532 | 2943800462 | PISTON, SERVO | 2 | ||
| 534 | 2953801761 | STOPPER(L) | 2 | ||
| 543 | 2953802678 | STOPPER 1, M/PUMP | 4 kg | 2 | |
| 535 | 2953801762 | STOPPER(S) | 2 | ||
| 541 | 2953802677 | SEAT, M/PUMP | 4 | ||
| 544 | 2933260-0074 | STOPPER 2 | 2 | ||
| 545 | ODW732 | BALL, STEEL | 1 kg | 4 | |
| 702 | OORBG35 | O-RING(G35) | 2 | ||
| 710 | OORBG95 | O-RING | 3 | ||
| 717 | OORBG145 | O-RING | 4 | ||
| 724 | OORBP8 | O-RING(P8) | 16 | ||
| 725 | OORBP11 | O-RING(P7) | 6 | ||
| 728 | OORBP24 | O-RING(P24) | 4 | ||
| 732 | OORBP18 | O-RING(P18) | 2 | ||
| 774 | PTCV45V | SEAL, OIL | 1 | ||
| 789 | OT2BP18 | RING, BACK UP | 2 | ||
| 792 | OT2BG35 | RING, BACK UP | 2 | ||
| 806 | ORNM16 | NUT M16 | 2 | ||
| 808 | ORNM20 | NUT M20 JIS B1181 RN-M20 | 2 | ||
| 824 | OSR40 | RING, SNAP | 2 | ||
| 885 | PJR812 | PIN | 2 | ||
| 886 | OSPV614 | SPRING PIN | 2 kg | 4 | |
| 901 | OEBM10 | BOLT, EYE | 2 | ||
| 953 | PSSSM1630 | SCREW , SET | 2 | ||
| 954 | 2953801768 | SCREW, SET | 2 | ||
| 981 | PNPA-2550A | PLATE, NAME | 1 | ||
| 983 | OSK2548 | RIVET | 2 | ||
| * | 401-00059KT | SEAL KIT, BODY+REG.+PTO | 2 SET |
Two types
Gear pump: With a simple structure, low cost, and strong anti pollution ability, but with large flow pulsation and high noise, it is mostly used in small excavators or auxiliary systems.
Piston pump: with complex structure and high cost, but high working pressure, large flow rate, high efficiency, and high control accuracy, it is widely used in medium and large excavators.
working principle
The working principle of hydraulic pumps is based on changes in volume. Taking plunger pump as an example:
Oil suction process: The plunger moves backwards, the pump chamber volume increases, forming a vacuum, and the hydraulic oil in the oil tank enters the pump chamber under atmospheric pressure.
Oil pressure process: The plunger moves forward, the pump chamber volume decreases, the hydraulic oil is compressed, the pressure increases, the oil outlet valve is pushed open, and high-pressure oil enters the hydraulic system.
performance parameter
Displacement: The volume of oil discharged by the pump shaft per revolution determines the working speed and force of the excavator.
Pressure: The pressure of the oil at the pump outlet determines the working capacity of the excavator.
Rotational speed: The rotational speed of the pump shaft affects the flow rate and lifespan of the pump.
Efficiency: The ratio of output power to input power of a pump, reflecting energy loss.
FAQ
Q: How to guarantee the same?
A: Before sending, We will take pictures and size, Find problems and replace them free of charge.
Q: When to ship?
A: Once getting payment then arrange.
Q: Import customs fee?
A: It depends on import country. We can make lower valve so that you can pay lower customs fee even no need to pay.
Q: How long for transport?
A: For express/ air, it takes about 5 days. For land/ sea, it takes about half one month/ one month. It depeds on your address.
Q: Product usage?
A; If any problem about usage, Our engineers will solve at first time.
