| MOQ: | 1 piece |
| Price: | Negotiable price |
| Standard Packaging: | Wooden case |
| Delivery Period: | 1-5days |
| Payment Method: | T/T, Paypal and Trade Assurance |
| Supply Capacity: | 1000pieces |

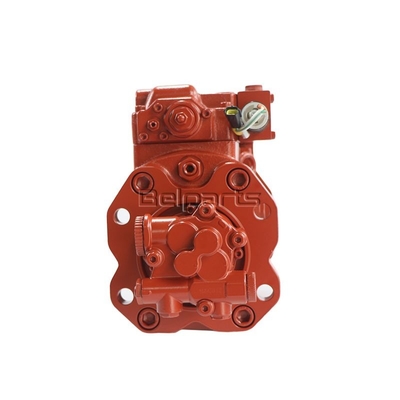

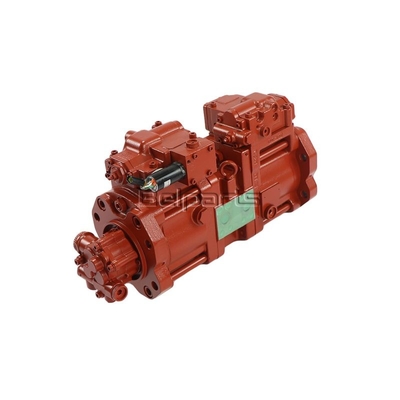

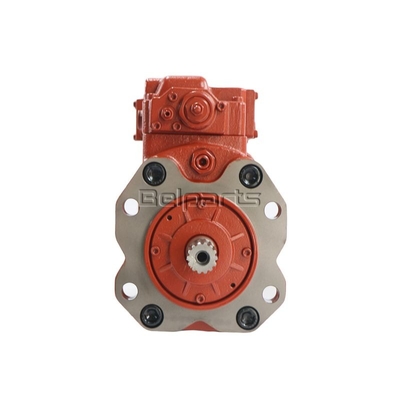

Product description
| Appliion | Crawler excavator |
| Part name | Excavator pump |
| pump number |
K3V63DT-9C22-14T |
| Part number |
R130-5 R140 R150-7 2401-9236B |
| Brand | Belparts |
| Warranty | 6month |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as require |
The hydraulic pump of an excavator is the core component of the hydraulic system, providing power to the entire system like a heart. It converts the mechanical energy of the engine into hydraulic energy, drives the hydraulic cylinder and hydraulic motor to work, and thus completes various actions of the excavator.
Two types
Gear pump: With a simple structure, low cost, and strong anti pollution ability, but with large flow pulsation and high noise, it is mostly used in small excavators or auxiliary systems.
Piston pump: with complex structure and high cost, but high working pressure, large flow rate, high efficiency, and high control accuracy, it is widely used in medium and large excavators.
Working principle
Oil suction process: The plunger moves backwards, the pump chamber volume increases, forming a vacuum, and the hydraulic oil in the oil tank enters the pump chamber under atmospheric pressure.
Oil pressure process: The plunger moves forward, the pump chamber volume decreases, the hydraulic oil is compressed, the pressure increases, the oil outlet valve is pushed open, and high-pressure oil enters the hydraulic system.
performance parameter
Displacement: The volume of oil discharged by the pump shaft per revolution determines the working speed and force of the excavator.
Pressure: The pressure of the oil at the pump outlet determines the working capacity of the excavator.
Rotational speed: The rotational speed of the pump shaft affects the flow rate and lifespan of the pump.
Efficiency: The ratio of output power to input power of a pump, reflecting energy loss.
| Hydraulic pump | K3V63DT-9C22-14T | R130-5,R150-7 |
| Hydraulic pump | K3V63DT-9N09-14T | EC140,XE150,LG150,LG915 ,SC160 |
| Hydraulic pump | K3V63DTP | SK135 |
| Hydraulic pump | K3V63DT-9POH-14T | SY135-8 |
| Hydraulic pump | K3V63DTP-9N09-14T(PTO) | TB1135 |
| Hydraulic pump | K3V63DTP-9C22-14T | JCB130,JCB160,SH120Z3 |
| Hydraulic pump | K5V80DTP-9N61-12T | R150-9 Dedicated |
| Hydraulic pump | K5V80DTP-HNOV-12T(PTOWith brake pump) | DH150W-7 |
| Hydraulic pump | K3V112S-1NCJ-12T Single pump | CHANGE THE EX100/120-2-3 ,PC120-6 |
| Hydraulic pump | K3V112DT-9P12-16T Long axis | CHANGE THE PC200-7 |
| Hydraulic pump | K3V112DTP-9P12-15TShort axis(PTO) | CHANGE THE EX200-5 ZAX200,ZAX230 |
| Hydraulic pump | K3V112DTP-9P12-16TLong axis(PTO) | CHANGE THE ZAX200,EX200-2-3-5 |
| Hydraulic pump | K3V112DT-HNOV-12T | DH220-5-7,DH215-7,DH225-7 |
| Hydraulic pump | K3V112DT-HNOV-14T | JCM921 |
| Hydraulic pump | K3V112DT-9C32-12T | R210-7,R215-7,R220-5,R225-7 |
| Hydraulic pump | K3V112DT-9C32-14T | SH200A1 |
| Hydraulic pump | K3V112DT-9N24-12T | SH280,HD700-5-7,HD800-5-7,HD820,R215-9 |
| Hydraulic pump | K3V112DT-9N24-14 | EC210,EC240,LG225 |
| Hydraulic pump | K3V112DT-9N24-14T | LG225,XE215 |
| Hydraulic pump | K3V112DTP-9C32-14T | JCB220,JCB230 |
| Hydraulic pump | K3V112DTP-9P12-12T | R225-9,R265-9,R275-9 |
| Hydraulic pump | K3V112DTP-9N24-12T | R225-9T,DX225 |
| Hydraulic pump | K3V112DTP-9N24-14T | LG920E,LG922E |
| Hydraulic pump | K3V112DTP-9N24-14T(PTO) | SH200A3Gear pump facing backward |
| Hydraulic pump | K3V112DTP-9N24-14T(PTO) | DX260 Gear pump facing backward |
| Hydraulic pump | K3V112DTP-HNOV-14T(PTO) | DH258-5-7 Gear pump facing backward |
| Hydraulic pump | K3V112DTP-HNOV-14T(PTO) | DH215-9,DH225-9 Gear pump facing forward |
| Hydraulic pump | K3V112DTP-9N24-14T (PTO) | DH220-0E Gear pump facing forward |
1 . How do I contact you?
You can add me on WhatsApp: +86 189 9845 5434,Or send me an email: rayhan@belparts-china.com
2 . How long can I enjoy the warranty period?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How do I pay?
You can complete the payment through PaPal, T/T and other methods.
4 . When will get the items after I place order?
Once we receive your payment, we will arrange delivery within 24 hours; if there is no stock, we will tell you before payment.
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts. If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
