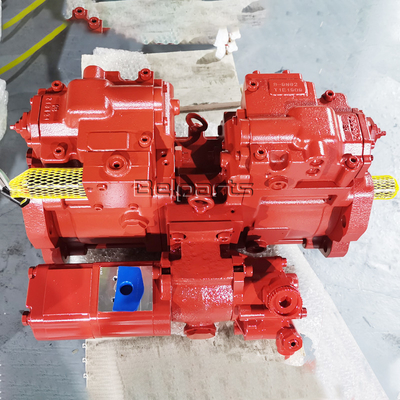

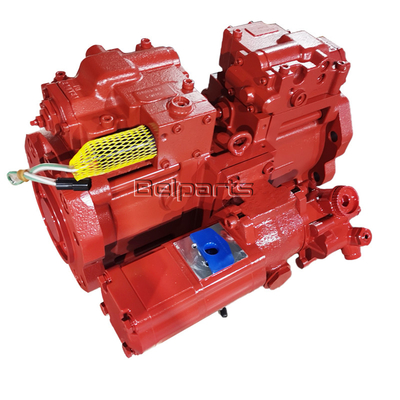

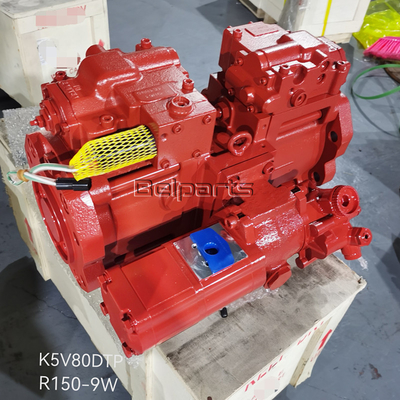

Belparts Excavator Parts Hydraulic Pump 31Q4-15020 For Hyundai R150W-9 R140W-9

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Numer | R150W-9 R140W-9 | Pump Number | 31Q4-15020 |
---|---|---|---|
Part Name | Excavator Hydraulic Pump, Hydraulic Gear Pump, Hydraulic Main Pump, Hydraulic Pump, K3v112 /140 /180 Dt / Dtp | Appliion | Crawler Excavator |
After Warranty Service | Online Support | Power Source | Hydraulic |
Theory | Axial Flow Pump | Application | Excavator |
Highlight | 31Q4-15020 Excavator Hydraulic Pump,Belparts Excavator Hydraulic Pump,hyundai Excavator Hydraulic Pump |
Product Description:
The Excavator Hydraulic Pump is an axial flow pump, which means that it is capable of generating a high flow rate with low pressure. This makes it ideal for use in earthmoving machines, where a high volume of hydraulic fluid is required to power various hydraulic components. With this pump, you can expect optimal performance and efficiency from your excavator’s hydraulic system.
The power source for the Excavator Hydraulic Pump is hydraulic, which means that it is powered by the hydraulic fluid that is already present in your excavator’s hydraulic system. This eliminates the need for a separate power source, making installation and operation of the pump much simpler and more convenient.
In addition to its high performance and efficiency, the Excavator Hydraulic Pump also comes with online support for after warranty service. This ensures that you can always get the help you need in case of any issues or concerns with the product.
Overall, the Excavator Hydraulic Pump is a top-quality hydraulic component that is specifically designed for use in excavators. Its axial flow design, hydraulic power source, and after warranty online support make it a reliable and convenient choice for any excavator owner or operator. So if you’re looking for a high-quality excavator hydraulic pump, look no further than this product.
Features:
- Product Name: Excavator Hydraulic Pump
- Power Source: Hydraulic
- Application: Excavator
- Theory: Axial Flow Pump
- After Warranty Service: Online Support
- Application: Crawler Excavator
- Keywords: Excavator Hydraulic Replacement Part, Excavator Hydraulic Pump, Hydraulic Pump for Earthmoving Machine
Technical Parameters:
Application | Excavator |
Pump number | 31Q4-15020 |
Specification | 80*60*30cm |
Theory | Axial Flow Pump |
Model Number | E307 |
Application | Crawler Excavator |
After Warranty Service | Online Support |
Power Source | Hydraulic |
Applications:
With its compact size of 80*60*30cm, this hydraulic pump is easy to install and can be used in a variety of applications. Its hydraulic power source provides the excavator with the power it needs to get the job done. The pump number 31Q4-15020 ensures that the excavator's hydraulic system will function correctly and efficiently.
The Belparts Excavator Hydraulic Pump is perfect for any Excavator Hydraulic Replacement Part application that requires a reliable and efficient hydraulic power unit. This product is especially useful in situations where the original hydraulic pump has failed or is no longer functioning correctly. Its high-quality construction ensures that it will provide years of reliable service.
This Excavator Hydraulic Replacement Part is suitable for a wide range of scenarios. It can be used in construction sites, mines, quarries, and other locations where heavy machinery is required. Its ability to function in harsh environments makes it an ideal choice for anyone looking for a durable and reliable hydraulic pump.
List of spare parts
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
* | 31Q4-10010 | MAIN PUMP *-1, *-2, *-3 |
1 | |
*-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
111 | XJBN-00802 | SHAFT(F)-DRIVE | 1 | |
113 | XJBN-00803 | SHAFT(R)-DRIVE | 1 | |
116 | XJBN-00804 | GEAR-1ST | 1 | |
123 | XJBN-00429 | BEARING-ROLLER | 2 | |
124 | XJBN-00805 | BEARING-NEEDLE | 2 | |
127 | XJBN-00806 | SPACER-BEARING | 4 | |
N141 | XJBN-00807 | BLOCK-CYLINDER | 2 | |
N151 | XJBN-00425 | PISTON | 18 | |
N152 | XJBN-01278 | SHOE | 18 | |
153 | XJBN-00808 | PLATE-SET | 2 | |
156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
211 | XJBN-00420 | PLATE-SHOE | 2 | |
N212 | XJBN-00419 | PLATE-SWASH | 2 | |
N214 | XJBN-00418 | BUSHING-TILTING | 2 | |
251 | XJBN-00417 | SUPPORT | 2 | |
261 | XJBN-00809 | COVER-FR | 1 | |
271 | XJBN-01046 | CASING-PUMP | 2 | |
312 | XJBN-00812 | BLOCK-VALVE | 1 | |
N313 | XJBN-01045 | PLATE(R)-VALVE | 1 | |
N314 | XJBN-01044 | PLATE(L)-VALVE | 1 | |
326 | XJBN-00937 | COVER | 1 | |
401 | XJBN-00411 | SCREW | 8 | |
406 | XJBN-00410 | SCREW | 8 | |
414 | XJBN-01371 | SCREW | 4 | |
466 | XJBN-00356 | PLUG | 2 | |
467 | XJBN-00409 | PLUG | 4 | |
468 | XJBN-00237 | PLUG | 2 | |
490 | XJBN-00032 | PLUG | 15 | |
N531 | XJBN-00815 | PIN-TILTING | 2 | |
532 | XJBN-00407 | PISTON-SERVO | 2 | |
534 | XJBN-00816 | STOPPER(L) | 2 | |
535 | XJBN-00405 | STOPPER(S) | 2 | |
N548 | XJBN-00360 | PIN-FEED BACK | 2 | |
702 | XJBN-00888 | O-RING | 2 | |
710 | XJBN-00387 | O-RING | 1 | |
711 | XJBN-00878 | O-RING | 1 | |
717 | XJBN-00401 | O-RING | 2 | |
719 | XJBN-00400 | O-RING | 2 | |
724 | XJBN-00044 | O-RING | 18 | |
725 | XJBN-00045 | O-RING | 2 | |
727 | XJBN-01357 | O-RING | 2 | |
728 | XJBN-00097 | O-RING | 4 | |
732 | XJBN-00820 | O-RING | 2 | |
774 | XJBN-01029 | SEAL-OIL | 1 | |
789 | XJBN-00398 | RING-BACK UP | 2 | |
792 | XJBN-00397 | RING-BACK UP | 2 | |
808 | XJBN-00396 | NUT-HEX | 4 | |
824 | XJBN-00395 | RING-SNAP | 2 | |
885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
886 | XJBN-00365 | PIN-SPRING | 4 | |
901 | XJBN-00393 | BOLT-EYE | 2 | |
953 | XJBN-00105 | SCREW-SET | 2 | |
954 | XJBN-00392 | SCREW-SET | 2 | |
981 | XJBN-00156 | NAME PLATE | 1 | |
983 | XJBN-00341 | PIN | 2 | |
079 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
*-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
*-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
011 | XJBN-01572 | PISTON SUB ASSY SEE ILLUST |
2 | |
013 | XJBN-01048 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
014 | XJBN-01047 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
030 | XJBN-00800 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
530 | XJBN-00801 | TILTING PIN SUB ASSY SEE ILLUST |
2 | |
N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Support and Services:
The Excavator Hydraulic Pump is a critical component of any excavator machine. It is responsible for providing the necessary hydraulic power to drive the digging arm and bucket. To ensure proper functioning of the excavator, it is important to have a reliable and efficient hydraulic pump that can withstand heavy loads and constant use.
Our Excavator Hydraulic Pump is designed to meet all these requirements and more. It is made from high-quality materials and undergoes rigorous testing to ensure its durability and reliability. We offer a wide range of hydraulic pumps that are compatible with various excavator models and brands.
In addition to our high-quality products, we also provide excellent technical support and services to our customers. Our team of experts is always ready to assist with any questions or issues you may have regarding the installation, maintenance, or repair of your hydraulic pump. We offer comprehensive training programs to help you get the most out of your excavator and ensure its longevity. We also provide on-site support and quick turnaround times for repairs and replacements.
Choose our Excavator Hydraulic Pump for reliable and efficient performance, backed by excellent technical support and services.
