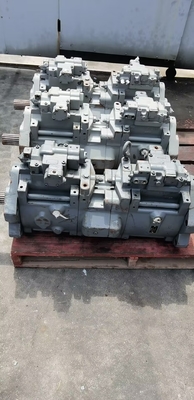

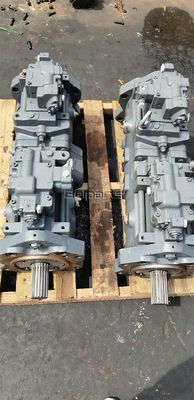

Brand used excavator EX3600-5 hitachi hydraulic main pump K3V280 piston pump 4624104
Machine model:Ex3000-6
Part number:4624104
Pump number:K4V280
Brand:Hitachi
Quality:Brand used
If you only need the hydraulic pump parts
1. Please send us the nameplate of the pump
2. Please send us the size of the piston shoe
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 4624104 | PUMP; PISTON | 1 | ||
| 011 | 0718001 | . PISTON ASS'Y | 2 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 013 | 0703001 | . CYL. ASS'Y | 1 | |
| 013A | .. BLOCK; CYL. | 1 | ||
| 013B | .. PLATE; VALVE | 1 | ||
| 014 | 0703002 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VALVE | 1 | ||
| 030 | 0716801 | . PLATE ASS'Y | 2 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 111 | 0703006 | . SHAFT | 1 | |
| 113 | 0770001 | . SHAFT | 1 | |
| 114 | 0703008 | . COUPLING | 1 | |
| 123 | 0682302 | . BRG.; ROL. | 2 | |
| 124 | 0682303 | . BRG.; NEEDLE | 2 | |
| 127 | 0339809 | . SPACER | 4 | |
| 130 | 0703010 | . BOOSTER | 1 | |
| 153 | 0718002 | . RETAINER | 2 | |
| 156 | 0682306 | . BUSHING | 2 | |
| 157 | 0682307 | . SPRING | 18 | |
| 158 | 0682308 | . SPACER | 2 | |
| 211 | 0682309 | . PLATE | 2 | |
| 251 | 0737001 | . SUPPORT | 2 | |
| 253 | 0738101 | . WASHER | 8 | |
| 261 | 0682311 | . COVER | 1 | |
| 263 | 0770002 | . COVER | 1 | |
| 264 | 0770003 | . COVER | 1 | |
| 271 | 0682313 | . CASING | 2 | |
| 311 | 0703014 | . COVER; VALVE | 1 | |
| 312 | 0703015 | . COVER; VALVE | 1 | |
| 401 | 0682316 | . BOLT; SOCKET | 4 | |
| 402 | 0703016 | . BOLT; SOCKET | 4 | |
| 406 | M340820 | . BOLT; SOCKET | 4 | |
| 407 | 0135602 | . BOLT; SOCKET | 4 | |
| 409 | 0121812 | . BOLT; SOCKET | 2 | |
| 466 | 0236014 | . PLUG | 2 | |
| 468 | 0175233 | . PLUG | 4 | |
| 490 | 0263019 | . PLUG | 31 | |
| 491 | 0451027 | . SCREW | 4 | |
| 492 | 0451028 | . PLUG | 5 | |
| 530 | 0703017 | . PIN ASS'Y | 2 | |
| 530A | .. PIN | 1 | ||
| 530B | .. PIN | 1 | ||
| 532 | 0682318 | . PISTON; SERVO | 2 | |
| 534 | 0682319 | . STOPPER | 2 | |
| 535 | 0682320 | . STOPPER | 2 | |
| 702 | 4292386 | . O-RING | 2 | |
| 706 | 0703018 | . O-RING | 1 | |
| 708 | 0451041 | . O-RING | 1 | |
| 710 | 0682321 | . O-RING | 2 | |
| 717 | 0682322 | . O-RING | 4 | |
| 718 | 0703019 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 19 | |
| 725 | 4297379 | . O-RING | 2 | |
| 728 | 0443408 | . O-RING | 4 | |
| 732 | 0682324 | . O-RING | 2 | |
| 774 | 0682325 | . SEAL; OIL | 1 | |
| 789 | 0682326 | . RING; BACK-UP | 2 | |
| 792 | 0682327 | . RING; BACK-UP | 2 | |
| 808 | 0451038 | . NUT | 4 | |
| 824 | 960323 | . RING; RETAINING | 2 | |
| 885 | 0313404 | . PIN | 2 | |
| 886 | 4144353 | . PIN; SPRING | 5 | |
| 901 | 0177612 | . BOLT; EYE | 2 | |
| 953 | 0339847 | . SCREW | 2 | |
| 954 | 0682328 | . SCREW; SET | 2 | |
| 981 | 0625508 | . NAME-PLATE | 1 | |
| 983 | 0625509 | . PIN | 2 | |
| 990 | 4624199 | . REGULATOR | 2 | |
| .. REGULATOR (1/3) | ||||
| .. REGULATOR (2/3) | ||||
| .. REGULATOR (3/3) | ||||
| 1000 | 4620702 | KIT; SEAL | 1 |
