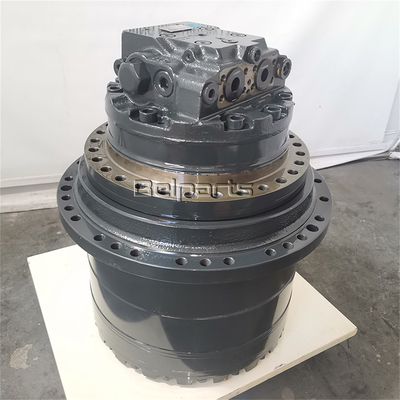

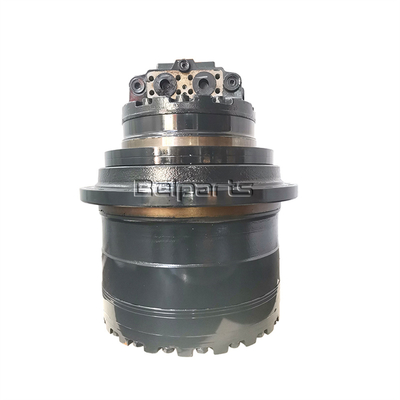

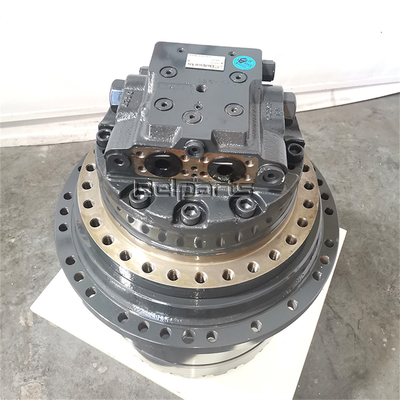

Belparts Excavator R250LC-7 R250LC-9 R290LC-7 final drive assembly 31N7-40010 31Q7-40030 31Q8-4 travel motor for hyundai
Production Description
|
Brand
|
Belparts
|
|
Spare Parts Name
|
Excavator Travel Motor Assy
|
|
Model
|
R250LC-7 R250LC-9 R290LC-7
|
|
Quality
|
Brand New
|
| Part no. | 31N7-40010 31Q7-40030 31Q8-40030 |
|
Warranty
|
12 Months
|
|
MOQ
|
1pcs
|
|
Delivery Terms
|
After payment 3-7days
|
|
Payment Terms
|
L/C, T/T, Paypal, Alibaba Trade Assurance
|
| # | Part No | Part Name | Qty. | Price request |
| * | 31N7-40010 | TRAVEL MOTOR | 1 | |
| *-1 | XKAH-00482 | TRAVEL MOTOR UNIT | 1 | |
| *-8 | XKAH-00096 | RELIEF VALVE ASSY 716680 |
2 | |
| *-81 | XKAH-00097 | RELIEF VALVE KIT 716691 |
2 | |
| N201 | XKAH-00098 | VALVE 131178 |
2 | |
| N202 | XKAH-00099 | SLEEVE 131179 |
2 | |
| N203 | XKAH-00100 | RETAINER-SPRING 131180 |
2 | |
| N204 | XKAH-00101 | PLUG 131181 |
2 | |
| N205 | XKAH-00102 | SHIM 131182 |
2 | |
| N206 | XKAH-00103 | SPRING 131183 |
2 | |
| KN208 | XKAH-00104 | O-RING 201706 |
2 | |
| K209 | XKAH-00105 | O-RING 206597 |
2 | |
| K210 | XKAH-00035 | O-RING 201710 |
2 | |
| KN211 | XKAH-00106 | RING-BACK UP 228576 |
4 | |
| KN217 | XKAH-00107 | RING-BACK UP 228577 |
4 | |
| KN219 | XKAH-00108 | O-RING 201729 |
1 | |
| KN220 | XKAH-00109 | SEAL-PISTON 228578 |
1 | |
| *-5 | XKAH-00036 | REAR FLANGE ASSY 719115 |
1 | |
| *-51 | XKAH-00037 | REAR FLANGE KIT 719116 |
1 | |
| N301 | XKAH-00483 | FLANGE-REAR 132622B |
1 | |
| N323 | XKAH-00329 | SPOOL | 1 | |
| 324 | XKAH-00328 | STOPPER | 2 | |
| 325 | XKAH-00042 | STOPPER 131167 |
2 | |
| 326 | XKAH-00043 | PLUG 104126B |
2 | |
| 327 | XKAH-00044 | VALVE-CHECK 105637 |
2 | |
| 328 | XKAH-00045 | SPRING 211668B |
2 | |
| 330 | XKAH-00046 | SPRING 123743 |
2 | |
| K336 | XKAH-00047 | O-RING 201733 |
2 | |
| K337 | XKAH-00048 | O-RING 201719 |
2 | |
| 341 | XKAH-00065 | PIN-PARALLEL 131177 |
1 | |
| 343 | XKAH-00066 | BOLT-SOCKET 200709 |
12 | |
| 346 | XKAH-00327 | PLUG-PT | 2 | |
| 352 | XKAH-00050 | PLUG-RO 131170 |
2 | |
| 354 | XKAH-00208 | PLUG-PT 224308 |
8 | |
| K355 | XKAH-00035 | O-RING 201710 |
2 | |
| 357 | XKAH-00032 | PLUG-RO 131145 |
2 | |
| K358 | XKAH-00052 | O-RING 201689 |
2 | |
| K359 | XKAH-00326 | O-RING 201700 |
2 | |
| 363 | XKAH-00054 | SPOOL-2 SPEED 131173 |
1 | |
| 366 | XKAH-00055 | SPRING 136254 |
1 | |
| 368 | XKAH-00056 | BALL-STEEL 200162 |
2 | |
| 379 | XKAH-00057 | RETURN-FILTER* 228574 |
1 | |
| 380 | XKAH-00058 | PLUG 131186 |
2 | |
| N381 | XKAH-00040 | PISTON 131165 |
1 | |
| 382 | XKAH-00059 | PLUG 131187 |
2 | |
| K383 | XKAH-00060 | O-RING 201749 |
2 | |
| K384 | XKAH-00194 | O-RING 201765 |
2 | |
| 385 | XKAH-00061 | BALL-STEEL 228582 |
2 | |
| 397 | XKAH-00062 | ORIFICE 116482A |
1 | |
| 398 | XKAH-00063 | PLUG-PT 108064A |
4 | |
| 399 | 142692 | PLATE-NAME | 1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR | |
| K | XKAH-00111 | SEAL KIT 674B9000-00,ILL |
1 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92/90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92/90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92/90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92/90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92/90 | 195 | 5.9 | |||||||
Advantage:
A. Long history, professional team.(More than 10 years experience in the line of the market.We are professional enough to provide you with high-quality products, solutions and services)
B. Excavator spare parts in full-scale are available in stock
C. Small order allowed
D. Timely delivery. ( Quick response within 24 hours)
E. We support the custom-made demand for package
F. Positive customer feedback from abroad market
G. Excellent After-sales service
