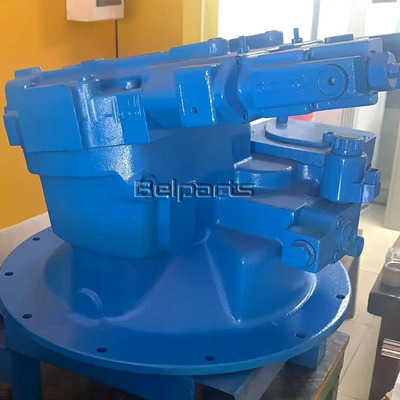

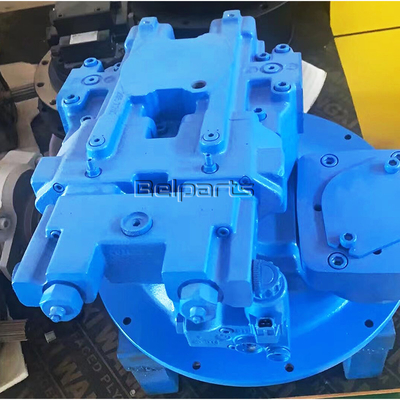

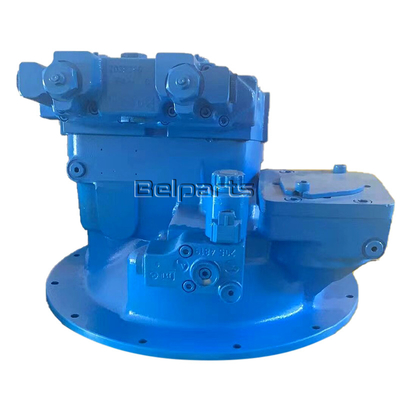

Belparts excavator main pump SOLAR 175LC SOLAR 170LC hydraulic pump 401-00369 02063899 401-00033 2401-9223 for doosan
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR 175LC SOLAR 170LC
Packing Size:84*38*49
Part number: 401-00369 02063899 401-00033 2401-9223
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | SOLAR 175LC SOLAR 170LC |
| Packing Size | 84*38*49 |
| Part number | 401-00369 02063899 401-00033 2401-9223 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| - | 401-00369 | PUMP, Main for S175LC-V | 98 kg | 1 | |
| 1 | *NA00911 | PUMP | 1 | ||
| 2 | 02075239 | CONTROL, PUMP | 1 | ||
| 5 | 02021791 | COVER | 1 | ||
| 6 | 02057118 | PORT PLATE WITH VALVES | 2 kg | 1 | |
| 7 | 02075209 | HYDRAULIC LINE COMPLETE | 1 | ||
| 7A | 09156348 | O-RING | 2 |
Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) | h | D | L1 | L2 | L | Weight (kg) | ||||
Rated | Max | Optimum speed | Speed range | Rectabgle | Oval | Inlet | Outlet | |||||||
| CBQL-E563/F550-*F** | 63/50 | 16/20 | 20/25 | 1500~2500 | 800~3000 | 92/92 | 23 | 15 | 30/30 | 25/25 | 77.5 | 234 | 311 | 16.2 |
| CBQL-E550/F540-*F** | 50/40 | 20/20 | 25/25 | 25/20 | 73 | 221.5 | 295 | 15.2 | ||||||
| CBQL-E540/F532-*F** | 40/32 | 20/20 | 69.5 | 212 | 283 | 14.9 | ||||||||
| CBQL-E532/F525-*F** | 32/25 | 30/25 | 67 | 204 | 273 | 14.5 | ||||||||
| CBQL-E525/F520-*F** | 25/20 | 25/25 | 64.5 | 197.5 | 264 | 13.8 | ||||||||
| CBQL-E520/F520-*F** | 20/20 | 62.5 | 193.5 | 260 | 13.5 | |||||||||
