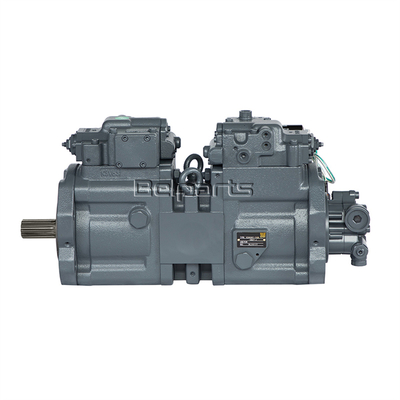

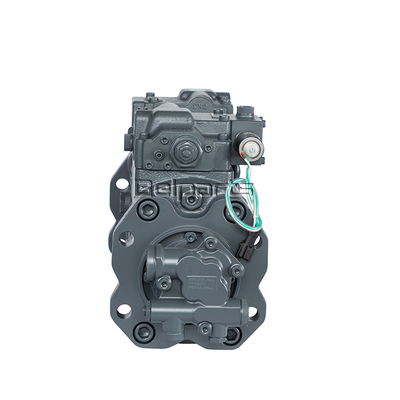

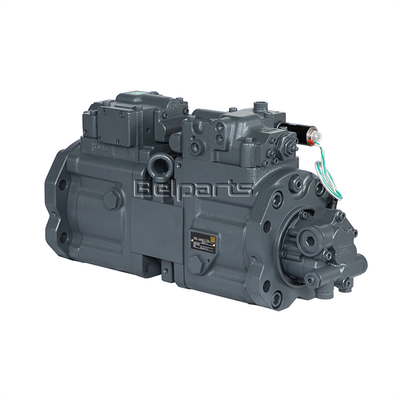

Belparts excavator main pump SOLAR155LC SOLAR140LC SOLAR150LC SOLAR130LC DH150LC-7 hydraulic pump 2401-9236B for doosan
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR155LC SOLAR140LC SOLAR150LC SOLAR130LC DH150LC-7
Packing Size:84*38*49
Part number: 2401-9236B
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | SOLAR155LC SOLAR140LC SOLAR150LC SOLAR130LC DH150LC-7 |
| Packing Size | 84*38*49 |
| Part number | 2401-9236B |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| * | 2401-9236AKT | SEAL KIT, PUMP | 1 | ||
| - | 2401-9236B | MAIN PUMP | 85 kg | 1 | |
| 111 | 113446A | SHAFT, DRIVE(FRONT) | 1 | ||
| 113 | 120413 | SHAFT, DRIVE(REAR) | 1 kg | 1 | |
| 114 | 113448 | COUPLING, SPLINE | 1 | ||
| 123 | 212031 | BEARING, ROLLER | 2 | ||
| 124 | 212032 | BEARING, NEEDLE | 2 | ||
| 127 | 113449A | SPACER, BEARING | 4 | ||
| 141 | 704212-PH | CYLINDER BLOCK ASS'Y(R.H) | 1 | ||
| 142 | 704237-PH | CYLINDER BLOCK ASS'Y(L.H) | 1 | ||
| 151 | 704203 | PISTON & SHOE ASS'Y | 2 | ||
| 153 | 113452 | PLATE, PUSH | 2 | ||
| 156 | 113453 | BUSH, SPHERICAL | 2 | ||
| 157 | 113454 | SPRING, CYLINDER | 18 | ||
| 158 | 113455 | SPACER | 2 | ||
| 211 | 113424A | PLATE, SHOE | 2 | ||
| 212 | 718420 | SWASH PLATE ASS'Y | 2 | ||
| 250 | 718423 | SUPPORT & SWASH | 2 | ||
| 251 | 113425A | SUPPORT, SWASH | 2 | ||
| 261 | 113426 | COVER, SEAL(F) | 1 | ||
| 271 | 113428B | CASING, PUMP | 2 | ||
| 310 | 704208 | VALVE BLOCK ASS'Y | 1 | ||
| 312 | 113429A | BLOCK, VALVE | 1 | ||
| 314 | 120412 | PLATE, VALVE(L.H.) | 1 | ||
| 401 | 113386 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 205517 | BOLT, HEX SOCKET HEAD | 4 | ||
| 467 | 108843 | PLUG, VP | 3 | ||
| 469 | 108848 | PLUG(PF3/8) | 2 | ||
| 490 | 211665 | EXPANDER | 15 | ||
| 530 | 718417 | TILTING PIN ASS'Y | 2 | ||
| 531 | 113379 | PIN, TILTING | 2 | ||
| 532 | 113381 | PISTON, SERVO | 2 | ||
| 534 | 113382 | STOPPER(L) | 2 | ||
| 535 | 113383 | STOPPER(R) | 2 | ||
| 548 | 113380 | PIN, FEEDBACK | 2 | ||
| 702 | 201658 | O-RING (1BG-30) | 2 | ||
| 710 | 201675 | O-RING 1BG85 | 2 | ||
| 717 | 201634 | O-RING 1BG-120 | 2 | ||
| 719 | 201633 | O-RING 1BG-115 | 2 | ||
| 724 | 201765 | O-RING 1BP8 | 18 | ||
| 726 | 201700 | O-RING 1BP14 | 2 | ||
| 728 | 201710 | O-RING 1BP18 | 3 | ||
| 732 | 201706 | O-RING 1BP16 | 2 | ||
| 774 | 212029 | SEAL, OIL | 1 | ||
| 789 | 208454 | RING, BACK-UP | 5 kg | 2 | |
| 792 | 200034 | RING, BACK-UP | 2 | ||
| 808 | 201557 | NUT, HEX (ORNM16 | 4 | ||
| 824 | 202604 | RING, SNAP | 2 | ||
| 885 | 216516 | PIN, 6X12 | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 4 | |
| 901 | 212033 | BOLT, EYE | 2 | ||
| 953 | 211227 | SET, SCREW | 2 | ||
| 954 | 113388 | SCREW, ADJUSTING | 2 |
