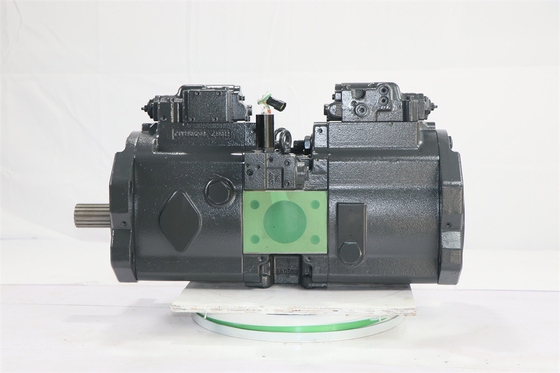

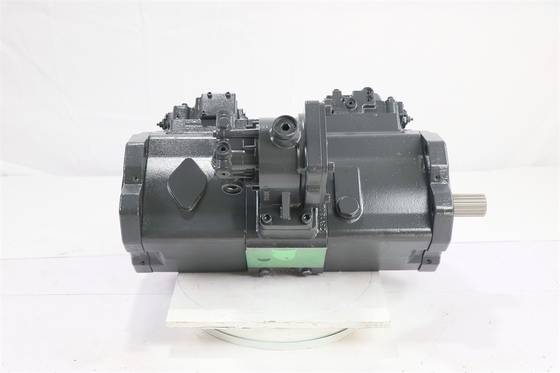

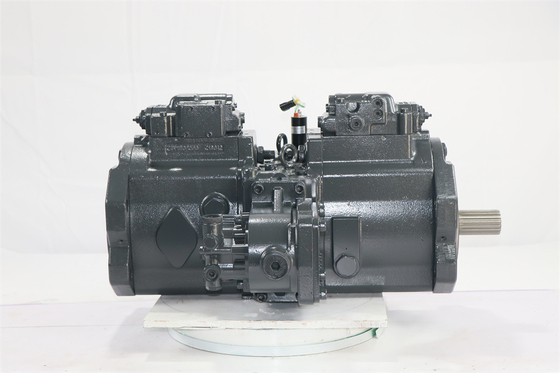

Belparts excavator main pump SOLAR 400LC SOLAR 450LC hydraulic pump 2401-9165 401-00040A 401-00040B 2401-9200 for doosan
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR 400LC SOLAR 450LC
Packing Size:84*38*49
Part number: 2401-9165 401-00040A 401-00040B 2401-9200
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | SOLAR 400LC SOLAR 450LC |
| Packing Size | 84*38*49 |
| Part number | 2401-9165 401-00040A 401-00040B 2401-9200 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| 732 | 220017 | O-RING | 2 | ||
| 774 | 212232 | SEAL, OIL | 1 | ||
| 789 | 228758 | 200091 B/UP RING | 2 | ||
| 792 | 228757 | RING, BACK-UP | 2 | ||
| 808 | 102048 | NUT=ORMN20 | 4 | ||
| 824 | 212282 | RING, SNAP | 2 | ||
| 885 | 113715 | PIN=PJR1014 | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 5 | |
| 901 | 212286 | BOLT, EYE | 2 | ||
| 953 | 119078 | SCREW SET. | 2 | ||
| 954 | 135303 | SCREW, ADJUSTING | 2 | ||
| * | 2401-9165KT | O-RING KIT, MAIN PUMP | 1 SET | ||
| - | 401-00040A | MAIN PUMP | 1 | ||
| - | 401-00040B | MAIN PUMP | 127 kg | 1 | |
| 4 | 719213 | PUMP ASSY, GEAR | 2 kg | 1 | |
| 11 | 715583A | PISTON ASS'Y | 3 kg | 2 SET | |
| 127 | 113683A | SPACER, BEARING | 3 | ||
| 130 | 135196 | BOOSTER | 1 kg | 1 | |
| 153 | 115787 | PLATE, PUSH | 2 | ||
| 151 | 129871B | . PISTON | 9 | ||
| 152 | 129995 | . SHOE | 9 | ||
| 13 | 715584-PH | CYL BLOCK ASS'Y(R) | 9 kg | 1 | |
| 12 | 129873A | BLOCK, CYL'D | 8 kg | 1 | |
| 313 | 129869 | PLATE, VALVE(R) | 1 kg | 1 | |
| 14 | 715585-PH | CYL BLOCK ASS'Y(L) | 9 kg | 1 | |
| 12 | 129873A | BLOCK, CYL'D | 8 kg | 1 | |
| 314 | 129870 | PLATE, VALVE(L) | 1 | ||
| 30 | 717010 | SWASH PLATE ASS'Y | 2 | ||
| 212 | 113690-1 | PLATE, SWASH | 4 kg | 2 | |
| 214 | 218551 | BUSH, TILTING | 2 | ||
| 111 | 135198 | SHAFT, DRAVING(R) | 3 kg | 1 | |
| 113 | 135197 | SHAFT, DRAVING(F) | 5 kg | 1 | |
| 114 | 135199 | COUPLING, SPLINE | 1 | ||
| 123 | 225681 | BEARING, ROLLER | 2 | ||
| 124 | 232116 | BEARING, NEEDLE | 2 | ||
| 156 | 121438 | BUSH, SPHERICAL | 2 | ||
| 157 | 134537 | SPRING, CYLINDER | 18 | ||
| 158 | 130681A | SPACER (L) | 2 | ||
| 211 | 113691 | PLATE, SHOE | 1 kg | 2 | |
| 251 | 113689A | SUPPORT | 14 kg | 2 | |
| 261 | 113681 | COVER, SEAL(F) | 1 kg | 1 | |
| 271 | 113696B | CASING, PUMP | 2 | ||
| 311 | 135353 | COVER, VALVE(F) | 1 | ||
| 312 | 135354 | COVER, VALVE(R) | 21 kg | 1 | |
| 401 | 113714 | BOLT, SOCKET M20X2.5X235 | 1 kg | 4 | |
| 402 | 135275 | BOLT, HEX SOCKET | 1 kg | 4 | |
| 406 | 200846 | BOLT, HEX SOCKET HEAD | 4 | ||
| 466 | 108844 | PLUG, VP | 4 | ||
| 468 | 108847 | PLUG PF3/4 | 4 | ||
| 490 | 224308 | PLUG | 30 | ||
| 492 | 108064 | PLUG PT1/8B(SINKAGE) | 1 | ||
| 530 | 717007 | TILTING PIN ASS'Y | 2 | ||
| 531 | 115793 | PIN, TITLING | 1 | ||
| 548 | 113380 | PIN, FEEDBACK | 1 | ||
| 532 | 113687 | PISTON, SERVO | 2 | ||
| 534 | 113684 | STOPPER(L) | 2 | ||
| 535 | 113688 | STOPPER(S) | 2 | ||
| 702 | 220020 | O-RING(1BG40) | 2 | ||
| 706 | 201670 | O-RING(1BG-60) | 1 | ||
| 710 | 201631 | O-RING 1BG105 | 1 | ||
| 717 | 212281 | O-RING | 2 | ||
| 719 | 212284 | O-RING | 3 | ||
| 724 | 201765 | O-RING 1BP8 | 15 | ||
| 725 | 201689 | O-RING 1BP11 | 10 | ||
| 728 | 201721 | O-RING 1BP24 | 4 |
