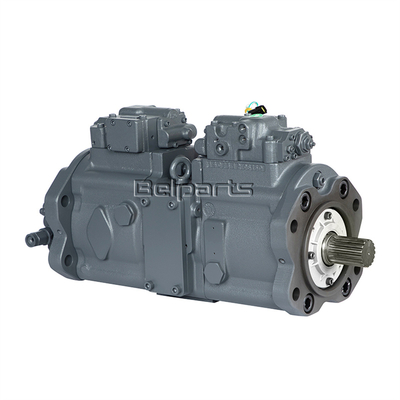

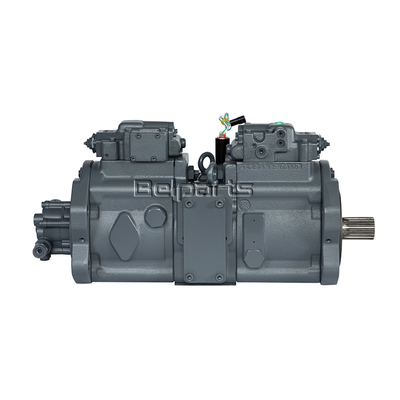

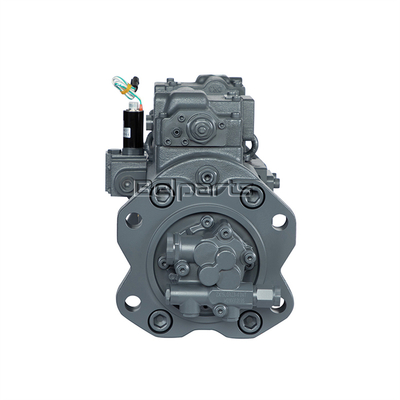

Product Name	Excavator Hydraulic Pump
Brand	Belparts
Machine model	SOLAR 300LC-7A SOLAR 300LC-V DX300LC
Packing Size	843849
Part number	401-00424C K1006550
Pressure	Standard, High Pressure

#	Part No	Part Name	Comment	Qty.	Price request
-	K1006550	PUMP, MAIN	172 kg	1
-	K1006550A	PUMP, MAIN	189 kg	1
-	K1006550B	PUMP, MAIN	187 kg	1
-	K1006550C	PUMP, MAIN	127 kg	1
111	1.405-00055	SHAFT, DRIVE(F)	3 kg	1
113	1.405-00057	SHAFT, DRIVE(R)	2 kg	1
116	1.403-00004	GEAR, 1st	1 kg	1
123	1.109-00111	BEARING, ROLLER	1 kg	2
124	1.109-00055	BEARING, NEEDLE		2
127	2.109-00228	SPACER, BEARING		3
13	1.451-00065	CYLINDER ASS`Y(R)	6 kg	1
13	K9006419	CYLINDER ASS`Y(R)	6 kg	1
14	1.451-00062	CYLINDER ASS`Y(L)	6 kg	1
14	K9006420	CYLINDER ASS`Y(L)	6 kg	1
11	K9006418	PISTON ASS`Y	2 kg	2 SET
153	1.412-00098	PLATE, SET		2
156	1.110-00101	BUSH , SPHERICAL		2
157	1.131-00131	SPRING, CYLINDER		18
211	1.412-00110	PLATE, SHOE	1 kg	2
30	K9001176	SWASH PLATE ASS`Y		2
212	K9001177	PLATE, SWASH		1
214	2.408-00088	BUSH, TILTING		1
80	K9001178	PROPORTIONAL REDUCING VALVE	2 kg	1
79	K9001179	E.P.P.R VALVE		1
79-1	2180-1217D13	O-RING		1
79-2	2180-1217D14	O-RING		1
79-3	2180-1217D15	O-RING		1
325	1.402-00097	CASING, VALVE	2 kg	1
407	S2205861	BOLT, HEX SOCKET HEAD		3
466	2181-1950D1	PLUG, RECHECK		1
490	2.181-00214	PLUG		3
725	S8000115	O-RING		4
732	S8000165	O-RING		1
251	K9001180	SUPPORT	10 kg	2
261	1.430-00213	COVER, SEAL(F)	1 kg	1
271	2.423-00114	CASING, PUMP	16 kg	2
312	K9001181	BLOCK, VALVE	24 kg	1
326	K9001182	COVER, SEAL(F)	1 kg	1
401	S2229071	BOLT SOCKET	1 kg	8
406	S2208871	BOLT HEX SOCKET HD CL		4
414	S2211861	BOLT, SOCKET M10X1.5X20		4
466	2181-1950D1	PLUG, RECHECK		2
467	2181-1950D2	PLUG, RECHECK		2
468	2181-1950D5	PLUG, RECHECK		4
490	2.181-00214	PLUG		32
530	1.123-00089	TILTING PIN ASS`Y		2
531	1.123-00090	PIN, TILTING		1
548	2.123-00154	PIN, FEED BACK		1
532	1.409-00209	PISTON	1 kg	2
534	1.416-00020	STOPPER(L)		2
535	1.416-00021	STOPPER(S)		2
41	K9001183	CHECK VALVE ASS`Y(1)		2
541	K9001184	SEAT		2
543	K9001185	STOPPER, 1		2
545	S6250132	BALL, STEEL		2
42	K9001186	CHECK VALVE ASS`Y(2)		2
541	K9001184	SEAT		2
544	K9001187	STOPPER, 1		2
545	S6250132	BALL, STEEL		2
702	S8010355	O-RING G35		2
710	S8010955	O-RING		2
717	S8011455	O-RING		4
724	S8000085	O-RING P8		16
725	S8000115	O-RING		4
726	S8000145	O-RING		2
728	S8000245	O-RING		4
732	S8000185	O-RING		2
774	K9001188	SEAL, OIL		1
789	S8060181	BACK UP RING(GN04080A0)JI	1BP18	2
792	S8090350	RING, BACK-UP		2
806	S4012931	NUT HEX		2
808	S4015130	NUT, HEX		2
824	S6500400	RING, RETAINING		2
885	2.123-00067	PIN, VALVE PLATE		2
886	S5740870	PIN, SPRING		4
901	S3140025	BOLT, EYE		2
953	S3527906	SCREW, SET		2
954	1.120-00071	SCREW, ADJUSTING		2
*	K9001195	SEAL KIT, PUMP		1

Tel :	+86 133 0228 6787
Fax :	86-020-32384870

Belparts Excavator Main Pump SOLAR 300LC-7A SOLAR 300LC-V DX300LC Hydraulic Pump 401-00424C K1006550 For Doosan

300LC-V Excavator main pump

DX300LC Excavator main pump

300LC-7A Excavator main pump

Specifiions Of Excavator Hydraulic Pump
